• Siemens SIRIUS 8WD53 Integrated Signal Lamps 70 mm (LED, flash)
1 1

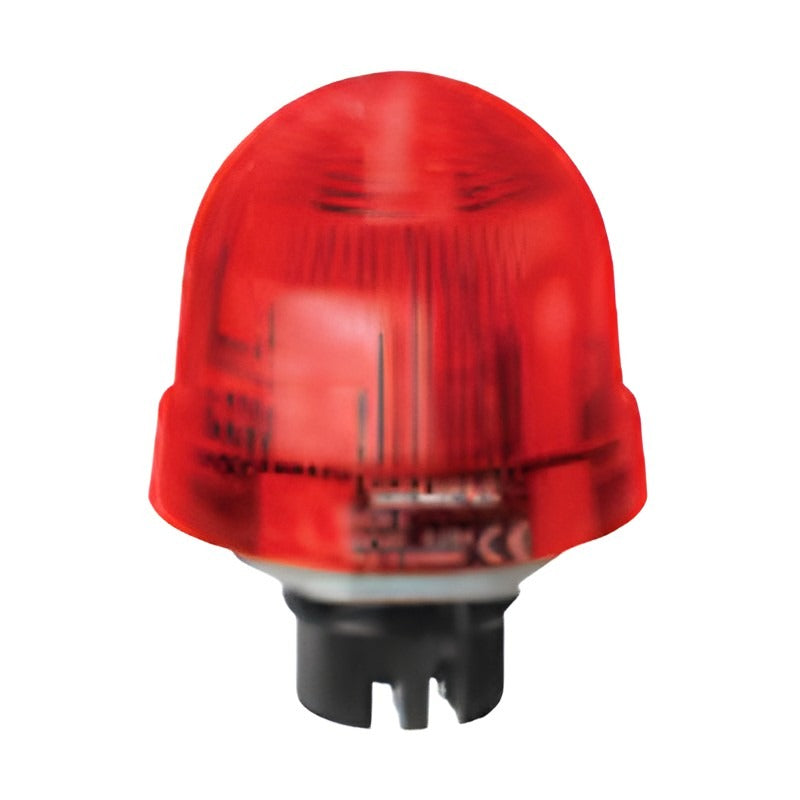

Siemens SIRIUS 8WD53 Integrated Signal Lamps 70 mm (LED, flash)

Siemens SIRIUS 8WD53 Integrated Signal Lamps 70 mm (LED, flash)

SIRIUS 8WD53 integrated signal lamps, 70 mm diameter, as compact single-tier beacons: continuous, blink, rotating LED lights, flashlights and BA15d versions.

Key features

  • Compact single signal lamp, 70 mm diameter
  • Continuous, blink and rotating lights with integrated LED, 24 V AC/DC
  • Flashlights with integrated electronic flash for 24 V DC, 115 V AC, 230 V AC
  • Continuous light for BA15d incandescent lamp/LED 12-230 V AC/DC
  • Tube adapter 8WD5308-0EG required for 8WD4 tube/foot mounting accessories

Specifications

Brand Siemens
Product line SIRIUS 8WD5
Diameter 70 mm
PU 1 unit
Design Single-tier signal lamp
Source Siemens Catalog IC 10 · 2026, p. 1393-1396
8WD5300-1AB Element: Continuous light, BA15d (no lamp) | Voltage: 12-230 V AC/DC | Color: Red
8WD5300-1AC Element: Continuous light, BA15d (no lamp) | Voltage: 12-230 V AC/DC | Color: Green
8WD5300-1AD Element: Continuous light, BA15d (no lamp) | Voltage: 12-230 V AC/DC | Color: Yellow
8WD5300-1AE Element: Continuous light, BA15d (no lamp) | Voltage: 12-230 V AC/DC | Color: Clear
8WD5300-1AF Element: Continuous light, BA15d (no lamp) | Voltage: 12-230 V AC/DC | Color: Blue
8WD5320-0CB Element: Flashlight, integrated electronic flash | Voltage: 24 V DC | Color: Red
8WD5320-0CC Element: Flashlight, integrated electronic flash | Voltage: 24 V DC | Color: Green
8WD5320-0CD Element: Flashlight, integrated electronic flash | Voltage: 24 V DC | Color: Yellow
8WD5320-0CE Element: Flashlight, integrated electronic flash | Voltage: 24 V DC | Color: Clear
8WD5320-0CF Element: Flashlight, integrated electronic flash | Voltage: 24 V DC | Color: Blue
8WD5340-0CB Element: Flashlight, integrated electronic flash | Voltage: 115 V AC | Color: Red
8WD5340-0CC Element: Flashlight, integrated electronic flash | Voltage: 115 V AC | Color: Green
8WD5340-0CD Element: Flashlight, integrated electronic flash | Voltage: 115 V AC | Color: Yellow
8WD5340-0CE Element: Flashlight, integrated electronic flash | Voltage: 115 V AC | Color: Clear
8WD5340-0CF Element: Flashlight, integrated electronic flash | Voltage: 115 V AC | Color: Blue
8WD5350-0CB Element: Flashlight, integrated electronic flash | Voltage: 230 V AC | Color: Red
8WD5350-0CC Element: Flashlight, integrated electronic flash | Voltage: 230 V AC | Color: Green
8WD5350-0CD Element: Flashlight, integrated electronic flash | Voltage: 230 V AC | Color: Yellow
8WD5350-0CE Element: Flashlight, integrated electronic flash | Voltage: 230 V AC | Color: Clear
8WD5350-0CF Element: Flashlight, integrated electronic flash | Voltage: 230 V AC | Color: Blue
8WD5320-5AB Element: Continuous light, integrated LED | Voltage: 24 V AC/DC | Color: Red
8WD5320-5AC Element: Continuous light, integrated LED | Voltage: 24 V AC/DC | Color: Green
8WD5320-5AD Element: Continuous light, integrated LED | Voltage: 24 V AC/DC | Color: Yellow
8WD5320-5AE Element: Continuous light, integrated LED | Voltage: 24 V AC/DC | Color: Clear
8WD5320-5AF Element: Continuous light, integrated LED | Voltage: 24 V AC/DC | Color: Blue
8WD5320-5BB Element: Blinklight, integrated LED | Voltage: 24 V AC/DC | Color: Red
8WD5320-5BC Element: Blinklight, integrated LED | Voltage: 24 V AC/DC | Color: Green
8WD5320-5BD Element: Blinklight, integrated LED | Voltage: 24 V AC/DC | Color: Yellow
8WD5320-5BE Element: Blinklight, integrated LED | Voltage: 24 V AC/DC | Color: Clear
8WD5320-5BF Element: Blinklight, integrated LED | Voltage: 24 V AC/DC | Color: Blue
8WD5320-5DB Element: Rotating light, integrated LED | Voltage: 24 V AC/DC | Color: Red
8WD5320-5DC Element: Rotating light, integrated LED | Voltage: 24 V AC/DC | Color: Green
8WD5320-5DD Element: Rotating light, integrated LED | Voltage: 24 V AC/DC | Color: Yellow
8WD5320-5DE Element: Rotating light, integrated LED | Voltage: 24 V AC/DC | Color: Clear
8WD5320-5DF Element: Rotating light, integrated LED | Voltage: 24 V AC/DC | Color: Blue
8WD5308-0EG Element: Tube adapter (required for tubes) | Voltage: -- | Color: Black
Pushbuttons & Pilot LightsSiemens
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIRIUS 8WD53 Integrated Signal Lamps 70 mm (LED, flash)

Brand Siemens·Pushbuttons & Pilot Lights

Available part numbers (36)

8WD5300-1AB, 8WD5300-1AC, 8WD5300-1AD, 8WD5300-1AE, 8WD5300-1AF, 8WD5320-0CB, 8WD5320-0CC, 8WD5320-0CD, 8WD5320-0CE, 8WD5320-0CF + 26 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
8WD5300-1ABElement: Continuous light, BA15d (no lamp) | Voltage: 12-230 V AC/DC | Color: Red
8WD5300-1ACElement: Continuous light, BA15d (no lamp) | Voltage: 12-230 V AC/DC | Color: Green
8WD5300-1ADElement: Continuous light, BA15d (no lamp) | Voltage: 12-230 V AC/DC | Color: Yellow
8WD5300-1AEElement: Continuous light, BA15d (no lamp) | Voltage: 12-230 V AC/DC | Color: Clear
8WD5300-1AFElement: Continuous light, BA15d (no lamp) | Voltage: 12-230 V AC/DC | Color: Blue
8WD5320-0CBElement: Flashlight, integrated electronic flash | Voltage: 24 V DC | Color: Red
8WD5320-0CCElement: Flashlight, integrated electronic flash | Voltage: 24 V DC | Color: Green
8WD5320-0CDElement: Flashlight, integrated electronic flash | Voltage: 24 V DC | Color: Yellow
8WD5320-0CEElement: Flashlight, integrated electronic flash | Voltage: 24 V DC | Color: Clear
8WD5320-0CFElement: Flashlight, integrated electronic flash | Voltage: 24 V DC | Color: Blue
8WD5340-0CBElement: Flashlight, integrated electronic flash | Voltage: 115 V AC | Color: Red
8WD5340-0CCElement: Flashlight, integrated electronic flash | Voltage: 115 V AC | Color: Green
8WD5340-0CDElement: Flashlight, integrated electronic flash | Voltage: 115 V AC | Color: Yellow
8WD5340-0CEElement: Flashlight, integrated electronic flash | Voltage: 115 V AC | Color: Clear
8WD5340-0CFElement: Flashlight, integrated electronic flash | Voltage: 115 V AC | Color: Blue
8WD5350-0CBElement: Flashlight, integrated electronic flash | Voltage: 230 V AC | Color: Red
8WD5350-0CCElement: Flashlight, integrated electronic flash | Voltage: 230 V AC | Color: Green
8WD5350-0CDElement: Flashlight, integrated electronic flash | Voltage: 230 V AC | Color: Yellow
8WD5350-0CEElement: Flashlight, integrated electronic flash | Voltage: 230 V AC | Color: Clear
8WD5350-0CFElement: Flashlight, integrated electronic flash | Voltage: 230 V AC | Color: Blue
8WD5320-5ABElement: Continuous light, integrated LED | Voltage: 24 V AC/DC | Color: Red
8WD5320-5ACElement: Continuous light, integrated LED | Voltage: 24 V AC/DC | Color: Green
8WD5320-5ADElement: Continuous light, integrated LED | Voltage: 24 V AC/DC | Color: Yellow
8WD5320-5AEElement: Continuous light, integrated LED | Voltage: 24 V AC/DC | Color: Clear
8WD5320-5AFElement: Continuous light, integrated LED | Voltage: 24 V AC/DC | Color: Blue
8WD5320-5BBElement: Blinklight, integrated LED | Voltage: 24 V AC/DC | Color: Red
8WD5320-5BCElement: Blinklight, integrated LED | Voltage: 24 V AC/DC | Color: Green
8WD5320-5BDElement: Blinklight, integrated LED | Voltage: 24 V AC/DC | Color: Yellow
8WD5320-5BEElement: Blinklight, integrated LED | Voltage: 24 V AC/DC | Color: Clear
8WD5320-5BFElement: Blinklight, integrated LED | Voltage: 24 V AC/DC | Color: Blue
8WD5320-5DBElement: Rotating light, integrated LED | Voltage: 24 V AC/DC | Color: Red
8WD5320-5DCElement: Rotating light, integrated LED | Voltage: 24 V AC/DC | Color: Green
8WD5320-5DDElement: Rotating light, integrated LED | Voltage: 24 V AC/DC | Color: Yellow
8WD5320-5DEElement: Rotating light, integrated LED | Voltage: 24 V AC/DC | Color: Clear
8WD5320-5DFElement: Rotating light, integrated LED | Voltage: 24 V AC/DC | Color: Blue
8WD5308-0EGElement: Tube adapter (required for tubes) | Voltage: -- | Color: Black
