KG BS Small Bevel Gear Boxes (L/T, Shaft 3-12 mm)

KG BS Small Bevel Gear Boxes (L/T, Shaft 3-12 mm)

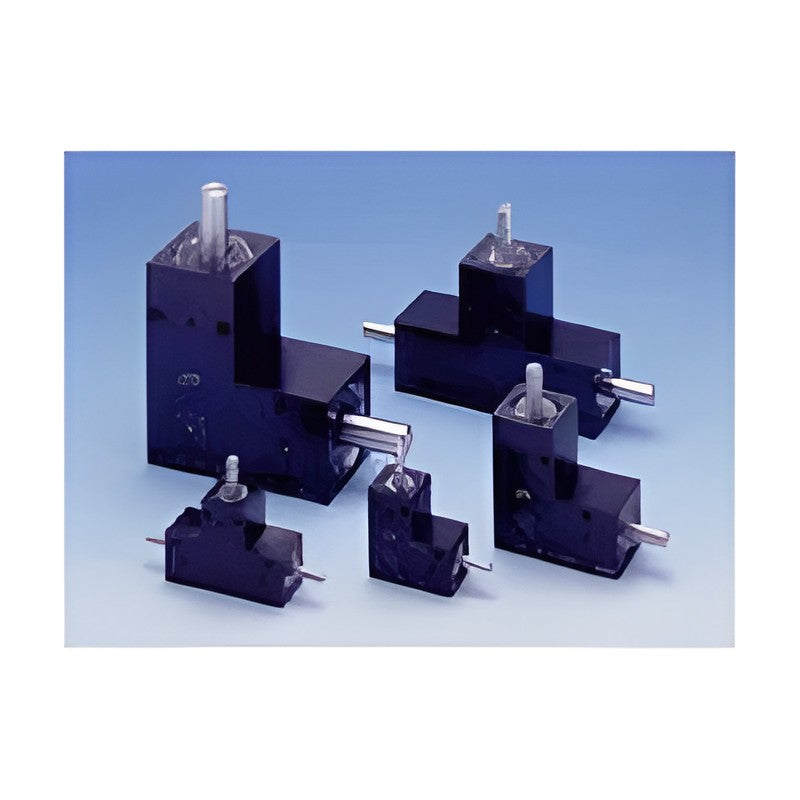

KG BS B-BOX units are miniature right-angle gear boxes with KG straight bevel gears in a black-anodized aluminium body. L and T shaft layouts are offered with 1:1 and 1:2 ratios.

Key features

  • Backlash set at 15 arc-min or less
  • L and T body shapes
  • Ratios 1:1 and 1:2
  • Shaft dia. 3-12 mm, stainless SUS303 shafts
  • Grease-packed, lightweight aluminium body

Specifications

Body A6063/A6061 aluminium, black anodized
Shafts SUS303, h7
Ratios 1:1, 1:2
Backlash 15 arc-min or less
Forms L, T
Source KG STOCK GEARS catalogue - B-BOXES (BS)
BS35L-001 Form: L | Ratio: 1:1 | Body size: 35 mm | Shaft: 3 mm
BS45L-001 Form: L | Ratio: 1:1 | Body size: 45 mm | Shaft: 4 mm
BS65L-001 Form: L | Ratio: 1:1 | Body size: 65 mm | Shaft: 6 mm
BS80L-001 Form: L | Ratio: 1:1 | Body size: 80 mm | Shaft: 8 mm
BS90L-001 Form: L | Ratio: 1:1 | Body size: 90 mm | Shaft: 10 mm
BS105L-001 Form: L | Ratio: 1:1 | Body size: 105 mm | Shaft: 12 mm
BS65L-002 Form: L | Ratio: 1:2 | Body size: 65 mm | Shaft: 6 mm
BS80L-002 Form: L | Ratio: 1:2 | Body size: 80 mm | Shaft: 8 mm
BS90L-002 Form: L | Ratio: 1:2 | Body size: 90 mm | Shaft: 10 mm
BS105L-002 Form: L | Ratio: 1:2 | Body size: 105 mm | Shaft: 12 mm
BS45T-001 Form: T | Ratio: 1:1 | Body size: 45 mm | Shaft: 4 mm
BS65T-001 Form: T | Ratio: 1:1 | Body size: 65 mm | Shaft: 6 mm
BS80T-001 Form: T | Ratio: 1:1 | Body size: 80 mm | Shaft: 8 mm
BS90T-001 Form: T | Ratio: 1:1 | Body size: 90 mm | Shaft: 10 mm
BS65T-002 Form: T | Ratio: 1:2 | Body size: 65 mm | Shaft: 6 mm
BS80T-002 Form: T | Ratio: 1:2 | Body size: 80 mm | Shaft: 8 mm
BS90T-002 Form: T | Ratio: 1:2 | Body size: 90 mm | Shaft: 10 mm
Bevel Gear BoxKG
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KG BS Small Bevel Gear Boxes (L/T, Shaft 3-12 mm)

Brand KG·Bevel Gear Box

Available part numbers (17)

BS35L-001, BS45L-001, BS65L-001, BS80L-001, BS90L-001, BS105L-001, BS65L-002, BS80L-002, BS90L-002, BS105L-002 + 7 more — see full table ↓

How to order

Send the KG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BS35L-001Form: L | Ratio: 1:1 | Body size: 35 mm | Shaft: 3 mm
BS45L-001Form: L | Ratio: 1:1 | Body size: 45 mm | Shaft: 4 mm
BS65L-001Form: L | Ratio: 1:1 | Body size: 65 mm | Shaft: 6 mm
BS80L-001Form: L | Ratio: 1:1 | Body size: 80 mm | Shaft: 8 mm
BS90L-001Form: L | Ratio: 1:1 | Body size: 90 mm | Shaft: 10 mm
BS105L-001Form: L | Ratio: 1:1 | Body size: 105 mm | Shaft: 12 mm
BS65L-002Form: L | Ratio: 1:2 | Body size: 65 mm | Shaft: 6 mm
BS80L-002Form: L | Ratio: 1:2 | Body size: 80 mm | Shaft: 8 mm
BS90L-002Form: L | Ratio: 1:2 | Body size: 90 mm | Shaft: 10 mm
BS105L-002Form: L | Ratio: 1:2 | Body size: 105 mm | Shaft: 12 mm
BS45T-001Form: T | Ratio: 1:1 | Body size: 45 mm | Shaft: 4 mm
BS65T-001Form: T | Ratio: 1:1 | Body size: 65 mm | Shaft: 6 mm
BS80T-001Form: T | Ratio: 1:1 | Body size: 80 mm | Shaft: 8 mm
BS90T-001Form: T | Ratio: 1:1 | Body size: 90 mm | Shaft: 10 mm
BS65T-002Form: T | Ratio: 1:2 | Body size: 65 mm | Shaft: 6 mm
BS80T-002Form: T | Ratio: 1:2 | Body size: 80 mm | Shaft: 8 mm
BS90T-002Form: T | Ratio: 1:2 | Body size: 90 mm | Shaft: 10 mm
