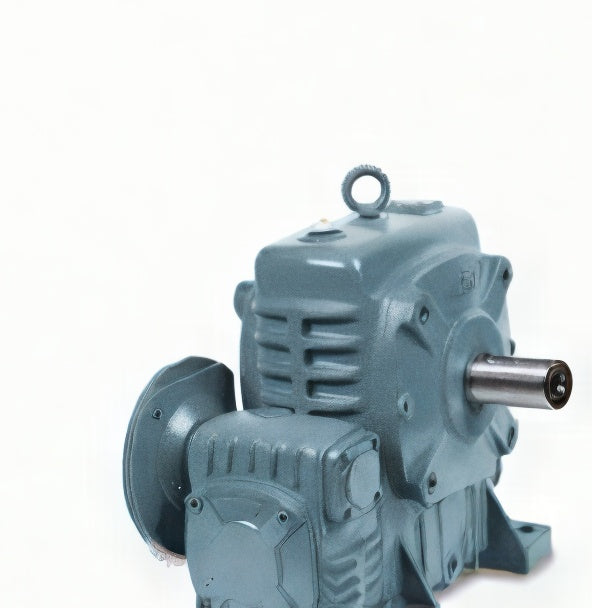

KGM KGW DWBM / DWVM Double Worm Reducer with Motor Flange (Sizes 70-225)
KGM KGW DWBM / DWVM Double Worm Reducer with Motor Flange (Sizes 70-225)
Two-stage worm reducers with a motor flange on the input stage for direct motor mounting.
Key features
- Horizontal output (DWBM) and vertical output (DWVM) versions in sizes 70 to 225
- Ratios 1/200 to 1/900 for very low output speeds
- Suitable for slow conveyors, rotating tables and similar drives
Specifications
| Reduction ratios | 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 |
|---|
| DWBM-70 | Size: 70 | Type: Double reduction, lower worm, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 0.15 at 1800 rpm | |
| DWBM-80 | Size: 80 | Type: Double reduction, lower worm, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 0.25 at 1800 rpm | |
| DWBM-100 | Size: 100 | Type: Double reduction, lower worm, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 0.50 at 1800 rpm | |
| DWBM-120 | Size: 120 | Type: Double reduction, lower worm, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 1.00 at 1800 rpm | |
| DWBM-135 | Size: 135 | Type: Double reduction, lower worm, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 2.00 at 1800 rpm | |
| DWBM-155 | Size: 155 | Type: Double reduction, lower worm, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 3.00 at 1800 rpm | |
| DWBM-175 | Size: 175 | Type: Double reduction, lower worm, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 5.00 at 1800 rpm | |
| DWBM-200 | Size: 200 | Type: Double reduction, lower worm, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 7.50 at 1800 rpm | |
| DWBM-225 | Size: 225 | Type: Double reduction, lower worm, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 7.50 at 1800 rpm | |
| DWVM-70 | Size: 70 | Type: Double reduction, vertical output, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 0.15 at 1800 rpm | |
| DWVM-80 | Size: 80 | Type: Double reduction, vertical output, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 0.25 at 1800 rpm | |
| DWVM-100 | Size: 100 | Type: Double reduction, vertical output, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 0.50 at 1800 rpm | |
| DWVM-120 | Size: 120 | Type: Double reduction, vertical output, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 1.00 at 1800 rpm | |
| DWVM-135 | Size: 135 | Type: Double reduction, vertical output, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 2.00 at 1800 rpm | |
| DWVM-155 | Size: 155 | Type: Double reduction, vertical output, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 3.00 at 1800 rpm | |
| DWVM-175 | Size: 175 | Type: Double reduction, vertical output, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 5.00 at 1800 rpm | |
| DWVM-200 | Size: 200 | Type: Double reduction, vertical output, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 7.50 at 1800 rpm | |
| DWVM-225 | Size: 225 | Type: Double reduction, vertical output, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 7.50 at 1800 rpm |
Worm Gear ReducersKGM
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
KGM KGW DWBM / DWVM Double Worm Reducer with Motor Flange (Sizes 70-225)
Available part numbers (18)
DWBM-70, DWBM-80, DWBM-100, DWBM-120, DWBM-135, DWBM-155, DWBM-175, DWBM-200, DWBM-225, DWVM-70 + 8 more — see full table ↓
How to order
Send the KGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
KGM
Worm Gear Reducers
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| DWBM-70 | Size: 70 | Type: Double reduction, lower worm, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 0.15 at 1800 rpm | ||
| DWBM-80 | Size: 80 | Type: Double reduction, lower worm, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 0.25 at 1800 rpm | ||
| DWBM-100 | Size: 100 | Type: Double reduction, lower worm, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 0.50 at 1800 rpm | ||
| DWBM-120 | Size: 120 | Type: Double reduction, lower worm, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 1.00 at 1800 rpm | ||
| DWBM-135 | Size: 135 | Type: Double reduction, lower worm, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 2.00 at 1800 rpm | ||
| DWBM-155 | Size: 155 | Type: Double reduction, lower worm, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 3.00 at 1800 rpm | ||
| DWBM-175 | Size: 175 | Type: Double reduction, lower worm, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 5.00 at 1800 rpm | ||
| DWBM-200 | Size: 200 | Type: Double reduction, lower worm, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 7.50 at 1800 rpm | ||
| DWBM-225 | Size: 225 | Type: Double reduction, lower worm, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 7.50 at 1800 rpm | ||
| DWVM-70 | Size: 70 | Type: Double reduction, vertical output, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 0.15 at 1800 rpm | ||
| DWVM-80 | Size: 80 | Type: Double reduction, vertical output, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 0.25 at 1800 rpm | ||
| DWVM-100 | Size: 100 | Type: Double reduction, vertical output, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 0.50 at 1800 rpm | ||
| DWVM-120 | Size: 120 | Type: Double reduction, vertical output, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 1.00 at 1800 rpm | ||
| DWVM-135 | Size: 135 | Type: Double reduction, vertical output, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 2.00 at 1800 rpm | ||
| DWVM-155 | Size: 155 | Type: Double reduction, vertical output, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 3.00 at 1800 rpm | ||
| DWVM-175 | Size: 175 | Type: Double reduction, vertical output, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 5.00 at 1800 rpm | ||
| DWVM-200 | Size: 200 | Type: Double reduction, vertical output, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 7.50 at 1800 rpm | ||
| DWVM-225 | Size: 225 | Type: Double reduction, vertical output, motor flange input | Reduction ratios: 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900 | Max rated input (HP): 7.50 at 1800 rpm |
