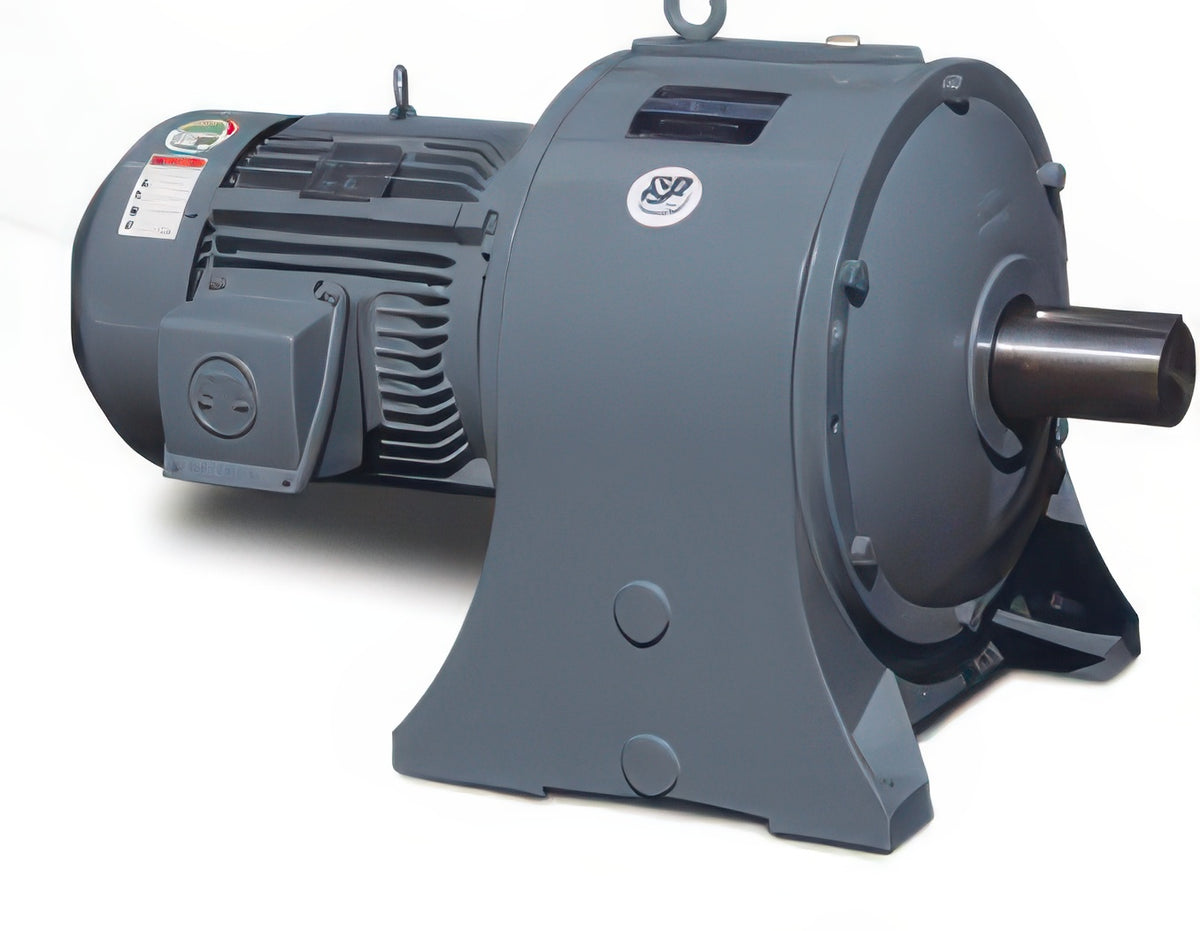

KGM KrexDrive KD Heavy Duty Helical Geared Motor, Horizontal Foot Mount (H Series)

KGM KrexDrive KD Heavy Duty Helical Geared Motor, Horizontal Foot Mount (H Series)

Heavy-duty foot-mounted helical geared motors with a 3-phase induction motor fitted, for continuous industrial drives.

Key features

  • Frames range from H1652 to H5203 for motor capacities from 2.2 kW (4P) up to 75 kW (4P), with 6-pole options
  • Frames ending in 2 are two-stage units (ratios 1/10-1/30); frames ending in 3 are three-stage units (ratios 1/30-1/60)
  • Output speeds from 180 rpm down to 20 rpm with solid keyed output shaft

Specifications

Mounting Horizontal, foot mount
KD H1652 Frame: H1652 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 2.2 kW / 1.5 kW | Reduction ratios: 1/10, 1/15, 1/20 | Weight (kg): 90 | Output shaft dia (mm): 40
KD H2002 Frame: H2002 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 2.2 kW / 1.5 kW; 3.7 kW / 2.2 kW | Reduction ratios: 1/10, 1/15, 1/20, 1/25, 1/30 | Weight (kg): 98-115 (depends on capacity) | Output shaft dia (mm): 45
KD H2003 Frame: H2003 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 2.2 kW / 1.5 kW | Reduction ratios: 1/40, 1/50, 1/60 | Weight (kg): 145 | Output shaft dia (mm): 55
KD H2252 Frame: H2252 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 3.7 kW / 2.2 kW; 5.5 kW / 3.7 kW | Reduction ratios: 1/10, 1/15, 1/20, 1/25, 1/30 | Weight (kg): 140-165 (depends on capacity) | Output shaft dia (mm): 50
KD H2253 Frame: H2253 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 3.7 kW / 2.2 kW | Reduction ratios: 1/40, 1/50, 1/60 | Weight (kg): 190
KD H2552 Frame: H2552 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 5.5 kW / 3.7 kW; 7.5 kW / 5.5 kW; 11 kW / 7.5 kW | Reduction ratios: 1/10, 1/15, 1/20, 1/25, 1/30 | Weight (kg): 205-235 (depends on capacity) | Output shaft dia (mm): 60
KD H2553 Frame: H2553 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 5.5 kW / 3.7 kW; 7.5 kW / 5.5 kW | Reduction ratios: 1/40, 1/50, 1/60 | Weight (kg): 300-315 (depends on capacity) | Output shaft dia (mm): 80
KD H3002 Frame: H3002 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 11 kW / 7.5 kW; 15 kW / 11 kW; 22 kW / 15 kW | Reduction ratios: 1/10, 1/15, 1/20, 1/25, 1/30 | Weight (kg): 375-485 (depends on capacity) | Output shaft dia (mm): 80
KD H3003 Frame: H3003 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 11 kW / 7.5 kW; 15 kW / 11 kW | Reduction ratios: 1/40, 1/50, 1/60 | Weight (kg): 460-485 (depends on capacity) | Output shaft dia (mm): 100
KD H3502 Frame: H3502 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 22 kW / 15 kW; 30 kW / 19-22 kW | Reduction ratios: 1/10, 1/15, 1/20, 1/25, 1/30 | Weight (kg): 530-615 (depends on capacity) | Output shaft dia (mm): 90
KD H3503 Frame: H3503 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 22 kW / 15 kW | Reduction ratios: 1/40, 1/50, 1/60 | Weight (kg): 695 | Output shaft dia (mm): 110
KD H4203 Frame: H4203 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 30 kW / 22 kW; 37 kW / 30 kW | Reduction ratios: 1/40, 1/50, 1/60 | Weight (kg): 970-995 (depends on capacity)
KD H5202 Frame: H5202 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 55 kW / 37 kW; 75 kW / 55 kW | Reduction ratios: 1/10, 1/15, 1/20 | Weight (kg): 1110-1160 (depends on capacity) | Output shaft dia (mm): 140
KD H5203 Frame: H5203 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 55 kW / 37 kW; 75 kW / 55 kW | Reduction ratios: 1/30, 1/40, 1/50, 1/60 | Weight (kg): 1410-1460 (depends on capacity) | Output shaft dia (mm): 170
Geared MotorsKGM
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KGM KrexDrive KD Heavy Duty Helical Geared Motor, Horizontal Foot Mount (H Series)

Brand KGM·Geared Motors

Available part numbers (14)

KD H1652, KD H2002, KD H2003, KD H2252, KD H2253, KD H2552, KD H2553, KD H3002, KD H3003, KD H3502 + 4 more — see full table ↓

How to order

Send the KGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KD H1652Frame: H1652 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 2.2 kW / 1.5 kW | Reduction ratios: 1/10, 1/15, 1/20 | Weight (kg): 90 | Output shaft dia (mm): 40
KD H2002Frame: H2002 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 2.2 kW / 1.5 kW; 3.7 kW / 2.2 kW | Reduction ratios: 1/10, 1/15, 1/20, 1/25, 1/30 | Weight (kg): 98-115 (depends on capacity) | Output shaft dia (mm): 45
KD H2003Frame: H2003 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 2.2 kW / 1.5 kW | Reduction ratios: 1/40, 1/50, 1/60 | Weight (kg): 145 | Output shaft dia (mm): 55
KD H2252Frame: H2252 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 3.7 kW / 2.2 kW; 5.5 kW / 3.7 kW | Reduction ratios: 1/10, 1/15, 1/20, 1/25, 1/30 | Weight (kg): 140-165 (depends on capacity) | Output shaft dia (mm): 50
KD H2253Frame: H2253 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 3.7 kW / 2.2 kW | Reduction ratios: 1/40, 1/50, 1/60 | Weight (kg): 190
KD H2552Frame: H2552 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 5.5 kW / 3.7 kW; 7.5 kW / 5.5 kW; 11 kW / 7.5 kW | Reduction ratios: 1/10, 1/15, 1/20, 1/25, 1/30 | Weight (kg): 205-235 (depends on capacity) | Output shaft dia (mm): 60
KD H2553Frame: H2553 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 5.5 kW / 3.7 kW; 7.5 kW / 5.5 kW | Reduction ratios: 1/40, 1/50, 1/60 | Weight (kg): 300-315 (depends on capacity) | Output shaft dia (mm): 80
KD H3002Frame: H3002 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 11 kW / 7.5 kW; 15 kW / 11 kW; 22 kW / 15 kW | Reduction ratios: 1/10, 1/15, 1/20, 1/25, 1/30 | Weight (kg): 375-485 (depends on capacity) | Output shaft dia (mm): 80
KD H3003Frame: H3003 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 11 kW / 7.5 kW; 15 kW / 11 kW | Reduction ratios: 1/40, 1/50, 1/60 | Weight (kg): 460-485 (depends on capacity) | Output shaft dia (mm): 100
KD H3502Frame: H3502 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 22 kW / 15 kW; 30 kW / 19-22 kW | Reduction ratios: 1/10, 1/15, 1/20, 1/25, 1/30 | Weight (kg): 530-615 (depends on capacity) | Output shaft dia (mm): 90
KD H3503Frame: H3503 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 22 kW / 15 kW | Reduction ratios: 1/40, 1/50, 1/60 | Weight (kg): 695 | Output shaft dia (mm): 110
KD H4203Frame: H4203 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 30 kW / 22 kW; 37 kW / 30 kW | Reduction ratios: 1/40, 1/50, 1/60 | Weight (kg): 970-995 (depends on capacity)
KD H5202Frame: H5202 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 55 kW / 37 kW; 75 kW / 55 kW | Reduction ratios: 1/10, 1/15, 1/20 | Weight (kg): 1110-1160 (depends on capacity) | Output shaft dia (mm): 140
KD H5203Frame: H5203 | Mounting: Horizontal, foot mount | Motor capacity (4P / 6P): 55 kW / 37 kW; 75 kW / 55 kW | Reduction ratios: 1/30, 1/40, 1/50, 1/60 | Weight (kg): 1410-1460 (depends on capacity) | Output shaft dia (mm): 170
