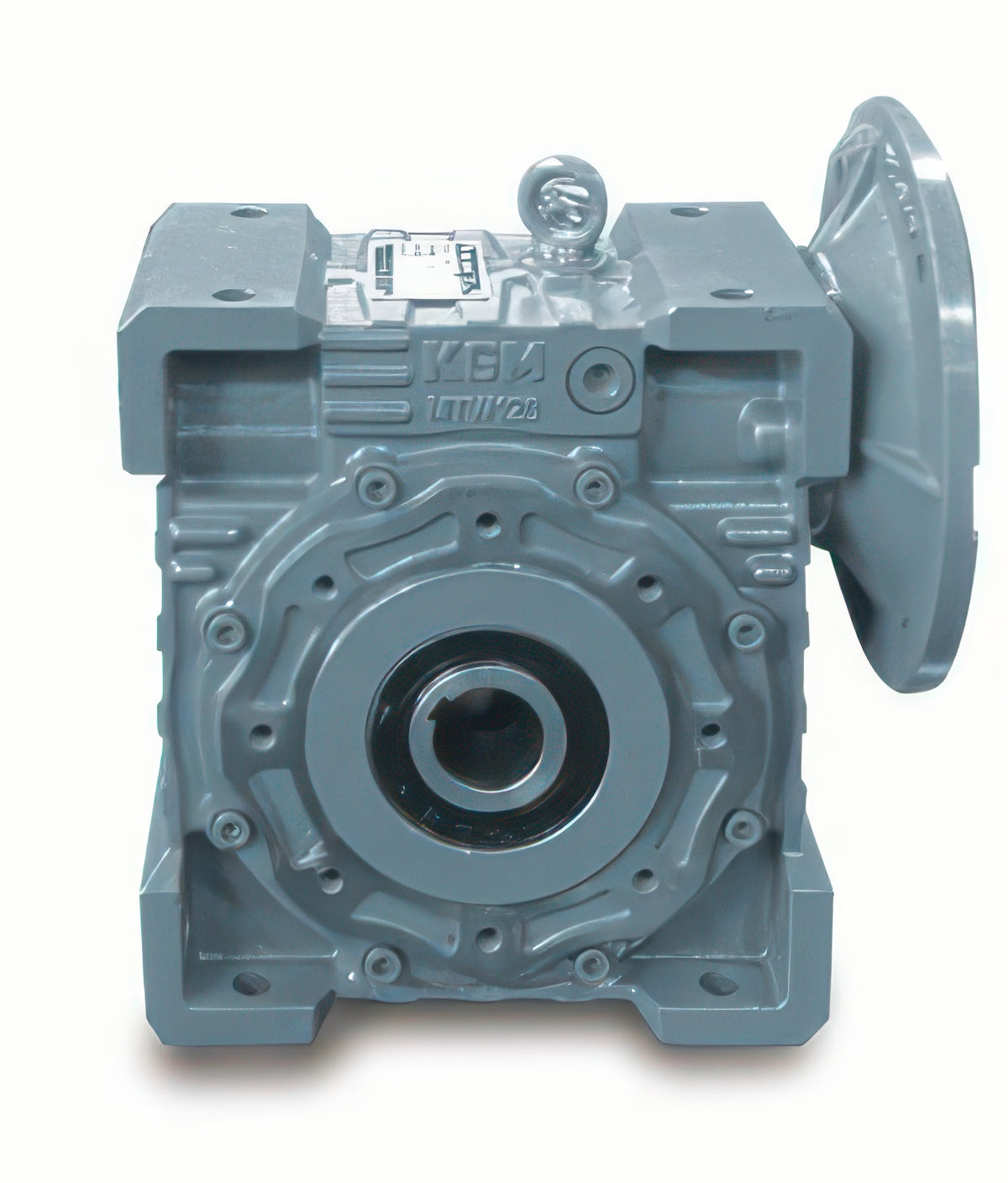

KGM MTW Mighty Worm Hollow Shaft Worm Reducer (Sizes 100-155)

KGM MTW Mighty Worm Hollow Shaft Worm Reducer (Sizes 100-155)

Square-housing worm gear reducer with a hollow output shaft for direct mounting on the driven shaft.

Key features

  • The MTW is supplied with a solid input shaft and the MTWM with a motor flange for direct motor mounting
  • Sizes 100, 120, 135 and 155 with ratios 1/10 to 1/60
  • The housing can be fixed on several faces with tapped holes

Specifications

Reduction ratios 1/10, 1/15, 1/20, 1/30, 1/40, 1/50, 1/60
MTW100 Size (center distance, mm): 100 | Type: hollow output shaft worm reducer, input shaft | Reduction ratios: 1/10, 1/15, 1/20, 1/30, 1/40, 1/50, 1/60 | Max rated input (HP): 3.00 at 1800 rpm
MTW120 Size (center distance, mm): 120 | Type: hollow output shaft worm reducer, input shaft | Reduction ratios: 1/10, 1/15, 1/20, 1/30, 1/40, 1/50, 1/60 | Max rated input (HP): 5.00 at 1800 rpm
MTW135 Size (center distance, mm): 135 | Type: hollow output shaft worm reducer, input shaft | Reduction ratios: 1/10, 1/15, 1/20, 1/30, 1/40, 1/50, 1/60 | Max rated input (HP): 7.5 at 1800 rpm
MTW155 Size (center distance, mm): 155 | Type: hollow output shaft worm reducer, input shaft | Reduction ratios: 1/10, 1/15, 1/20, 1/30, 1/40, 1/50, 1/60 | Max rated input (HP): 10.0 at 1800 rpm
MTWM100 Size (center distance, mm): 100 | Type: hollow output shaft worm reducer with motor flange input | Reduction ratios: 1/10, 1/15, 1/20, 1/30, 1/40, 1/50, 1/60 | Max rated input (HP): 3.00 at 1800 rpm
MTWM120 Size (center distance, mm): 120 | Type: hollow output shaft worm reducer with motor flange input | Reduction ratios: 1/10, 1/15, 1/20, 1/30, 1/40, 1/50, 1/60 | Max rated input (HP): 5.00 at 1800 rpm
MTWM135 Size (center distance, mm): 135 | Type: hollow output shaft worm reducer with motor flange input | Reduction ratios: 1/10, 1/15, 1/20, 1/30, 1/40, 1/50, 1/60 | Max rated input (HP): 7.5 at 1800 rpm
MTWM155 Size (center distance, mm): 155 | Type: hollow output shaft worm reducer with motor flange input | Reduction ratios: 1/10, 1/15, 1/20, 1/30, 1/40, 1/50, 1/60 | Max rated input (HP): 10.0 at 1800 rpm
Worm Gear ReducersKGM
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KGM MTW Mighty Worm Hollow Shaft Worm Reducer (Sizes 100-155)

Brand KGM·Worm Gear Reducers

Available part numbers (8)

MTW100, MTW120, MTW135, MTW155, MTWM100, MTWM120, MTWM135, MTWM155

How to order

Send the KGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MTW100Size (center distance, mm): 100 | Type: hollow output shaft worm reducer, input shaft | Reduction ratios: 1/10, 1/15, 1/20, 1/30, 1/40, 1/50, 1/60 | Max rated input (HP): 3.00 at 1800 rpm
MTW120Size (center distance, mm): 120 | Type: hollow output shaft worm reducer, input shaft | Reduction ratios: 1/10, 1/15, 1/20, 1/30, 1/40, 1/50, 1/60 | Max rated input (HP): 5.00 at 1800 rpm
MTW135Size (center distance, mm): 135 | Type: hollow output shaft worm reducer, input shaft | Reduction ratios: 1/10, 1/15, 1/20, 1/30, 1/40, 1/50, 1/60 | Max rated input (HP): 7.5 at 1800 rpm
MTW155Size (center distance, mm): 155 | Type: hollow output shaft worm reducer, input shaft | Reduction ratios: 1/10, 1/15, 1/20, 1/30, 1/40, 1/50, 1/60 | Max rated input (HP): 10.0 at 1800 rpm
MTWM100Size (center distance, mm): 100 | Type: hollow output shaft worm reducer with motor flange input | Reduction ratios: 1/10, 1/15, 1/20, 1/30, 1/40, 1/50, 1/60 | Max rated input (HP): 3.00 at 1800 rpm
MTWM120Size (center distance, mm): 120 | Type: hollow output shaft worm reducer with motor flange input | Reduction ratios: 1/10, 1/15, 1/20, 1/30, 1/40, 1/50, 1/60 | Max rated input (HP): 5.00 at 1800 rpm
MTWM135Size (center distance, mm): 135 | Type: hollow output shaft worm reducer with motor flange input | Reduction ratios: 1/10, 1/15, 1/20, 1/30, 1/40, 1/50, 1/60 | Max rated input (HP): 7.5 at 1800 rpm
MTWM155Size (center distance, mm): 155 | Type: hollow output shaft worm reducer with motor flange input | Reduction ratios: 1/10, 1/15, 1/20, 1/30, 1/40, 1/50, 1/60 | Max rated input (HP): 10.0 at 1800 rpm
