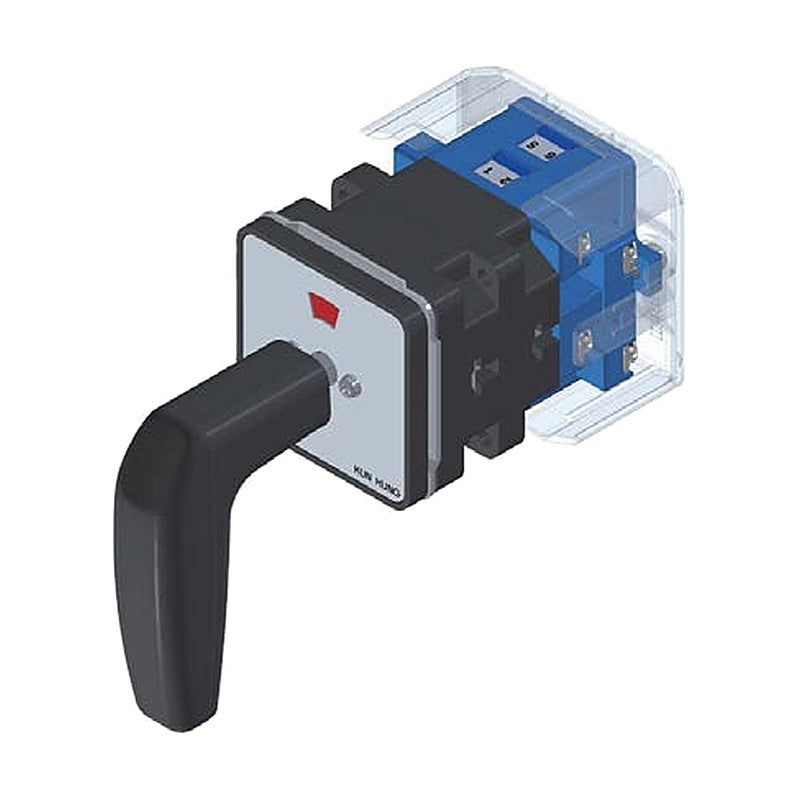

KOINO KC-30A/KC-20D Heavy-Duty Cam Switches (30A AC / 20A DC)

KOINO KC-30A/KC-20D Heavy-Duty Cam Switches (30A AC / 20A DC)

KOINO KC-30A (30A 250VAC) and KC-20D (20A 125VDC) panel-mount cam switches with horizontal screw terminals, 2 to 6 notch positions and 1 to 8 contact decks, built to order to the customer's circuit.

Key features

  • Order code KC-[rating][W]-[front][action][notches][decks][serial][handle]: rating 30A or 20D, W = IP65 rain-proof, front 6 (60x60), 6S (60x60 indicator, CL only), A (60x83), 24D (60x80 with 24VDC lamp, T = 3-color lamp), action blank/R/C/CL/3M/6M/9M, then notch count 2-6, deck count 1-8 and contact-circuit serial 01-99 (e.g. 3210 = 3 notches, 2 decks, circuit 10) and handle E (oval), T (triangle), P (pistol) or R (chrysanthemum)
  • Key-locker type KC-30AKL/KC-20DKL (actions blank/R/C/9M) and padlock type KC-30A-6PR...PL (push-turn auto return) use the same notch/deck/serial scheme
  • Rows list the printed frame configurations; the contact circuit is made to order (R, C and CL types up to 5 decks) and a circuit drawing must be attached to the order
  • Printed application circuits: voltmeter selectors V2-C4210 / V3-C4211 / 7601, ammeter selectors A2-C4213 / A3-C4307 / 4503 / 4322, ON-OFF C,S-C3102A,R, motor FOR-OFF-REV 3242 / M-3331 / M-3332, star-delta 3413, pole change 3414 / 3415, plus the full made-to-order circuit library from 2-notch 1-deck to 12-notch 4-deck (catalog pp. 95-120)
  • Body length L = 5 + (n x 15.5) mm for n contact decks; M4x8 terminal screws; 2-color (R/G) or 3-color (R/Y/G) 24VDC lamp on 24D panels
  • KC 61058-1, EN IEC 60947-1/60947-5-1, UL 60947-1/60947-5-1 and CAN/CSA C22.2 certified

Specifications

Rated insulation voltage 600VAC, 250VDC (KC-30A); 250VDC (KC-20D)
Conventional thermal current 35A
Contact rating 240V 30A resistive (30A); 125VDC 20A resistive (20D)
AC-15 / DC-13 rating 220-240V 15A / 24V 15A (KC-30A)
Dielectric strength 2,500VAC 60Hz for 1 min
Insulation resistance 100 Mohm min. (500VDC)
Contact resistance 50 mohm max. (initial)
Electrical / mechanical life 100,000 / 500,000 operations
Operating frequency 20 operations/min max.
Ambient temperature -25 to +60 C operating, -40 to +70 C storage
Materials UL94-V0 contact block, PA66 operator, Ag alloy contacts, POM cam
Source KOINO general catalog 5th ed., p. 84-120
KC-30A-6 Rating: 30A 250VAC | Protection: IP40 | Front: 60x60 panel | Action: Manual return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-30AW-6 Rating: 30A 250VAC | Protection: IP65 (rain-proof) | Front: 60x60 panel | Action: Manual return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-20D-6 Rating: 20A 125VDC | Protection: IP40 | Front: 60x60 panel | Action: Manual return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-20DW-6 Rating: 20A 125VDC | Protection: IP65 (rain-proof) | Front: 60x60 panel | Action: Manual return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-30A-6CL Rating: 30A 250VAC | Protection: IP40 | Front: 60x60 panel | Action: Handle-latch auto return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-30AW-6CL Rating: 30A 250VAC | Protection: IP65 (rain-proof) | Front: 60x60 panel | Action: Handle-latch auto return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-20D-6CL Rating: 20A 125VDC | Protection: IP40 | Front: 60x60 panel | Action: Handle-latch auto return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-20DW-6CL Rating: 20A 125VDC | Protection: IP65 (rain-proof) | Front: 60x60 panel | Action: Handle-latch auto return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-30A-A Rating: 30A 250VAC | Protection: IP40 | Front: 60x83 panel | Action: Manual return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-30AW-A Rating: 30A 250VAC | Protection: IP65 (rain-proof) | Front: 60x83 panel | Action: Manual return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-20D-A Rating: 20A 125VDC | Protection: IP40 | Front: 60x83 panel | Action: Manual return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-20DW-A Rating: 20A 125VDC | Protection: IP65 (rain-proof) | Front: 60x83 panel | Action: Manual return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-30A-ACL Rating: 30A 250VAC | Protection: IP40 | Front: 60x83 panel | Action: Handle-latch auto return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-30AW-ACL Rating: 30A 250VAC | Protection: IP65 (rain-proof) | Front: 60x83 panel | Action: Handle-latch auto return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-20D-ACL Rating: 20A 125VDC | Protection: IP40 | Front: 60x83 panel | Action: Handle-latch auto return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-20DW-ACL Rating: 20A 125VDC | Protection: IP65 (rain-proof) | Front: 60x83 panel | Action: Handle-latch auto return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-30A-24D Rating: 30A 250VAC | Protection: IP40 | Front: 60x80 panel, 24VDC 2-color lamp | Action: Manual return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-30AW-24D Rating: 30A 250VAC | Protection: IP65 (rain-proof) | Front: 60x80 panel, 24VDC 2-color lamp | Action: Manual return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-20D-24D Rating: 20A 125VDC | Protection: IP40 | Front: 60x80 panel, 24VDC 2-color lamp | Action: Manual return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-20DW-24D Rating: 20A 125VDC | Protection: IP65 (rain-proof) | Front: 60x80 panel, 24VDC 2-color lamp | Action: Manual return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-30A-24DCL Rating: 30A 250VAC | Protection: IP40 | Front: 60x80 panel, 24VDC 2-color lamp | Action: Handle-latch auto return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-30AW-24DCL Rating: 30A 250VAC | Protection: IP65 (rain-proof) | Front: 60x80 panel, 24VDC 2-color lamp | Action: Handle-latch auto return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-20D-24DCL Rating: 20A 125VDC | Protection: IP40 | Front: 60x80 panel, 24VDC 2-color lamp | Action: Handle-latch auto return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-20DW-24DCL Rating: 20A 125VDC | Protection: IP65 (rain-proof) | Front: 60x80 panel, 24VDC 2-color lamp | Action: Handle-latch auto return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-30AKL Rating: 30A 250VAC | Protection: IP40 | Front: 70x70 key-locker panel | Action: Manual return, 45 deg | Operator: Key (KL)
KC-20DKL Rating: 20A 125VDC | Protection: IP40 | Front: 70x70 key-locker panel | Action: Manual return, 45 deg | Operator: Key (KL)
KC-30KLW Rating: 30A 250VAC | Protection: IP65 (rain-proof) | Front: 70x70 key-locker panel | Action: Manual return, 45 deg | Operator: Key (KL)
KC-20KLW Rating: 20A 125VDC | Protection: IP65 (rain-proof) | Front: 70x70 key-locker panel | Action: Manual return, 45 deg | Operator: Key (KL)
KC-30A-PRPL Rating: 30A 250VAC | Protection: IP40 | Front: 60x60 panel | Action: Push-turn auto return, 45 deg | Operator: Padlock knob (PL)
Cam SwitchesKOINO
29 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KC-30A/KC-20D Heavy-Duty Cam Switches (30A AC / 20A DC)

Brand KOINO·Cam Switches

Available part numbers (29)

KC-30A-6, KC-30AW-6, KC-20D-6, KC-20DW-6, KC-30A-6CL, KC-30AW-6CL, KC-20D-6CL, KC-20DW-6CL, KC-30A-A, KC-30AW-A + 19 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KC-30A-6Rating: 30A 250VAC | Protection: IP40 | Front: 60x60 panel | Action: Manual return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-30AW-6Rating: 30A 250VAC | Protection: IP65 (rain-proof) | Front: 60x60 panel | Action: Manual return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-20D-6Rating: 20A 125VDC | Protection: IP40 | Front: 60x60 panel | Action: Manual return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-20DW-6Rating: 20A 125VDC | Protection: IP65 (rain-proof) | Front: 60x60 panel | Action: Manual return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-30A-6CLRating: 30A 250VAC | Protection: IP40 | Front: 60x60 panel | Action: Handle-latch auto return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-30AW-6CLRating: 30A 250VAC | Protection: IP65 (rain-proof) | Front: 60x60 panel | Action: Handle-latch auto return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-20D-6CLRating: 20A 125VDC | Protection: IP40 | Front: 60x60 panel | Action: Handle-latch auto return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-20DW-6CLRating: 20A 125VDC | Protection: IP65 (rain-proof) | Front: 60x60 panel | Action: Handle-latch auto return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-30A-ARating: 30A 250VAC | Protection: IP40 | Front: 60x83 panel | Action: Manual return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-30AW-ARating: 30A 250VAC | Protection: IP65 (rain-proof) | Front: 60x83 panel | Action: Manual return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-20D-ARating: 20A 125VDC | Protection: IP40 | Front: 60x83 panel | Action: Manual return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-20DW-ARating: 20A 125VDC | Protection: IP65 (rain-proof) | Front: 60x83 panel | Action: Manual return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-30A-ACLRating: 30A 250VAC | Protection: IP40 | Front: 60x83 panel | Action: Handle-latch auto return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-30AW-ACLRating: 30A 250VAC | Protection: IP65 (rain-proof) | Front: 60x83 panel | Action: Handle-latch auto return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-20D-ACLRating: 20A 125VDC | Protection: IP40 | Front: 60x83 panel | Action: Handle-latch auto return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-20DW-ACLRating: 20A 125VDC | Protection: IP65 (rain-proof) | Front: 60x83 panel | Action: Handle-latch auto return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-30A-24DRating: 30A 250VAC | Protection: IP40 | Front: 60x80 panel, 24VDC 2-color lamp | Action: Manual return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-30AW-24DRating: 30A 250VAC | Protection: IP65 (rain-proof) | Front: 60x80 panel, 24VDC 2-color lamp | Action: Manual return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-20D-24DRating: 20A 125VDC | Protection: IP40 | Front: 60x80 panel, 24VDC 2-color lamp | Action: Manual return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-20DW-24DRating: 20A 125VDC | Protection: IP65 (rain-proof) | Front: 60x80 panel, 24VDC 2-color lamp | Action: Manual return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-30A-24DCLRating: 30A 250VAC | Protection: IP40 | Front: 60x80 panel, 24VDC 2-color lamp | Action: Handle-latch auto return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-30AW-24DCLRating: 30A 250VAC | Protection: IP65 (rain-proof) | Front: 60x80 panel, 24VDC 2-color lamp | Action: Handle-latch auto return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-20D-24DCLRating: 20A 125VDC | Protection: IP40 | Front: 60x80 panel, 24VDC 2-color lamp | Action: Handle-latch auto return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-20DW-24DCLRating: 20A 125VDC | Protection: IP65 (rain-proof) | Front: 60x80 panel, 24VDC 2-color lamp | Action: Handle-latch auto return, 45 deg | Operator: Handle E/T/P/R (specify)
KC-30AKLRating: 30A 250VAC | Protection: IP40 | Front: 70x70 key-locker panel | Action: Manual return, 45 deg | Operator: Key (KL)
KC-20DKLRating: 20A 125VDC | Protection: IP40 | Front: 70x70 key-locker panel | Action: Manual return, 45 deg | Operator: Key (KL)
KC-30KLWRating: 30A 250VAC | Protection: IP65 (rain-proof) | Front: 70x70 key-locker panel | Action: Manual return, 45 deg | Operator: Key (KL)
KC-20KLWRating: 20A 125VDC | Protection: IP65 (rain-proof) | Front: 70x70 key-locker panel | Action: Manual return, 45 deg | Operator: Key (KL)
KC-30A-PRPLRating: 30A 250VAC | Protection: IP40 | Front: 60x60 panel | Action: Push-turn auto return, 45 deg | Operator: Padlock knob (PL)
