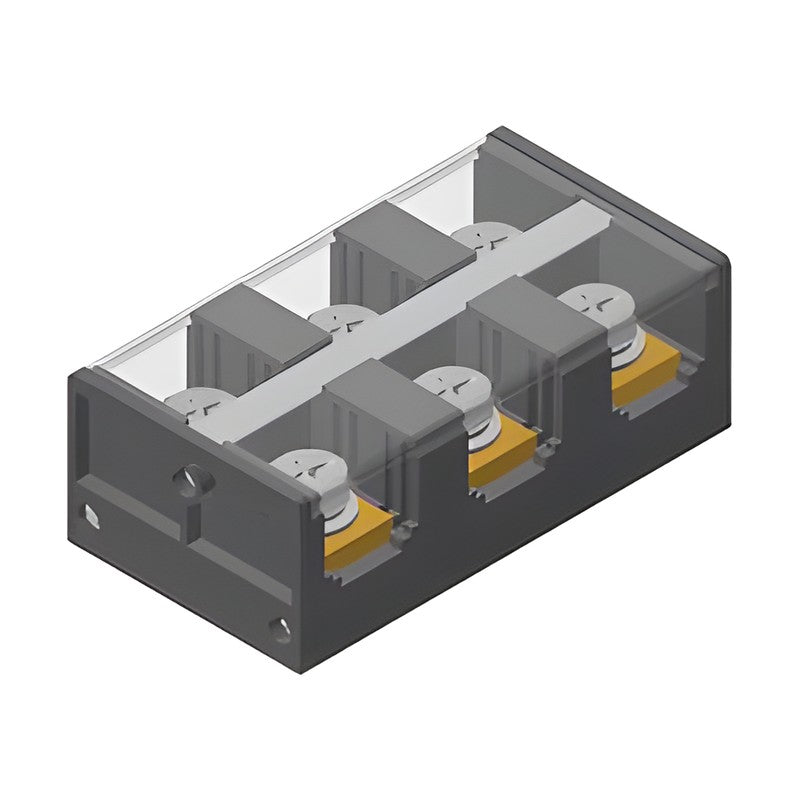

KOINO KH-6010A~60700A Assembled Fixed Terminal Blocks (10-700A)

KOINO KH-6010A to KH-60700A assembled fixed (screw-clamp) terminal blocks rated 600V, 10A to 700A, in 3 to 20-pole blocks with a transparent cover and white marking strip.

Key features

Twelve current ratings (10, 20, 30, 45, 60, 100, 150, 200, 300, 500, 650, 700A) at 600V rated insulation voltage
10A-300A ratings available in 3, 4, 6, 8, 10, 12, 15 and 20 poles; 500A, 650A and 700A in 3 and 4 poles
Black Noryl body, transparent polycarbonate cover and white PC number plate; brass terminals (pure copper on 650A/700A)
Terminal screws M3 to M12 for ring-lug wiring; applicable wire 2.5 mm2 (10A) up to 185 mm2 (300A and above)
Insulation resistance 100 MOhm min., dielectric strength 2,500 VAC for 1 minute
Ordering chart writes the model as KH-6010A-3P (rating + pole count); model tables print KH-6010A-3; overall length, mounting pitch and weight per model are tabulated in the catalog

Specifications

Series	KH-6010A ~ KH-60700A
Type	Assembled fixed terminal block
Rated insulation voltage	600V
Rated current	10A to 700A
Insulation resistance	100 MOhm min.
Dielectric strength	2,500 VAC for 1 min
Body	Noryl (black)
Cover	Polycarbonate (transparent)
Number plate	PC (white)
Terminal	Brass (pure copper for 650A/700A)
Mounting	Screw mount, 2 holes (dia. 5 to 8.5 mm)
Source	KOINO KH-6010A~60700A terminal block catalog (2026-09), p. 1-12

KH-6010A-3		Rated current: 10A \| Poles: 3P \| Wire size: 2.5 mm2 \| Terminal bolt: M3 \| Terminal pitch: 7 mm \| Body WxH: 30x21 mm
KH-6010A-4		Rated current: 10A \| Poles: 4P \| Wire size: 2.5 mm2 \| Terminal bolt: M3 \| Terminal pitch: 7 mm \| Body WxH: 30x21 mm
KH-6010A-6		Rated current: 10A \| Poles: 6P \| Wire size: 2.5 mm2 \| Terminal bolt: M3 \| Terminal pitch: 7 mm \| Body WxH: 30x21 mm
KH-6010A-8		Rated current: 10A \| Poles: 8P \| Wire size: 2.5 mm2 \| Terminal bolt: M3 \| Terminal pitch: 7 mm \| Body WxH: 30x21 mm
KH-6010A-10		Rated current: 10A \| Poles: 10P \| Wire size: 2.5 mm2 \| Terminal bolt: M3 \| Terminal pitch: 7 mm \| Body WxH: 30x21 mm
KH-6010A-12		Rated current: 10A \| Poles: 12P \| Wire size: 2.5 mm2 \| Terminal bolt: M3 \| Terminal pitch: 7 mm \| Body WxH: 30x21 mm
KH-6010A-15		Rated current: 10A \| Poles: 15P \| Wire size: 2.5 mm2 \| Terminal bolt: M3 \| Terminal pitch: 7 mm \| Body WxH: 30x21 mm
KH-6010A-20		Rated current: 10A \| Poles: 20P \| Wire size: 2.5 mm2 \| Terminal bolt: M3 \| Terminal pitch: 7 mm \| Body WxH: 30x21 mm
KH-6020A-3		Rated current: 20A \| Poles: 3P \| Wire size: 4 mm2 \| Terminal bolt: M4 \| Terminal pitch: 8.7 mm \| Body WxH: 30.5x22.5 mm
KH-6020A-4		Rated current: 20A \| Poles: 4P \| Wire size: 4 mm2 \| Terminal bolt: M4 \| Terminal pitch: 8.7 mm \| Body WxH: 30.5x22.5 mm
KH-6020A-6		Rated current: 20A \| Poles: 6P \| Wire size: 4 mm2 \| Terminal bolt: M4 \| Terminal pitch: 8.7 mm \| Body WxH: 30.5x22.5 mm
KH-6020A-8		Rated current: 20A \| Poles: 8P \| Wire size: 4 mm2 \| Terminal bolt: M4 \| Terminal pitch: 8.7 mm \| Body WxH: 30.5x22.5 mm
KH-6020A-10		Rated current: 20A \| Poles: 10P \| Wire size: 4 mm2 \| Terminal bolt: M4 \| Terminal pitch: 8.7 mm \| Body WxH: 30.5x22.5 mm
KH-6020A-12		Rated current: 20A \| Poles: 12P \| Wire size: 4 mm2 \| Terminal bolt: M4 \| Terminal pitch: 8.7 mm \| Body WxH: 30.5x22.5 mm
KH-6020A-15		Rated current: 20A \| Poles: 15P \| Wire size: 4 mm2 \| Terminal bolt: M4 \| Terminal pitch: 8.7 mm \| Body WxH: 30.5x22.5 mm
KH-6020A-20		Rated current: 20A \| Poles: 20P \| Wire size: 4 mm2 \| Terminal bolt: M4 \| Terminal pitch: 8.7 mm \| Body WxH: 30.5x22.5 mm
KH-6030A-3		Rated current: 30A \| Poles: 3P \| Wire size: 6 mm2 \| Terminal bolt: M4.5 \| Terminal pitch: 10.2 mm \| Body WxH: 35x24 mm
KH-6030A-4		Rated current: 30A \| Poles: 4P \| Wire size: 6 mm2 \| Terminal bolt: M4.5 \| Terminal pitch: 10.2 mm \| Body WxH: 35x24 mm
KH-6030A-6		Rated current: 30A \| Poles: 6P \| Wire size: 6 mm2 \| Terminal bolt: M4.5 \| Terminal pitch: 10.2 mm \| Body WxH: 35x24 mm
KH-6030A-8		Rated current: 30A \| Poles: 8P \| Wire size: 6 mm2 \| Terminal bolt: M4.5 \| Terminal pitch: 10.2 mm \| Body WxH: 35x24 mm
KH-6030A-10		Rated current: 30A \| Poles: 10P \| Wire size: 6 mm2 \| Terminal bolt: M4.5 \| Terminal pitch: 10.2 mm \| Body WxH: 35x24 mm
KH-6030A-12		Rated current: 30A \| Poles: 12P \| Wire size: 6 mm2 \| Terminal bolt: M4.5 \| Terminal pitch: 10.2 mm \| Body WxH: 35x24 mm
KH-6030A-15		Rated current: 30A \| Poles: 15P \| Wire size: 6 mm2 \| Terminal bolt: M4.5 \| Terminal pitch: 10.2 mm \| Body WxH: 35x24 mm
KH-6030A-20		Rated current: 30A \| Poles: 20P \| Wire size: 6 mm2 \| Terminal bolt: M4.5 \| Terminal pitch: 10.2 mm \| Body WxH: 35x24 mm
KH-6045A-3		Rated current: 45A \| Poles: 3P \| Wire size: 16 mm2 \| Terminal bolt: M5 \| Terminal pitch: 12.4 mm \| Body WxH: 38x25.5 mm
KH-6045A-4		Rated current: 45A \| Poles: 4P \| Wire size: 16 mm2 \| Terminal bolt: M5 \| Terminal pitch: 12.4 mm \| Body WxH: 38x25.5 mm
KH-6045A-6		Rated current: 45A \| Poles: 6P \| Wire size: 16 mm2 \| Terminal bolt: M5 \| Terminal pitch: 12.4 mm \| Body WxH: 38x25.5 mm
KH-6045A-8		Rated current: 45A \| Poles: 8P \| Wire size: 16 mm2 \| Terminal bolt: M5 \| Terminal pitch: 12.4 mm \| Body WxH: 38x25.5 mm
KH-6045A-10		Rated current: 45A \| Poles: 10P \| Wire size: 16 mm2 \| Terminal bolt: M5 \| Terminal pitch: 12.4 mm \| Body WxH: 38x25.5 mm
KH-6045A-12		Rated current: 45A \| Poles: 12P \| Wire size: 16 mm2 \| Terminal bolt: M5 \| Terminal pitch: 12.4 mm \| Body WxH: 38x25.5 mm
KH-6045A-15		Rated current: 45A \| Poles: 15P \| Wire size: 16 mm2 \| Terminal bolt: M5 \| Terminal pitch: 12.4 mm \| Body WxH: 38x25.5 mm
KH-6045A-20		Rated current: 45A \| Poles: 20P \| Wire size: 16 mm2 \| Terminal bolt: M5 \| Terminal pitch: 12.4 mm \| Body WxH: 38x25.5 mm
KH-6060A-3		Rated current: 60A \| Poles: 3P \| Wire size: 25 mm2 \| Terminal bolt: M6 \| Terminal pitch: 17 mm \| Body WxH: 41x33 mm
KH-6060A-4		Rated current: 60A \| Poles: 4P \| Wire size: 25 mm2 \| Terminal bolt: M6 \| Terminal pitch: 17 mm \| Body WxH: 41x33 mm
KH-6060A-6		Rated current: 60A \| Poles: 6P \| Wire size: 25 mm2 \| Terminal bolt: M6 \| Terminal pitch: 17 mm \| Body WxH: 41x33 mm
KH-6060A-8		Rated current: 60A \| Poles: 8P \| Wire size: 25 mm2 \| Terminal bolt: M6 \| Terminal pitch: 17 mm \| Body WxH: 41x33 mm
KH-6060A-10		Rated current: 60A \| Poles: 10P \| Wire size: 25 mm2 \| Terminal bolt: M6 \| Terminal pitch: 17 mm \| Body WxH: 41x33 mm
KH-6060A-12		Rated current: 60A \| Poles: 12P \| Wire size: 25 mm2 \| Terminal bolt: M6 \| Terminal pitch: 17 mm \| Body WxH: 41x33 mm
KH-6060A-15		Rated current: 60A \| Poles: 15P \| Wire size: 25 mm2 \| Terminal bolt: M6 \| Terminal pitch: 17 mm \| Body WxH: 41x33 mm
KH-6060A-20		Rated current: 60A \| Poles: 20P \| Wire size: 25 mm2 \| Terminal bolt: M6 \| Terminal pitch: 17 mm \| Body WxH: 41x33 mm
KH-60100A-3		Rated current: 100A \| Poles: 3P \| Wire size: 50 mm2 \| Terminal bolt: M8 \| Terminal pitch: 23 mm \| Body WxH: 56x38.5 mm
KH-60100A-4		Rated current: 100A \| Poles: 4P \| Wire size: 50 mm2 \| Terminal bolt: M8 \| Terminal pitch: 23 mm \| Body WxH: 56x38.5 mm
KH-60100A-6		Rated current: 100A \| Poles: 6P \| Wire size: 50 mm2 \| Terminal bolt: M8 \| Terminal pitch: 23 mm \| Body WxH: 56x38.5 mm
KH-60100A-8		Rated current: 100A \| Poles: 8P \| Wire size: 50 mm2 \| Terminal bolt: M8 \| Terminal pitch: 23 mm \| Body WxH: 56x38.5 mm
KH-60100A-10		Rated current: 100A \| Poles: 10P \| Wire size: 50 mm2 \| Terminal bolt: M8 \| Terminal pitch: 23 mm \| Body WxH: 56x38.5 mm
KH-60100A-12		Rated current: 100A \| Poles: 12P \| Wire size: 50 mm2 \| Terminal bolt: M8 \| Terminal pitch: 23 mm \| Body WxH: 56x38.5 mm
KH-60100A-15		Rated current: 100A \| Poles: 15P \| Wire size: 50 mm2 \| Terminal bolt: M8 \| Terminal pitch: 23 mm \| Body WxH: 56x38.5 mm
KH-60100A-20		Rated current: 100A \| Poles: 20P \| Wire size: 50 mm2 \| Terminal bolt: M8 \| Terminal pitch: 23 mm \| Body WxH: 56x38.5 mm
KH-60150A-3		Rated current: 150A \| Poles: 3P \| Wire size: 70 mm2 \| Terminal bolt: M10 \| Terminal pitch: 25.2 mm \| Body WxH: 67.5x42.5 mm
KH-60150A-4		Rated current: 150A \| Poles: 4P \| Wire size: 70 mm2 \| Terminal bolt: M10 \| Terminal pitch: 25.2 mm \| Body WxH: 67.5x42.5 mm
KH-60150A-6		Rated current: 150A \| Poles: 6P \| Wire size: 70 mm2 \| Terminal bolt: M10 \| Terminal pitch: 25.2 mm \| Body WxH: 67.5x42.5 mm
KH-60150A-8		Rated current: 150A \| Poles: 8P \| Wire size: 70 mm2 \| Terminal bolt: M10 \| Terminal pitch: 25.2 mm \| Body WxH: 67.5x42.5 mm
KH-60150A-10		Rated current: 150A \| Poles: 10P \| Wire size: 70 mm2 \| Terminal bolt: M10 \| Terminal pitch: 25.2 mm \| Body WxH: 67.5x42.5 mm
KH-60150A-12		Rated current: 150A \| Poles: 12P \| Wire size: 70 mm2 \| Terminal bolt: M10 \| Terminal pitch: 25.2 mm \| Body WxH: 67.5x42.5 mm
KH-60150A-15		Rated current: 150A \| Poles: 15P \| Wire size: 70 mm2 \| Terminal bolt: M10 \| Terminal pitch: 25.2 mm \| Body WxH: 67.5x42.5 mm
KH-60150A-20		Rated current: 150A \| Poles: 20P \| Wire size: 70 mm2 \| Terminal bolt: M10 \| Terminal pitch: 25.2 mm \| Body WxH: 67.5x42.5 mm
KH-60200A-3		Rated current: 200A \| Poles: 3P \| Wire size: 120 mm2 \| Terminal bolt: M10 \| Terminal pitch: 29.5 mm \| Body WxH: 73x46.5 mm
KH-60200A-4		Rated current: 200A \| Poles: 4P \| Wire size: 120 mm2 \| Terminal bolt: M10 \| Terminal pitch: 29.5 mm \| Body WxH: 73x46.5 mm
KH-60200A-6		Rated current: 200A \| Poles: 6P \| Wire size: 120 mm2 \| Terminal bolt: M10 \| Terminal pitch: 29.5 mm \| Body WxH: 73x46.5 mm
KH-60200A-8		Rated current: 200A \| Poles: 8P \| Wire size: 120 mm2 \| Terminal bolt: M10 \| Terminal pitch: 29.5 mm \| Body WxH: 73x46.5 mm
KH-60200A-10		Rated current: 200A \| Poles: 10P \| Wire size: 120 mm2 \| Terminal bolt: M10 \| Terminal pitch: 29.5 mm \| Body WxH: 73x46.5 mm
KH-60200A-12		Rated current: 200A \| Poles: 12P \| Wire size: 120 mm2 \| Terminal bolt: M10 \| Terminal pitch: 29.5 mm \| Body WxH: 73x46.5 mm
KH-60200A-15		Rated current: 200A \| Poles: 15P \| Wire size: 120 mm2 \| Terminal bolt: M10 \| Terminal pitch: 29.5 mm \| Body WxH: 73x46.5 mm
KH-60200A-20		Rated current: 200A \| Poles: 20P \| Wire size: 120 mm2 \| Terminal bolt: M10 \| Terminal pitch: 29.5 mm \| Body WxH: 73x46.5 mm
KH-60300A-3		Rated current: 300A \| Poles: 3P \| Wire size: 185 mm2 \| Terminal bolt: M12 \| Terminal pitch: 37 mm \| Body WxH: 83x51 mm
KH-60300A-4		Rated current: 300A \| Poles: 4P \| Wire size: 185 mm2 \| Terminal bolt: M12 \| Terminal pitch: 37 mm \| Body WxH: 83x51 mm
KH-60300A-6		Rated current: 300A \| Poles: 6P \| Wire size: 185 mm2 \| Terminal bolt: M12 \| Terminal pitch: 37 mm \| Body WxH: 83x51 mm
KH-60300A-8		Rated current: 300A \| Poles: 8P \| Wire size: 185 mm2 \| Terminal bolt: M12 \| Terminal pitch: 37 mm \| Body WxH: 83x51 mm
KH-60300A-10		Rated current: 300A \| Poles: 10P \| Wire size: 185 mm2 \| Terminal bolt: M12 \| Terminal pitch: 37 mm \| Body WxH: 83x51 mm
KH-60300A-12		Rated current: 300A \| Poles: 12P \| Wire size: 185 mm2 \| Terminal bolt: M12 \| Terminal pitch: 37 mm \| Body WxH: 83x51 mm
KH-60300A-15		Rated current: 300A \| Poles: 15P \| Wire size: 185 mm2 \| Terminal bolt: M12 \| Terminal pitch: 37 mm \| Body WxH: 83x51 mm
KH-60300A-20		Rated current: 300A \| Poles: 20P \| Wire size: 185 mm2 \| Terminal bolt: M12 \| Terminal pitch: 37 mm \| Body WxH: 83x51 mm
KH-60500A-3		Rated current: 500A \| Poles: 3P \| Wire size: 185 mm2 \| Terminal bolt: M12 \| Terminal pitch: 45 mm \| Body WxH: 97.5x56.5 mm
KH-60500A-4		Rated current: 500A \| Poles: 4P \| Wire size: 185 mm2 \| Terminal bolt: M12 \| Terminal pitch: 45 mm \| Body WxH: 97.5x56.5 mm
KH-60650A-3		Rated current: 650A \| Poles: 3P \| Wire size: 185 mm2 \| Terminal bolt: M12 \| Terminal pitch: 45 mm \| Body WxH: 97.5x56.5 mm
KH-60650A-4		Rated current: 650A \| Poles: 4P \| Wire size: 185 mm2 \| Terminal bolt: M12 \| Terminal pitch: 45 mm \| Body WxH: 97.5x56.5 mm
KH-60700A-3		Rated current: 700A \| Poles: 3P \| Wire size: 185 mm2 \| Terminal bolt: M12 \| Terminal pitch: 45 mm \| Body WxH: 97.5x56.5 mm
KH-60700A-4		Rated current: 700A \| Poles: 4P \| Wire size: 185 mm2 \| Terminal bolt: M12 \| Terminal pitch: 45 mm \| Body WxH: 97.5x56.5 mm
