KOINO KL Limit Switch Accessories (Lamp Covers, Connectors, Cables)

KOINO KL Limit Switch Accessories (Lamp Covers, Connectors, Cables)

Accessories for KOINO KL series limit switches: operation indicator lamp covers, M12 4-pin seal connectors that convert a KL body to connector type, and matching IPW relay cables.

Key features

  • Lamp covers KL-LE (neon 110VAC), KL-LF (neon 220VAC) and KL-LD (LED 12-125V AC/DC) fit the lamp-type KL switches; the holder rotates 180° to switch between lit-on-operation and lit-when-released

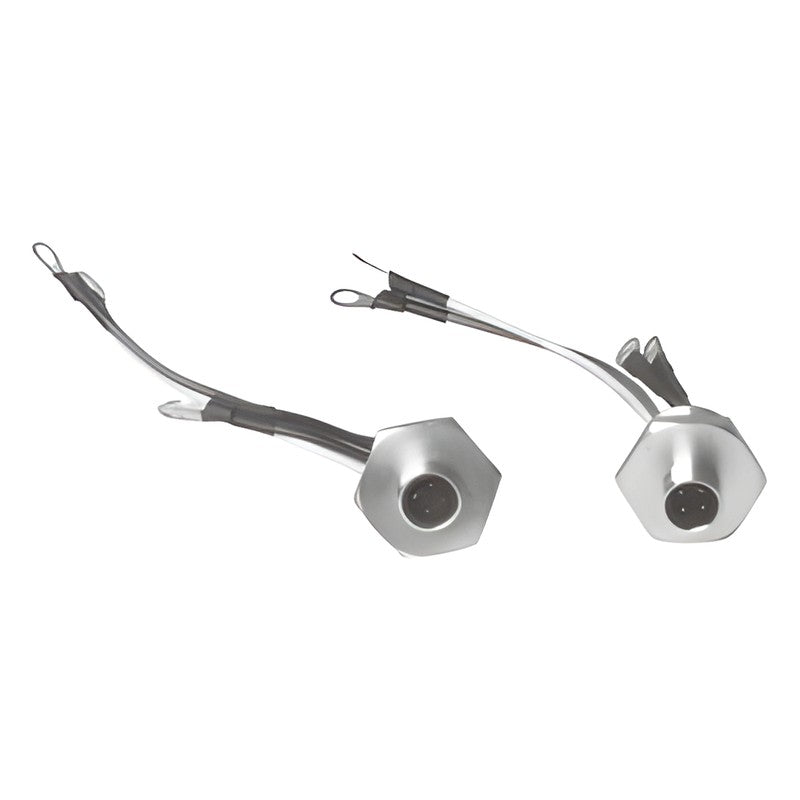

  • Seal connectors SC-D6SW (DC) and SC-A6SW (AC) screw into the PF1/2 conduit of any KL body with epoxy-filled, O-ring sealed M12 P1 housing (IP67, IEC 529); AC and DC keying is not interchangeable
  • Connector rating 3A, DC125V / AC250V; brass gold-plated pins, PBT glass (UL94-V0) pin block, NBR O-ring; 100 mating cycles min
  • Relay cables D6SW (DC) and A6SW (AC): 4-wire PVC cable, 2 m standard, 5 m on order; index page lists them as D6SW-1 / A6SW-1
  • Wiring: NC 1 brown, NC 2 white, NO 3 blue, NO 4 black

Specifications

Series KL accessories
Connector current 3A
Connector voltage DC 125V, AC 250V
Connector protection IP67 (IEC 529)
Tightening torque 0.8 N.m
Cable AWG20, Ø6 PVC, 4-wire
Ambient temperature -25 to +70°C
Source KOINO general catalog 5th ed., p. 329, 352, 358-360
KL-LE Item: Indicator lamp cover | For: KL-LE neon 110VAC switch | Power: 110VAC | Leads: - | Length: -
KL-LF Item: Indicator lamp cover | For: KL-LF neon 220VAC switch | Power: 220VAC | Leads: - | Length: -
KL-LD Item: Indicator lamp cover | For: KL-LD LED switch | Power: 12-125V AC/DC | Leads: - | Length: -
SC-D6SW Item: Seal connector (switch side) | For: KL body conduit PF1/2 | Power: DC | Leads: 4-wire, M12 P1 | Length: 85/45 mm leads
SC-A6SW Item: Seal connector (switch side) | For: KL body conduit PF1/2 | Power: AC | Leads: 4-wire, M12 P1 | Length: 85/45 mm leads
D6SW Item: Relay cable, IPW type | For: SC-D6SW seal connector | Power: DC | Leads: 4-wire, PVC, brown/white | Length: 2 m (5 m on order)
A6SW Item: Relay cable, IPW type | For: SC-A6SW seal connector | Power: AC | Leads: 4-wire, PVC, blue/black | Length: 2 m (5 m on order)
D6SW-1 Legacy code, DC relay wiring cable for KL seal connector (catalog index spelling) | For: KL-LE neon 110VAC switch | Power: 110VAC | Leads: - | Length: -
A6SW-1 Legacy code, AC relay wiring cable for KL seal connector (catalog index spelling) | For: KL-LE neon 110VAC switch | Power: 110VAC | Leads: - | Length: -
Switch AccessoriesKOINO
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KL Limit Switch Accessories (Lamp Covers, Connectors, Cables)

Brand KOINO·Switch Accessories

Available part numbers (9)

KL-LE, KL-LF, KL-LD, SC-D6SW, SC-A6SW, D6SW, A6SW, D6SW-1, A6SW-1

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KL-LEItem: Indicator lamp cover | For: KL-LE neon 110VAC switch | Power: 110VAC | Leads: - | Length: -
KL-LFItem: Indicator lamp cover | For: KL-LF neon 220VAC switch | Power: 220VAC | Leads: - | Length: -
KL-LDItem: Indicator lamp cover | For: KL-LD LED switch | Power: 12-125V AC/DC | Leads: - | Length: -
SC-D6SWItem: Seal connector (switch side) | For: KL body conduit PF1/2 | Power: DC | Leads: 4-wire, M12 P1 | Length: 85/45 mm leads
SC-A6SWItem: Seal connector (switch side) | For: KL body conduit PF1/2 | Power: AC | Leads: 4-wire, M12 P1 | Length: 85/45 mm leads
D6SWItem: Relay cable, IPW type | For: SC-D6SW seal connector | Power: DC | Leads: 4-wire, PVC, brown/white | Length: 2 m (5 m on order)
A6SWItem: Relay cable, IPW type | For: SC-A6SW seal connector | Power: AC | Leads: 4-wire, PVC, blue/black | Length: 2 m (5 m on order)
D6SW-1Legacy code, DC relay wiring cable for KL seal connector (catalog index spelling) | For: KL-LE neon 110VAC switch | Power: 110VAC | Leads: - | Length: -
A6SW-1Legacy code, AC relay wiring cable for KL seal connector (catalog index spelling) | For: KL-LE neon 110VAC switch | Power: 110VAC | Leads: - | Length: -
