KOINO KMP Main Switches (25A/40A/63A, 690VAC 3-Pole)

KOINO KMP Main Switches (25A/40A/63A, 690VAC 3-Pole)

KOINO KMP series IP65 3-pole rotary main (disconnect) switches rated 25A, 40A or 63A at 690VAC, with screw or clamp terminals and emergency (red/yellow) or disconnect (black/white) operators for panel mounting.

Key features

  • Order code KMP[25A/40A/63A]-L[S/C]-[E/T/ES4/TS4/ES6/TS6]: L = switch panel mounting, S = screw terminals, C = clamp terminals; E/T = handle with guard, ES4/TS4 = knob with locker for 48x48 panel cut-out, ES6/TS6 = knob with locker for 60x60 panel cut-out
  • 4-pole version (F) is announced as coming soon and is not included
  • Fast-switching contact mechanism for high contact reliability and long life; rugged construction
  • IP65 protection for durability in industrial control equipment and machinery
  • Rated impulse withstand voltage 6 kV, pollution degree III/3; conforms to IEC 60947-3 and IEC 60947-1, CE marked
  • Panel cut-out: 10 mm shaft hole with 4 x 4.5 mm holes on 36 mm (ES4/TS4) or 48 mm (E/T, ES6/TS6) centres; M4x7 terminal screws

Specifications

Rated insulation voltage (Ui) 690VAC
Rated operational voltage (Ue) 690VAC
Poles 3
AC-23A (3 x 400V) current 16A / 30A / 37A (25A / 40A / 63A)
AC-23 (3 x 400V) current 20A / 32A / 45A (25A / 40A / 63A)
Rated impulse withstand (Uimp) 6 kV
Protection IP65
Ambient temperature -25 to 60 C (no freezing)
Ambient humidity 45 to 85% RH
Mechanical / electrical life 200,000 / 5,000 operations
Standards IEC 60947-3, IEC 60947-1
Source KOINO general catalog 5th ed., p. 121-122

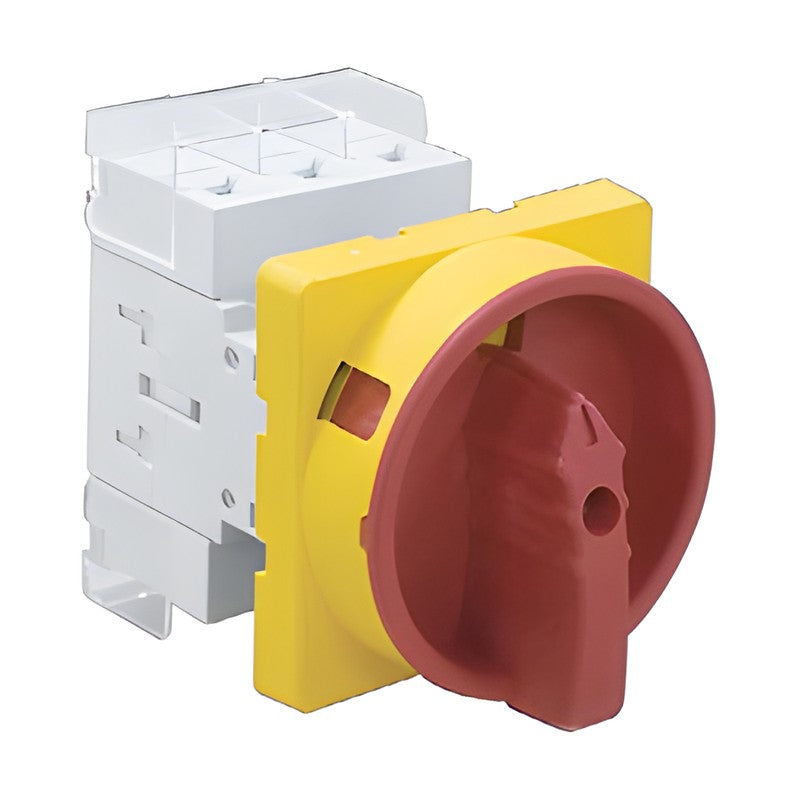

KMP25A-LS-E Rating: 25A 690VAC 3P | Terminal: Screw terminal | Use: Emergency (yellow guard, red handle) | Front: Direct, 48x48 door handle
KMP25A-LS-T Rating: 25A 690VAC 3P | Terminal: Screw terminal | Use: Disconnect (white guard, black handle) | Front: Direct, 48x48 door handle
KMP25A-LS-ES4 Rating: 25A 690VAC 3P | Terminal: Screw terminal | Use: Emergency (red knob, yellow locker) | Front: 48x48 panel
KMP25A-LS-TS4 Rating: 25A 690VAC 3P | Terminal: Screw terminal | Use: Disconnect (black knob, white locker) | Front: 48x48 panel
KMP25A-LS-ES6 Rating: 25A 690VAC 3P | Terminal: Screw terminal | Use: Emergency (red knob, yellow locker) | Front: 60x60 panel
KMP25A-LS-TS6 Rating: 25A 690VAC 3P | Terminal: Screw terminal | Use: Disconnect (black knob, white locker) | Front: 60x60 panel
KMP25A-LC-E Rating: 25A 690VAC 3P | Terminal: Clamp terminal | Use: Emergency (yellow guard, red handle) | Front: Direct, 48x48 door handle
KMP25A-LC-T Rating: 25A 690VAC 3P | Terminal: Clamp terminal | Use: Disconnect (white guard, black handle) | Front: Direct, 48x48 door handle
KMP25A-LC-ES4 Rating: 25A 690VAC 3P | Terminal: Clamp terminal | Use: Emergency (red knob, yellow locker) | Front: 48x48 panel
KMP25A-LC-TS4 Rating: 25A 690VAC 3P | Terminal: Clamp terminal | Use: Disconnect (black knob, white locker) | Front: 48x48 panel
KMP25A-LC-ES6 Rating: 25A 690VAC 3P | Terminal: Clamp terminal | Use: Emergency (red knob, yellow locker) | Front: 60x60 panel
KMP25A-LC-TS6 Rating: 25A 690VAC 3P | Terminal: Clamp terminal | Use: Disconnect (black knob, white locker) | Front: 60x60 panel
KMP40A-LS-E Rating: 40A 690VAC 3P | Terminal: Screw terminal | Use: Emergency (yellow guard, red handle) | Front: Direct, 48x48 door handle
KMP40A-LS-T Rating: 40A 690VAC 3P | Terminal: Screw terminal | Use: Disconnect (white guard, black handle) | Front: Direct, 48x48 door handle
KMP40A-LS-ES4 Rating: 40A 690VAC 3P | Terminal: Screw terminal | Use: Emergency (red knob, yellow locker) | Front: 48x48 panel
KMP40A-LS-TS4 Rating: 40A 690VAC 3P | Terminal: Screw terminal | Use: Disconnect (black knob, white locker) | Front: 48x48 panel
KMP40A-LS-ES6 Rating: 40A 690VAC 3P | Terminal: Screw terminal | Use: Emergency (red knob, yellow locker) | Front: 60x60 panel
KMP40A-LS-TS6 Rating: 40A 690VAC 3P | Terminal: Screw terminal | Use: Disconnect (black knob, white locker) | Front: 60x60 panel
KMP40A-LC-E Rating: 40A 690VAC 3P | Terminal: Clamp terminal | Use: Emergency (yellow guard, red handle) | Front: Direct, 48x48 door handle
KMP40A-LC-T Rating: 40A 690VAC 3P | Terminal: Clamp terminal | Use: Disconnect (white guard, black handle) | Front: Direct, 48x48 door handle
KMP40A-LC-ES4 Rating: 40A 690VAC 3P | Terminal: Clamp terminal | Use: Emergency (red knob, yellow locker) | Front: 48x48 panel
KMP40A-LC-TS4 Rating: 40A 690VAC 3P | Terminal: Clamp terminal | Use: Disconnect (black knob, white locker) | Front: 48x48 panel
KMP40A-LC-ES6 Rating: 40A 690VAC 3P | Terminal: Clamp terminal | Use: Emergency (red knob, yellow locker) | Front: 60x60 panel
KMP40A-LC-TS6 Rating: 40A 690VAC 3P | Terminal: Clamp terminal | Use: Disconnect (black knob, white locker) | Front: 60x60 panel
KMP63A-LS-E Rating: 63A 690VAC 3P | Terminal: Screw terminal | Use: Emergency (yellow guard, red handle) | Front: Direct, 48x48 door handle
KMP63A-LS-T Rating: 63A 690VAC 3P | Terminal: Screw terminal | Use: Disconnect (white guard, black handle) | Front: Direct, 48x48 door handle
KMP63A-LS-ES4 Rating: 63A 690VAC 3P | Terminal: Screw terminal | Use: Emergency (red knob, yellow locker) | Front: 48x48 panel
KMP63A-LS-TS4 Rating: 63A 690VAC 3P | Terminal: Screw terminal | Use: Disconnect (black knob, white locker) | Front: 48x48 panel
KMP63A-LS-ES6 Rating: 63A 690VAC 3P | Terminal: Screw terminal | Use: Emergency (red knob, yellow locker) | Front: 60x60 panel
KMP63A-LS-TS6 Rating: 63A 690VAC 3P | Terminal: Screw terminal | Use: Disconnect (black knob, white locker) | Front: 60x60 panel
KMP63A-LC-E Rating: 63A 690VAC 3P | Terminal: Clamp terminal | Use: Emergency (yellow guard, red handle) | Front: Direct, 48x48 door handle
KMP63A-LC-T Rating: 63A 690VAC 3P | Terminal: Clamp terminal | Use: Disconnect (white guard, black handle) | Front: Direct, 48x48 door handle
KMP63A-LC-ES4 Rating: 63A 690VAC 3P | Terminal: Clamp terminal | Use: Emergency (red knob, yellow locker) | Front: 48x48 panel
KMP63A-LC-TS4 Rating: 63A 690VAC 3P | Terminal: Clamp terminal | Use: Disconnect (black knob, white locker) | Front: 48x48 panel
KMP63A-LC-ES6 Rating: 63A 690VAC 3P | Terminal: Clamp terminal | Use: Emergency (red knob, yellow locker) | Front: 60x60 panel
KMP63A-LC-TS6 Rating: 63A 690VAC 3P | Terminal: Clamp terminal | Use: Disconnect (black knob, white locker) | Front: 60x60 panel
Power SwitchesKOINO
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KMP Main Switches (25A/40A/63A, 690VAC 3-Pole)

Brand KOINO·Power Switches

Available part numbers (36)

KMP25A-LS-E, KMP25A-LS-T, KMP25A-LS-ES4, KMP25A-LS-TS4, KMP25A-LS-ES6, KMP25A-LS-TS6, KMP25A-LC-E, KMP25A-LC-T, KMP25A-LC-ES4, KMP25A-LC-TS4 + 26 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KMP25A-LS-ERating: 25A 690VAC 3P | Terminal: Screw terminal | Use: Emergency (yellow guard, red handle) | Front: Direct, 48x48 door handle
KMP25A-LS-TRating: 25A 690VAC 3P | Terminal: Screw terminal | Use: Disconnect (white guard, black handle) | Front: Direct, 48x48 door handle
KMP25A-LS-ES4Rating: 25A 690VAC 3P | Terminal: Screw terminal | Use: Emergency (red knob, yellow locker) | Front: 48x48 panel
KMP25A-LS-TS4Rating: 25A 690VAC 3P | Terminal: Screw terminal | Use: Disconnect (black knob, white locker) | Front: 48x48 panel
KMP25A-LS-ES6Rating: 25A 690VAC 3P | Terminal: Screw terminal | Use: Emergency (red knob, yellow locker) | Front: 60x60 panel
KMP25A-LS-TS6Rating: 25A 690VAC 3P | Terminal: Screw terminal | Use: Disconnect (black knob, white locker) | Front: 60x60 panel
KMP25A-LC-ERating: 25A 690VAC 3P | Terminal: Clamp terminal | Use: Emergency (yellow guard, red handle) | Front: Direct, 48x48 door handle
KMP25A-LC-TRating: 25A 690VAC 3P | Terminal: Clamp terminal | Use: Disconnect (white guard, black handle) | Front: Direct, 48x48 door handle
KMP25A-LC-ES4Rating: 25A 690VAC 3P | Terminal: Clamp terminal | Use: Emergency (red knob, yellow locker) | Front: 48x48 panel
KMP25A-LC-TS4Rating: 25A 690VAC 3P | Terminal: Clamp terminal | Use: Disconnect (black knob, white locker) | Front: 48x48 panel
KMP25A-LC-ES6Rating: 25A 690VAC 3P | Terminal: Clamp terminal | Use: Emergency (red knob, yellow locker) | Front: 60x60 panel
KMP25A-LC-TS6Rating: 25A 690VAC 3P | Terminal: Clamp terminal | Use: Disconnect (black knob, white locker) | Front: 60x60 panel
KMP40A-LS-ERating: 40A 690VAC 3P | Terminal: Screw terminal | Use: Emergency (yellow guard, red handle) | Front: Direct, 48x48 door handle
KMP40A-LS-TRating: 40A 690VAC 3P | Terminal: Screw terminal | Use: Disconnect (white guard, black handle) | Front: Direct, 48x48 door handle
KMP40A-LS-ES4Rating: 40A 690VAC 3P | Terminal: Screw terminal | Use: Emergency (red knob, yellow locker) | Front: 48x48 panel
KMP40A-LS-TS4Rating: 40A 690VAC 3P | Terminal: Screw terminal | Use: Disconnect (black knob, white locker) | Front: 48x48 panel
KMP40A-LS-ES6Rating: 40A 690VAC 3P | Terminal: Screw terminal | Use: Emergency (red knob, yellow locker) | Front: 60x60 panel
KMP40A-LS-TS6Rating: 40A 690VAC 3P | Terminal: Screw terminal | Use: Disconnect (black knob, white locker) | Front: 60x60 panel
KMP40A-LC-ERating: 40A 690VAC 3P | Terminal: Clamp terminal | Use: Emergency (yellow guard, red handle) | Front: Direct, 48x48 door handle
KMP40A-LC-TRating: 40A 690VAC 3P | Terminal: Clamp terminal | Use: Disconnect (white guard, black handle) | Front: Direct, 48x48 door handle
KMP40A-LC-ES4Rating: 40A 690VAC 3P | Terminal: Clamp terminal | Use: Emergency (red knob, yellow locker) | Front: 48x48 panel
KMP40A-LC-TS4Rating: 40A 690VAC 3P | Terminal: Clamp terminal | Use: Disconnect (black knob, white locker) | Front: 48x48 panel
KMP40A-LC-ES6Rating: 40A 690VAC 3P | Terminal: Clamp terminal | Use: Emergency (red knob, yellow locker) | Front: 60x60 panel
KMP40A-LC-TS6Rating: 40A 690VAC 3P | Terminal: Clamp terminal | Use: Disconnect (black knob, white locker) | Front: 60x60 panel
KMP63A-LS-ERating: 63A 690VAC 3P | Terminal: Screw terminal | Use: Emergency (yellow guard, red handle) | Front: Direct, 48x48 door handle
KMP63A-LS-TRating: 63A 690VAC 3P | Terminal: Screw terminal | Use: Disconnect (white guard, black handle) | Front: Direct, 48x48 door handle
KMP63A-LS-ES4Rating: 63A 690VAC 3P | Terminal: Screw terminal | Use: Emergency (red knob, yellow locker) | Front: 48x48 panel
KMP63A-LS-TS4Rating: 63A 690VAC 3P | Terminal: Screw terminal | Use: Disconnect (black knob, white locker) | Front: 48x48 panel
KMP63A-LS-ES6Rating: 63A 690VAC 3P | Terminal: Screw terminal | Use: Emergency (red knob, yellow locker) | Front: 60x60 panel
KMP63A-LS-TS6Rating: 63A 690VAC 3P | Terminal: Screw terminal | Use: Disconnect (black knob, white locker) | Front: 60x60 panel
KMP63A-LC-ERating: 63A 690VAC 3P | Terminal: Clamp terminal | Use: Emergency (yellow guard, red handle) | Front: Direct, 48x48 door handle
KMP63A-LC-TRating: 63A 690VAC 3P | Terminal: Clamp terminal | Use: Disconnect (white guard, black handle) | Front: Direct, 48x48 door handle
KMP63A-LC-ES4Rating: 63A 690VAC 3P | Terminal: Clamp terminal | Use: Emergency (red knob, yellow locker) | Front: 48x48 panel
KMP63A-LC-TS4Rating: 63A 690VAC 3P | Terminal: Clamp terminal | Use: Disconnect (black knob, white locker) | Front: 48x48 panel
KMP63A-LC-ES6Rating: 63A 690VAC 3P | Terminal: Clamp terminal | Use: Emergency (red knob, yellow locker) | Front: 60x60 panel
KMP63A-LC-TS6Rating: 63A 690VAC 3P | Terminal: Clamp terminal | Use: Disconnect (black knob, white locker) | Front: 60x60 panel
