KOINO KSG Separable Cam Switches IP65 (Dia.22/25/30, Angle Terminal)

KOINO KSG Separable Cam Switches IP65 (Dia.22/25/30, Angle Terminal)

KOINO KSG series IP65 separable cam switches with angled terminal blocks, dia.22/25/30 ring mount, knob or key operated, UL/CE/KC certified and built to order with the customer's circuit.

Key features

  • Model code KSG-[22/25/30][K][N/M][action][notches][decks][serial][knob]: K = key operation (45 deg only); blank = 48x48 square panel, N = non-panel round guard (knob 25 only, key 22/25 only), M = round ring (key only)
  • Action codes: blank = manual return 45 deg, R = auto-return both sides 45 deg, C = auto-return one side 45 deg, 3M/6M/9M = manual return 30/60/90 deg; notches 2-12, decks 1-12 (R/C types max. 5 decks), circuit serial 01-99 assigned by KOINO
  • Knob shapes E (oval), R (chrysanthemum), T (triangle), S (short lever), H (long lever), P (pistol); printed example KSG-22R3210H = dia.22, auto-return both sides, 3 notches x 2 decks, serial 10, H knob
  • Separable operator and contact block with angled terminals; fast-switching cam structure, Ag alloy contacts, nickel-plated brass terminals, POM cam, PA66 operator
  • Body length L = 5.2 + (n x 12.1) mm, n = number of decks; panel-mount spacing tables for P/E/R/T/S/H knobs and 25N/KN/KM types in the catalog
  • Attach the circuit drawing with the order; order-production circuit diagrams (2-12 notches x 1-9 decks) listed in the catalog

Specifications

Rated insulation voltage / thermal current Ui 600VAC, 250VDC; Ith 15A
Contact rating 250VAC 10A (resistive)
AC-12 / AC-15 rating 125V 15A/7.5A; 250V 10A/3A; 440V 2.5A/2A
DC-12 / DC-13 rating 24V 10A/6A; 110V 2A/1A; 250V 0.8A/0.55A
Insulation / dielectric 100 MOhm min. (500VDC); 1,500VAC for 1 minute
Life Electrical 200,000 (250VAC 10A); mechanical 500,000
Ambient temperature -25 to +60C operating; minimum load 5VDC 100mA
Protection IP65
Materials Contact block UL94-V0; operator PA66; contacts Ag alloy; cam POM
Certification KC 61058-1; CE EN IEC 60947-1/-5-1; UL 60947-1/-5-1; CAN/CSA C22.2
Source KOINO general catalog 5th ed., p. 40-41, 69, 71-76, 82-83

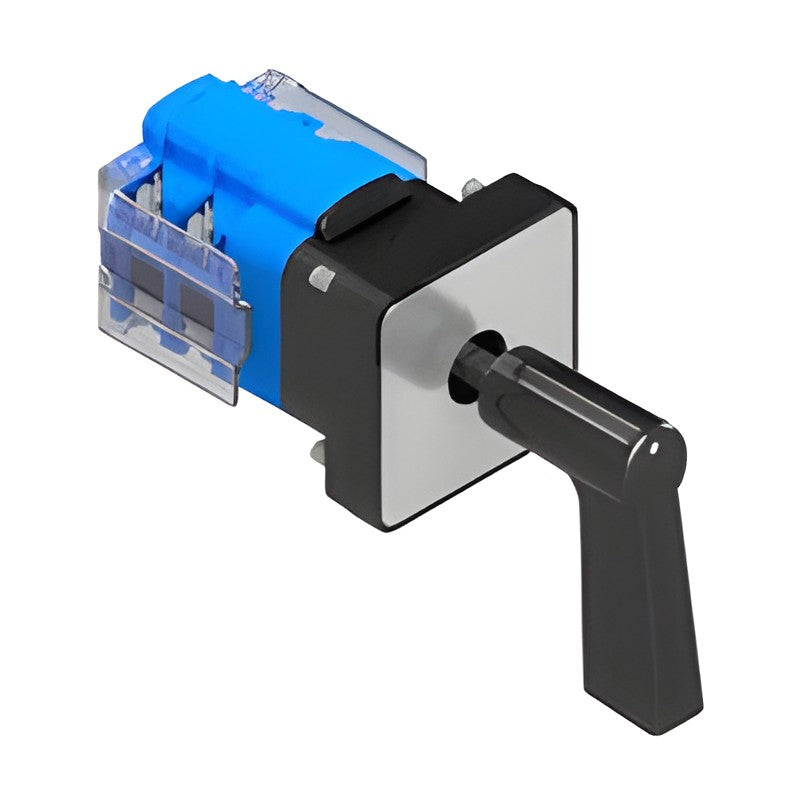

KSG-22R3210H Mounting: Dia.22 separable | Operation: Knob, H-type long lever | Front type: 48x48 square panel | Circuit: 3 notches x 2 decks, serial 10 | Return: Auto-return both sides (45 deg)
KSG-22 Mounting: Dia.22 separable | Operation: Knob | Front type: 48x48 square panel | Circuit: Custom (specify on order) | Return: Manual (45 deg)
KSG-25 Mounting: Dia.25 separable | Operation: Knob | Front type: 48x48 square panel | Circuit: Custom (specify on order) | Return: Manual (45 deg)
KSG-30 Mounting: Dia.30 separable | Operation: Knob | Front type: 48x48 square panel | Circuit: Custom (specify on order) | Return: Manual (45 deg)
KSG-22K Mounting: Dia.22 separable | Operation: Key | Front type: 48x48 square panel | Circuit: Custom (specify on order) | Return: Manual (45 deg)
KSG-25K Mounting: Dia.25 separable | Operation: Key | Front type: 48x48 square panel | Circuit: Custom (specify on order) | Return: Manual (45 deg)
KSG-30K Mounting: Dia.30 separable | Operation: Key | Front type: 48x48 square panel | Circuit: Custom (specify on order) | Return: Manual (45 deg)
KSG-22KM Mounting: Dia.22 separable | Operation: Key | Front type: Round ring, non-panel | Circuit: Custom (specify on order) | Return: Manual (45 deg)
KSG-25KM Mounting: Dia.25 separable | Operation: Key | Front type: Round ring, non-panel | Circuit: Custom (specify on order) | Return: Manual (45 deg)
KSG-30KM Mounting: Dia.30 separable | Operation: Key | Front type: Round ring, non-panel | Circuit: Custom (specify on order) | Return: Manual (45 deg)
KSG-22KN Mounting: Dia.22 separable | Operation: Key | Front type: Non-panel round guard | Circuit: Custom (specify on order) | Return: Manual (45 deg)
KSG-25KN Mounting: Dia.25 separable | Operation: Key | Front type: Non-panel round guard | Circuit: Custom (specify on order) | Return: Manual (45 deg)
KSG-25N Mounting: Dia.25 separable | Operation: Knob | Front type: Non-panel round guard | Circuit: Custom (specify on order) | Return: Manual (45 deg)
