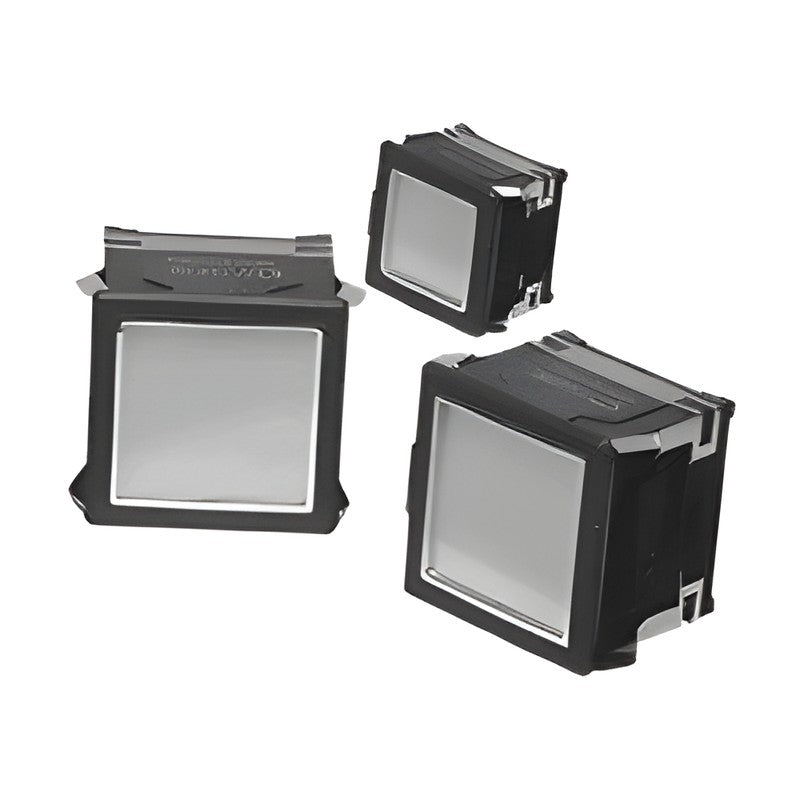

KOINO KTS Square 25/40 Touch Switches (Alternate, Momentary, LED Only)

KOINO KTS Square 25/40 Touch Switches (Alternate, Momentary, LED Only)

KOINO KTS series square 25 and 40 mm panel touch switches operate with a light touch of the pad and give an NPN open-collector output with high-brightness LED illumination of the touch area.

Key features

  • Touch pad operation, alternate (A) or momentary (M) output, or LED-only indicator version without touch pad
  • NPN open collector transistor output, 35VDC 200 mA max.; reverse-polarity protection
  • High-brightness chip LED in red, green, yellow or white (mono); dual-color versions 1-6 (red-yellow, green-red, yellow-green, red-red, green-green, yellow-yellow) made to order with white color plate
  • Supply 24VDC (standard) or 12VDC (suffix L); current consumption 10 mA max. without load
  • Color plate can be printed, marked or engraved; replacement plates CP25-x / CP40-x
  • Optional protective cover (suffix P)

Specifications

Supply voltage 24VDC +/-10% (12VDC with L)
Current consumption 10 mA max. (no load)
Control output NPN open collector, 35VDC 200 mA max.
Illumination High-brightness chip LED
Insulation resistance 100 Mohm min. (500VDC)
Dielectric strength 500VAC 50/60Hz 1 min
Ambient temperature -10 to +55 deg C
Ambient humidity 10-80% RH
Source KOINO general catalog 5th ed., p. 636-637
KTS-S25AR Size: Square 25 mm | Operation: Alternate (touch pad) | LED color: Red | Supply: 24VDC | Cover: None
KTS-S25ARP Size: Square 25 mm | Operation: Alternate (touch pad) | LED color: Red | Supply: 24VDC | Cover: Protective cover
KTS-S25ARL Size: Square 25 mm | Operation: Alternate (touch pad) | LED color: Red | Supply: 12VDC | Cover: None
KTS-S25ARLP Size: Square 25 mm | Operation: Alternate (touch pad) | LED color: Red | Supply: 12VDC | Cover: Protective cover
KTS-S25AG Size: Square 25 mm | Operation: Alternate (touch pad) | LED color: Green | Supply: 24VDC | Cover: None
KTS-S25AGP Size: Square 25 mm | Operation: Alternate (touch pad) | LED color: Green | Supply: 24VDC | Cover: Protective cover
KTS-S25AGL Size: Square 25 mm | Operation: Alternate (touch pad) | LED color: Green | Supply: 12VDC | Cover: None
KTS-S25AGLP Size: Square 25 mm | Operation: Alternate (touch pad) | LED color: Green | Supply: 12VDC | Cover: Protective cover
KTS-S25AY Size: Square 25 mm | Operation: Alternate (touch pad) | LED color: Yellow | Supply: 24VDC | Cover: None
KTS-S25AYP Size: Square 25 mm | Operation: Alternate (touch pad) | LED color: Yellow | Supply: 24VDC | Cover: Protective cover
KTS-S25AYL Size: Square 25 mm | Operation: Alternate (touch pad) | LED color: Yellow | Supply: 12VDC | Cover: None
KTS-S25AYLP Size: Square 25 mm | Operation: Alternate (touch pad) | LED color: Yellow | Supply: 12VDC | Cover: Protective cover
KTS-S25AW Size: Square 25 mm | Operation: Alternate (touch pad) | LED color: White | Supply: 24VDC | Cover: None
KTS-S25AWP Size: Square 25 mm | Operation: Alternate (touch pad) | LED color: White | Supply: 24VDC | Cover: Protective cover
KTS-S25AWL Size: Square 25 mm | Operation: Alternate (touch pad) | LED color: White | Supply: 12VDC | Cover: None
KTS-S25AWLP Size: Square 25 mm | Operation: Alternate (touch pad) | LED color: White | Supply: 12VDC | Cover: Protective cover
KTS-S25MR Size: Square 25 mm | Operation: Momentary (touch pad) | LED color: Red | Supply: 24VDC | Cover: None
KTS-S25MRP Size: Square 25 mm | Operation: Momentary (touch pad) | LED color: Red | Supply: 24VDC | Cover: Protective cover
KTS-S25MRL Size: Square 25 mm | Operation: Momentary (touch pad) | LED color: Red | Supply: 12VDC | Cover: None
KTS-S25MRLP Size: Square 25 mm | Operation: Momentary (touch pad) | LED color: Red | Supply: 12VDC | Cover: Protective cover
KTS-S25MG Size: Square 25 mm | Operation: Momentary (touch pad) | LED color: Green | Supply: 24VDC | Cover: None
KTS-S25MGP Size: Square 25 mm | Operation: Momentary (touch pad) | LED color: Green | Supply: 24VDC | Cover: Protective cover
KTS-S25MGL Size: Square 25 mm | Operation: Momentary (touch pad) | LED color: Green | Supply: 12VDC | Cover: None
KTS-S25MGLP Size: Square 25 mm | Operation: Momentary (touch pad) | LED color: Green | Supply: 12VDC | Cover: Protective cover
KTS-S25MY Size: Square 25 mm | Operation: Momentary (touch pad) | LED color: Yellow | Supply: 24VDC | Cover: None
KTS-S25MYP Size: Square 25 mm | Operation: Momentary (touch pad) | LED color: Yellow | Supply: 24VDC | Cover: Protective cover
KTS-S25MYL Size: Square 25 mm | Operation: Momentary (touch pad) | LED color: Yellow | Supply: 12VDC | Cover: None
KTS-S25MYLP Size: Square 25 mm | Operation: Momentary (touch pad) | LED color: Yellow | Supply: 12VDC | Cover: Protective cover
KTS-S25MW Size: Square 25 mm | Operation: Momentary (touch pad) | LED color: White | Supply: 24VDC | Cover: None
KTS-S25MWP Size: Square 25 mm | Operation: Momentary (touch pad) | LED color: White | Supply: 24VDC | Cover: Protective cover
KTS-S25MWL Size: Square 25 mm | Operation: Momentary (touch pad) | LED color: White | Supply: 12VDC | Cover: None
KTS-S25MWLP Size: Square 25 mm | Operation: Momentary (touch pad) | LED color: White | Supply: 12VDC | Cover: Protective cover
KTS-S25R Size: Square 25 mm | Operation: LED only (no touch pad) | LED color: Red | Supply: 24VDC | Cover: None
KTS-S25RP Size: Square 25 mm | Operation: LED only (no touch pad) | LED color: Red | Supply: 24VDC | Cover: Protective cover
KTS-S25RL Size: Square 25 mm | Operation: LED only (no touch pad) | LED color: Red | Supply: 12VDC | Cover: None
KTS-S25RLP Size: Square 25 mm | Operation: LED only (no touch pad) | LED color: Red | Supply: 12VDC | Cover: Protective cover
KTS-S25G Size: Square 25 mm | Operation: LED only (no touch pad) | LED color: Green | Supply: 24VDC | Cover: None
KTS-S25GP Size: Square 25 mm | Operation: LED only (no touch pad) | LED color: Green | Supply: 24VDC | Cover: Protective cover
KTS-S25GL Size: Square 25 mm | Operation: LED only (no touch pad) | LED color: Green | Supply: 12VDC | Cover: None
KTS-S25GLP Size: Square 25 mm | Operation: LED only (no touch pad) | LED color: Green | Supply: 12VDC | Cover: Protective cover
KTS-S25Y Size: Square 25 mm | Operation: LED only (no touch pad) | LED color: Yellow | Supply: 24VDC | Cover: None
KTS-S25YP Size: Square 25 mm | Operation: LED only (no touch pad) | LED color: Yellow | Supply: 24VDC | Cover: Protective cover
KTS-S25YL Size: Square 25 mm | Operation: LED only (no touch pad) | LED color: Yellow | Supply: 12VDC | Cover: None
KTS-S25YLP Size: Square 25 mm | Operation: LED only (no touch pad) | LED color: Yellow | Supply: 12VDC | Cover: Protective cover
KTS-S25W Size: Square 25 mm | Operation: LED only (no touch pad) | LED color: White | Supply: 24VDC | Cover: None
KTS-S25WP Size: Square 25 mm | Operation: LED only (no touch pad) | LED color: White | Supply: 24VDC | Cover: Protective cover
KTS-S25WL Size: Square 25 mm | Operation: LED only (no touch pad) | LED color: White | Supply: 12VDC | Cover: None
KTS-S25WLP Size: Square 25 mm | Operation: LED only (no touch pad) | LED color: White | Supply: 12VDC | Cover: Protective cover
KTS-S40AR Size: Square 40 mm | Operation: Alternate (touch pad) | LED color: Red | Supply: 24VDC | Cover: None
KTS-S40ARP Size: Square 40 mm | Operation: Alternate (touch pad) | LED color: Red | Supply: 24VDC | Cover: Protective cover
KTS-S40ARL Size: Square 40 mm | Operation: Alternate (touch pad) | LED color: Red | Supply: 12VDC | Cover: None
KTS-S40ARLP Size: Square 40 mm | Operation: Alternate (touch pad) | LED color: Red | Supply: 12VDC | Cover: Protective cover
KTS-S40AG Size: Square 40 mm | Operation: Alternate (touch pad) | LED color: Green | Supply: 24VDC | Cover: None
KTS-S40AGP Size: Square 40 mm | Operation: Alternate (touch pad) | LED color: Green | Supply: 24VDC | Cover: Protective cover
KTS-S40AGL Size: Square 40 mm | Operation: Alternate (touch pad) | LED color: Green | Supply: 12VDC | Cover: None
KTS-S40AGLP Size: Square 40 mm | Operation: Alternate (touch pad) | LED color: Green | Supply: 12VDC | Cover: Protective cover
KTS-S40AY Size: Square 40 mm | Operation: Alternate (touch pad) | LED color: Yellow | Supply: 24VDC | Cover: None
KTS-S40AYP Size: Square 40 mm | Operation: Alternate (touch pad) | LED color: Yellow | Supply: 24VDC | Cover: Protective cover
KTS-S40AYL Size: Square 40 mm | Operation: Alternate (touch pad) | LED color: Yellow | Supply: 12VDC | Cover: None
KTS-S40AYLP Size: Square 40 mm | Operation: Alternate (touch pad) | LED color: Yellow | Supply: 12VDC | Cover: Protective cover
KTS-S40AW Size: Square 40 mm | Operation: Alternate (touch pad) | LED color: White | Supply: 24VDC | Cover: None
KTS-S40AWP Size: Square 40 mm | Operation: Alternate (touch pad) | LED color: White | Supply: 24VDC | Cover: Protective cover
KTS-S40AWL Size: Square 40 mm | Operation: Alternate (touch pad) | LED color: White | Supply: 12VDC | Cover: None
KTS-S40AWLP Size: Square 40 mm | Operation: Alternate (touch pad) | LED color: White | Supply: 12VDC | Cover: Protective cover
KTS-S40MR Size: Square 40 mm | Operation: Momentary (touch pad) | LED color: Red | Supply: 24VDC | Cover: None
KTS-S40MRP Size: Square 40 mm | Operation: Momentary (touch pad) | LED color: Red | Supply: 24VDC | Cover: Protective cover
KTS-S40MRL Size: Square 40 mm | Operation: Momentary (touch pad) | LED color: Red | Supply: 12VDC | Cover: None
KTS-S40MRLP Size: Square 40 mm | Operation: Momentary (touch pad) | LED color: Red | Supply: 12VDC | Cover: Protective cover
KTS-S40MG Size: Square 40 mm | Operation: Momentary (touch pad) | LED color: Green | Supply: 24VDC | Cover: None
KTS-S40MGP Size: Square 40 mm | Operation: Momentary (touch pad) | LED color: Green | Supply: 24VDC | Cover: Protective cover
KTS-S40MGL Size: Square 40 mm | Operation: Momentary (touch pad) | LED color: Green | Supply: 12VDC | Cover: None
KTS-S40MGLP Size: Square 40 mm | Operation: Momentary (touch pad) | LED color: Green | Supply: 12VDC | Cover: Protective cover
KTS-S40MY Size: Square 40 mm | Operation: Momentary (touch pad) | LED color: Yellow | Supply: 24VDC | Cover: None
KTS-S40MYP Size: Square 40 mm | Operation: Momentary (touch pad) | LED color: Yellow | Supply: 24VDC | Cover: Protective cover
KTS-S40MYL Size: Square 40 mm | Operation: Momentary (touch pad) | LED color: Yellow | Supply: 12VDC | Cover: None
KTS-S40MYLP Size: Square 40 mm | Operation: Momentary (touch pad) | LED color: Yellow | Supply: 12VDC | Cover: Protective cover
KTS-S40MW Size: Square 40 mm | Operation: Momentary (touch pad) | LED color: White | Supply: 24VDC | Cover: None
KTS-S40MWP Size: Square 40 mm | Operation: Momentary (touch pad) | LED color: White | Supply: 24VDC | Cover: Protective cover
KTS-S40MWL Size: Square 40 mm | Operation: Momentary (touch pad) | LED color: White | Supply: 12VDC | Cover: None
KTS-S40MWLP Size: Square 40 mm | Operation: Momentary (touch pad) | LED color: White | Supply: 12VDC | Cover: Protective cover
KTS-S40R Size: Square 40 mm | Operation: LED only (no touch pad) | LED color: Red | Supply: 24VDC | Cover: None
KTS-S40RP Size: Square 40 mm | Operation: LED only (no touch pad) | LED color: Red | Supply: 24VDC | Cover: Protective cover
KTS-S40RL Size: Square 40 mm | Operation: LED only (no touch pad) | LED color: Red | Supply: 12VDC | Cover: None
KTS-S40RLP Size: Square 40 mm | Operation: LED only (no touch pad) | LED color: Red | Supply: 12VDC | Cover: Protective cover
KTS-S40G Size: Square 40 mm | Operation: LED only (no touch pad) | LED color: Green | Supply: 24VDC | Cover: None
KTS-S40GP Size: Square 40 mm | Operation: LED only (no touch pad) | LED color: Green | Supply: 24VDC | Cover: Protective cover
KTS-S40GL Size: Square 40 mm | Operation: LED only (no touch pad) | LED color: Green | Supply: 12VDC | Cover: None
KTS-S40GLP Size: Square 40 mm | Operation: LED only (no touch pad) | LED color: Green | Supply: 12VDC | Cover: Protective cover
KTS-S40Y Size: Square 40 mm | Operation: LED only (no touch pad) | LED color: Yellow | Supply: 24VDC | Cover: None
KTS-S40YP Size: Square 40 mm | Operation: LED only (no touch pad) | LED color: Yellow | Supply: 24VDC | Cover: Protective cover
KTS-S40YL Size: Square 40 mm | Operation: LED only (no touch pad) | LED color: Yellow | Supply: 12VDC | Cover: None
KTS-S40YLP Size: Square 40 mm | Operation: LED only (no touch pad) | LED color: Yellow | Supply: 12VDC | Cover: Protective cover
KTS-S40W Size: Square 40 mm | Operation: LED only (no touch pad) | LED color: White | Supply: 24VDC | Cover: None
KTS-S40WP Size: Square 40 mm | Operation: LED only (no touch pad) | LED color: White | Supply: 24VDC | Cover: Protective cover
KTS-S40WL Size: Square 40 mm | Operation: LED only (no touch pad) | LED color: White | Supply: 12VDC | Cover: None
KTS-S40WLP Size: Square 40 mm | Operation: LED only (no touch pad) | LED color: White | Supply: 12VDC | Cover: Protective cover
Touch SwitchesKOINO
96 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KTS Square 25/40 Touch Switches (Alternate, Momentary, LED Only)

Brand KOINO·Touch Switches

Available part numbers (96)

KTS-S25AR, KTS-S25ARP, KTS-S25ARL, KTS-S25ARLP, KTS-S25AG, KTS-S25AGP, KTS-S25AGL, KTS-S25AGLP, KTS-S25AY, KTS-S25AYP + 86 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KTS-S25ARSize: Square 25 mm | Operation: Alternate (touch pad) | LED color: Red | Supply: 24VDC | Cover: None
KTS-S25ARPSize: Square 25 mm | Operation: Alternate (touch pad) | LED color: Red | Supply: 24VDC | Cover: Protective cover
KTS-S25ARLSize: Square 25 mm | Operation: Alternate (touch pad) | LED color: Red | Supply: 12VDC | Cover: None
KTS-S25ARLPSize: Square 25 mm | Operation: Alternate (touch pad) | LED color: Red | Supply: 12VDC | Cover: Protective cover
KTS-S25AGSize: Square 25 mm | Operation: Alternate (touch pad) | LED color: Green | Supply: 24VDC | Cover: None
KTS-S25AGPSize: Square 25 mm | Operation: Alternate (touch pad) | LED color: Green | Supply: 24VDC | Cover: Protective cover
KTS-S25AGLSize: Square 25 mm | Operation: Alternate (touch pad) | LED color: Green | Supply: 12VDC | Cover: None
KTS-S25AGLPSize: Square 25 mm | Operation: Alternate (touch pad) | LED color: Green | Supply: 12VDC | Cover: Protective cover
KTS-S25AYSize: Square 25 mm | Operation: Alternate (touch pad) | LED color: Yellow | Supply: 24VDC | Cover: None
KTS-S25AYPSize: Square 25 mm | Operation: Alternate (touch pad) | LED color: Yellow | Supply: 24VDC | Cover: Protective cover
KTS-S25AYLSize: Square 25 mm | Operation: Alternate (touch pad) | LED color: Yellow | Supply: 12VDC | Cover: None
KTS-S25AYLPSize: Square 25 mm | Operation: Alternate (touch pad) | LED color: Yellow | Supply: 12VDC | Cover: Protective cover
KTS-S25AWSize: Square 25 mm | Operation: Alternate (touch pad) | LED color: White | Supply: 24VDC | Cover: None
KTS-S25AWPSize: Square 25 mm | Operation: Alternate (touch pad) | LED color: White | Supply: 24VDC | Cover: Protective cover
KTS-S25AWLSize: Square 25 mm | Operation: Alternate (touch pad) | LED color: White | Supply: 12VDC | Cover: None
KTS-S25AWLPSize: Square 25 mm | Operation: Alternate (touch pad) | LED color: White | Supply: 12VDC | Cover: Protective cover
KTS-S25MRSize: Square 25 mm | Operation: Momentary (touch pad) | LED color: Red | Supply: 24VDC | Cover: None
KTS-S25MRPSize: Square 25 mm | Operation: Momentary (touch pad) | LED color: Red | Supply: 24VDC | Cover: Protective cover
KTS-S25MRLSize: Square 25 mm | Operation: Momentary (touch pad) | LED color: Red | Supply: 12VDC | Cover: None
KTS-S25MRLPSize: Square 25 mm | Operation: Momentary (touch pad) | LED color: Red | Supply: 12VDC | Cover: Protective cover
KTS-S25MGSize: Square 25 mm | Operation: Momentary (touch pad) | LED color: Green | Supply: 24VDC | Cover: None
KTS-S25MGPSize: Square 25 mm | Operation: Momentary (touch pad) | LED color: Green | Supply: 24VDC | Cover: Protective cover
KTS-S25MGLSize: Square 25 mm | Operation: Momentary (touch pad) | LED color: Green | Supply: 12VDC | Cover: None
KTS-S25MGLPSize: Square 25 mm | Operation: Momentary (touch pad) | LED color: Green | Supply: 12VDC | Cover: Protective cover
KTS-S25MYSize: Square 25 mm | Operation: Momentary (touch pad) | LED color: Yellow | Supply: 24VDC | Cover: None
KTS-S25MYPSize: Square 25 mm | Operation: Momentary (touch pad) | LED color: Yellow | Supply: 24VDC | Cover: Protective cover
KTS-S25MYLSize: Square 25 mm | Operation: Momentary (touch pad) | LED color: Yellow | Supply: 12VDC | Cover: None
KTS-S25MYLPSize: Square 25 mm | Operation: Momentary (touch pad) | LED color: Yellow | Supply: 12VDC | Cover: Protective cover
KTS-S25MWSize: Square 25 mm | Operation: Momentary (touch pad) | LED color: White | Supply: 24VDC | Cover: None
KTS-S25MWPSize: Square 25 mm | Operation: Momentary (touch pad) | LED color: White | Supply: 24VDC | Cover: Protective cover
KTS-S25MWLSize: Square 25 mm | Operation: Momentary (touch pad) | LED color: White | Supply: 12VDC | Cover: None
KTS-S25MWLPSize: Square 25 mm | Operation: Momentary (touch pad) | LED color: White | Supply: 12VDC | Cover: Protective cover
KTS-S25RSize: Square 25 mm | Operation: LED only (no touch pad) | LED color: Red | Supply: 24VDC | Cover: None
KTS-S25RPSize: Square 25 mm | Operation: LED only (no touch pad) | LED color: Red | Supply: 24VDC | Cover: Protective cover
KTS-S25RLSize: Square 25 mm | Operation: LED only (no touch pad) | LED color: Red | Supply: 12VDC | Cover: None
KTS-S25RLPSize: Square 25 mm | Operation: LED only (no touch pad) | LED color: Red | Supply: 12VDC | Cover: Protective cover
KTS-S25GSize: Square 25 mm | Operation: LED only (no touch pad) | LED color: Green | Supply: 24VDC | Cover: None
KTS-S25GPSize: Square 25 mm | Operation: LED only (no touch pad) | LED color: Green | Supply: 24VDC | Cover: Protective cover
KTS-S25GLSize: Square 25 mm | Operation: LED only (no touch pad) | LED color: Green | Supply: 12VDC | Cover: None
KTS-S25GLPSize: Square 25 mm | Operation: LED only (no touch pad) | LED color: Green | Supply: 12VDC | Cover: Protective cover
KTS-S25YSize: Square 25 mm | Operation: LED only (no touch pad) | LED color: Yellow | Supply: 24VDC | Cover: None
KTS-S25YPSize: Square 25 mm | Operation: LED only (no touch pad) | LED color: Yellow | Supply: 24VDC | Cover: Protective cover
KTS-S25YLSize: Square 25 mm | Operation: LED only (no touch pad) | LED color: Yellow | Supply: 12VDC | Cover: None
KTS-S25YLPSize: Square 25 mm | Operation: LED only (no touch pad) | LED color: Yellow | Supply: 12VDC | Cover: Protective cover
KTS-S25WSize: Square 25 mm | Operation: LED only (no touch pad) | LED color: White | Supply: 24VDC | Cover: None
KTS-S25WPSize: Square 25 mm | Operation: LED only (no touch pad) | LED color: White | Supply: 24VDC | Cover: Protective cover
KTS-S25WLSize: Square 25 mm | Operation: LED only (no touch pad) | LED color: White | Supply: 12VDC | Cover: None
KTS-S25WLPSize: Square 25 mm | Operation: LED only (no touch pad) | LED color: White | Supply: 12VDC | Cover: Protective cover
KTS-S40ARSize: Square 40 mm | Operation: Alternate (touch pad) | LED color: Red | Supply: 24VDC | Cover: None
KTS-S40ARPSize: Square 40 mm | Operation: Alternate (touch pad) | LED color: Red | Supply: 24VDC | Cover: Protective cover
KTS-S40ARLSize: Square 40 mm | Operation: Alternate (touch pad) | LED color: Red | Supply: 12VDC | Cover: None
KTS-S40ARLPSize: Square 40 mm | Operation: Alternate (touch pad) | LED color: Red | Supply: 12VDC | Cover: Protective cover
KTS-S40AGSize: Square 40 mm | Operation: Alternate (touch pad) | LED color: Green | Supply: 24VDC | Cover: None
KTS-S40AGPSize: Square 40 mm | Operation: Alternate (touch pad) | LED color: Green | Supply: 24VDC | Cover: Protective cover
KTS-S40AGLSize: Square 40 mm | Operation: Alternate (touch pad) | LED color: Green | Supply: 12VDC | Cover: None
KTS-S40AGLPSize: Square 40 mm | Operation: Alternate (touch pad) | LED color: Green | Supply: 12VDC | Cover: Protective cover
KTS-S40AYSize: Square 40 mm | Operation: Alternate (touch pad) | LED color: Yellow | Supply: 24VDC | Cover: None
KTS-S40AYPSize: Square 40 mm | Operation: Alternate (touch pad) | LED color: Yellow | Supply: 24VDC | Cover: Protective cover
KTS-S40AYLSize: Square 40 mm | Operation: Alternate (touch pad) | LED color: Yellow | Supply: 12VDC | Cover: None
KTS-S40AYLPSize: Square 40 mm | Operation: Alternate (touch pad) | LED color: Yellow | Supply: 12VDC | Cover: Protective cover
KTS-S40AWSize: Square 40 mm | Operation: Alternate (touch pad) | LED color: White | Supply: 24VDC | Cover: None
KTS-S40AWPSize: Square 40 mm | Operation: Alternate (touch pad) | LED color: White | Supply: 24VDC | Cover: Protective cover
KTS-S40AWLSize: Square 40 mm | Operation: Alternate (touch pad) | LED color: White | Supply: 12VDC | Cover: None
KTS-S40AWLPSize: Square 40 mm | Operation: Alternate (touch pad) | LED color: White | Supply: 12VDC | Cover: Protective cover
KTS-S40MRSize: Square 40 mm | Operation: Momentary (touch pad) | LED color: Red | Supply: 24VDC | Cover: None
KTS-S40MRPSize: Square 40 mm | Operation: Momentary (touch pad) | LED color: Red | Supply: 24VDC | Cover: Protective cover
KTS-S40MRLSize: Square 40 mm | Operation: Momentary (touch pad) | LED color: Red | Supply: 12VDC | Cover: None
KTS-S40MRLPSize: Square 40 mm | Operation: Momentary (touch pad) | LED color: Red | Supply: 12VDC | Cover: Protective cover
KTS-S40MGSize: Square 40 mm | Operation: Momentary (touch pad) | LED color: Green | Supply: 24VDC | Cover: None
KTS-S40MGPSize: Square 40 mm | Operation: Momentary (touch pad) | LED color: Green | Supply: 24VDC | Cover: Protective cover
KTS-S40MGLSize: Square 40 mm | Operation: Momentary (touch pad) | LED color: Green | Supply: 12VDC | Cover: None
KTS-S40MGLPSize: Square 40 mm | Operation: Momentary (touch pad) | LED color: Green | Supply: 12VDC | Cover: Protective cover
KTS-S40MYSize: Square 40 mm | Operation: Momentary (touch pad) | LED color: Yellow | Supply: 24VDC | Cover: None
KTS-S40MYPSize: Square 40 mm | Operation: Momentary (touch pad) | LED color: Yellow | Supply: 24VDC | Cover: Protective cover
KTS-S40MYLSize: Square 40 mm | Operation: Momentary (touch pad) | LED color: Yellow | Supply: 12VDC | Cover: None
KTS-S40MYLPSize: Square 40 mm | Operation: Momentary (touch pad) | LED color: Yellow | Supply: 12VDC | Cover: Protective cover
KTS-S40MWSize: Square 40 mm | Operation: Momentary (touch pad) | LED color: White | Supply: 24VDC | Cover: None
KTS-S40MWPSize: Square 40 mm | Operation: Momentary (touch pad) | LED color: White | Supply: 24VDC | Cover: Protective cover
KTS-S40MWLSize: Square 40 mm | Operation: Momentary (touch pad) | LED color: White | Supply: 12VDC | Cover: None
KTS-S40MWLPSize: Square 40 mm | Operation: Momentary (touch pad) | LED color: White | Supply: 12VDC | Cover: Protective cover
KTS-S40RSize: Square 40 mm | Operation: LED only (no touch pad) | LED color: Red | Supply: 24VDC | Cover: None
KTS-S40RPSize: Square 40 mm | Operation: LED only (no touch pad) | LED color: Red | Supply: 24VDC | Cover: Protective cover
KTS-S40RLSize: Square 40 mm | Operation: LED only (no touch pad) | LED color: Red | Supply: 12VDC | Cover: None
KTS-S40RLPSize: Square 40 mm | Operation: LED only (no touch pad) | LED color: Red | Supply: 12VDC | Cover: Protective cover
KTS-S40GSize: Square 40 mm | Operation: LED only (no touch pad) | LED color: Green | Supply: 24VDC | Cover: None
KTS-S40GPSize: Square 40 mm | Operation: LED only (no touch pad) | LED color: Green | Supply: 24VDC | Cover: Protective cover
KTS-S40GLSize: Square 40 mm | Operation: LED only (no touch pad) | LED color: Green | Supply: 12VDC | Cover: None
KTS-S40GLPSize: Square 40 mm | Operation: LED only (no touch pad) | LED color: Green | Supply: 12VDC | Cover: Protective cover
KTS-S40YSize: Square 40 mm | Operation: LED only (no touch pad) | LED color: Yellow | Supply: 24VDC | Cover: None
KTS-S40YPSize: Square 40 mm | Operation: LED only (no touch pad) | LED color: Yellow | Supply: 24VDC | Cover: Protective cover
KTS-S40YLSize: Square 40 mm | Operation: LED only (no touch pad) | LED color: Yellow | Supply: 12VDC | Cover: None
KTS-S40YLPSize: Square 40 mm | Operation: LED only (no touch pad) | LED color: Yellow | Supply: 12VDC | Cover: Protective cover
KTS-S40WSize: Square 40 mm | Operation: LED only (no touch pad) | LED color: White | Supply: 24VDC | Cover: None
KTS-S40WPSize: Square 40 mm | Operation: LED only (no touch pad) | LED color: White | Supply: 24VDC | Cover: Protective cover
KTS-S40WLSize: Square 40 mm | Operation: LED only (no touch pad) | LED color: White | Supply: 12VDC | Cover: None
KTS-S40WLPSize: Square 40 mm | Operation: LED only (no touch pad) | LED color: White | Supply: 12VDC | Cover: Protective cover

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
