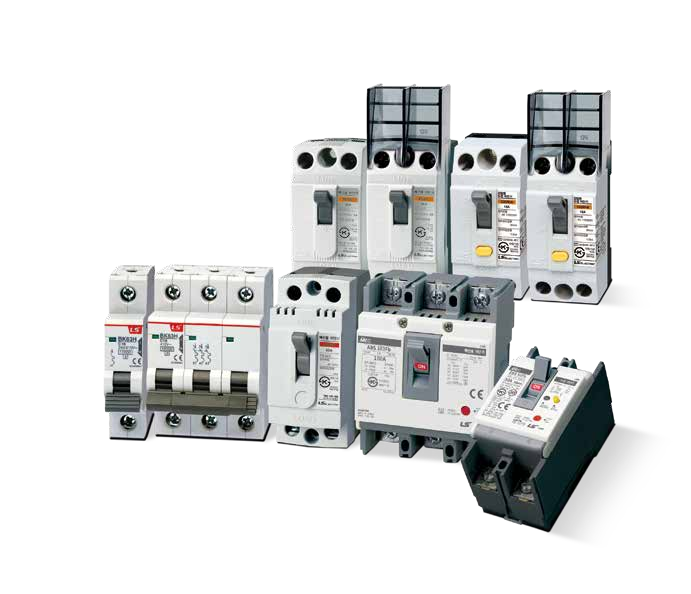

LS Electric 32GR-cd Beyond X Industrial Distribution Panel MCB/RCBO (Standard RCBO (BS-series compatible), 30AF RCBO, 1.5/2.5kA @ 220V AC, 15, 30mA, 15~30A)

Specifications

Frame	30AF
Type	Standard RCBO (BS-series compatible)
Pole	2P
Breaking capacity Icn	1.5/2.5kA @ 220V AC
Ics	100% Icn
Trip method	Thermal-Magnetic + RCD
Trip curve	Thermal-Magnetic standard
Sensitivity (I△n)	15, 30mA
Uimp	4kV
Mounting	Screw or DIN rail
Voltage	AC 110/220V
Standard	KS 4613 / —

32GRc/15/15, 30		GR 32GR-cd — 32GRc 15A 2P (RCBO) \| Frame: 30AF \| Type: Standard RCBO (BS-series compatible) \| Rated current (In): 15A \| Pole: 2P \| Breaking capacity Icn: 1.5/2.5kA @ 220V AC \| Ics: 100% Icn \| Trip method: Thermal-Magnetic + RCD \| Trip curve: Thermal-Magnetic standard \| Sensitivity (I△n): 15, 30mA \| Uimp: 4kV \| Mounting: Screw or DIN rail \| Voltage: AC 110/220V \| Standard: KS 4613 / — \| Application: Industrial distribution panel (RCBO) \| Variant: 32GRc=1.5kA, 32GRd=2.5kA
32GRc/20/15, 30		GR 32GR-cd — 32GRc 20A 2P (RCBO) \| Frame: 30AF \| Type: Standard RCBO (BS-series compatible) \| Rated current (In): 20A \| Pole: 2P \| Breaking capacity Icn: 1.5/2.5kA @ 220V AC \| Ics: 100% Icn \| Trip method: Thermal-Magnetic + RCD \| Trip curve: Thermal-Magnetic standard \| Sensitivity (I△n): 15, 30mA \| Uimp: 4kV \| Mounting: Screw or DIN rail \| Voltage: AC 110/220V \| Standard: KS 4613 / — \| Application: Industrial distribution panel (RCBO) \| Variant: 32GRc=1.5kA, 32GRd=2.5kA
32GRc/30/15, 30		GR 32GR-cd — 32GRc 30A 2P (RCBO) \| Frame: 30AF \| Type: Standard RCBO (BS-series compatible) \| Rated current (In): 30A \| Pole: 2P \| Breaking capacity Icn: 1.5/2.5kA @ 220V AC \| Ics: 100% Icn \| Trip method: Thermal-Magnetic + RCD \| Trip curve: Thermal-Magnetic standard \| Sensitivity (I△n): 15, 30mA \| Uimp: 4kV \| Mounting: Screw or DIN rail \| Voltage: AC 110/220V \| Standard: KS 4613 / — \| Application: Industrial distribution panel (RCBO) \| Variant: 32GRc=1.5kA, 32GRd=2.5kA
32GRd/15/15, 30		GR 32GR-cd — 32GRd 15A 2P (RCBO) \| Frame: 30AF \| Type: Standard RCBO (BS-series compatible) \| Rated current (In): 15A \| Pole: 2P \| Breaking capacity Icn: 1.5/2.5kA @ 220V AC \| Ics: 100% Icn \| Trip method: Thermal-Magnetic + RCD \| Trip curve: Thermal-Magnetic standard \| Sensitivity (I△n): 15, 30mA \| Uimp: 4kV \| Mounting: Screw or DIN rail \| Voltage: AC 110/220V \| Standard: KS 4613 / — \| Application: Industrial distribution panel (RCBO) \| Variant: 32GRc=1.5kA, 32GRd=2.5kA
32GRd/20/15, 30		GR 32GR-cd — 32GRd 20A 2P (RCBO) \| Frame: 30AF \| Type: Standard RCBO (BS-series compatible) \| Rated current (In): 20A \| Pole: 2P \| Breaking capacity Icn: 1.5/2.5kA @ 220V AC \| Ics: 100% Icn \| Trip method: Thermal-Magnetic + RCD \| Trip curve: Thermal-Magnetic standard \| Sensitivity (I△n): 15, 30mA \| Uimp: 4kV \| Mounting: Screw or DIN rail \| Voltage: AC 110/220V \| Standard: KS 4613 / — \| Application: Industrial distribution panel (RCBO) \| Variant: 32GRc=1.5kA, 32GRd=2.5kA
32GRd/30/15, 30		GR 32GR-cd — 32GRd 30A 2P (RCBO) \| Frame: 30AF \| Type: Standard RCBO (BS-series compatible) \| Rated current (In): 30A \| Pole: 2P \| Breaking capacity Icn: 1.5/2.5kA @ 220V AC \| Ics: 100% Icn \| Trip method: Thermal-Magnetic + RCD \| Trip curve: Thermal-Magnetic standard \| Sensitivity (I△n): 15, 30mA \| Uimp: 4kV \| Mounting: Screw or DIN rail \| Voltage: AC 110/220V \| Standard: KS 4613 / — \| Application: Industrial distribution panel (RCBO) \| Variant: 32GRc=1.5kA, 32GRd=2.5kA

Miniature Circuit BreakersLS Electric

6 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric 32GR-cd Beyond X Industrial Distribution Panel MCB/RCBO (Standard RCBO (BS-series compatible), 30AF RCBO, 1.5/2.5kA @ 220V AC, 15, 30mA, 15~30A)

Brand LS Electric·Miniature Circuit Breakers

Available part numbers (6)

32GRc/15/15, 30, 32GRc/20/15, 30, 32GRc/30/15, 30, 32GRd/15/15, 30, 32GRd/20/15, 30, 32GRd/30/15, 30

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	32GRc/15/15, 30	GR 32GR-cd — 32GRc 15A 2P (RCBO) \| Frame: 30AF \| Type: Standard RCBO (BS-series compatible) \| Rated current (In): 15A \| Pole: 2P \| Breaking capacity Icn: 1.5/2.5kA @ 220V AC \| Ics: 100% Icn \| Trip method: Thermal-Magnetic + RCD \| Trip curve: Thermal-Magnetic standard \| Sensitivity (I△n): 15, 30mA \| Uimp: 4kV \| Mounting: Screw or DIN rail \| Voltage: AC 110/220V \| Standard: KS 4613 / — \| Application: Industrial distribution panel (RCBO) \| Variant: 32GRc=1.5kA, 32GRd=2.5kA
	32GRc/20/15, 30	GR 32GR-cd — 32GRc 20A 2P (RCBO) \| Frame: 30AF \| Type: Standard RCBO (BS-series compatible) \| Rated current (In): 20A \| Pole: 2P \| Breaking capacity Icn: 1.5/2.5kA @ 220V AC \| Ics: 100% Icn \| Trip method: Thermal-Magnetic + RCD \| Trip curve: Thermal-Magnetic standard \| Sensitivity (I△n): 15, 30mA \| Uimp: 4kV \| Mounting: Screw or DIN rail \| Voltage: AC 110/220V \| Standard: KS 4613 / — \| Application: Industrial distribution panel (RCBO) \| Variant: 32GRc=1.5kA, 32GRd=2.5kA
	32GRc/30/15, 30	GR 32GR-cd — 32GRc 30A 2P (RCBO) \| Frame: 30AF \| Type: Standard RCBO (BS-series compatible) \| Rated current (In): 30A \| Pole: 2P \| Breaking capacity Icn: 1.5/2.5kA @ 220V AC \| Ics: 100% Icn \| Trip method: Thermal-Magnetic + RCD \| Trip curve: Thermal-Magnetic standard \| Sensitivity (I△n): 15, 30mA \| Uimp: 4kV \| Mounting: Screw or DIN rail \| Voltage: AC 110/220V \| Standard: KS 4613 / — \| Application: Industrial distribution panel (RCBO) \| Variant: 32GRc=1.5kA, 32GRd=2.5kA
	32GRd/15/15, 30	GR 32GR-cd — 32GRd 15A 2P (RCBO) \| Frame: 30AF \| Type: Standard RCBO (BS-series compatible) \| Rated current (In): 15A \| Pole: 2P \| Breaking capacity Icn: 1.5/2.5kA @ 220V AC \| Ics: 100% Icn \| Trip method: Thermal-Magnetic + RCD \| Trip curve: Thermal-Magnetic standard \| Sensitivity (I△n): 15, 30mA \| Uimp: 4kV \| Mounting: Screw or DIN rail \| Voltage: AC 110/220V \| Standard: KS 4613 / — \| Application: Industrial distribution panel (RCBO) \| Variant: 32GRc=1.5kA, 32GRd=2.5kA
	32GRd/20/15, 30	GR 32GR-cd — 32GRd 20A 2P (RCBO) \| Frame: 30AF \| Type: Standard RCBO (BS-series compatible) \| Rated current (In): 20A \| Pole: 2P \| Breaking capacity Icn: 1.5/2.5kA @ 220V AC \| Ics: 100% Icn \| Trip method: Thermal-Magnetic + RCD \| Trip curve: Thermal-Magnetic standard \| Sensitivity (I△n): 15, 30mA \| Uimp: 4kV \| Mounting: Screw or DIN rail \| Voltage: AC 110/220V \| Standard: KS 4613 / — \| Application: Industrial distribution panel (RCBO) \| Variant: 32GRc=1.5kA, 32GRd=2.5kA
	32GRd/30/15, 30	GR 32GR-cd — 32GRd 30A 2P (RCBO) \| Frame: 30AF \| Type: Standard RCBO (BS-series compatible) \| Rated current (In): 30A \| Pole: 2P \| Breaking capacity Icn: 1.5/2.5kA @ 220V AC \| Ics: 100% Icn \| Trip method: Thermal-Magnetic + RCD \| Trip curve: Thermal-Magnetic standard \| Sensitivity (I△n): 15, 30mA \| Uimp: 4kV \| Mounting: Screw or DIN rail \| Voltage: AC 110/220V \| Standard: KS 4613 / — \| Application: Industrial distribution panel (RCBO) \| Variant: 32GRc=1.5kA, 32GRd=2.5kA
