• LS Electric ABE50Fb Beyond X Industrial Distribution Panel MCB/RCBO (E-type Hydraulic-Magnetic (Economy), 50AF MCB, 2.5kA @ 220V AC / 1.5kA @ 460V AC, 5~50A)
1 1

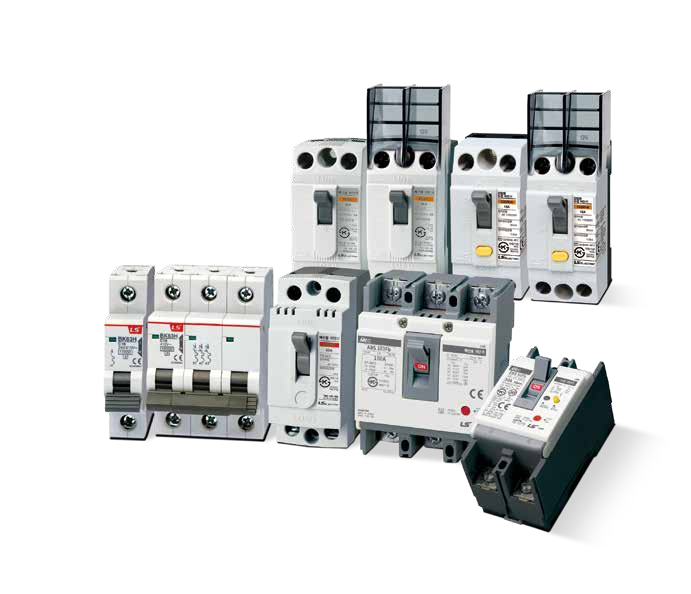

LS Electric ABE50Fb Beyond X Industrial Distribution Panel MCB/RCBO (E-type Hydraulic-Magnetic (Economy), 50AF MCB, 2.5kA @ 220V AC / 1.5kA @ 460V AC, 5~50A)

LS Electric ABE50Fb Beyond X Industrial Distribution Panel MCB/RCBO (E-type Hydraulic-Magnetic (Economy), 50AF MCB, 2.5kA @ 220V AC / 1.5kA @ 460V AC, 5~50A)

LS ELECTRIC Beyond X Industrial Distribution Panel MCB/RCBO ABE50Fb family. | Application: Industrial distribution panel (MCB). | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Rated current (In): 5A, 10A, 15A, 20A, 30A, 40A, 50A | Pole: 2P / 3P | Mounting: Screw or DIN rail | Uimp: 4kV | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | 14 variants — see RFQ table for specific MPN.

Specifications

Frame 50AF
Type E-type Hydraulic-Magnetic (Economy)
Breaking capacity Icn 2.5kA @ 220V AC / 1.5kA @ 460V AC
Ics 100% Icn
Trip method Hydraulic-Magnetic
Trip curve (7~15)×In
Uimp 4kV
Mounting Screw or DIN rail
Voltage AC 220/460V
Standard KSC 8321 / IEC 60947-2
Application Industrial distribution panel (MCB)
ABE52Fb/5 ABE Fb ABE50Fb — ABE52Fb 5A 2P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 5A | Pole: 2P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE52Fb/10 ABE Fb ABE50Fb — ABE52Fb 10A 2P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 10A | Pole: 2P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE52Fb/15 ABE Fb ABE50Fb — ABE52Fb 15A 2P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 15A | Pole: 2P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE52Fb/20 ABE Fb ABE50Fb — ABE52Fb 20A 2P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 20A | Pole: 2P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE52Fb/30 ABE Fb ABE50Fb — ABE52Fb 30A 2P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 30A | Pole: 2P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE52Fb/40 ABE Fb ABE50Fb — ABE52Fb 40A 2P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 40A | Pole: 2P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE52Fb/50 ABE Fb ABE50Fb — ABE52Fb 50A 2P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 50A | Pole: 2P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE53Fb/5 ABE Fb ABE50Fb — ABE53Fb 5A 3P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 5A | Pole: 3P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE53Fb/10 ABE Fb ABE50Fb — ABE53Fb 10A 3P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 10A | Pole: 3P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE53Fb/15 ABE Fb ABE50Fb — ABE53Fb 15A 3P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 15A | Pole: 3P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE53Fb/20 ABE Fb ABE50Fb — ABE53Fb 20A 3P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 20A | Pole: 3P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE53Fb/30 ABE Fb ABE50Fb — ABE53Fb 30A 3P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 30A | Pole: 3P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE53Fb/40 ABE Fb ABE50Fb — ABE53Fb 40A 3P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 40A | Pole: 3P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE53Fb/50 ABE Fb ABE50Fb — ABE53Fb 50A 3P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 50A | Pole: 3P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
Miniature Circuit BreakersLS Electric
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric ABE50Fb Beyond X Industrial Distribution Panel MCB/RCBO (E-type Hydraulic-Magnetic (Economy), 50AF MCB, 2.5kA @ 220V AC / 1.5kA @ 460V AC, 5~50A)

Brand LS Electric·Miniature Circuit Breakers

Available part numbers (14)

ABE52Fb/5, ABE52Fb/10, ABE52Fb/15, ABE52Fb/20, ABE52Fb/30, ABE52Fb/40, ABE52Fb/50, ABE53Fb/5, ABE53Fb/10, ABE53Fb/15 + 4 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ABE52Fb/5ABE Fb ABE50Fb — ABE52Fb 5A 2P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 5A | Pole: 2P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE52Fb/10ABE Fb ABE50Fb — ABE52Fb 10A 2P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 10A | Pole: 2P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE52Fb/15ABE Fb ABE50Fb — ABE52Fb 15A 2P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 15A | Pole: 2P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE52Fb/20ABE Fb ABE50Fb — ABE52Fb 20A 2P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 20A | Pole: 2P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE52Fb/30ABE Fb ABE50Fb — ABE52Fb 30A 2P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 30A | Pole: 2P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE52Fb/40ABE Fb ABE50Fb — ABE52Fb 40A 2P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 40A | Pole: 2P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE52Fb/50ABE Fb ABE50Fb — ABE52Fb 50A 2P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 50A | Pole: 2P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE53Fb/5ABE Fb ABE50Fb — ABE53Fb 5A 3P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 5A | Pole: 3P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE53Fb/10ABE Fb ABE50Fb — ABE53Fb 10A 3P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 10A | Pole: 3P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE53Fb/15ABE Fb ABE50Fb — ABE53Fb 15A 3P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 15A | Pole: 3P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE53Fb/20ABE Fb ABE50Fb — ABE53Fb 20A 3P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 20A | Pole: 3P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE53Fb/30ABE Fb ABE50Fb — ABE53Fb 30A 3P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 30A | Pole: 3P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE53Fb/40ABE Fb ABE50Fb — ABE53Fb 40A 3P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 40A | Pole: 3P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
ABE53Fb/50ABE Fb ABE50Fb — ABE53Fb 50A 3P (MCB) | Frame: 50AF | Type: E-type Hydraulic-Magnetic (Economy) | Rated current (In): 50A | Pole: 3P | Breaking capacity Icn: 2.5kA @ 220V AC / 1.5kA @ 460V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic | Trip curve: (7~15)×In | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220/460V | Standard: KSC 8321 / IEC 60947-2 | Application: Industrial distribution panel (MCB)
