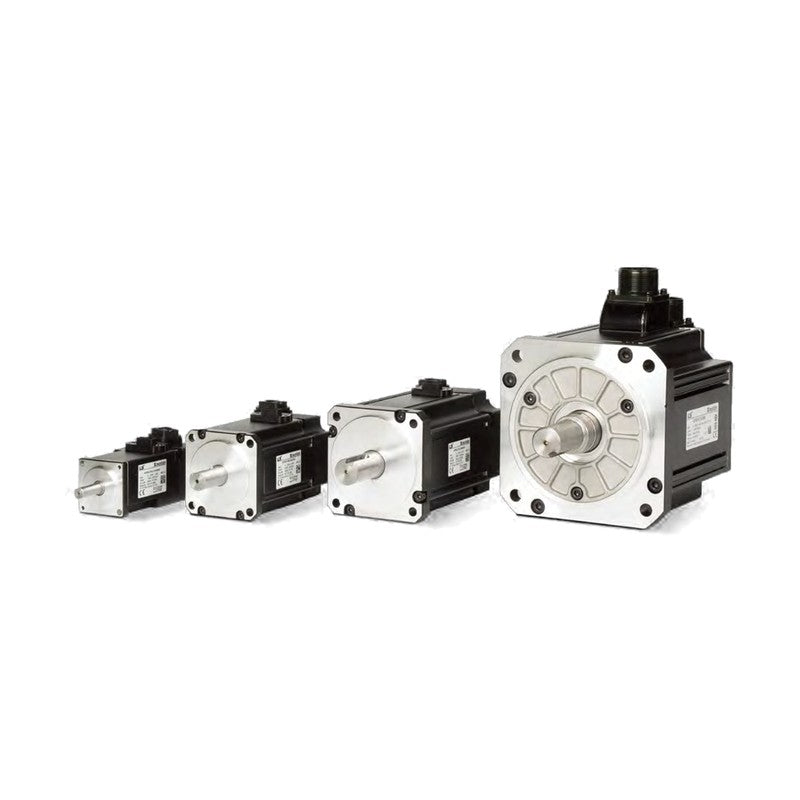

LS Electric APM-F Servo Motors 200V (130 mm, 0.3-3 kW)

LS Electric APM-F Servo Motors 200V (130 mm, 0.3-3 kW)

LS Electric Xmotion APM-F 200V flat servo motors with 130 mm flange (FE), 0.3 to 3 kW at 1,000-3,000 rpm, for iX7NH, L7NHA, L7PA, L7SA drives.

Key features

  • Flat-type Xmotion F series; full order code = base model + encoder + shaft + option (e.g. APM-FEP09AMK2)
  • Serial absolute encoder 19-bit with 16-bit multi-turn as standard
  • Shaft K (single round key, standard) or N (straight); options oil seal, 24 VDC holding brake or both
  • Totally enclosed self-cooled, continuous duty, vibration resistance 49 m/s2 (5G)
  • Matched to Xmotion iX7NH, L7NHA, L7PA, L7SA drives

Specifications

Motor series APM-F (Xmotion F series, made in Korea)
Voltage 200 VAC class
Flange 130 mm square
Protection Totally enclosed, IP65 (shaft through-hole excluded)
Time rating Continuous
Allowable load inertia 10x motor inertia
Holding brake DC 24 V, 10.4 N.m
Ambient 0 to 40 C, 80% RH max, non-condensing
Source LS Electric Xmotion Servo System catalog (KR, 2024.09), p. 98, 100-104, 111, 118
APM-FE09A Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE09AMK Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE09AMK1 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE09AMK2 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE09AMK3 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE09AMN Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE09AMN1 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE09AMN2 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE09AMN3 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE15A Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE15AMK Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE15AMK1 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE15AMK2 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE15AMK3 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE15AMN Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE15AMN1 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE15AMN2 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE15AMN3 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE22A Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE22AMK Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE22AMK1 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE22AMK2 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE22AMK3 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE22AMN Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE22AMN1 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE22AMN2 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE22AMN3 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE30A Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE30AMK Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE30AMK1 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE30AMK2 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE30AMK3 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE30AMN Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE30AMN1 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE30AMN2 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE30AMN3 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE06D Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE06DMK Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE06DMK1 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE06DMK2 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE06DMK3 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE06DMN Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE06DMN1 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE06DMN2 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE06DMN3 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE11D Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE11DMK Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE11DMK1 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE11DMK2 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE11DMK3 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE11DMN Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE11DMN1 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE11DMN2 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE11DMN3 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE16D Rating: 1.6 kW / 7.63 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE16DMK Rating: 1.6 kW / 7.63 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE16DMK1 Rating: 1.6 kW / 7.63 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE16DMK2 Rating: 1.6 kW / 7.63 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE16DMK3 Rating: 1.6 kW / 7.63 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE16DMN Rating: 1.6 kW / 7.63 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE16DMN1 Rating: 1.6 kW / 7.63 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE16DMN2 Rating: 1.6 kW / 7.63 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE16DMN3 Rating: 1.6 kW / 7.63 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE22D Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE22DMK Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE22DMK1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE22DMK2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE22DMK3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE22DMN Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE22DMN1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE22DMN2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE22DMN3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE05G Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE05GMK Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE05GMK1 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE05GMK2 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE05GMK3 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE05GMN Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE05GMN1 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE05GMN2 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE05GMN3 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE09G Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE09GMK Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE09GMK1 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE09GMK2 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE09GMK3 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE09GMN Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE09GMN1 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE09GMN2 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE09GMN3 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE13G Rating: 1.3 kW / 8.27 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE13GMK Rating: 1.3 kW / 8.27 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE13GMK1 Rating: 1.3 kW / 8.27 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE13GMK2 Rating: 1.3 kW / 8.27 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE13GMK3 Rating: 1.3 kW / 8.27 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE13GMN Rating: 1.3 kW / 8.27 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE13GMN1 Rating: 1.3 kW / 8.27 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE13GMN2 Rating: 1.3 kW / 8.27 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE13GMN3 Rating: 1.3 kW / 8.27 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE17G Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE17GMK Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE17GMK1 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE17GMK2 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE17GMK3 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE17GMN Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE17GMN1 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE17GMN2 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE17GMN3 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE03M Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE03MMK Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE03MMK1 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE03MMK2 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE03MMK3 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE03MMN Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE03MMN1 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE03MMN2 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE03MMN3 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE06M Rating: 0.6 kW / 5.72 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE06MMK Rating: 0.6 kW / 5.72 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE06MMK1 Rating: 0.6 kW / 5.72 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE06MMK2 Rating: 0.6 kW / 5.72 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE06MMK3 Rating: 0.6 kW / 5.72 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE06MMN Rating: 0.6 kW / 5.72 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE06MMN1 Rating: 0.6 kW / 5.72 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE06MMN2 Rating: 0.6 kW / 5.72 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE06MMN3 Rating: 0.6 kW / 5.72 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE09M Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE09MMK Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE09MMK1 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE09MMK2 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE09MMK3 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE09MMN Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE09MMN1 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE09MMN2 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE09MMN3 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE12M Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE12MMK Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE12MMK1 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE12MMK2 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE12MMK3 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE12MMN Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE12MMN1 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE12MMN2 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE12MMN3 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
Servo MotorsLS Electric
144 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric APM-F Servo Motors 200V (130 mm, 0.3-3 kW)

Brand LS Electric·Servo Motors

Available part numbers (144)

APM-FE09A, APM-FE09AMK, APM-FE09AMK1, APM-FE09AMK2, APM-FE09AMK3, APM-FE09AMN, APM-FE09AMN1, APM-FE09AMN2, APM-FE09AMN3, APM-FE15A + 134 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APM-FE09ARating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE09AMKRating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE09AMK1Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE09AMK2Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE09AMK3Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE09AMNRating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE09AMN1Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE09AMN2Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE09AMN3Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE15ARating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE15AMKRating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE15AMK1Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE15AMK2Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE15AMK3Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE15AMNRating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE15AMN1Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE15AMN2Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE15AMN3Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE22ARating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE22AMKRating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE22AMK1Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE22AMK2Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE22AMK3Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE22AMNRating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE22AMN1Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE22AMN2Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE22AMN3Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE30ARating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE30AMKRating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE30AMK1Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE30AMK2Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE30AMK3Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE30AMNRating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE30AMN1Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE30AMN2Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE30AMN3Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE06DRating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE06DMKRating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE06DMK1Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE06DMK2Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE06DMK3Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE06DMNRating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE06DMN1Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE06DMN2Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE06DMN3Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE11DRating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE11DMKRating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE11DMK1Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE11DMK2Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE11DMK3Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE11DMNRating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE11DMN1Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE11DMN2Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE11DMN3Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE16DRating: 1.6 kW / 7.63 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE16DMKRating: 1.6 kW / 7.63 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE16DMK1Rating: 1.6 kW / 7.63 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE16DMK2Rating: 1.6 kW / 7.63 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE16DMK3Rating: 1.6 kW / 7.63 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE16DMNRating: 1.6 kW / 7.63 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE16DMN1Rating: 1.6 kW / 7.63 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE16DMN2Rating: 1.6 kW / 7.63 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE16DMN3Rating: 1.6 kW / 7.63 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE22DRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE22DMKRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE22DMK1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE22DMK2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE22DMK3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE22DMNRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE22DMN1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE22DMN2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE22DMN3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE05GRating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE05GMKRating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE05GMK1Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE05GMK2Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE05GMK3Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE05GMNRating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE05GMN1Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE05GMN2Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE05GMN3Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE09GRating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE09GMKRating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE09GMK1Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE09GMK2Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE09GMK3Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE09GMNRating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE09GMN1Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE09GMN2Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE09GMN3Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE13GRating: 1.3 kW / 8.27 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE13GMKRating: 1.3 kW / 8.27 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE13GMK1Rating: 1.3 kW / 8.27 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE13GMK2Rating: 1.3 kW / 8.27 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE13GMK3Rating: 1.3 kW / 8.27 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE13GMNRating: 1.3 kW / 8.27 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE13GMN1Rating: 1.3 kW / 8.27 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE13GMN2Rating: 1.3 kW / 8.27 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE13GMN3Rating: 1.3 kW / 8.27 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE17GRating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE17GMKRating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE17GMK1Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE17GMK2Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE17GMK3Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE17GMNRating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE17GMN1Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE17GMN2Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE17GMN3Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE03MRating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE03MMKRating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE03MMK1Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE03MMK2Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE03MMK3Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE03MMNRating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE03MMN1Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE03MMN2Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE03MMN3Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE06MRating: 0.6 kW / 5.72 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE06MMKRating: 0.6 kW / 5.72 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE06MMK1Rating: 0.6 kW / 5.72 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE06MMK2Rating: 0.6 kW / 5.72 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE06MMK3Rating: 0.6 kW / 5.72 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE06MMNRating: 0.6 kW / 5.72 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE06MMN1Rating: 0.6 kW / 5.72 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE06MMN2Rating: 0.6 kW / 5.72 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE06MMN3Rating: 0.6 kW / 5.72 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE09MRating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE09MMKRating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE09MMK1Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE09MMK2Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE09MMK3Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE09MMNRating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE09MMN1Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE09MMN2Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE09MMN3Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FE12MRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FE12MMKRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FE12MMK1Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FE12MMK2Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FE12MMK3Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FE12MMNRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FE12MMN1Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FE12MMN2Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FE12MMN3Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
