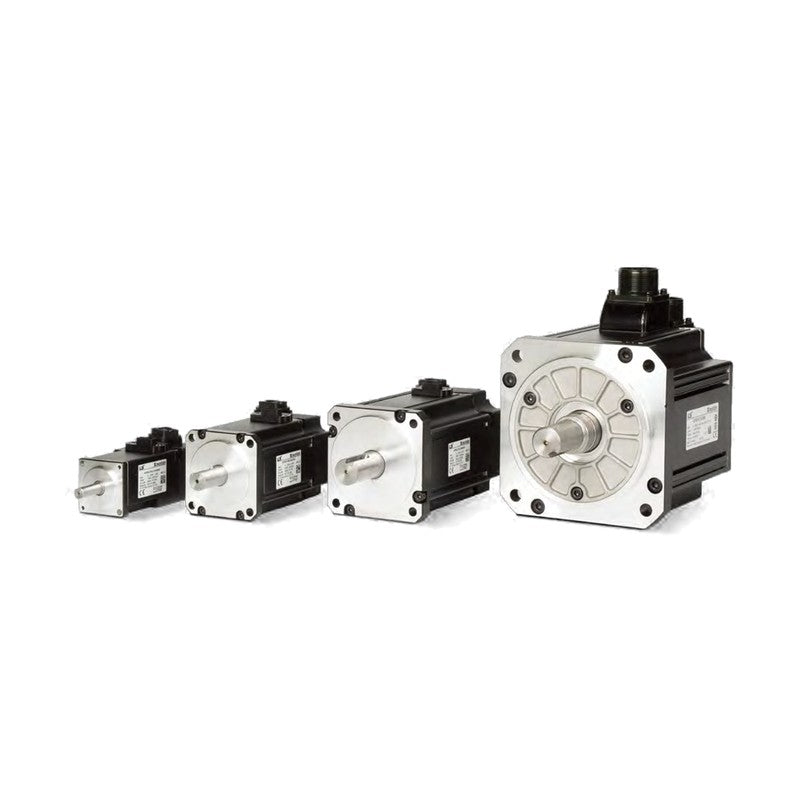

LS Electric APM-F Servo Motors 400V (180 mm, 1.2-7.5 kW)

LS Electric APM-F Servo Motors 400V (180 mm, 1.2-7.5 kW)

LS Electric Xmotion APM-F 400V flat servo motors with 180 mm flange (FFP), 1.2 to 7.5 kW at 1,000-3,000 rpm, for L7NHB, L7PB, L7SB drives.

Key features

  • Flat-type Xmotion F series; full order code = base model + encoder + shaft + option (e.g. APM-FEP09AMK2)
  • Serial absolute encoder 19-bit with 16-bit multi-turn as standard
  • Shaft K (single round key, standard) or N (straight); options oil seal, 24 VDC holding brake or both
  • Totally enclosed self-cooled, continuous duty, vibration resistance 49 m/s2 (5G)
  • Matched to Xmotion L7NHB, L7PB, L7SB drives

Specifications

Motor series APM-F (Xmotion F series, made in Korea)
Voltage 400 VAC class
Flange 180 mm square
Protection Totally enclosed, IP65 (shaft through-hole excluded)
Time rating Continuous
Allowable load inertia 5x motor inertia
Holding brake DC 24 V, 40 N.m
Ambient 0 to 40 C, 80% RH max, non-condensing
Source LS Electric Xmotion Servo System catalog (KR, 2024.09), p. 98, 105-108, 112, 118
APM-FFP30A Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP30AMK Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP30AMK1 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP30AMK2 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP30AMK3 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP30AMN Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP30AMN1 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP30AMN2 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP30AMN3 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP50A Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP50AMK Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP50AMK1 Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP50AMK2 Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP50AMK3 Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP50AMN Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP50AMN1 Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP50AMN2 Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP50AMN3 Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP22D Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP22DMK Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP22DMK1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP22DMK2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP22DMK3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP22DMN Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP22DMN1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP22DMN2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP22DMN3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP35D Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP35DMK Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP35DMK1 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP35DMK2 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP35DMK3 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP35DMN Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP35DMN1 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP35DMN2 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP35DMN3 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP55D Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP55DMK Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP55DMK1 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP55DMK2 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP55DMK3 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP55DMN Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP55DMN1 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP55DMN2 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP55DMN3 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP75D Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP75DMK Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP75DMK1 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP75DMK2 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP75DMK3 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP75DMN Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP75DMN1 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP75DMN2 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP75DMN3 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP20G Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP20GMK Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP20GMK1 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP20GMK2 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP20GMK3 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP20GMN Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP20GMN1 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP20GMN2 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP20GMN3 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP30G Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP30GMK Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP30GMK1 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP30GMK2 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP30GMK3 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP30GMN Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP30GMN1 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP30GMN2 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP30GMN3 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP44G Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP44GMK Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP44GMK1 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP44GMK2 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP44GMK3 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP44GMN Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP44GMN1 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP44GMN2 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP44GMN3 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP60G Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP60GMK Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP60GMK1 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP60GMK2 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP60GMK3 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP60GMN Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP60GMN1 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP60GMN2 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP60GMN3 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP75G Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP75GMK Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP75GMK1 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP75GMK2 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP75GMK3 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP75GMN Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP75GMN1 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP75GMN2 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP75GMN3 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP12M Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP12MMK Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP12MMK1 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP12MMK2 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP12MMK3 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP12MMN Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP12MMN1 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP12MMN2 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP12MMN3 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP20M Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP20MMK Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP20MMK1 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP20MMK2 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP20MMK3 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP20MMN Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP20MMN1 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP20MMN2 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP20MMN3 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP30M Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP30MMK Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP30MMK1 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP30MMK2 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP30MMK3 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP30MMN Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP30MMN1 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP30MMN2 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP30MMN3 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP44M Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP44MMK Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP44MMK1 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP44MMK2 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP44MMK3 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP44MMN Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP44MMN1 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP44MMN2 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP44MMN3 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
Servo MotorsLS Electric
135 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric APM-F Servo Motors 400V (180 mm, 1.2-7.5 kW)

Brand LS Electric·Servo Motors

Available part numbers (135)

APM-FFP30A, APM-FFP30AMK, APM-FFP30AMK1, APM-FFP30AMK2, APM-FFP30AMK3, APM-FFP30AMN, APM-FFP30AMN1, APM-FFP30AMN2, APM-FFP30AMN3, APM-FFP50A + 125 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APM-FFP30ARating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP30AMKRating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP30AMK1Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP30AMK2Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP30AMK3Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP30AMNRating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP30AMN1Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP30AMN2Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP30AMN3Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP50ARating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP50AMKRating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP50AMK1Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP50AMK2Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP50AMK3Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP50AMNRating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP50AMN1Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP50AMN2Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP50AMN3Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP22DRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP22DMKRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP22DMK1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP22DMK2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP22DMK3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP22DMNRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP22DMN1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP22DMN2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP22DMN3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP35DRating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP35DMKRating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP35DMK1Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP35DMK2Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP35DMK3Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP35DMNRating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP35DMN1Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP35DMN2Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP35DMN3Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP55DRating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP55DMKRating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP55DMK1Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP55DMK2Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP55DMK3Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP55DMNRating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP55DMN1Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP55DMN2Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP55DMN3Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP75DRating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP75DMKRating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP75DMK1Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP75DMK2Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP75DMK3Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP75DMNRating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP75DMN1Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP75DMN2Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP75DMN3Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP20GRating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP20GMKRating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP20GMK1Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP20GMK2Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP20GMK3Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP20GMNRating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP20GMN1Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP20GMN2Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP20GMN3Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP30GRating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP30GMKRating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP30GMK1Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP30GMK2Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP30GMK3Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP30GMNRating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP30GMN1Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP30GMN2Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP30GMN3Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP44GRating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP44GMKRating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP44GMK1Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP44GMK2Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP44GMK3Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP44GMNRating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP44GMN1Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP44GMN2Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP44GMN3Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP60GRating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP60GMKRating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP60GMK1Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP60GMK2Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP60GMK3Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP60GMNRating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP60GMN1Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP60GMN2Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP60GMN3Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP75GRating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP75GMKRating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP75GMK1Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP75GMK2Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP75GMK3Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP75GMNRating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP75GMN1Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP75GMN2Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP75GMN3Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP12MRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP12MMKRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP12MMK1Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP12MMK2Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP12MMK3Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP12MMNRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP12MMN1Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP12MMN2Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP12MMN3Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP20MRating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP20MMKRating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP20MMK1Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP20MMK2Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP20MMK3Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP20MMNRating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP20MMN1Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP20MMN2Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP20MMN3Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP30MRating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP30MMKRating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP30MMK1Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP30MMK2Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP30MMK3Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP30MMNRating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP30MMN1Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP30MMN2Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP30MMN3Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FFP44MRating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FFP44MMKRating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FFP44MMK1Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FFP44MMK2Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FFP44MMK3Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FFP44MMNRating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FFP44MMN1Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FFP44MMN2Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FFP44MMN3Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
