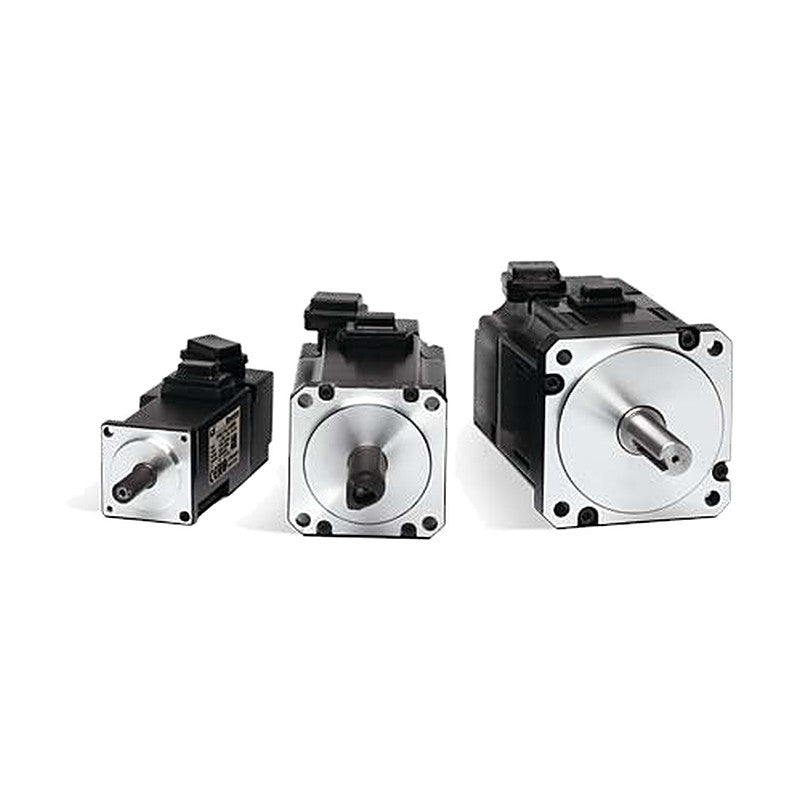

LS Electric APM-F YK Servo Motors, Magnetic Absolute Encoder (40-80mm)

LS Electric APM-F YK Servo Motors, Magnetic Absolute Encoder (40-80mm)

LS Electric APM-F series 200 V servo motors with built-in 17-bit magnetic absolute serial encoder (YK type), 50 W to 1 kW in 40, 60 and 80 mm flanges, for L7C and other L7 drives.

Key features

  • Magnetic-sensing absolute serial encoder, 17 bit (131,072 counts) per revolution, single-turn
  • High-speed serial communication compatible with existing LS encoder interface
  • Oil and dust resistant, high vibration and shock tolerance; no glass disk to break
  • Built-in automatic gain tuning keeps the encoder signal optimal
  • Totally enclosed, self-cooled, IP67; continuous duty
  • FAL015A cannot be fitted with a brake

Specifications

Encoder Serial single-turn magnetic absolute, 17 bit
Protection Totally enclosed, self-cooled, IP67
Time rating Continuous
Allowable load inertia 30x (40 mm), 20x (60 mm), 15x (80 mm) motor inertia
Ambient temperature 0 to 40 C (storage -10 to 60 C)
Humidity 90% RH or less, non-condensing
Vibration 49 m/s2 (5G)
Source LS Electric L7C Servo Drive & Motor leaflet (2018.04), p. 4
APM-FALR5AYK Flange: 40 mm | Rated output: 0.05 kW | Rated max torque: 0.16 / 0.48 N.m | Rated current: 0.95 A | Rated max speed: 3,000 / 5,000 rpm | Drive: L7xA001U
APM-FAL01AYK Flange: 40 mm | Rated output: 0.1 kW | Rated max torque: 0.32 / 0.96 N.m | Rated current: 1.25 A | Rated max speed: 3,000 / 5,000 rpm | Drive: L7xA001U
APM-FAL015AYK Flange: 40 mm | Rated output: 0.15 kW | Rated max torque: 0.48 / 1.43 N.m | Rated current: 1.73 A | Rated max speed: 3,000 / 5,000 rpm | Drive: L7xA002U
APM-FBL01AYK Flange: 60 mm | Rated output: 0.1 kW | Rated max torque: 0.32 / 0.96 N.m | Rated current: 0.95 A | Rated max speed: 3,000 / 5,000 rpm | Drive: L7xA001U
APM-FBL02AYK Flange: 60 mm | Rated output: 0.2 kW | Rated max torque: 0.64 / 1.91 N.m | Rated current: 1.45 A | Rated max speed: 3,000 / 5,000 rpm | Drive: L7xA002U
APM-FBL04AYK Flange: 60 mm | Rated output: 0.4 kW | Rated max torque: 1.27 / 3.82 N.m | Rated current: 2.6 A | Rated max speed: 3,000 / 5,000 rpm | Drive: L7xA004U
APM-FCL04AYK Flange: 80 mm | Rated output: 0.4 kW | Rated max torque: 1.27 / 3.82 N.m | Rated current: 2.58 A | Rated max speed: 3,000 / 5,000 rpm | Drive: L7xA004U
APM-FCL06AYK Flange: 80 mm | Rated output: 0.6 kW | Rated max torque: 1.91 / 5.73 N.m | Rated current: 3.81 A | Rated max speed: 3,000 / 5,000 rpm | Drive: L7xA008U
APM-FCL08AYK Flange: 80 mm | Rated output: 0.75 kW | Rated max torque: 2.39 / 7.16 N.m | Rated current: 5.02 A | Rated max speed: 3,000 / 5,000 rpm | Drive: L7xA008U
APM-FCL10AYK Flange: 80 mm | Rated output: 1 kW | Rated max torque: 3.18 / 9.55 N.m | Rated current: 5.85 A | Rated max speed: 3,000 / 5,000 rpm | Drive: L7xA010U
APM-FCL03DYK Flange: 80 mm | Rated output: 0.3 kW | Rated max torque: 1.43 / 4.3 N.m | Rated current: 2.5 A | Rated max speed: 2,000 / 3,000 rpm | Drive: L7xA004U
APM-FCL05DYK Flange: 80 mm | Rated output: 0.45 kW | Rated max torque: 2.15 / 6.45 N.m | Rated current: 3.05 A | Rated max speed: 2,000 / 3,000 rpm | Drive: L7xA008U
APM-FCL06DYK Flange: 80 mm | Rated output: 0.55 kW | Rated max torque: 2.63 / 7.88 N.m | Rated current: 3.06 A | Rated max speed: 2,000 / 3,000 rpm | Drive: L7xA008U
APM-FCL07DYK Flange: 80 mm | Rated output: 0.65 kW | Rated max torque: 3.1 / 9.31 N.m | Rated current: 3.83 A | Rated max speed: 2,000 / 3,000 rpm | Drive: L7xA008U
Servo MotorsLS Electric
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric APM-F YK Servo Motors, Magnetic Absolute Encoder (40-80mm)

Brand LS Electric·Servo Motors

Available part numbers (14)

APM-FALR5AYK, APM-FAL01AYK, APM-FAL015AYK, APM-FBL01AYK, APM-FBL02AYK, APM-FBL04AYK, APM-FCL04AYK, APM-FCL06AYK, APM-FCL08AYK, APM-FCL10AYK + 4 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APM-FALR5AYKFlange: 40 mm | Rated output: 0.05 kW | Rated max torque: 0.16 / 0.48 N.m | Rated current: 0.95 A | Rated max speed: 3,000 / 5,000 rpm | Drive: L7xA001U
APM-FAL01AYKFlange: 40 mm | Rated output: 0.1 kW | Rated max torque: 0.32 / 0.96 N.m | Rated current: 1.25 A | Rated max speed: 3,000 / 5,000 rpm | Drive: L7xA001U
APM-FAL015AYKFlange: 40 mm | Rated output: 0.15 kW | Rated max torque: 0.48 / 1.43 N.m | Rated current: 1.73 A | Rated max speed: 3,000 / 5,000 rpm | Drive: L7xA002U
APM-FBL01AYKFlange: 60 mm | Rated output: 0.1 kW | Rated max torque: 0.32 / 0.96 N.m | Rated current: 0.95 A | Rated max speed: 3,000 / 5,000 rpm | Drive: L7xA001U
APM-FBL02AYKFlange: 60 mm | Rated output: 0.2 kW | Rated max torque: 0.64 / 1.91 N.m | Rated current: 1.45 A | Rated max speed: 3,000 / 5,000 rpm | Drive: L7xA002U
APM-FBL04AYKFlange: 60 mm | Rated output: 0.4 kW | Rated max torque: 1.27 / 3.82 N.m | Rated current: 2.6 A | Rated max speed: 3,000 / 5,000 rpm | Drive: L7xA004U
APM-FCL04AYKFlange: 80 mm | Rated output: 0.4 kW | Rated max torque: 1.27 / 3.82 N.m | Rated current: 2.58 A | Rated max speed: 3,000 / 5,000 rpm | Drive: L7xA004U
APM-FCL06AYKFlange: 80 mm | Rated output: 0.6 kW | Rated max torque: 1.91 / 5.73 N.m | Rated current: 3.81 A | Rated max speed: 3,000 / 5,000 rpm | Drive: L7xA008U
APM-FCL08AYKFlange: 80 mm | Rated output: 0.75 kW | Rated max torque: 2.39 / 7.16 N.m | Rated current: 5.02 A | Rated max speed: 3,000 / 5,000 rpm | Drive: L7xA008U
APM-FCL10AYKFlange: 80 mm | Rated output: 1 kW | Rated max torque: 3.18 / 9.55 N.m | Rated current: 5.85 A | Rated max speed: 3,000 / 5,000 rpm | Drive: L7xA010U
APM-FCL03DYKFlange: 80 mm | Rated output: 0.3 kW | Rated max torque: 1.43 / 4.3 N.m | Rated current: 2.5 A | Rated max speed: 2,000 / 3,000 rpm | Drive: L7xA004U
APM-FCL05DYKFlange: 80 mm | Rated output: 0.45 kW | Rated max torque: 2.15 / 6.45 N.m | Rated current: 3.05 A | Rated max speed: 2,000 / 3,000 rpm | Drive: L7xA008U
APM-FCL06DYKFlange: 80 mm | Rated output: 0.55 kW | Rated max torque: 2.63 / 7.88 N.m | Rated current: 3.06 A | Rated max speed: 2,000 / 3,000 rpm | Drive: L7xA008U
APM-FCL07DYKFlange: 80 mm | Rated output: 0.65 kW | Rated max torque: 3.1 / 9.31 N.m | Rated current: 3.83 A | Rated max speed: 2,000 / 3,000 rpm | Drive: L7xA008U
