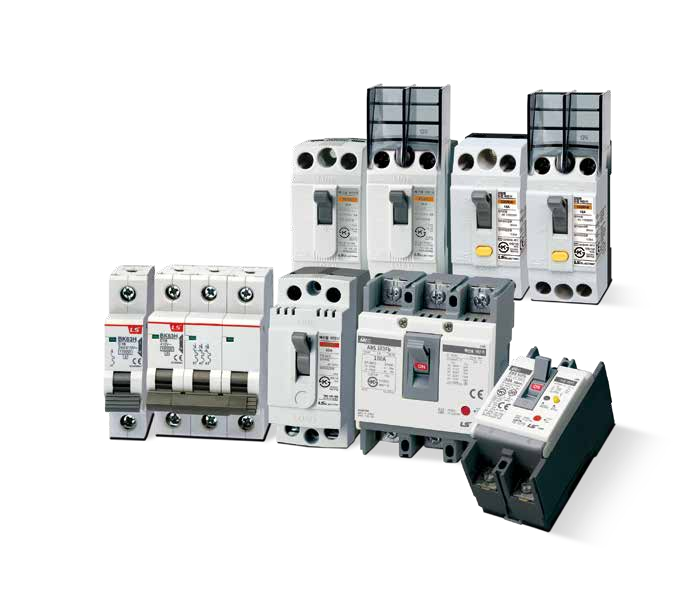

• LS Electric EBE100Fb-30mA Beyond X Industrial Distribution Panel MCB/RCBO (E-type RCBO (Economy, Hydraulic-Magnetic), 100AF RCBO, 5kA @ 220V AC / 2.5kA @ 380V AC, 30mA, 60~100A)
1 1

LS Electric EBE100Fb-30mA Beyond X Industrial Distribution Panel MCB/RCBO (E-type RCBO (Economy, Hydraulic-Magnetic), 100AF RCBO, 5kA @ 220V AC / 2.5kA @ 380V AC, 30mA, 60~100A)

LS Electric EBE100Fb-30mA Beyond X Industrial Distribution Panel MCB/RCBO (E-type RCBO (Economy, Hydraulic-Magnetic), 100AF RCBO, 5kA @ 220V AC / 2.5kA @ 380V AC, 30mA, 60~100A)

LS ELECTRIC Beyond X Industrial Distribution Panel MCB/RCBO EBE100Fb-30mA family. | Application: Industrial distribution panel (RCBO). | Frame: 100AF | Type: E-type RCBO (Economy, Hydraulic-Magnetic) | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Sensitivity (I△n): 30mA | Operating time: ≤0.03s | Rated current (In): 60A, 75A, 100A | Pole: 2P / 3P | Mounting: Screw or DIN rail | Uimp: 4kV | Voltage: AC 220V | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | 6 variants — see RFQ table for specific MPN.

Specifications

Frame 100AF
Type E-type RCBO (Economy, Hydraulic-Magnetic)
Breaking capacity Icn 5kA @ 220V AC / 2.5kA @ 380V AC
Ics 100% Icn
Trip method Hydraulic-Magnetic + RCD
Trip curve (7~15)×In
Sensitivity (I△n) 30mA
Operating time ≤0.03s
Uimp 4kV
Mounting Screw or DIN rail
Voltage AC 220V
Standard KSC 8321 / KSC 4613 / IEC 60947-2
EBE102Fb/60/30 EBE Fb EBE100Fb-30mA — EBE102Fb 60A 2P (RCBO) | Frame: 100AF | Type: E-type RCBO (Economy, Hydraulic-Magnetic) | Rated current (In): 60A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Operating time: ≤0.03s | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220V | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBE102Fb/75/30 EBE Fb EBE100Fb-30mA — EBE102Fb 75A 2P (RCBO) | Frame: 100AF | Type: E-type RCBO (Economy, Hydraulic-Magnetic) | Rated current (In): 75A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Operating time: ≤0.03s | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220V | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBE102Fb/100/30 EBE Fb EBE100Fb-30mA — EBE102Fb 100A 2P (RCBO) | Frame: 100AF | Type: E-type RCBO (Economy, Hydraulic-Magnetic) | Rated current (In): 100A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Operating time: ≤0.03s | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220V | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBE103Fb/60/30 EBE Fb EBE100Fb-30mA — EBE103Fb 60A 3P (RCBO) | Frame: 100AF | Type: E-type RCBO (Economy, Hydraulic-Magnetic) | Rated current (In): 60A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Operating time: ≤0.03s | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220V | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBE103Fb/75/30 EBE Fb EBE100Fb-30mA — EBE103Fb 75A 3P (RCBO) | Frame: 100AF | Type: E-type RCBO (Economy, Hydraulic-Magnetic) | Rated current (In): 75A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Operating time: ≤0.03s | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220V | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBE103Fb/100/30 EBE Fb EBE100Fb-30mA — EBE103Fb 100A 3P (RCBO) | Frame: 100AF | Type: E-type RCBO (Economy, Hydraulic-Magnetic) | Rated current (In): 100A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Operating time: ≤0.03s | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220V | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
Miniature Circuit BreakersLS Electric
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric EBE100Fb-30mA Beyond X Industrial Distribution Panel MCB/RCBO (E-type RCBO (Economy, Hydraulic-Magnetic), 100AF RCBO, 5kA @ 220V AC / 2.5kA @ 380V AC, 30mA, 60~100A)

Brand LS Electric·Miniature Circuit Breakers

Available part numbers (6)

EBE102Fb/60/30, EBE102Fb/75/30, EBE102Fb/100/30, EBE103Fb/60/30, EBE103Fb/75/30, EBE103Fb/100/30

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EBE102Fb/60/30EBE Fb EBE100Fb-30mA — EBE102Fb 60A 2P (RCBO) | Frame: 100AF | Type: E-type RCBO (Economy, Hydraulic-Magnetic) | Rated current (In): 60A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Operating time: ≤0.03s | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220V | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBE102Fb/75/30EBE Fb EBE100Fb-30mA — EBE102Fb 75A 2P (RCBO) | Frame: 100AF | Type: E-type RCBO (Economy, Hydraulic-Magnetic) | Rated current (In): 75A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Operating time: ≤0.03s | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220V | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBE102Fb/100/30EBE Fb EBE100Fb-30mA — EBE102Fb 100A 2P (RCBO) | Frame: 100AF | Type: E-type RCBO (Economy, Hydraulic-Magnetic) | Rated current (In): 100A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Operating time: ≤0.03s | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220V | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBE103Fb/60/30EBE Fb EBE100Fb-30mA — EBE103Fb 60A 3P (RCBO) | Frame: 100AF | Type: E-type RCBO (Economy, Hydraulic-Magnetic) | Rated current (In): 60A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Operating time: ≤0.03s | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220V | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBE103Fb/75/30EBE Fb EBE100Fb-30mA — EBE103Fb 75A 3P (RCBO) | Frame: 100AF | Type: E-type RCBO (Economy, Hydraulic-Magnetic) | Rated current (In): 75A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Operating time: ≤0.03s | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220V | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBE103Fb/100/30EBE Fb EBE100Fb-30mA — EBE103Fb 100A 3P (RCBO) | Frame: 100AF | Type: E-type RCBO (Economy, Hydraulic-Magnetic) | Rated current (In): 100A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Operating time: ≤0.03s | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 220V | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
