LS Electric EBH125-AC Metasol ELCB (H-type (High breaking capacity), 50kA @ 415V, AC Type, 15~125A)

LS Electric EBH125-AC Metasol ELCB (H-type (High breaking capacity), 50kA @ 415V, AC Type, 15~125A)

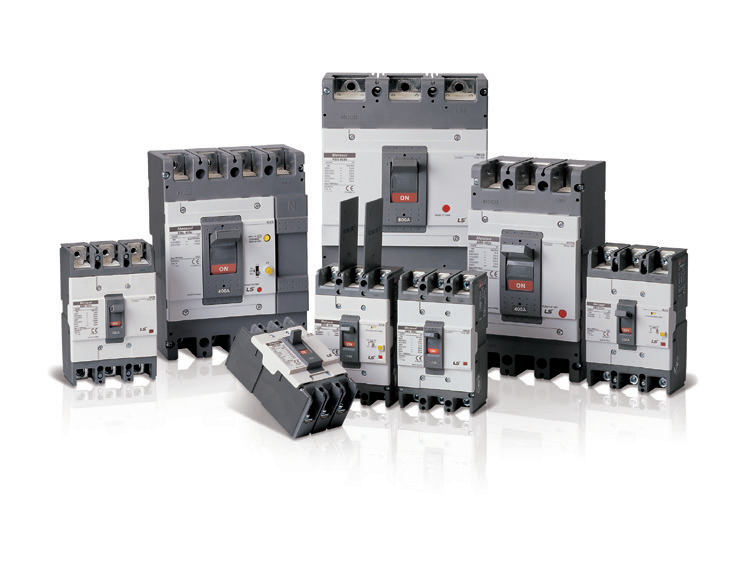

LS ELECTRIC Metasol ELCB EBH125-AC family.

Specifications

Frame 125AF
Type H-type (High breaking capacity)
Breaking capacity Icu 50kA @ 415V AC AC
Leakage type AC Type
Detection AC leakage current detection
Sensitivity (rated I△n) 30mA / 100mA / 100·200·500mA (selectable)
Operating time ≤0.1s (high-speed type)
Standard KS C 4613 / IEC 60947-2
Application General load, Lighting, Heater, Passive electronic equipment
EBH103c/15A Metasol ELCB EBH125-AC — 15A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 15A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/15A Metasol ELCB EBH125-AC — 15A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 15A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/16A Metasol ELCB EBH125-AC — 16A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 16A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/16A Metasol ELCB EBH125-AC — 16A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 16A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/20A Metasol ELCB EBH125-AC — 20A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 20A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/20A Metasol ELCB EBH125-AC — 20A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 20A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/25A Metasol ELCB EBH125-AC — 25A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 25A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/25A Metasol ELCB EBH125-AC — 25A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 25A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/30A Metasol ELCB EBH125-AC — 30A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 30A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/30A Metasol ELCB EBH125-AC — 30A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 30A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/32A Metasol ELCB EBH125-AC — 32A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 32A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/32A Metasol ELCB EBH125-AC — 32A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 32A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/40A Metasol ELCB EBH125-AC — 40A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 40A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/40A Metasol ELCB EBH125-AC — 40A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 40A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/50A Metasol ELCB EBH125-AC — 50A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 50A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/50A Metasol ELCB EBH125-AC — 50A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 50A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/60A Metasol ELCB EBH125-AC — 60A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 60A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/60A Metasol ELCB EBH125-AC — 60A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 60A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/63A Metasol ELCB EBH125-AC — 63A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 63A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/63A Metasol ELCB EBH125-AC — 63A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 63A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/75A Metasol ELCB EBH125-AC — 75A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 75A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/75A Metasol ELCB EBH125-AC — 75A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 75A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/80A Metasol ELCB EBH125-AC — 80A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 80A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/80A Metasol ELCB EBH125-AC — 80A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 80A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/100A Metasol ELCB EBH125-AC — 100A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 100A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/100A Metasol ELCB EBH125-AC — 100A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 100A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/125A Metasol ELCB EBH125-AC — 125A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 125A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/125A Metasol ELCB EBH125-AC — 125A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 125A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
Earth Leakage Circuit BreakersLS Electric
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric EBH125-AC Metasol ELCB (H-type (High breaking capacity), 50kA @ 415V, AC Type, 15~125A)

Brand LS Electric·Earth Leakage Circuit Breakers

Available part numbers (28)

EBH103c/15A, EBH104c/15A, EBH103c/16A, EBH104c/16A, EBH103c/20A, EBH104c/20A, EBH103c/25A, EBH104c/25A, EBH103c/30A, EBH104c/30A + 18 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EBH103c/15AMetasol ELCB EBH125-AC — 15A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 15A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/15AMetasol ELCB EBH125-AC — 15A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 15A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/16AMetasol ELCB EBH125-AC — 16A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 16A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/16AMetasol ELCB EBH125-AC — 16A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 16A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/20AMetasol ELCB EBH125-AC — 20A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 20A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/20AMetasol ELCB EBH125-AC — 20A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 20A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/25AMetasol ELCB EBH125-AC — 25A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 25A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/25AMetasol ELCB EBH125-AC — 25A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 25A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/30AMetasol ELCB EBH125-AC — 30A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 30A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/30AMetasol ELCB EBH125-AC — 30A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 30A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/32AMetasol ELCB EBH125-AC — 32A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 32A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/32AMetasol ELCB EBH125-AC — 32A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 32A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/40AMetasol ELCB EBH125-AC — 40A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 40A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/40AMetasol ELCB EBH125-AC — 40A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 40A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/50AMetasol ELCB EBH125-AC — 50A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 50A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/50AMetasol ELCB EBH125-AC — 50A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 50A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/60AMetasol ELCB EBH125-AC — 60A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 60A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/60AMetasol ELCB EBH125-AC — 60A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 60A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/63AMetasol ELCB EBH125-AC — 63A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 63A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/63AMetasol ELCB EBH125-AC — 63A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 63A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/75AMetasol ELCB EBH125-AC — 75A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 75A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/75AMetasol ELCB EBH125-AC — 75A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 75A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/80AMetasol ELCB EBH125-AC — 80A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 80A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/80AMetasol ELCB EBH125-AC — 80A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 80A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/100AMetasol ELCB EBH125-AC — 100A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 100A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/100AMetasol ELCB EBH125-AC — 100A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 100A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH103c/125AMetasol ELCB EBH125-AC — 125A 3P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 125A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 90×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH104c/125AMetasol ELCB EBH125-AC — 125A 4P, AC Type | Frame: 125AF | Type: H-type (High breaking capacity) | Rated current (In): 125A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 120×155×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
