• LS Electric EBH400-AC Metasol ELCB (H-type (High breaking capacity), 65kA @ 415V, AC Type, 250~400A)
1 1

LS Electric EBH400-AC Metasol ELCB (H-type (High breaking capacity), 65kA @ 415V, AC Type, 250~400A)

LS Electric EBH400-AC Metasol ELCB (H-type (High breaking capacity), 65kA @ 415V, AC Type, 250~400A)

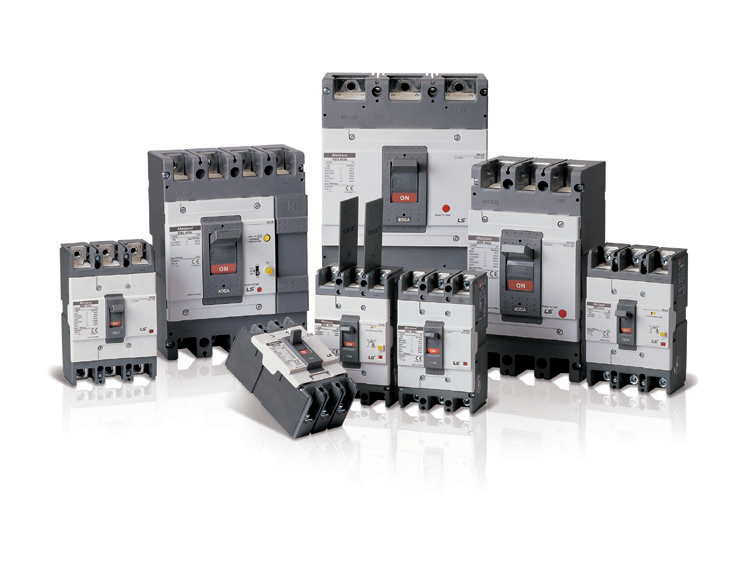

LS ELECTRIC Metasol ELCB EBH400-AC family.

Specifications

Frame 400AF
Type H-type (High breaking capacity)
Breaking capacity Icu 65kA @ 415V AC AC
Leakage type AC Type
Detection AC leakage current detection
Sensitivity (rated I△n) 30mA / 100mA / 100·200·500mA (selectable)
Operating time ≤0.1s (high-speed type)
Standard KS C 4613 / IEC 60947-2
Application General load, Lighting, Heater, Passive electronic equipment
EBH403c/250A Metasol ELCB EBH400-AC — 250A 3P, AC Type | Frame: 400AF | Type: H-type (High breaking capacity) | Rated current (In): 250A | Breaking capacity Icu: 65kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 140×257×109 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH404c/250A Metasol ELCB EBH400-AC — 250A 4P, AC Type | Frame: 400AF | Type: H-type (High breaking capacity) | Rated current (In): 250A | Breaking capacity Icu: 65kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 184×257×109 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH403c/300A Metasol ELCB EBH400-AC — 300A 3P, AC Type | Frame: 400AF | Type: H-type (High breaking capacity) | Rated current (In): 300A | Breaking capacity Icu: 65kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 140×257×109 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH404c/300A Metasol ELCB EBH400-AC — 300A 4P, AC Type | Frame: 400AF | Type: H-type (High breaking capacity) | Rated current (In): 300A | Breaking capacity Icu: 65kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 184×257×109 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH403c/350A Metasol ELCB EBH400-AC — 350A 3P, AC Type | Frame: 400AF | Type: H-type (High breaking capacity) | Rated current (In): 350A | Breaking capacity Icu: 65kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 140×257×109 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH404c/350A Metasol ELCB EBH400-AC — 350A 4P, AC Type | Frame: 400AF | Type: H-type (High breaking capacity) | Rated current (In): 350A | Breaking capacity Icu: 65kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 184×257×109 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH403c/400A Metasol ELCB EBH400-AC — 400A 3P, AC Type | Frame: 400AF | Type: H-type (High breaking capacity) | Rated current (In): 400A | Breaking capacity Icu: 65kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 140×257×109 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH404c/400A Metasol ELCB EBH400-AC — 400A 4P, AC Type | Frame: 400AF | Type: H-type (High breaking capacity) | Rated current (In): 400A | Breaking capacity Icu: 65kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 184×257×109 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
Earth Leakage Circuit BreakersLS Electric
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric EBH400-AC Metasol ELCB (H-type (High breaking capacity), 65kA @ 415V, AC Type, 250~400A)

Brand LS Electric·Earth Leakage Circuit Breakers

Available part numbers (8)

EBH403c/250A, EBH404c/250A, EBH403c/300A, EBH404c/300A, EBH403c/350A, EBH404c/350A, EBH403c/400A, EBH404c/400A

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EBH403c/250AMetasol ELCB EBH400-AC — 250A 3P, AC Type | Frame: 400AF | Type: H-type (High breaking capacity) | Rated current (In): 250A | Breaking capacity Icu: 65kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 140×257×109 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH404c/250AMetasol ELCB EBH400-AC — 250A 4P, AC Type | Frame: 400AF | Type: H-type (High breaking capacity) | Rated current (In): 250A | Breaking capacity Icu: 65kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 184×257×109 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH403c/300AMetasol ELCB EBH400-AC — 300A 3P, AC Type | Frame: 400AF | Type: H-type (High breaking capacity) | Rated current (In): 300A | Breaking capacity Icu: 65kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 140×257×109 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH404c/300AMetasol ELCB EBH400-AC — 300A 4P, AC Type | Frame: 400AF | Type: H-type (High breaking capacity) | Rated current (In): 300A | Breaking capacity Icu: 65kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 184×257×109 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH403c/350AMetasol ELCB EBH400-AC — 350A 3P, AC Type | Frame: 400AF | Type: H-type (High breaking capacity) | Rated current (In): 350A | Breaking capacity Icu: 65kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 140×257×109 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH404c/350AMetasol ELCB EBH400-AC — 350A 4P, AC Type | Frame: 400AF | Type: H-type (High breaking capacity) | Rated current (In): 350A | Breaking capacity Icu: 65kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 184×257×109 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH403c/400AMetasol ELCB EBH400-AC — 400A 3P, AC Type | Frame: 400AF | Type: H-type (High breaking capacity) | Rated current (In): 400A | Breaking capacity Icu: 65kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 140×257×109 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH404c/400AMetasol ELCB EBH400-AC — 400A 4P, AC Type | Frame: 400AF | Type: H-type (High breaking capacity) | Rated current (In): 400A | Breaking capacity Icu: 65kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 184×257×109 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
