LS Electric EBH50-AC Metasol ELCB (H-type (High breaking capacity), 50kA @ 415V, AC Type, 15~50A)

LS Electric EBH50-AC Metasol ELCB (H-type (High breaking capacity), 50kA @ 415V, AC Type, 15~50A)

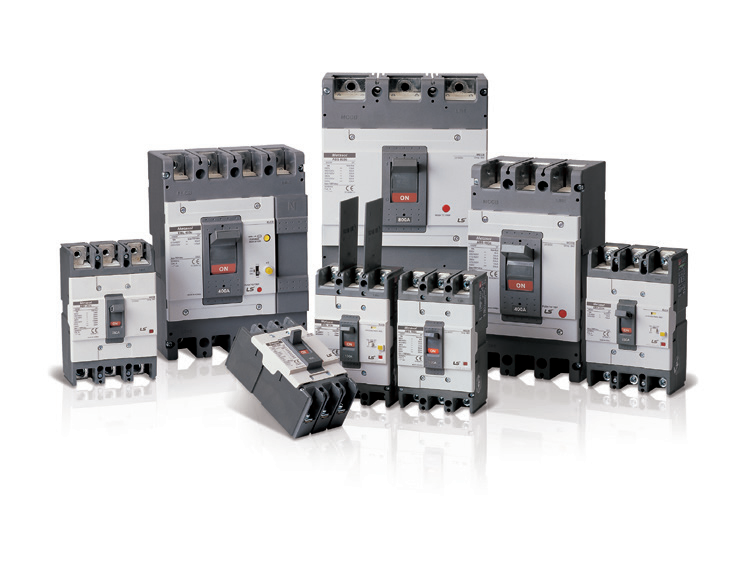

LS ELECTRIC Metasol ELCB EBH50-AC family.

Specifications

Frame 50AF
Type H-type (High breaking capacity)
Breaking capacity Icu 50kA @ 415V AC AC
Leakage type AC Type
Detection AC leakage current detection
Sensitivity (rated I△n) 30mA / 100mA / 100·200·500mA (selectable)
Operating time ≤0.1s (high-speed type)
Standard KS C 4613 / IEC 60947-2
Application General load, Lighting, Heater, Passive electronic equipment
EBH53c/15A Metasol ELCB EBH50-AC — 15A 3P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 15A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH54c/15A Metasol ELCB EBH50-AC — 15A 4P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 15A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH53c/16A Metasol ELCB EBH50-AC — 16A 3P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 16A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH54c/16A Metasol ELCB EBH50-AC — 16A 4P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 16A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH53c/20A Metasol ELCB EBH50-AC — 20A 3P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 20A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH54c/20A Metasol ELCB EBH50-AC — 20A 4P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 20A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH53c/25A Metasol ELCB EBH50-AC — 25A 3P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 25A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH54c/25A Metasol ELCB EBH50-AC — 25A 4P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 25A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH53c/30A Metasol ELCB EBH50-AC — 30A 3P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 30A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH54c/30A Metasol ELCB EBH50-AC — 30A 4P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 30A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH53c/32A Metasol ELCB EBH50-AC — 32A 3P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 32A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH54c/32A Metasol ELCB EBH50-AC — 32A 4P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 32A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH53c/40A Metasol ELCB EBH50-AC — 40A 3P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 40A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH54c/40A Metasol ELCB EBH50-AC — 40A 4P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 40A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH53c/50A Metasol ELCB EBH50-AC — 50A 3P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 50A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH54c/50A Metasol ELCB EBH50-AC — 50A 4P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 50A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
Earth Leakage Circuit BreakersLS Electric
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric EBH50-AC Metasol ELCB (H-type (High breaking capacity), 50kA @ 415V, AC Type, 15~50A)

Brand LS Electric·Earth Leakage Circuit Breakers

Available part numbers (16)

EBH53c/15A, EBH54c/15A, EBH53c/16A, EBH54c/16A, EBH53c/20A, EBH54c/20A, EBH53c/25A, EBH54c/25A, EBH53c/30A, EBH54c/30A + 6 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EBH53c/15AMetasol ELCB EBH50-AC — 15A 3P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 15A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH54c/15AMetasol ELCB EBH50-AC — 15A 4P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 15A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH53c/16AMetasol ELCB EBH50-AC — 16A 3P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 16A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH54c/16AMetasol ELCB EBH50-AC — 16A 4P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 16A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH53c/20AMetasol ELCB EBH50-AC — 20A 3P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 20A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH54c/20AMetasol ELCB EBH50-AC — 20A 4P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 20A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH53c/25AMetasol ELCB EBH50-AC — 25A 3P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 25A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH54c/25AMetasol ELCB EBH50-AC — 25A 4P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 25A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH53c/30AMetasol ELCB EBH50-AC — 30A 3P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 30A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH54c/30AMetasol ELCB EBH50-AC — 30A 4P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 30A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH53c/32AMetasol ELCB EBH50-AC — 32A 3P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 32A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH54c/32AMetasol ELCB EBH50-AC — 32A 4P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 32A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH53c/40AMetasol ELCB EBH50-AC — 40A 3P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 40A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH54c/40AMetasol ELCB EBH50-AC — 40A 4P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 40A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH53c/50AMetasol ELCB EBH50-AC — 50A 3P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 50A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBH54c/50AMetasol ELCB EBH50-AC — 50A 4P, AC Type | Frame: 50AF | Type: H-type (High breaking capacity) | Rated current (In): 50A | Breaking capacity Icu: 50kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
