• LS Electric EBN630-AC Metasol ELCB (N-type (Normal/Standard), 37kA @ 415V, AC Type, 500~630A)
1 1

LS Electric EBN630-AC Metasol ELCB (N-type (Normal/Standard), 37kA @ 415V, AC Type, 500~630A)

LS Electric EBN630-AC Metasol ELCB (N-type (Normal/Standard), 37kA @ 415V, AC Type, 500~630A)

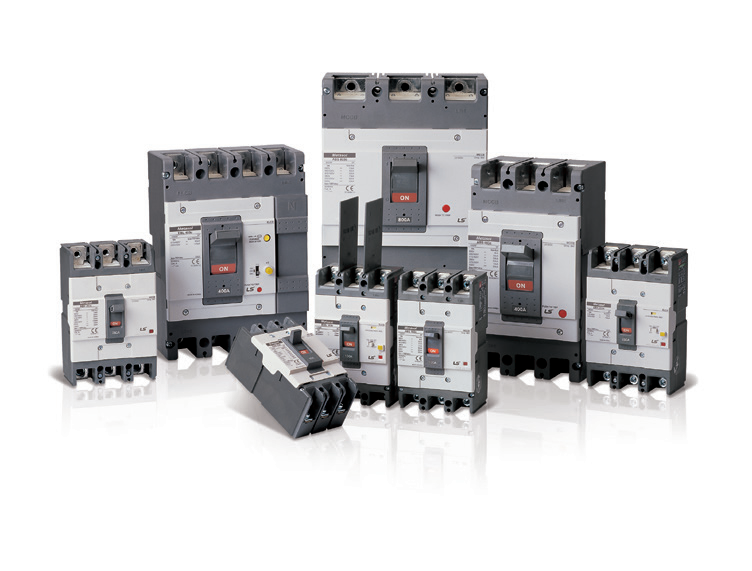

LS ELECTRIC Metasol ELCB EBN630-AC family.

Specifications

Frame 630AF
Type N-type (Normal/Standard)
Breaking capacity Icu 37kA @ 415V AC AC
Leakage type AC Type
Detection AC leakage current detection
Sensitivity (rated I△n) 30mA / 100mA / 100·200·500mA (selectable)
Operating time ≤0.1s (high-speed type)
Pole 3P
Dimensions (W×H×D) 210×280×109 mm
Standard KS C 4613 / IEC 60947-2
Application General load, Lighting, Heater, Passive electronic equipment
EBN603c/500A Metasol ELCB EBN630-AC — 500A 3P, AC Type | Frame: 630AF | Type: N-type (Normal/Standard) | Rated current (In): 500A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 210×280×109 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBN603c/630A Metasol ELCB EBN630-AC — 630A 3P, AC Type | Frame: 630AF | Type: N-type (Normal/Standard) | Rated current (In): 630A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 210×280×109 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
Earth Leakage Circuit BreakersLS Electric
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric EBN630-AC Metasol ELCB (N-type (Normal/Standard), 37kA @ 415V, AC Type, 500~630A)

Brand LS Electric·Earth Leakage Circuit Breakers

Available part numbers (2)

EBN603c/500A, EBN603c/630A

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EBN603c/500AMetasol ELCB EBN630-AC — 500A 3P, AC Type | Frame: 630AF | Type: N-type (Normal/Standard) | Rated current (In): 500A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 210×280×109 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBN603c/630AMetasol ELCB EBN630-AC — 630A 3P, AC Type | Frame: 630AF | Type: N-type (Normal/Standard) | Rated current (In): 630A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 210×280×109 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment

Need a different model, or a part not listed here? Send us your parts list →
