LS Electric EBS250-A Metasol ELCB (S-type (Standard breaking capacity), 37kA @ 415V, A Type, 100~250A)

LS Electric EBS250-A Metasol ELCB (S-type (Standard breaking capacity), 37kA @ 415V, A Type, 100~250A)

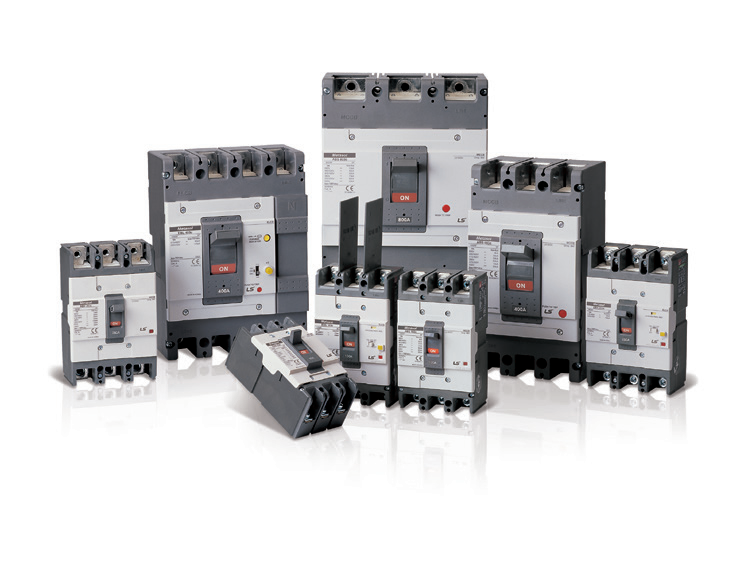

LS ELECTRIC Metasol ELCB EBS250-A family.

Specifications

Frame 250AF
Type S-type (Standard breaking capacity)
Breaking capacity Icu 37kA @ 415V AC AC
Leakage type A Type
Detection AC + Pulsating DC leakage current detection
Sensitivity (rated I△n) 30mA / 100mA / 100·200·500mA (selectable)
Operating time ≤0.1s (high-speed type)
Standard KS C 4613 / IEC 60947-2
Application EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS203c/100A-A-TYPE Metasol ELCB EBS250-A — 100A 3P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 100A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 105×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS204c/100A-A-TYPE Metasol ELCB EBS250-A — 100A 4P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 100A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 140×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS203c/125A-A-TYPE Metasol ELCB EBS250-A — 125A 3P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 125A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 105×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS204c/125A-A-TYPE Metasol ELCB EBS250-A — 125A 4P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 125A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 140×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS203c/150A-A-TYPE Metasol ELCB EBS250-A — 150A 3P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 150A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 105×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS204c/150A-A-TYPE Metasol ELCB EBS250-A — 150A 4P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 150A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 140×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS203c/160A-A-TYPE Metasol ELCB EBS250-A — 160A 3P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 160A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 105×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS204c/160A-A-TYPE Metasol ELCB EBS250-A — 160A 4P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 160A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 140×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS203c/175A-A-TYPE Metasol ELCB EBS250-A — 175A 3P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 175A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 105×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS204c/175A-A-TYPE Metasol ELCB EBS250-A — 175A 4P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 175A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 140×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS203c/200A-A-TYPE Metasol ELCB EBS250-A — 200A 3P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 200A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 105×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS204c/200A-A-TYPE Metasol ELCB EBS250-A — 200A 4P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 200A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 140×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS203c/225A-A-TYPE Metasol ELCB EBS250-A — 225A 3P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 225A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 105×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS204c/225A-A-TYPE Metasol ELCB EBS250-A — 225A 4P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 225A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 140×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS203c/250A-A-TYPE Metasol ELCB EBS250-A — 250A 3P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 250A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 105×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS204c/250A-A-TYPE Metasol ELCB EBS250-A — 250A 4P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 250A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 140×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
Earth Leakage Circuit BreakersLS Electric
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric EBS250-A Metasol ELCB (S-type (Standard breaking capacity), 37kA @ 415V, A Type, 100~250A)

Brand LS Electric·Earth Leakage Circuit Breakers

Available part numbers (16)

EBS203c/100A-A-TYPE, EBS204c/100A-A-TYPE, EBS203c/125A-A-TYPE, EBS204c/125A-A-TYPE, EBS203c/150A-A-TYPE, EBS204c/150A-A-TYPE, EBS203c/160A-A-TYPE, EBS204c/160A-A-TYPE, EBS203c/175A-A-TYPE, EBS204c/175A-A-TYPE + 6 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EBS203c/100A-A-TYPEMetasol ELCB EBS250-A — 100A 3P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 100A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 105×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS204c/100A-A-TYPEMetasol ELCB EBS250-A — 100A 4P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 100A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 140×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS203c/125A-A-TYPEMetasol ELCB EBS250-A — 125A 3P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 125A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 105×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS204c/125A-A-TYPEMetasol ELCB EBS250-A — 125A 4P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 125A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 140×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS203c/150A-A-TYPEMetasol ELCB EBS250-A — 150A 3P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 150A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 105×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS204c/150A-A-TYPEMetasol ELCB EBS250-A — 150A 4P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 150A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 140×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS203c/160A-A-TYPEMetasol ELCB EBS250-A — 160A 3P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 160A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 105×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS204c/160A-A-TYPEMetasol ELCB EBS250-A — 160A 4P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 160A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 140×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS203c/175A-A-TYPEMetasol ELCB EBS250-A — 175A 3P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 175A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 105×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS204c/175A-A-TYPEMetasol ELCB EBS250-A — 175A 4P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 175A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 140×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS203c/200A-A-TYPEMetasol ELCB EBS250-A — 200A 3P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 200A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 105×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS204c/200A-A-TYPEMetasol ELCB EBS250-A — 200A 4P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 200A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 140×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS203c/225A-A-TYPEMetasol ELCB EBS250-A — 225A 3P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 225A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 105×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS204c/225A-A-TYPEMetasol ELCB EBS250-A — 225A 4P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 225A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 140×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS203c/250A-A-TYPEMetasol ELCB EBS250-A — 250A 3P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 250A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 105×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
EBS204c/250A-A-TYPEMetasol ELCB EBS250-A — 250A 4P, A Type | Frame: 250AF | Type: S-type (Standard breaking capacity) | Rated current (In): 250A | Breaking capacity Icu: 37kA @ 415V AC AC | Leakage type: A Type | Detection: AC + Pulsating DC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 140×165×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: EV chargers, Inverters (Single-phase UPS, PV, Motor drive), Rectifiers
