LS Electric EBS30-AC Metasol ELCB (S-type (Standard breaking capacity), 14kA @ 415V, AC Type, 15~30A)

LS Electric EBS30-AC Metasol ELCB (S-type (Standard breaking capacity), 14kA @ 415V, AC Type, 15~30A)

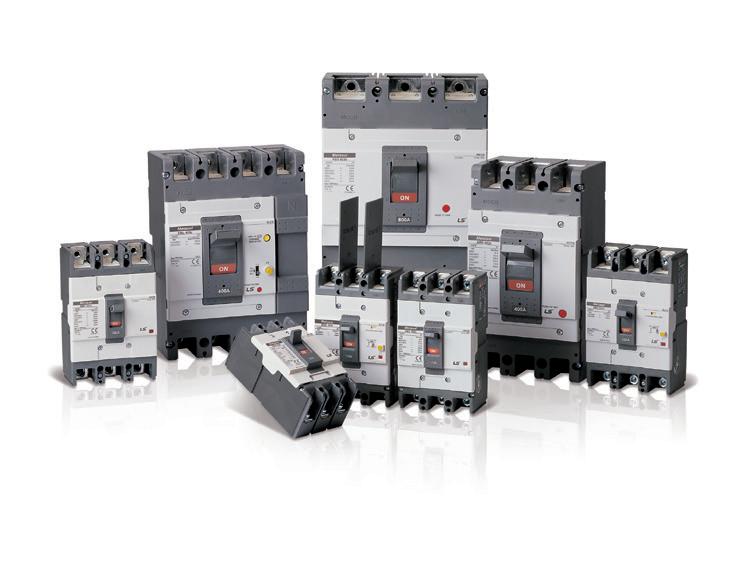

LS ELECTRIC Metasol ELCB EBS30-AC family.

Specifications

Frame 30AF
Type S-type (Standard breaking capacity)
Breaking capacity Icu 14kA @ 415V AC AC
Leakage type AC Type
Detection AC leakage current detection
Sensitivity (rated I△n) 30mA / 100mA / 100·200·500mA (selectable)
Operating time ≤0.1s (high-speed type)
Standard KS C 4613 / IEC 60947-2
Application General load, Lighting, Heater, Passive electronic equipment
EBS32c/15A Metasol ELCB EBS30-AC — 15A 2P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 15A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 2P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS33c/15A Metasol ELCB EBS30-AC — 15A 3P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 15A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS34c/15A Metasol ELCB EBS30-AC — 15A 4P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 15A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS32c/16A Metasol ELCB EBS30-AC — 16A 2P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 16A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 2P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS33c/16A Metasol ELCB EBS30-AC — 16A 3P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 16A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS34c/16A Metasol ELCB EBS30-AC — 16A 4P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 16A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS32c/20A Metasol ELCB EBS30-AC — 20A 2P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 20A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 2P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS33c/20A Metasol ELCB EBS30-AC — 20A 3P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 20A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS34c/20A Metasol ELCB EBS30-AC — 20A 4P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 20A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS32c/25A Metasol ELCB EBS30-AC — 25A 2P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 25A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 2P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS33c/25A Metasol ELCB EBS30-AC — 25A 3P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 25A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS34c/25A Metasol ELCB EBS30-AC — 25A 4P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 25A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS32c/30A Metasol ELCB EBS30-AC — 30A 2P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 30A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 2P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS33c/30A Metasol ELCB EBS30-AC — 30A 3P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 30A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS34c/30A Metasol ELCB EBS30-AC — 30A 4P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 30A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
Earth Leakage Circuit BreakersLS Electric
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric EBS30-AC Metasol ELCB (S-type (Standard breaking capacity), 14kA @ 415V, AC Type, 15~30A)

Brand LS Electric·Earth Leakage Circuit Breakers

Available part numbers (15)

EBS32c/15A, EBS33c/15A, EBS34c/15A, EBS32c/16A, EBS33c/16A, EBS34c/16A, EBS32c/20A, EBS33c/20A, EBS34c/20A, EBS32c/25A + 5 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EBS32c/15AMetasol ELCB EBS30-AC — 15A 2P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 15A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 2P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS33c/15AMetasol ELCB EBS30-AC — 15A 3P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 15A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS34c/15AMetasol ELCB EBS30-AC — 15A 4P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 15A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS32c/16AMetasol ELCB EBS30-AC — 16A 2P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 16A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 2P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS33c/16AMetasol ELCB EBS30-AC — 16A 3P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 16A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS34c/16AMetasol ELCB EBS30-AC — 16A 4P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 16A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS32c/20AMetasol ELCB EBS30-AC — 20A 2P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 20A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 2P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS33c/20AMetasol ELCB EBS30-AC — 20A 3P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 20A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS34c/20AMetasol ELCB EBS30-AC — 20A 4P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 20A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS32c/25AMetasol ELCB EBS30-AC — 25A 2P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 25A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 2P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS33c/25AMetasol ELCB EBS30-AC — 25A 3P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 25A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS34c/25AMetasol ELCB EBS30-AC — 25A 4P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 25A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS32c/30AMetasol ELCB EBS30-AC — 30A 2P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 30A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 2P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS33c/30AMetasol ELCB EBS30-AC — 30A 3P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 30A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 3P | Dimensions (W×H×D): 75×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
EBS34c/30AMetasol ELCB EBS30-AC — 30A 4P, AC Type | Frame: 30AF | Type: S-type (Standard breaking capacity) | Rated current (In): 30A | Breaking capacity Icu: 14kA @ 415V AC AC | Leakage type: AC Type | Detection: AC leakage current detection | Sensitivity (rated I△n): 30mA / 100mA / 100·200·500mA (selectable) | Operating time: ≤0.1s (high-speed type) | Pole: 4P | Dimensions (W×H×D): 100×130×60 mm | Standard: KS C 4613 / IEC 60947-2 | Ui 1000V | Uimp 6kV | Application: General load, Lighting, Heater, Passive electronic equipment
