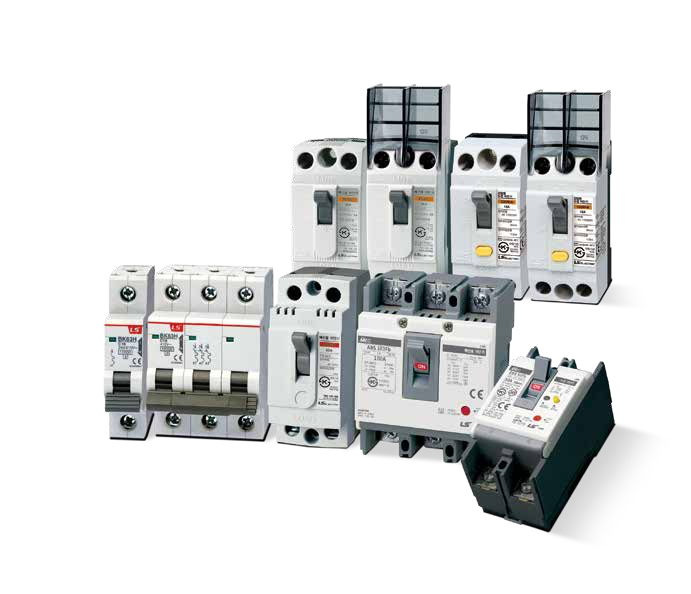

• LS Electric EBS30Fb-30mA Beyond X Industrial Distribution Panel MCB/RCBO (S-type RCBO (Standard, Hydraulic-Magnetic, High breaking), 30AF RCBO, 5kA @ 220V AC / 2.5kA @ 380V AC, 30mA, 3~30A)
1 1

LS Electric EBS30Fb-30mA Beyond X Industrial Distribution Panel MCB/RCBO (S-type RCBO (Standard, Hydraulic-Magnetic, High breaking), 30AF RCBO, 5kA @ 220V AC / 2.5kA @ 380V AC, 30mA, 3~30A)

LS Electric EBS30Fb-30mA Beyond X Industrial Distribution Panel MCB/RCBO (S-type RCBO (Standard, Hydraulic-Magnetic, High breaking), 30AF RCBO, 5kA @ 220V AC / 2.5kA @ 380V AC, 30mA, 3~30A)

LS ELECTRIC Beyond X Industrial Distribution Panel MCB/RCBO EBS30Fb-30mA family. | Application: Industrial distribution panel (RCBO). | Frame: 30AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Sensitivity (I△n): 30mA | Rated current (In): 3A, 5A, 10A, 15A, 20A, 30A | Pole: 2P / 3P | Mounting: Screw or DIN rail | Uimp: 4kV | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | 12 variants — see RFQ table for specific MPN.

Specifications

Frame 30AF
Type S-type RCBO (Standard, Hydraulic-Magnetic, High breaking)
Breaking capacity Icn 5kA @ 220V AC / 2.5kA @ 380V AC
Ics 100% Icn
Trip method Hydraulic-Magnetic + RCD
Trip curve (7~15)×In
Sensitivity (I△n) 30mA
Uimp 4kV
Mounting Screw or DIN rail
Voltage AC 110/220V (2P) / 220/380V (3P)
Standard KSC 8321 / KSC 4613 / IEC 60947-2
Application Industrial distribution panel (RCBO)
EBS32Fb/3/30 EBS Fb EBS30Fb-30mA — EBS32Fb 3A 2P (RCBO) | Frame: 30AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 3A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS32Fb/5/30 EBS Fb EBS30Fb-30mA — EBS32Fb 5A 2P (RCBO) | Frame: 30AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 5A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS32Fb/10/30 EBS Fb EBS30Fb-30mA — EBS32Fb 10A 2P (RCBO) | Frame: 30AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 10A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS32Fb/15/30 EBS Fb EBS30Fb-30mA — EBS32Fb 15A 2P (RCBO) | Frame: 30AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 15A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS32Fb/20/30 EBS Fb EBS30Fb-30mA — EBS32Fb 20A 2P (RCBO) | Frame: 30AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 20A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS32Fb/30/30 EBS Fb EBS30Fb-30mA — EBS32Fb 30A 2P (RCBO) | Frame: 30AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 30A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS33Fb/3/30 EBS Fb EBS30Fb-30mA — EBS33Fb 3A 3P (RCBO) | Frame: 30AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 3A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS33Fb/5/30 EBS Fb EBS30Fb-30mA — EBS33Fb 5A 3P (RCBO) | Frame: 30AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 5A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS33Fb/10/30 EBS Fb EBS30Fb-30mA — EBS33Fb 10A 3P (RCBO) | Frame: 30AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 10A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS33Fb/15/30 EBS Fb EBS30Fb-30mA — EBS33Fb 15A 3P (RCBO) | Frame: 30AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 15A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS33Fb/20/30 EBS Fb EBS30Fb-30mA — EBS33Fb 20A 3P (RCBO) | Frame: 30AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 20A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS33Fb/30/30 EBS Fb EBS30Fb-30mA — EBS33Fb 30A 3P (RCBO) | Frame: 30AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 30A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
Miniature Circuit BreakersLS Electric
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric EBS30Fb-30mA Beyond X Industrial Distribution Panel MCB/RCBO (S-type RCBO (Standard, Hydraulic-Magnetic, High breaking), 30AF RCBO, 5kA @ 220V AC / 2.5kA @ 380V AC, 30mA, 3~30A)

Brand LS Electric·Miniature Circuit Breakers

Available part numbers (12)

EBS32Fb/3/30, EBS32Fb/5/30, EBS32Fb/10/30, EBS32Fb/15/30, EBS32Fb/20/30, EBS32Fb/30/30, EBS33Fb/3/30, EBS33Fb/5/30, EBS33Fb/10/30, EBS33Fb/15/30 + 2 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EBS32Fb/3/30EBS Fb EBS30Fb-30mA — EBS32Fb 3A 2P (RCBO) | Frame: 30AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 3A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS32Fb/5/30EBS Fb EBS30Fb-30mA — EBS32Fb 5A 2P (RCBO) | Frame: 30AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 5A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS32Fb/10/30EBS Fb EBS30Fb-30mA — EBS32Fb 10A 2P (RCBO) | Frame: 30AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 10A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS32Fb/15/30EBS Fb EBS30Fb-30mA — EBS32Fb 15A 2P (RCBO) | Frame: 30AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 15A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS32Fb/20/30EBS Fb EBS30Fb-30mA — EBS32Fb 20A 2P (RCBO) | Frame: 30AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 20A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS32Fb/30/30EBS Fb EBS30Fb-30mA — EBS32Fb 30A 2P (RCBO) | Frame: 30AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 30A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS33Fb/3/30EBS Fb EBS30Fb-30mA — EBS33Fb 3A 3P (RCBO) | Frame: 30AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 3A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS33Fb/5/30EBS Fb EBS30Fb-30mA — EBS33Fb 5A 3P (RCBO) | Frame: 30AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 5A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS33Fb/10/30EBS Fb EBS30Fb-30mA — EBS33Fb 10A 3P (RCBO) | Frame: 30AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 10A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS33Fb/15/30EBS Fb EBS30Fb-30mA — EBS33Fb 15A 3P (RCBO) | Frame: 30AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 15A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS33Fb/20/30EBS Fb EBS30Fb-30mA — EBS33Fb 20A 3P (RCBO) | Frame: 30AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 20A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS33Fb/30/30EBS Fb EBS30Fb-30mA — EBS33Fb 30A 3P (RCBO) | Frame: 30AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 30A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
