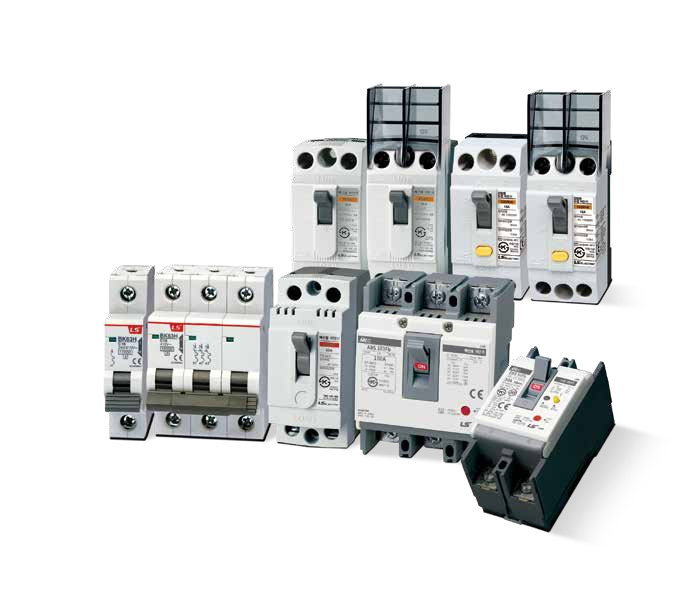

• LS Electric EBS50Fb-15mA Beyond X Industrial Distribution Panel MCB/RCBO (S-type RCBO (Standard, Hydraulic-Magnetic, High breaking), 50AF RCBO, 5kA @ 220V AC / 2.5kA @ 380V AC, 15mA, 5~50A)
1 1

LS Electric EBS50Fb-15mA Beyond X Industrial Distribution Panel MCB/RCBO (S-type RCBO (Standard, Hydraulic-Magnetic, High breaking), 50AF RCBO, 5kA @ 220V AC / 2.5kA @ 380V AC, 15mA, 5~50A)

LS Electric EBS50Fb-15mA Beyond X Industrial Distribution Panel MCB/RCBO (S-type RCBO (Standard, Hydraulic-Magnetic, High breaking), 50AF RCBO, 5kA @ 220V AC / 2.5kA @ 380V AC, 15mA, 5~50A)

LS ELECTRIC Beyond X Industrial Distribution Panel MCB/RCBO EBS50Fb-15mA family. | Application: Industrial distribution panel (RCBO). | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Sensitivity (I△n): 15mA | Rated current (In): 5A, 10A, 15A, 20A, 30A, 40A, 50A | Pole: 2P / 3P | Mounting: Screw or DIN rail | Uimp: 4kV | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | 14 variants — see RFQ table for specific MPN.

Specifications

Frame 50AF
Type S-type RCBO (Standard, Hydraulic-Magnetic, High breaking)
Breaking capacity Icn 5kA @ 220V AC / 2.5kA @ 380V AC
Ics 100% Icn
Trip method Hydraulic-Magnetic + RCD
Trip curve (7~15)×In
Sensitivity (I△n) 15mA
Uimp 4kV
Mounting Screw or DIN rail
Voltage AC 110/220V (2P) / 220/380V (3P)
Standard KSC 8321 / KSC 4613 / IEC 60947-2
Application Industrial distribution panel (RCBO)
EBS52Fb/5/15 EBS Fb EBS50Fb-15mA — EBS52Fb 5A 2P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 5A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS52Fb/10/15 EBS Fb EBS50Fb-15mA — EBS52Fb 10A 2P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 10A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS52Fb/15/15 EBS Fb EBS50Fb-15mA — EBS52Fb 15A 2P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 15A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS52Fb/20/15 EBS Fb EBS50Fb-15mA — EBS52Fb 20A 2P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 20A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS52Fb/30/15 EBS Fb EBS50Fb-15mA — EBS52Fb 30A 2P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 30A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS52Fb/40/15 EBS Fb EBS50Fb-15mA — EBS52Fb 40A 2P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 40A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS52Fb/50/15 EBS Fb EBS50Fb-15mA — EBS52Fb 50A 2P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 50A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS53Fb/5/15 EBS Fb EBS50Fb-15mA — EBS53Fb 5A 3P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 5A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS53Fb/10/15 EBS Fb EBS50Fb-15mA — EBS53Fb 10A 3P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 10A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS53Fb/15/15 EBS Fb EBS50Fb-15mA — EBS53Fb 15A 3P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 15A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS53Fb/20/15 EBS Fb EBS50Fb-15mA — EBS53Fb 20A 3P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 20A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS53Fb/30/15 EBS Fb EBS50Fb-15mA — EBS53Fb 30A 3P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 30A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS53Fb/40/15 EBS Fb EBS50Fb-15mA — EBS53Fb 40A 3P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 40A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS53Fb/50/15 EBS Fb EBS50Fb-15mA — EBS53Fb 50A 3P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 50A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
Miniature Circuit BreakersLS Electric
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric EBS50Fb-15mA Beyond X Industrial Distribution Panel MCB/RCBO (S-type RCBO (Standard, Hydraulic-Magnetic, High breaking), 50AF RCBO, 5kA @ 220V AC / 2.5kA @ 380V AC, 15mA, 5~50A)

Brand LS Electric·Miniature Circuit Breakers

Available part numbers (14)

EBS52Fb/5/15, EBS52Fb/10/15, EBS52Fb/15/15, EBS52Fb/20/15, EBS52Fb/30/15, EBS52Fb/40/15, EBS52Fb/50/15, EBS53Fb/5/15, EBS53Fb/10/15, EBS53Fb/15/15 + 4 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EBS52Fb/5/15EBS Fb EBS50Fb-15mA — EBS52Fb 5A 2P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 5A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS52Fb/10/15EBS Fb EBS50Fb-15mA — EBS52Fb 10A 2P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 10A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS52Fb/15/15EBS Fb EBS50Fb-15mA — EBS52Fb 15A 2P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 15A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS52Fb/20/15EBS Fb EBS50Fb-15mA — EBS52Fb 20A 2P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 20A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS52Fb/30/15EBS Fb EBS50Fb-15mA — EBS52Fb 30A 2P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 30A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS52Fb/40/15EBS Fb EBS50Fb-15mA — EBS52Fb 40A 2P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 40A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS52Fb/50/15EBS Fb EBS50Fb-15mA — EBS52Fb 50A 2P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 50A | Pole: 2P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS53Fb/5/15EBS Fb EBS50Fb-15mA — EBS53Fb 5A 3P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 5A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS53Fb/10/15EBS Fb EBS50Fb-15mA — EBS53Fb 10A 3P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 10A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS53Fb/15/15EBS Fb EBS50Fb-15mA — EBS53Fb 15A 3P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 15A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS53Fb/20/15EBS Fb EBS50Fb-15mA — EBS53Fb 20A 3P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 20A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS53Fb/30/15EBS Fb EBS50Fb-15mA — EBS53Fb 30A 3P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 30A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS53Fb/40/15EBS Fb EBS50Fb-15mA — EBS53Fb 40A 3P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 40A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
EBS53Fb/50/15EBS Fb EBS50Fb-15mA — EBS53Fb 50A 3P (RCBO) | Frame: 50AF | Type: S-type RCBO (Standard, Hydraulic-Magnetic, High breaking) | Rated current (In): 50A | Pole: 3P | Breaking capacity Icn: 5kA @ 220V AC / 2.5kA @ 380V AC | Ics: 100% Icn | Trip method: Hydraulic-Magnetic + RCD | Trip curve: (7~15)×In | Sensitivity (I△n): 15mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220V (2P) / 220/380V (3P) | Standard: KSC 8321 / KSC 4613 / IEC 60947-2 | Application: Industrial distribution panel (RCBO)
