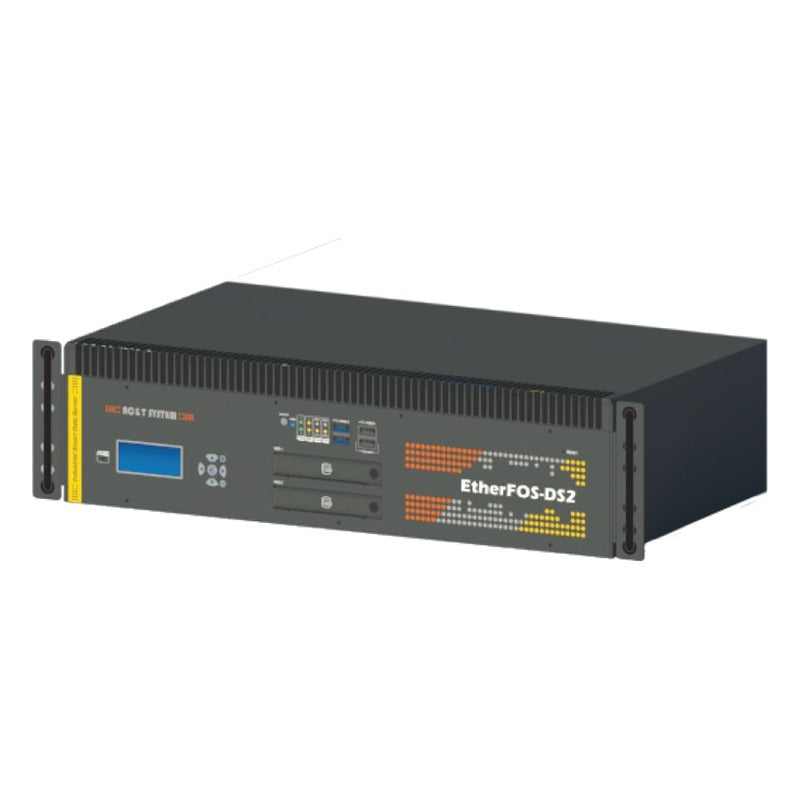

LS Electric EtherFOS Smart Data Servers (DS1/DS2/1000/500/150/EZ)

LS Electric EtherFOS Smart Data Servers (DS1/DS2/1000/500/150/EZ)

EtherFOS smart data servers (AC&T System, LS Electric group) that collect, process and log field-device data over Ethernet and serial links and serve it to MES, SCADA and databases via OPC UA, SQL and FTP.

Key features

  • Device drivers for PLCs, meters, sensors and serial devices; Modbus, XGT, GLOFA, MELSEC, BACnet, DNP3 and more
  • OPC UA server/client, DB client (Oracle, Tibero, MySQL, MSSQL, PostgreSQL) and FTP/SFTP
  • Scenario-based data logging and real-time processed data for diagnostics and analysis
  • Redundant CPU, Ethernet and power on rack models (1000/500); Ethernet teaming
  • A/B/C license types set the number of device channels per model
  • EtherFOS-TIM configuration software and EtherFOS-WEB monitoring

Specifications

Network 10/100/1000Base-T(X) RJ45 (EZ: 10/100)
Serial speed 200 to 152,200 bps
DS2 / DS1 CPU Intel Core i7 / Core i5, DDR3 4 GB, HDD
1000 / 500 CPU 32-bit RISC 1.0 GHz
150 / EZ CPU 32-bit RISC 600 MHz, 256 MB
Max serial ports 1000: 96, 500: 20, 150: 4, EZ: 2
Mounting 19 in rack (DS2 3U, DS1 1U, 1000 6U, 500 2U); DIN/wall (150, EZ)
Protocols OPC UA, HSMS, BACnet, SQL, Modbus-TCP, FTP
Source AC&T EtherFOS Series catalog, p. 5, 12-24
EtherFOS-DS2-A Model: EtherFOS-DS2 | Component: Main body, embedded IPC (3U) | Channels: 256 ch | Serial: - | Ethernet: 2 x 10/100/1000
EtherFOS-DS2-B Model: EtherFOS-DS2 | Component: Main body, embedded IPC (3U) | Channels: 512 ch | Serial: - | Ethernet: 2 x 10/100/1000
EtherFOS-DS2-C Model: EtherFOS-DS2 | Component: Main body, embedded IPC (3U) | Channels: 1024 ch | Serial: - | Ethernet: 2 x 10/100/1000
EtherFOS-DS1-A Model: EtherFOS-DS1 | Component: Main body, embedded IPC (1U) | Channels: 128 ch | Serial: - | Ethernet: 2 x 10/100/1000
EtherFOS-DS1-B Model: EtherFOS-DS1 | Component: Main body, embedded IPC (1U) | Channels: 256 ch | Serial: - | Ethernet: 2 x 10/100/1000
EtherFOS-DS1-C Model: EtherFOS-DS1 | Component: Main body, embedded IPC (1U) | Channels: 512 ch | Serial: - | Ethernet: 2 x 10/100/1000
EtherFOS-1000-RCP-A Model: EtherFOS-1000 | Component: Redundant CPU | Channels: 64 ch | Serial: - | Ethernet: 2 x 10/100/1000
EtherFOS-1000-RCP-B Model: EtherFOS-1000 | Component: Redundant CPU | Channels: 128 ch | Serial: - | Ethernet: 2 x 10/100/1000
EtherFOS-1000-RCP-C Model: EtherFOS-1000 | Component: Redundant CPU | Channels: 256 ch | Serial: - | Ethernet: 2 x 10/100/1000
EtherFOS-1000-SCP-A Model: EtherFOS-1000 | Component: Single CPU | Channels: 64 ch | Serial: - | Ethernet: 2 x 10/100/1000
EtherFOS-1000-SCP-B Model: EtherFOS-1000 | Component: Single CPU | Channels: 128 ch | Serial: - | Ethernet: 2 x 10/100/1000
EtherFOS-1000-SCP-C Model: EtherFOS-1000 | Component: Single CPU | Channels: 256 ch | Serial: - | Ethernet: 2 x 10/100/1000
EtherFOS-500-RCP-A Model: EtherFOS-500 | Component: Redundant CPU | Channels: 32 ch | Serial: - | Ethernet: 2 x 10/100/1000
EtherFOS-500-RCP-B Model: EtherFOS-500 | Component: Redundant CPU | Channels: 64 ch | Serial: - | Ethernet: 2 x 10/100/1000
EtherFOS-500-RCP-C Model: EtherFOS-500 | Component: Redundant CPU | Channels: 128 ch | Serial: - | Ethernet: 2 x 10/100/1000
EtherFOS-500-SCP-A Model: EtherFOS-500 | Component: Single CPU | Channels: 32 ch | Serial: - | Ethernet: 2 x 10/100/1000
EtherFOS-500-SCP-B Model: EtherFOS-500 | Component: Single CPU | Channels: 64 ch | Serial: - | Ethernet: 2 x 10/100/1000
EtherFOS-500-SCP-C Model: EtherFOS-500 | Component: Single CPU | Channels: 128 ch | Serial: - | Ethernet: 2 x 10/100/1000
EtherFOS-1000-S80 Model: EtherFOS-1000 | Component: Serial option card | Channels: - | Serial: RS-232C x 8 | Ethernet: -
EtherFOS-1000-S08 Model: EtherFOS-1000 | Component: Serial option card | Channels: - | Serial: RS-422/485 x 8 | Ethernet: -
EtherFOS-1000-BAS Model: EtherFOS-1000 | Component: Base | Channels: - | Serial: - | Ethernet: -
EtherFOS-1000-PWR Model: EtherFOS-1000 | Component: Power module | Channels: - | Serial: - | Ethernet: -
EtherFOS-1000-Storage Model: EtherFOS-1000 | Component: Storage card | Channels: - | Serial: - | Ethernet: -
EtherFOS-1000-NUL Model: EtherFOS-1000 | Component: Blank cover | Channels: - | Serial: - | Ethernet: -
EtherFOS-500-S40 Model: EtherFOS-500 | Component: Serial option card | Channels: - | Serial: RS-232C x 4 | Ethernet: -
EtherFOS-500-S22 Model: EtherFOS-500 | Component: Serial option card | Channels: - | Serial: RS-232C x 2, RS-422/485 x 2 | Ethernet: -
EtherFOS-500-S04 Model: EtherFOS-500 | Component: Serial option card | Channels: - | Serial: RS-422/485 x 4 | Ethernet: -
EtherFOS-500-BAS Model: EtherFOS-500 | Component: Base | Channels: - | Serial: - | Ethernet: -
EtherFOS-500-PWR Model: EtherFOS-500 | Component: Power module | Channels: - | Serial: - | Ethernet: -
EtherFOS-500-NUL Model: EtherFOS-500 | Component: Blank cover | Channels: - | Serial: - | Ethernet: -
EtherFOS-150-40-A Model: EtherFOS-150 | Component: Main body (DIN/wall) | Channels: 16 ch | Serial: RS-232C x 4 | Ethernet: 2 x 10/100/1000
EtherFOS-150-40-B Model: EtherFOS-150 | Component: Main body (DIN/wall) | Channels: 32 ch | Serial: RS-232C x 4 | Ethernet: 2 x 10/100/1000
EtherFOS-150-40-C Model: EtherFOS-150 | Component: Main body (DIN/wall) | Channels: 64 ch | Serial: RS-232C x 4 | Ethernet: 2 x 10/100/1000
EtherFOS-150-22-A Model: EtherFOS-150 | Component: Main body (DIN/wall) | Channels: 16 ch | Serial: RS-232C x 2, RS-422/485 x 2 | Ethernet: 2 x 10/100/1000
EtherFOS-150-22-B Model: EtherFOS-150 | Component: Main body (DIN/wall) | Channels: 32 ch | Serial: RS-232C x 2, RS-422/485 x 2 | Ethernet: 2 x 10/100/1000
EtherFOS-150-22-C Model: EtherFOS-150 | Component: Main body (DIN/wall) | Channels: 64 ch | Serial: RS-232C x 2, RS-422/485 x 2 | Ethernet: 2 x 10/100/1000
EtherFOS-150-04-A Model: EtherFOS-150 | Component: Main body (DIN/wall) | Channels: 16 ch | Serial: RS-422/485 x 4 | Ethernet: 2 x 10/100/1000
EtherFOS-150-04-B Model: EtherFOS-150 | Component: Main body (DIN/wall) | Channels: 32 ch | Serial: RS-422/485 x 4 | Ethernet: 2 x 10/100/1000
EtherFOS-150-04-C Model: EtherFOS-150 | Component: Main body (DIN/wall) | Channels: 64 ch | Serial: RS-422/485 x 4 | Ethernet: 2 x 10/100/1000
EtherFOS-EZ-20-B Model: EtherFOS-EZ | Component: Main body (DIN/wall) | Channels: 16 ch | Serial: RS-232C x 2 | Ethernet: 1 x 10/100
EtherFOS-EZ-20-C Model: EtherFOS-EZ | Component: Main body (DIN/wall) | Channels: 32 ch | Serial: RS-232C x 2 | Ethernet: 1 x 10/100
EtherFOS-EZ-11-B Model: EtherFOS-EZ | Component: Main body (DIN/wall) | Channels: 16 ch | Serial: RS-232C x 1, RS-422/485 x 1 | Ethernet: 1 x 10/100
EtherFOS-EZ-11-C Model: EtherFOS-EZ | Component: Main body (DIN/wall) | Channels: 32 ch | Serial: RS-232C x 1, RS-422/485 x 1 | Ethernet: 1 x 10/100
EtherFOS-EZ-20i-c421-A Model: EtherFOS-EZ | Component: Main body + I/O (DI12/DO4/AI2/AO1) | Channels: 8 ch | Serial: RS-232C x 2 | Ethernet: 1 x 10/100
EtherFOS-EZ-20i-c421-B Model: EtherFOS-EZ | Component: Main body + I/O (DI12/DO4/AI2/AO1) | Channels: 16 ch | Serial: RS-232C x 2 | Ethernet: 1 x 10/100
EtherFOS-EZ-20i-c421-C Model: EtherFOS-EZ | Component: Main body + I/O (DI12/DO4/AI2/AO1) | Channels: 32 ch | Serial: RS-232C x 2 | Ethernet: 1 x 10/100
EtherFOS-EZ-11i-c421-A Model: EtherFOS-EZ | Component: Main body + I/O (DI12/DO4/AI2/AO1) | Channels: 8 ch | Serial: RS-232C x 1, RS-422/485 x 1 | Ethernet: 1 x 10/100
EtherFOS-EZ-11i-c421-B Model: EtherFOS-EZ | Component: Main body + I/O (DI12/DO4/AI2/AO1) | Channels: 16 ch | Serial: RS-232C x 1, RS-422/485 x 1 | Ethernet: 1 x 10/100
EtherFOS-EZ-11i-c421-C Model: EtherFOS-EZ | Component: Main body + I/O (DI12/DO4/AI2/AO1) | Channels: 32 ch | Serial: RS-232C x 1, RS-422/485 x 1 | Ethernet: 1 x 10/100
Industrial PCsLS Electric
49 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric EtherFOS Smart Data Servers (DS1/DS2/1000/500/150/EZ)

Brand LS Electric·Industrial PCs

Available part numbers (49)

EtherFOS-DS2-A, EtherFOS-DS2-B, EtherFOS-DS2-C, EtherFOS-DS1-A, EtherFOS-DS1-B, EtherFOS-DS1-C, EtherFOS-1000-RCP-A, EtherFOS-1000-RCP-B, EtherFOS-1000-RCP-C, EtherFOS-1000-SCP-A + 39 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
