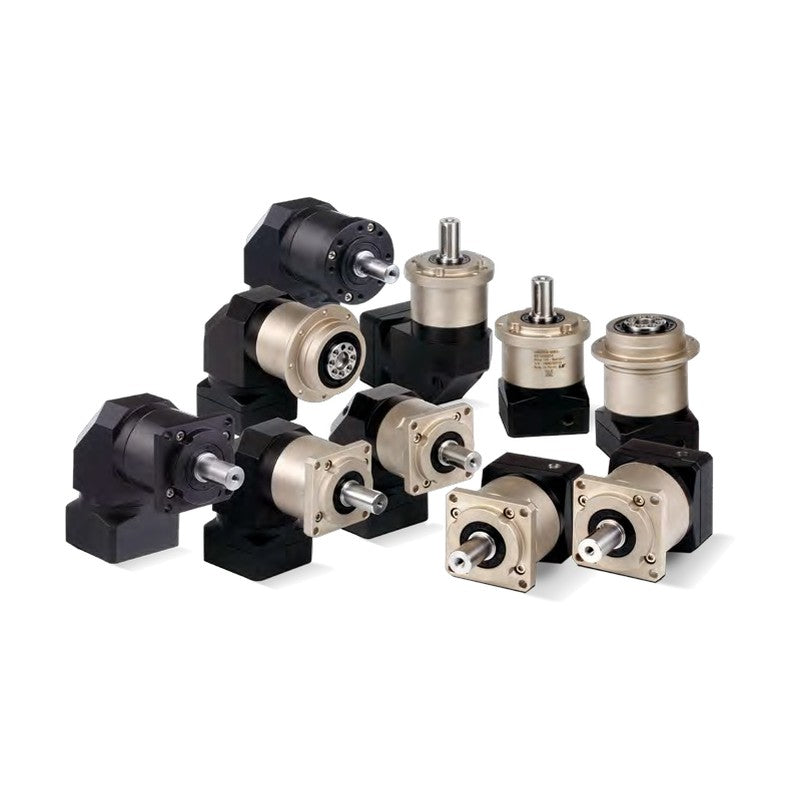

LS Electric HAR Right-Angle Planetary Gearbox, Round Flange (2-stage)

LS Electric HAR Right-Angle Planetary Gearbox, Round Flange (2-stage)

LS Electric HAR precision planetary gearbox (premium line, helical gear, right-angle, round flange, keyed or smooth output shaft) in frames 050-235; full order code HAR<frame><stage>-<ratio><key><backlash>, motor adapter ordered separately.

Key features

  • Premium line helical-gear planetary reducer, right-angle housing
  • Spiral bevel gear right-angle stage saves installation space
  • Backlash classes: S standard / P precision / A high precision
  • Clamp-type input with motor adapter for LS, HIGEN, Mitsubishi, Panasonic and Yaskawa servo motors
  • Lifetime grease lubrication (maintenance free), IP65

Specifications

Series HAR (Premium line)
Gear type Helical planetary
Housing Right-Angle
Output Round Flange
Frame sizes 050, 070, 090, 120, 155, 205, 235
Ratios 15:1 to 200:1
Efficiency (1-stage / 2-stage) >= 95% / >= 92%
Rated input speed 5,000 to 2,000 rpm
Service life 20,000 h (10,000 h continuous)
Lubrication Grease (VIGO Grease RE #0)
Protection IP65
Operating temperature -10 to +90 C
Noise <= 58 to 74 dB
Source LS Electric Precision Planetary Gearbox catalog (2025.02), p. 6-7, 57, 62-65
HAR0502A-015KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-015NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-015KP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-015NP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0502A-020KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-020NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-020KP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-020NP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0502A-025KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-025NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-025KP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-025NP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0502A-030KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-030NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-030KP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-030NP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0502A-035KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-035NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-035KP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-035NP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0502A-040KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-040NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-040KP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-040NP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0502A-045KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-045NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-045KP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-045NP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0502A-050KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-050NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-050KP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-050NP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0502A-060KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-060NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-060KP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-060NP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0502A-070KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-070NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-070KP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-070NP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0502A-080KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-080NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-080KP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-080NP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0502A-090KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-090NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-090KP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-090NP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0502A-100KS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-100NS Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-100KP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-100NP Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702B-025KS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702B-025NS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702B-025KP Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702B-025NP Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702B-025KA Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702B-025NA Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702B-030KS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702B-030NS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702B-030KP Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702B-030NP Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702B-030KA Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702B-030NA Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702B-035KS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702B-035NS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702B-035KP Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702B-035NP Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702B-035KA Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702B-035NA Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702B-040KS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702B-040NS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702B-040KP Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702B-040NP Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702B-040KA Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702B-040NA Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702B-045KS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702B-045NS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702B-045KP Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702B-045NP Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702B-045KA Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702B-045NA Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702B-050KS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702B-050NS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702B-050KP Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702B-050NP Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702B-050KA Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702B-050NA Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702B-060KS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702B-060NS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702B-060KP Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702B-060NP Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702B-060KA Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702B-060NA Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702B-070KS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702B-070NS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702B-070KP Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702B-070NP Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702B-070KA Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702B-070NA Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702B-080KS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702B-080NS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702B-080KP Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702B-080NP Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702B-080KA Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702B-080NA Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702B-090KS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702B-090NS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702B-090KP Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702B-090NP Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702B-090KA Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702B-090NA Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702B-100KS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702B-100NS Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702B-100KP Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702B-100NP Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702B-100KA Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702B-100NA Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-025KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-025NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-025KP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-025NP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-025KA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-025NA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-030KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-030NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-030KP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-030NP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-030KA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-030NA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-035KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-035NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-035KP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-035NP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-035KA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-035NA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-040KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-040NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-040KP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-040NP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-040KA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-040NA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-045KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-045NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-045KP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-045NP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-045KA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-045NA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-050KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-050NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-050KP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-050NP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-050KA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-050NA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-060KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-060NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-060KP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-060NP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-060KA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-060NA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-070KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-070NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-070KP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-070NP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-070KA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-070NA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-080KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-080NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-080KP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-080NP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-080KA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-080NA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-090KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-090NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-090KP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-090NP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-090KA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-090NA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-100KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-100NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-100KP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-100NP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-100KA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-100NA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-120KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-120NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-120KP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-120NP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-120KA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-120NA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-140KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-140NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-140KP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-140NP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-140KA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-140NA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-180KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-180NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-180KP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-180NP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-180KA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-180NA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-200KS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-200NS Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-200KP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-200NP Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-200KA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-200NA Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-025KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-025NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-025KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-025NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-025KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-025NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-030KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-030NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-030KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-030NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-030KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-030NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-035KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-035NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-035KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-035NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-035KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-035NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-040KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-040NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-040KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-040NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-040KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-040NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-045KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-045NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-045KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-045NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-045KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-045NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-050KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-050NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-050KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-050NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-050KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-050NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-060KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-060NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-060KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-060NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-060KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-060NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-070KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-070NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-070KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-070NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-070KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-070NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-080KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-080NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-080KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-080NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-080KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-080NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-090KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-090NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-090KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-090NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-090KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-090NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-100KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-100NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-100KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-100NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-100KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-100NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-120KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-120NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-120KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-120NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-120KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-120NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-140KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-140NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-140KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-140NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-140KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-140NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-180KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-180NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-180KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-180NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-180KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-180NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-200KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-200NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-200KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-200NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-200KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-200NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-025KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-025NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-025KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-025NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-025KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-025NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-030KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-030NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-030KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-030NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-030KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-030NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-035KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-035NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-035KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-035NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-035KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-035NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-040KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-040NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-040KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-040NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-040KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-040NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-045KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-045NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-045KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-045NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-045KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-045NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-050KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-050NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-050KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-050NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-050KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-050NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-060KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-060NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-060KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-060NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-060KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-060NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-070KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-070NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-070KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-070NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-070KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-070NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-080KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-080NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-080KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-080NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-080KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-080NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-090KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-090NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-090KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-090NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-090KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-090NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-100KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-100NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-100KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-100NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-100KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-100NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-120KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-120NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-120KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-120NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-120KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-120NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-140KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-140NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-140KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-140NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-140KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-140NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-180KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-180NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-180KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-180NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-180KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-180NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-200KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-200NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-200KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-200NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-200KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-200NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-025KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-025NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-025KP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-025NP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-025KA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-025NA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-030KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-030NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-030KP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-030NP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-030KA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-030NA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-035KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-035NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-035KP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-035NP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-035KA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-035NA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-040KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-040NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-040KP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-040NP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-040KA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-040NA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-045KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-045NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-045KP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-045NP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-045KA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-045NA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-050KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-050NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-050KP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-050NP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-050KA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-050NA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-060KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-060NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-060KP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-060NP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-060KA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-060NA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-070KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-070NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-070KP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-070NP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-070KA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-070NA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-080KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-080NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-080KP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-080NP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-080KA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-080NA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-090KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-090NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-090KP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-090NP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-090KA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-090NA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-100KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-100NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-100KP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-100NP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-100KA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-100NA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-120KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-120NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-120KP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-120NP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-120KA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-120NA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-140KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-140NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-140KP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-140NP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-140KA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-140NA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-180KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-180NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-180KP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-180NP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-180KA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-180NA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-200KS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-200NS Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-200KP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-200NP Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-200KA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-200NA Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-025KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-025NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-025KP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-025NP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-025KA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-025NA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-030KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-030NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-030KP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-030NP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-030KA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-030NA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-035KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-035NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-035KP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-035NP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-035KA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-035NA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-040KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-040NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-040KP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-040NP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-040KA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-040NA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-045KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-045NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-045KP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-045NP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-045KA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-045NA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-050KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-050NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-050KP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-050NP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-050KA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-050NA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-060KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-060NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-060KP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-060NP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-060KA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-060NA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-070KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-070NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-070KP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-070NP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-070KA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-070NA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-080KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-080NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-080KP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-080NP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-080KA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-080NA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-090KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-090NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-090KP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-090NP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-090KA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-090NA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-100KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-100NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-100KP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-100NP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-100KA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-100NA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-120KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-120NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-120KP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-120NP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-120KA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-120NA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-140KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-140NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-140KP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-140NP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-140KA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-140NA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-180KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-180NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-180KP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-180NP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-180KA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-180NA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-200KS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-200NS Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-200KP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-200NP Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-200KA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-200NA Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-025KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-025NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-025KP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-025NP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-025KA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-025NA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-030KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-030NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-030KP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-030NP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-030KA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-030NA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-035KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-035NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-035KP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-035NP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-035KA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-035NA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-040KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-040NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-040KP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-040NP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-040KA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-040NA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-045KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-045NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-045KP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-045NP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-045KA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-045NA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-050KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-050NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-050KP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-050NP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-050KA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-050NA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-060KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-060NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-060KP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-060NP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-060KA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-060NA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-070KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-070NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-070KP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-070NP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-070KA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-070NA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-080KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-080NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-080KP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-080NP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-080KA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-080NA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-090KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-090NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-090KP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-090NP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-090KA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-090NA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-100KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-100NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-100KP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-100NP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-100KA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-100NA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-120KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-120NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-120KP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-120NP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-120KA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-120NA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-140KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-140NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-140KP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-140NP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-140KA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-140NA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-180KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-180NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-180KP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-180NP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-180KA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-180NA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-200KS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-200NS Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-200KP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-200NP Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-200KA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-200NA Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-025KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-025NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-025KP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-025NP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-025KA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-025NA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-030KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-030NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-030KP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-030NP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-030KA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-030NA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-035KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-035NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-035KP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-035NP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-035KA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-035NA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-040KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-040NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-040KP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-040NP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-040KA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-040NA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-045KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-045NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-045KP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-045NP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-045KA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-045NA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-050KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-050NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-050KP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-050NP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-050KA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-050NA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-060KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-060NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-060KP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-060NP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-060KA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-060NA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-070KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-070NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-070KP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-070NP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-070KA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-070NA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-080KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-080NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-080KP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-080NP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-080KA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-080NA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-090KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-090NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-090KP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-090NP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-090KA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-090NA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-100KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-100NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-100KP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-100NP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-100KA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-100NA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-120KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-120NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-120KP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-120NP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-120KA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-120NA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-140KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-140NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-140KP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-140NP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-140KA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-140NA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-180KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-180NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-180KP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-180NP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-180KA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-180NA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-200KS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-200NS Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-200KP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-200NP Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-200KA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-200NA Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-025KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-025NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-025KP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-025NP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-025KA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-025NA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-030KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-030NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-030KP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-030NP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-030KA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-030NA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-035KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-035NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-035KP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-035NP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-035KA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-035NA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-040KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-040NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-040KP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-040NP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-040KA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-040NA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-045KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-045NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-045KP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-045NP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-045KA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-045NA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-050KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-050NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-050KP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-050NP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-050KA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-050NA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-060KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-060NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-060KP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-060NP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-060KA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-060NA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-070KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-070NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-070KP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-070NP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-070KA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-070NA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-080KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-080NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-080KP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-080NP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-080KA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-080NA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-090KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-090NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-090KP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-090NP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-090KA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-090NA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-100KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-100NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-100KP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-100NP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-100KA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-100NA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-120KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-120NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-120KP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-120NP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-120KA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-120NA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-140KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-140NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-140KP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-140NP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-140KA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-140NA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-180KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-180NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-180KP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-180NP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-180KA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-180NA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-200KS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-200NS Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-200KP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-200NP Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-200KA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-200NA Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-025KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-025NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-025KP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-025NP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-025KA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-025NA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-030KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-030NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-030KP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-030NP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-030KA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-030NA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-035KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-035NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-035KP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-035NP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-035KA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-035NA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-040KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-040NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-040KP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-040NP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-040KA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-040NA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-045KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-045NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-045KP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-045NP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-045KA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-045NA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-050KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-050NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-050KP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-050NP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-050KA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-050NA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-060KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-060NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-060KP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-060NP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-060KA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-060NA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-070KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-070NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-070KP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-070NP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-070KA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-070NA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-080KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-080NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-080KP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-080NP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-080KA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-080NA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-090KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-090NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-090KP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-090NP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-090KA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-090NA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-100KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-100NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-100KP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-100NP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-100KA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-100NA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-120KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-120NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-120KP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-120NP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-120KA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-120NA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-140KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-140NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-140KP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-140NP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-140KA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-140NA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-180KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-180NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-180KP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-180NP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-180KA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-180NA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-200KS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-200NS Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-200KP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-200NP Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-200KA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-200NA Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-025KS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-025NS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-025KP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-025NP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-025KA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-025NA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-030KS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-030NS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-030KP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-030NP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-030KA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-030NA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-035KS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-035NS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-035KP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-035NP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-035KA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-035NA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-040KS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-040NS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-040KP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-040NP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-040KA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-040NA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-045KS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-045NS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-045KP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-045NP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-045KA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-045NA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-050KS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-050NS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-050KP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-050NP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-050KA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-050NA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-060KS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-060NS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-060KP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-060NP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-060KA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-060NA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-070KS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-070NS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-070KP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-070NP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-070KA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-070NA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-080KS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-080NS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-080KP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-080NP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-080KA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-080NA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-090KS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-090NS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-090KP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-090NP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-090KA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-090NA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-100KS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-100NS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-100KP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-100NP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-100KA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-100NA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-120KS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-120NS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-120KP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-120NP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-120KA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-120NA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-140KS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-140NS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-140KP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-140NP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-140KA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-140NA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-180KS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-180NS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-180KP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-180NP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-180KA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-180NA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-200KS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-200NS Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-200KP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-200NP Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-200KA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-200NA Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-025KS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-025NS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-025KP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-025NP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-025KA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-025NA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-030KS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-030NS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-030KP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-030NP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-030KA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-030NA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-035KS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-035NS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-035KP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-035NP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-035KA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-035NA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-040KS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-040NS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-040KP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-040NP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-040KA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-040NA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-045KS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-045NS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-045KP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-045NP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-045KA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-045NA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-050KS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-050NS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-050KP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-050NP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-050KA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-050NA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-060KS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-060NS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-060KP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-060NP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-060KA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-060NA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-070KS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-070NS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-070KP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-070NP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-070KA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-070NA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-080KS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-080NS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-080KP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-080NP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-080KA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-080NA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-090KS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-090NS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-090KP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-090NP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-090KA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-090NA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-100KS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-100NS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-100KP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-100NP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-100KA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-100NA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-120KS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-120NS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-120KP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-120NP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-120KA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-120NA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-140KS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-140NS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-140KP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-140NP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-140KA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-140NA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-180KS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-180NS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-180KP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-180NP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-180KA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-180NA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-200KS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-200NS Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-200KP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-200NP Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-200KA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-200NA Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702B Frame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR0902B Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR1202B Frame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR1552B Frame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR2052B Frame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR2352B Frame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR0502A Frame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR0702A Frame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR0902A Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR1202A Frame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR1552A Frame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR2052A Frame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR2352A Frame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
Planetary GearboxesLS Electric
1121 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric HAR Right-Angle Planetary Gearbox, Round Flange (2-stage)

Brand LS Electric·Planetary Gearboxes

Available part numbers (1121)

HAR0502A-015KS, HAR0502A-015NS, HAR0502A-015KP, HAR0502A-015NP, HAR0502A-020KS, HAR0502A-020NS, HAR0502A-020KP, HAR0502A-020NP, HAR0502A-025KS, HAR0502A-025NS + 1111 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HAR0502A-015KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-015NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-015KPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-015NPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0502A-020KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-020NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-020KPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-020NPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0502A-025KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-025NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-025KPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-025NPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0502A-030KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-030NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-030KPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-030NPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0502A-035KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-035NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-035KPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-035NPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0502A-040KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-040NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-040KPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-040NPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0502A-045KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-045NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-045KPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-045NPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0502A-050KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-050NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-050KPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-050NPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0502A-060KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-060NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-060KPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-060NPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0502A-070KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-070NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-070KPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-070NPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0502A-080KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-080NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-080KPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-080NPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0502A-090KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-090NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-090KPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-090NPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0502A-100KSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0502A-100NSFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0502A-100KPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0502A-100NPFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702B-025KSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702B-025NSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702B-025KPFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702B-025NPFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702B-025KAFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702B-025NAFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702B-030KSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702B-030NSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702B-030KPFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702B-030NPFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702B-030KAFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702B-030NAFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702B-035KSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702B-035NSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702B-035KPFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702B-035NPFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702B-035KAFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702B-035NAFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702B-040KSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702B-040NSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702B-040KPFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702B-040NPFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702B-040KAFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702B-040NAFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702B-045KSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702B-045NSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702B-045KPFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702B-045NPFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702B-045KAFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702B-045NAFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702B-050KSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702B-050NSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702B-050KPFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702B-050NPFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702B-050KAFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702B-050NAFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702B-060KSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702B-060NSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702B-060KPFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702B-060NPFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702B-060KAFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702B-060NAFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702B-070KSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702B-070NSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702B-070KPFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702B-070NPFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702B-070KAFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702B-070NAFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702B-080KSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702B-080NSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702B-080KPFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702B-080NPFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702B-080KAFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702B-080NAFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702B-090KSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702B-090NSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702B-090KPFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702B-090NPFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702B-090KAFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702B-090NAFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702B-100KSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702B-100NSFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702B-100KPFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702B-100NPFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702B-100KAFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702B-100NAFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-025KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-025NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-025KPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-025NPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-025KAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-025NAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-030KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-030NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-030KPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-030NPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-030KAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-030NAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-035KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-035NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-035KPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-035NPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-035KAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-035NAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-040KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-040NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-040KPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-040NPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-040KAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-040NAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-045KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-045NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-045KPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-045NPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-045KAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-045NAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-050KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-050NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-050KPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-050NPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-050KAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-050NAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-060KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-060NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-060KPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-060NPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-060KAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-060NAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-070KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-070NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-070KPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-070NPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-070KAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-070NAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-080KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-080NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-080KPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-080NPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-080KAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-080NAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-090KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-090NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-090KPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-090NPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-090KAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-090NAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-100KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-100NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-100KPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-100NPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-100KAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-100NAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-120KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-120NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-120KPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-120NPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-120KAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-120NAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-140KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-140NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-140KPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-140NPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-140KAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-140NAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-180KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-180NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-180KPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-180NPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-180KAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-180NAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702A-200KSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0702A-200NSFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0702A-200KPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0702A-200NPFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0702A-200KAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0702A-200NAFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-025KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-025NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-025KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-025NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-025KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-025NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-030KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-030NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-030KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-030NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-030KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-030NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-035KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-035NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-035KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-035NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-035KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-035NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-040KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-040NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-040KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-040NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-040KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-040NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-045KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-045NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-045KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-045NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-045KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-045NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-050KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-050NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-050KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-050NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-050KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-050NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-060KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-060NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-060KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-060NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-060KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-060NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-070KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-070NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-070KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-070NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-070KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-070NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-080KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-080NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-080KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-080NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-080KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-080NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-090KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-090NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-090KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-090NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-090KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-090NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-100KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-100NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-100KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-100NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-100KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-100NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-120KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-120NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-120KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-120NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-120KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-120NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-140KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-140NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-140KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-140NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-140KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-140NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-180KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-180NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-180KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-180NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-180KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-180NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902B-200KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902B-200NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902B-200KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902B-200NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902B-200KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902B-200NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-025KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-025NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-025KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-025NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-025KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-025NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-030KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-030NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-030KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-030NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-030KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-030NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-035KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-035NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-035KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-035NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-035KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-035NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-040KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-040NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-040KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-040NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-040KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-040NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-045KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-045NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-045KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-045NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-045KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-045NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-050KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-050NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-050KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-050NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-050KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-050NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-060KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-060NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-060KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-060NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-060KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-060NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-070KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-070NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-070KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-070NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-070KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-070NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-080KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-080NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-080KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-080NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-080KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-080NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-090KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-090NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-090KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-090NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-090KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-090NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-100KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-100NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-100KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-100NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-100KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-100NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-120KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-120NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-120KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-120NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-120KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-120NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-140KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-140NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-140KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-140NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-140KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-140NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-180KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-180NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-180KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-180NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-180KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-180NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0902A-200KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR0902A-200NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR0902A-200KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR0902A-200NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR0902A-200KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR0902A-200NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-025KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-025NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-025KPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-025NPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-025KAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-025NAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-030KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-030NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-030KPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-030NPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-030KAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-030NAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-035KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-035NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-035KPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-035NPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-035KAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-035NAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-040KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-040NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-040KPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-040NPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-040KAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-040NAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-045KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-045NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-045KPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-045NPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-045KAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-045NAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-050KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-050NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-050KPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-050NPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-050KAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-050NAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-060KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-060NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-060KPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-060NPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-060KAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-060NAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-070KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-070NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-070KPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-070NPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-070KAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-070NAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-080KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-080NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-080KPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-080NPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-080KAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-080NAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-090KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-090NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-090KPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-090NPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-090KAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-090NAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-100KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-100NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-100KPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-100NPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-100KAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-100NAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-120KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-120NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-120KPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-120NPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-120KAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-120NAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-140KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-140NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-140KPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-140NPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-140KAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-140NAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-180KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-180NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-180KPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-180NPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-180KAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-180NAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202B-200KSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202B-200NSFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202B-200KPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202B-200NPFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202B-200KAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202B-200NAFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-025KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-025NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-025KPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-025NPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-025KAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-025NAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-030KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-030NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-030KPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-030NPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-030KAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-030NAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-035KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-035NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-035KPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-035NPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-035KAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-035NAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-040KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-040NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-040KPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-040NPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-040KAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-040NAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-045KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-045NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-045KPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-045NPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-045KAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-045NAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-050KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-050NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-050KPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-050NPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-050KAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-050NAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-060KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-060NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-060KPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-060NPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-060KAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-060NAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-070KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-070NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-070KPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-070NPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-070KAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-070NAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-080KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-080NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-080KPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-080NPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-080KAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-080NAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-090KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-090NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-090KPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-090NPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-090KAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-090NAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-100KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-100NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-100KPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-100NPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-100KAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-100NAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-120KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-120NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-120KPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-120NPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-120KAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-120NAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-140KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-140NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-140KPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-140NPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-140KAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-140NAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-180KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-180NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-180KPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-180NPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-180KAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-180NAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1202A-200KSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1202A-200NSFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1202A-200KPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1202A-200NPFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1202A-200KAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1202A-200NAFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-025KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-025NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-025KPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-025NPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-025KAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-025NAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-030KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-030NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-030KPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-030NPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-030KAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-030NAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-035KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-035NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-035KPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-035NPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-035KAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-035NAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-040KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-040NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-040KPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-040NPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-040KAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-040NAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-045KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-045NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-045KPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-045NPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-045KAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-045NAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-050KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-050NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-050KPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-050NPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-050KAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-050NAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-060KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-060NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-060KPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-060NPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-060KAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-060NAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-070KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-070NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-070KPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-070NPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-070KAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-070NAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-080KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-080NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-080KPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-080NPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-080KAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-080NAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-090KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-090NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-090KPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-090NPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-090KAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-090NAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-100KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-100NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-100KPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-100NPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-100KAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-100NAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-120KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-120NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-120KPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-120NPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-120KAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-120NAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-140KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-140NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-140KPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-140NPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-140KAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-140NAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-180KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-180NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-180KPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-180NPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-180KAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-180NAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552B-200KSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552B-200NSFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552B-200KPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552B-200NPFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552B-200KAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552B-200NAFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-025KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-025NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-025KPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-025NPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-025KAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-025NAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-030KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-030NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-030KPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-030NPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-030KAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-030NAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-035KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-035NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-035KPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-035NPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-035KAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-035NAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-040KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-040NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-040KPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-040NPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-040KAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-040NAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-045KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-045NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-045KPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-045NPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-045KAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-045NAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-050KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-050NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-050KPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-050NPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-050KAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-050NAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-060KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-060NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-060KPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-060NPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-060KAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-060NAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-070KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-070NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-070KPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-070NPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-070KAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-070NAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-080KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-080NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-080KPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-080NPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-080KAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-080NAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-090KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-090NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-090KPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-090NPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-090KAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-090NAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-100KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-100NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-100KPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-100NPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-100KAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-100NAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-120KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-120NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-120KPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-120NPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-120KAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-120NAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-140KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-140NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-140KPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-140NPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-140KAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-140NAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-180KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-180NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-180KPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-180NPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-180KAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-180NAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR1552A-200KSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR1552A-200NSFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR1552A-200KPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR1552A-200NPFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR1552A-200KAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR1552A-200NAFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-025KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-025NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-025KPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-025NPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-025KAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-025NAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-030KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-030NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-030KPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-030NPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-030KAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-030NAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-035KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-035NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-035KPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-035NPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-035KAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-035NAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-040KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-040NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-040KPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-040NPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-040KAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-040NAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-045KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-045NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-045KPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-045NPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-045KAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-045NAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-050KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-050NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-050KPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-050NPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-050KAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-050NAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-060KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-060NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-060KPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-060NPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-060KAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-060NAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-070KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-070NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-070KPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-070NPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-070KAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-070NAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-080KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-080NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-080KPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-080NPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-080KAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-080NAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-090KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-090NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-090KPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-090NPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-090KAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-090NAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-100KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-100NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-100KPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-100NPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-100KAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-100NAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-120KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-120NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-120KPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-120NPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-120KAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-120NAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-140KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-140NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-140KPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-140NPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-140KAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-140NAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-180KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-180NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-180KPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-180NPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-180KAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-180NAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052B-200KSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052B-200NSFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052B-200KPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052B-200NPFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052B-200KAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052B-200NAFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-025KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-025NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-025KPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-025NPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-025KAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-025NAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-030KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-030NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-030KPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-030NPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-030KAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-030NAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-035KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-035NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-035KPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-035NPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-035KAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-035NAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-040KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-040NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-040KPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-040NPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-040KAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-040NAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-045KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-045NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-045KPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-045NPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-045KAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-045NAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-050KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-050NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-050KPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-050NPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-050KAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-050NAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-060KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-060NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-060KPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-060NPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-060KAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-060NAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-070KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-070NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-070KPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-070NPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-070KAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-070NAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-080KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-080NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-080KPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-080NPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-080KAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-080NAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-090KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-090NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-090KPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-090NPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-090KAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-090NAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-100KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-100NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-100KPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-100NPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-100KAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-100NAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-120KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-120NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-120KPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-120NPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-120KAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-120NAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-140KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-140NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-140KPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-140NPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-140KAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-140NAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-180KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-180NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-180KPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-180NPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-180KAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-180NAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2052A-200KSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2052A-200NSFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2052A-200KPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2052A-200NPFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2052A-200KAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2052A-200NAFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-025KSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-025NSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-025KPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-025NPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-025KAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-025NAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-030KSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-030NSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-030KPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-030NPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-030KAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-030NAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-035KSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-035NSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-035KPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-035NPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-035KAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-035NAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-040KSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-040NSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-040KPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-040NPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-040KAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-040NAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-045KSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-045NSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-045KPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-045NPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-045KAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-045NAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-050KSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-050NSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-050KPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-050NPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-050KAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-050NAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-060KSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-060NSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-060KPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-060NPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-060KAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-060NAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-070KSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-070NSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-070KPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-070NPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-070KAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-070NAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-080KSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-080NSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-080KPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-080NPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-080KAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-080NAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-090KSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-090NSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-090KPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-090NPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-090KAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-090NAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-100KSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-100NSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-100KPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-100NPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-100KAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-100NAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-120KSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-120NSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-120KPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-120NPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-120KAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-120NAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-140KSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-140NSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-140KPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-140NPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-140KAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-140NAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-180KSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-180NSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-180KPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-180NPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-180KAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-180NAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352B-200KSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352B-200NSFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352B-200KPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352B-200NPFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352B-200KAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352B-200NAFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-025KSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-025NSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-025KPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-025NPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-025KAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-025NAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-030KSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-030NSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-030KPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-030NPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-030KAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-030NAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-035KSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-035NSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-035KPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-035NPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-035KAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-035NAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-040KSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-040NSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-040KPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-040NPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-040KAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-040NAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-045KSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-045NSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-045KPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-045NPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-045KAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-045NAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-050KSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-050NSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-050KPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-050NPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-050KAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-050NAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-060KSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-060NSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-060KPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-060NPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-060KAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-060NAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-070KSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-070NSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-070KPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-070NPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-070KAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-070NAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-080KSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-080NSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-080KPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-080NPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-080KAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-080NAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-090KSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-090NSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-090KPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-090NPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-090KAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-090NAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-100KSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-100NSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-100KPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-100NPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-100KAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-100NAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-120KSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-120NSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-120KPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-120NPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-120KAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-120NAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-140KSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-140NSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-140KPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-140NPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-140KAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-140NAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-180KSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-180NSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-180KPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-180NPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-180KAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-180NAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR2352A-200KSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAR2352A-200NSFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAR2352A-200KPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAR2352A-200NPFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAR2352A-200KAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAR2352A-200NAFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAR0702BFrame: 070 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR0902BFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR1202BFrame: 120 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR1552BFrame: 155 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR2052BFrame: 205 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR2352BFrame: 235 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR0502AFrame: 050 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR0702AFrame: 070 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR0902AFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR1202AFrame: 120 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR1552AFrame: 155 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR2052AFrame: 205 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR2352AFrame: 235 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
