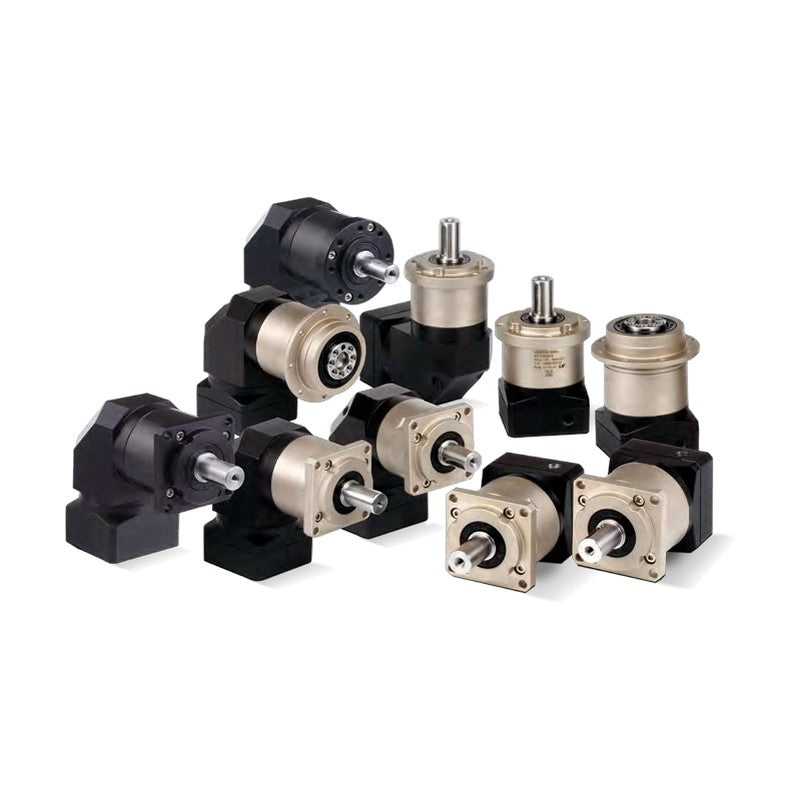

LS Electric HAW Right-Angle Planetary Gearbox (1-stage)

LS Electric HAW Right-Angle Planetary Gearbox (1-stage)

LS Electric HAW precision planetary gearbox (premium line, helical gear, right-angle, high-load square flange, keyed or smooth output shaft) in frames 060-220; full order code HAW<frame><stage>-<ratio><key><backlash>, motor adapter ordered separately.

Key features

  • Premium line helical-gear planetary reducer, right-angle housing
  • Spiral bevel gear right-angle stage saves installation space
  • Backlash classes: S standard / P precision / A high precision
  • Clamp-type input with motor adapter for LS, HIGEN, Mitsubishi, Panasonic and Yaskawa servo motors
  • Lifetime grease lubrication (maintenance free), IP65
  • Tapered roller output bearings for high radial and axial loads

Specifications

Series HAW (Premium line)
Gear type Helical planetary
Housing Right-Angle
Output High-Load Square Flange
Frame sizes 060, 075, 100, 140, 180, 220
Ratios 3:1 to 20:1
Efficiency (1-stage / 2-stage) >= 97% / >= 94%
Rated input speed 5,000 to 2,000 rpm
Service life 20,000 h (10,000 h continuous)
Lubrication Grease (VIGO Grease RE #0)
Protection IP65
Operating temperature -10 to +90 C
Noise <= 60 to 74 dB
Stage input 1-stage std (1A)
Source LS Electric Precision Planetary Gearbox catalog (2025.02), p. 6-7, 67, 72-75
HAW0601A-003KS Frame: 060 | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0601A-003NS Frame: 060 | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0601A-003KP Frame: 060 | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0601A-003NP Frame: 060 | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0601A-003KA Frame: 060 | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0601A-003NA Frame: 060 | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0601A-004KS Frame: 060 | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0601A-004NS Frame: 060 | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0601A-004KP Frame: 060 | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0601A-004NP Frame: 060 | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0601A-004KA Frame: 060 | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0601A-004NA Frame: 060 | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0601A-005KS Frame: 060 | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0601A-005NS Frame: 060 | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0601A-005KP Frame: 060 | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0601A-005NP Frame: 060 | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0601A-005KA Frame: 060 | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0601A-005NA Frame: 060 | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0601A-006KS Frame: 060 | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0601A-006NS Frame: 060 | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0601A-006KP Frame: 060 | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0601A-006NP Frame: 060 | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0601A-006KA Frame: 060 | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0601A-006NA Frame: 060 | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0601A-007KS Frame: 060 | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0601A-007NS Frame: 060 | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0601A-007KP Frame: 060 | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0601A-007NP Frame: 060 | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0601A-007KA Frame: 060 | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0601A-007NA Frame: 060 | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0601A-008KS Frame: 060 | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0601A-008NS Frame: 060 | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0601A-008KP Frame: 060 | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0601A-008NP Frame: 060 | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0601A-008KA Frame: 060 | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0601A-008NA Frame: 060 | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0601A-009KS Frame: 060 | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0601A-009NS Frame: 060 | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0601A-009KP Frame: 060 | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0601A-009NP Frame: 060 | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0601A-009KA Frame: 060 | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0601A-009NA Frame: 060 | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0601A-010KS Frame: 060 | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0601A-010NS Frame: 060 | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0601A-010KP Frame: 060 | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0601A-010NP Frame: 060 | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0601A-010KA Frame: 060 | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0601A-010NA Frame: 060 | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0601A-014KS Frame: 060 | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0601A-014NS Frame: 060 | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0601A-014KP Frame: 060 | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0601A-014NP Frame: 060 | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0601A-014KA Frame: 060 | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0601A-014NA Frame: 060 | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0601A-020KS Frame: 060 | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0601A-020NS Frame: 060 | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0601A-020KP Frame: 060 | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0601A-020NP Frame: 060 | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0601A-020KA Frame: 060 | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0601A-020NA Frame: 060 | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0751A-003KS Frame: 075 | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0751A-003NS Frame: 075 | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0751A-003KP Frame: 075 | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0751A-003NP Frame: 075 | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0751A-003KA Frame: 075 | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0751A-003NA Frame: 075 | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0751A-004KS Frame: 075 | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0751A-004NS Frame: 075 | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0751A-004KP Frame: 075 | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0751A-004NP Frame: 075 | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0751A-004KA Frame: 075 | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0751A-004NA Frame: 075 | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0751A-005KS Frame: 075 | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0751A-005NS Frame: 075 | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0751A-005KP Frame: 075 | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0751A-005NP Frame: 075 | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0751A-005KA Frame: 075 | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0751A-005NA Frame: 075 | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0751A-006KS Frame: 075 | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0751A-006NS Frame: 075 | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0751A-006KP Frame: 075 | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0751A-006NP Frame: 075 | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0751A-006KA Frame: 075 | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0751A-006NA Frame: 075 | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0751A-007KS Frame: 075 | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0751A-007NS Frame: 075 | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0751A-007KP Frame: 075 | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0751A-007NP Frame: 075 | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0751A-007KA Frame: 075 | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0751A-007NA Frame: 075 | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0751A-008KS Frame: 075 | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0751A-008NS Frame: 075 | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0751A-008KP Frame: 075 | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0751A-008NP Frame: 075 | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0751A-008KA Frame: 075 | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0751A-008NA Frame: 075 | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0751A-009KS Frame: 075 | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0751A-009NS Frame: 075 | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0751A-009KP Frame: 075 | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0751A-009NP Frame: 075 | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0751A-009KA Frame: 075 | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0751A-009NA Frame: 075 | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0751A-010KS Frame: 075 | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0751A-010NS Frame: 075 | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0751A-010KP Frame: 075 | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0751A-010NP Frame: 075 | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0751A-010KA Frame: 075 | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0751A-010NA Frame: 075 | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0751A-014KS Frame: 075 | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0751A-014NS Frame: 075 | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0751A-014KP Frame: 075 | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0751A-014NP Frame: 075 | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0751A-014KA Frame: 075 | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0751A-014NA Frame: 075 | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0751A-020KS Frame: 075 | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0751A-020NS Frame: 075 | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0751A-020KP Frame: 075 | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0751A-020NP Frame: 075 | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0751A-020KA Frame: 075 | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0751A-020NA Frame: 075 | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1001A-003KS Frame: 100 | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1001A-003NS Frame: 100 | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1001A-003KP Frame: 100 | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1001A-003NP Frame: 100 | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1001A-003KA Frame: 100 | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1001A-003NA Frame: 100 | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1001A-004KS Frame: 100 | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1001A-004NS Frame: 100 | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1001A-004KP Frame: 100 | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1001A-004NP Frame: 100 | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1001A-004KA Frame: 100 | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1001A-004NA Frame: 100 | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1001A-005KS Frame: 100 | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1001A-005NS Frame: 100 | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1001A-005KP Frame: 100 | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1001A-005NP Frame: 100 | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1001A-005KA Frame: 100 | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1001A-005NA Frame: 100 | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1001A-006KS Frame: 100 | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1001A-006NS Frame: 100 | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1001A-006KP Frame: 100 | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1001A-006NP Frame: 100 | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1001A-006KA Frame: 100 | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1001A-006NA Frame: 100 | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1001A-007KS Frame: 100 | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1001A-007NS Frame: 100 | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1001A-007KP Frame: 100 | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1001A-007NP Frame: 100 | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1001A-007KA Frame: 100 | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1001A-007NA Frame: 100 | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1001A-008KS Frame: 100 | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1001A-008NS Frame: 100 | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1001A-008KP Frame: 100 | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1001A-008NP Frame: 100 | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1001A-008KA Frame: 100 | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1001A-008NA Frame: 100 | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1001A-009KS Frame: 100 | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1001A-009NS Frame: 100 | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1001A-009KP Frame: 100 | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1001A-009NP Frame: 100 | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1001A-009KA Frame: 100 | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1001A-009NA Frame: 100 | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1001A-010KS Frame: 100 | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1001A-010NS Frame: 100 | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1001A-010KP Frame: 100 | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1001A-010NP Frame: 100 | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1001A-010KA Frame: 100 | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1001A-010NA Frame: 100 | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1001A-014KS Frame: 100 | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1001A-014NS Frame: 100 | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1001A-014KP Frame: 100 | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1001A-014NP Frame: 100 | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1001A-014KA Frame: 100 | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1001A-014NA Frame: 100 | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1001A-020KS Frame: 100 | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1001A-020NS Frame: 100 | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1001A-020KP Frame: 100 | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1001A-020NP Frame: 100 | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1001A-020KA Frame: 100 | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1001A-020NA Frame: 100 | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1401A-003KS Frame: 140 | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1401A-003NS Frame: 140 | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1401A-003KP Frame: 140 | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1401A-003NP Frame: 140 | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1401A-003KA Frame: 140 | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1401A-003NA Frame: 140 | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1401A-004KS Frame: 140 | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1401A-004NS Frame: 140 | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1401A-004KP Frame: 140 | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1401A-004NP Frame: 140 | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1401A-004KA Frame: 140 | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1401A-004NA Frame: 140 | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1401A-005KS Frame: 140 | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1401A-005NS Frame: 140 | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1401A-005KP Frame: 140 | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1401A-005NP Frame: 140 | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1401A-005KA Frame: 140 | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1401A-005NA Frame: 140 | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1401A-006KS Frame: 140 | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1401A-006NS Frame: 140 | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1401A-006KP Frame: 140 | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1401A-006NP Frame: 140 | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1401A-006KA Frame: 140 | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1401A-006NA Frame: 140 | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1401A-007KS Frame: 140 | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1401A-007NS Frame: 140 | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1401A-007KP Frame: 140 | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1401A-007NP Frame: 140 | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1401A-007KA Frame: 140 | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1401A-007NA Frame: 140 | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1401A-008KS Frame: 140 | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1401A-008NS Frame: 140 | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1401A-008KP Frame: 140 | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1401A-008NP Frame: 140 | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1401A-008KA Frame: 140 | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1401A-008NA Frame: 140 | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1401A-009KS Frame: 140 | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1401A-009NS Frame: 140 | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1401A-009KP Frame: 140 | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1401A-009NP Frame: 140 | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1401A-009KA Frame: 140 | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1401A-009NA Frame: 140 | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1401A-010KS Frame: 140 | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1401A-010NS Frame: 140 | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1401A-010KP Frame: 140 | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1401A-010NP Frame: 140 | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1401A-010KA Frame: 140 | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1401A-010NA Frame: 140 | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1401A-014KS Frame: 140 | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1401A-014NS Frame: 140 | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1401A-014KP Frame: 140 | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1401A-014NP Frame: 140 | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1401A-014KA Frame: 140 | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1401A-014NA Frame: 140 | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1401A-020KS Frame: 140 | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1401A-020NS Frame: 140 | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1401A-020KP Frame: 140 | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1401A-020NP Frame: 140 | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1401A-020KA Frame: 140 | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1401A-020NA Frame: 140 | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1801A-003KS Frame: 180 | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1801A-003NS Frame: 180 | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1801A-003KP Frame: 180 | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1801A-003NP Frame: 180 | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1801A-003KA Frame: 180 | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1801A-003NA Frame: 180 | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1801A-004KS Frame: 180 | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1801A-004NS Frame: 180 | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1801A-004KP Frame: 180 | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1801A-004NP Frame: 180 | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1801A-004KA Frame: 180 | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1801A-004NA Frame: 180 | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1801A-005KS Frame: 180 | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1801A-005NS Frame: 180 | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1801A-005KP Frame: 180 | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1801A-005NP Frame: 180 | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1801A-005KA Frame: 180 | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1801A-005NA Frame: 180 | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1801A-006KS Frame: 180 | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1801A-006NS Frame: 180 | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1801A-006KP Frame: 180 | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1801A-006NP Frame: 180 | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1801A-006KA Frame: 180 | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1801A-006NA Frame: 180 | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1801A-007KS Frame: 180 | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1801A-007NS Frame: 180 | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1801A-007KP Frame: 180 | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1801A-007NP Frame: 180 | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1801A-007KA Frame: 180 | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1801A-007NA Frame: 180 | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1801A-008KS Frame: 180 | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1801A-008NS Frame: 180 | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1801A-008KP Frame: 180 | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1801A-008NP Frame: 180 | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1801A-008KA Frame: 180 | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1801A-008NA Frame: 180 | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1801A-009KS Frame: 180 | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1801A-009NS Frame: 180 | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1801A-009KP Frame: 180 | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1801A-009NP Frame: 180 | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1801A-009KA Frame: 180 | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1801A-009NA Frame: 180 | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1801A-010KS Frame: 180 | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1801A-010NS Frame: 180 | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1801A-010KP Frame: 180 | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1801A-010NP Frame: 180 | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1801A-010KA Frame: 180 | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1801A-010NA Frame: 180 | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1801A-014KS Frame: 180 | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1801A-014NS Frame: 180 | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1801A-014KP Frame: 180 | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1801A-014NP Frame: 180 | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1801A-014KA Frame: 180 | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1801A-014NA Frame: 180 | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1801A-020KS Frame: 180 | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1801A-020NS Frame: 180 | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1801A-020KP Frame: 180 | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1801A-020NP Frame: 180 | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1801A-020KA Frame: 180 | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1801A-020NA Frame: 180 | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW2201A-003KS Frame: 220 | Input bore: 55 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW2201A-003NS Frame: 220 | Input bore: 55 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW2201A-003KP Frame: 220 | Input bore: 55 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW2201A-003NP Frame: 220 | Input bore: 55 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW2201A-003KA Frame: 220 | Input bore: 55 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW2201A-003NA Frame: 220 | Input bore: 55 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW2201A-004KS Frame: 220 | Input bore: 55 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW2201A-004NS Frame: 220 | Input bore: 55 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW2201A-004KP Frame: 220 | Input bore: 55 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW2201A-004NP Frame: 220 | Input bore: 55 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW2201A-004KA Frame: 220 | Input bore: 55 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW2201A-004NA Frame: 220 | Input bore: 55 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW2201A-005KS Frame: 220 | Input bore: 55 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW2201A-005NS Frame: 220 | Input bore: 55 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW2201A-005KP Frame: 220 | Input bore: 55 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW2201A-005NP Frame: 220 | Input bore: 55 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW2201A-005KA Frame: 220 | Input bore: 55 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW2201A-005NA Frame: 220 | Input bore: 55 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW2201A-006KS Frame: 220 | Input bore: 55 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW2201A-006NS Frame: 220 | Input bore: 55 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW2201A-006KP Frame: 220 | Input bore: 55 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW2201A-006NP Frame: 220 | Input bore: 55 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW2201A-006KA Frame: 220 | Input bore: 55 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW2201A-006NA Frame: 220 | Input bore: 55 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW2201A-007KS Frame: 220 | Input bore: 55 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW2201A-007NS Frame: 220 | Input bore: 55 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW2201A-007KP Frame: 220 | Input bore: 55 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW2201A-007NP Frame: 220 | Input bore: 55 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW2201A-007KA Frame: 220 | Input bore: 55 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW2201A-007NA Frame: 220 | Input bore: 55 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW2201A-008KS Frame: 220 | Input bore: 55 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW2201A-008NS Frame: 220 | Input bore: 55 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW2201A-008KP Frame: 220 | Input bore: 55 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW2201A-008NP Frame: 220 | Input bore: 55 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW2201A-008KA Frame: 220 | Input bore: 55 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW2201A-008NA Frame: 220 | Input bore: 55 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW2201A-009KS Frame: 220 | Input bore: 55 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW2201A-009NS Frame: 220 | Input bore: 55 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW2201A-009KP Frame: 220 | Input bore: 55 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW2201A-009NP Frame: 220 | Input bore: 55 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW2201A-009KA Frame: 220 | Input bore: 55 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW2201A-009NA Frame: 220 | Input bore: 55 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW2201A-010KS Frame: 220 | Input bore: 55 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW2201A-010NS Frame: 220 | Input bore: 55 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW2201A-010KP Frame: 220 | Input bore: 55 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW2201A-010NP Frame: 220 | Input bore: 55 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW2201A-010KA Frame: 220 | Input bore: 55 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW2201A-010NA Frame: 220 | Input bore: 55 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW2201A-014KS Frame: 220 | Input bore: 55 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW2201A-014NS Frame: 220 | Input bore: 55 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW2201A-014KP Frame: 220 | Input bore: 55 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW2201A-014NP Frame: 220 | Input bore: 55 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW2201A-014KA Frame: 220 | Input bore: 55 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW2201A-014NA Frame: 220 | Input bore: 55 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW2201A-020KS Frame: 220 | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW2201A-020NS Frame: 220 | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW2201A-020KP Frame: 220 | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW2201A-020NP Frame: 220 | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW2201A-020KA Frame: 220 | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW2201A-020NA Frame: 220 | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0601A Frame: 060 | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAW0751A Frame: 075 | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAW1001A Frame: 100 | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAW1401A Frame: 140 | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAW1801A Frame: 180 | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAW2201A Frame: 220 | Input bore: 55 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
Planetary GearboxesLS Electric
366 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric HAW Right-Angle Planetary Gearbox (1-stage)

Brand LS Electric·Planetary Gearboxes

Available part numbers (366)

HAW0601A-003KS, HAW0601A-003NS, HAW0601A-003KP, HAW0601A-003NP, HAW0601A-003KA, HAW0601A-003NA, HAW0601A-004KS, HAW0601A-004NS, HAW0601A-004KP, HAW0601A-004NP + 356 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HAW0601A-003KSFrame: 060 | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0601A-003NSFrame: 060 | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0601A-003KPFrame: 060 | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0601A-003NPFrame: 060 | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0601A-003KAFrame: 060 | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0601A-003NAFrame: 060 | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0601A-004KSFrame: 060 | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0601A-004NSFrame: 060 | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0601A-004KPFrame: 060 | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0601A-004NPFrame: 060 | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0601A-004KAFrame: 060 | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0601A-004NAFrame: 060 | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0601A-005KSFrame: 060 | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0601A-005NSFrame: 060 | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0601A-005KPFrame: 060 | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0601A-005NPFrame: 060 | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0601A-005KAFrame: 060 | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0601A-005NAFrame: 060 | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0601A-006KSFrame: 060 | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0601A-006NSFrame: 060 | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0601A-006KPFrame: 060 | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0601A-006NPFrame: 060 | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0601A-006KAFrame: 060 | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0601A-006NAFrame: 060 | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0601A-007KSFrame: 060 | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0601A-007NSFrame: 060 | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0601A-007KPFrame: 060 | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0601A-007NPFrame: 060 | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0601A-007KAFrame: 060 | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0601A-007NAFrame: 060 | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0601A-008KSFrame: 060 | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0601A-008NSFrame: 060 | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0601A-008KPFrame: 060 | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0601A-008NPFrame: 060 | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0601A-008KAFrame: 060 | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0601A-008NAFrame: 060 | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0601A-009KSFrame: 060 | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0601A-009NSFrame: 060 | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0601A-009KPFrame: 060 | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0601A-009NPFrame: 060 | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0601A-009KAFrame: 060 | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0601A-009NAFrame: 060 | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0601A-010KSFrame: 060 | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0601A-010NSFrame: 060 | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0601A-010KPFrame: 060 | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0601A-010NPFrame: 060 | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0601A-010KAFrame: 060 | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0601A-010NAFrame: 060 | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0601A-014KSFrame: 060 | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0601A-014NSFrame: 060 | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0601A-014KPFrame: 060 | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0601A-014NPFrame: 060 | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0601A-014KAFrame: 060 | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0601A-014NAFrame: 060 | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0601A-020KSFrame: 060 | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0601A-020NSFrame: 060 | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0601A-020KPFrame: 060 | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0601A-020NPFrame: 060 | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0601A-020KAFrame: 060 | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0601A-020NAFrame: 060 | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0751A-003KSFrame: 075 | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0751A-003NSFrame: 075 | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0751A-003KPFrame: 075 | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0751A-003NPFrame: 075 | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0751A-003KAFrame: 075 | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0751A-003NAFrame: 075 | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0751A-004KSFrame: 075 | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0751A-004NSFrame: 075 | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0751A-004KPFrame: 075 | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0751A-004NPFrame: 075 | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0751A-004KAFrame: 075 | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0751A-004NAFrame: 075 | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0751A-005KSFrame: 075 | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0751A-005NSFrame: 075 | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0751A-005KPFrame: 075 | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0751A-005NPFrame: 075 | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0751A-005KAFrame: 075 | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0751A-005NAFrame: 075 | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0751A-006KSFrame: 075 | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0751A-006NSFrame: 075 | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0751A-006KPFrame: 075 | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0751A-006NPFrame: 075 | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0751A-006KAFrame: 075 | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0751A-006NAFrame: 075 | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0751A-007KSFrame: 075 | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0751A-007NSFrame: 075 | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0751A-007KPFrame: 075 | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0751A-007NPFrame: 075 | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0751A-007KAFrame: 075 | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0751A-007NAFrame: 075 | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0751A-008KSFrame: 075 | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0751A-008NSFrame: 075 | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0751A-008KPFrame: 075 | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0751A-008NPFrame: 075 | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0751A-008KAFrame: 075 | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0751A-008NAFrame: 075 | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0751A-009KSFrame: 075 | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0751A-009NSFrame: 075 | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0751A-009KPFrame: 075 | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0751A-009NPFrame: 075 | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0751A-009KAFrame: 075 | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0751A-009NAFrame: 075 | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0751A-010KSFrame: 075 | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0751A-010NSFrame: 075 | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0751A-010KPFrame: 075 | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0751A-010NPFrame: 075 | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0751A-010KAFrame: 075 | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0751A-010NAFrame: 075 | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0751A-014KSFrame: 075 | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0751A-014NSFrame: 075 | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0751A-014KPFrame: 075 | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0751A-014NPFrame: 075 | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0751A-014KAFrame: 075 | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0751A-014NAFrame: 075 | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0751A-020KSFrame: 075 | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW0751A-020NSFrame: 075 | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW0751A-020KPFrame: 075 | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW0751A-020NPFrame: 075 | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW0751A-020KAFrame: 075 | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW0751A-020NAFrame: 075 | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1001A-003KSFrame: 100 | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1001A-003NSFrame: 100 | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1001A-003KPFrame: 100 | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1001A-003NPFrame: 100 | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1001A-003KAFrame: 100 | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1001A-003NAFrame: 100 | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1001A-004KSFrame: 100 | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1001A-004NSFrame: 100 | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1001A-004KPFrame: 100 | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1001A-004NPFrame: 100 | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1001A-004KAFrame: 100 | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1001A-004NAFrame: 100 | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1001A-005KSFrame: 100 | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1001A-005NSFrame: 100 | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1001A-005KPFrame: 100 | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1001A-005NPFrame: 100 | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1001A-005KAFrame: 100 | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1001A-005NAFrame: 100 | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1001A-006KSFrame: 100 | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1001A-006NSFrame: 100 | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1001A-006KPFrame: 100 | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1001A-006NPFrame: 100 | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1001A-006KAFrame: 100 | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1001A-006NAFrame: 100 | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1001A-007KSFrame: 100 | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1001A-007NSFrame: 100 | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1001A-007KPFrame: 100 | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1001A-007NPFrame: 100 | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1001A-007KAFrame: 100 | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1001A-007NAFrame: 100 | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1001A-008KSFrame: 100 | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1001A-008NSFrame: 100 | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1001A-008KPFrame: 100 | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1001A-008NPFrame: 100 | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1001A-008KAFrame: 100 | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1001A-008NAFrame: 100 | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1001A-009KSFrame: 100 | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1001A-009NSFrame: 100 | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1001A-009KPFrame: 100 | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1001A-009NPFrame: 100 | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1001A-009KAFrame: 100 | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1001A-009NAFrame: 100 | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1001A-010KSFrame: 100 | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1001A-010NSFrame: 100 | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1001A-010KPFrame: 100 | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1001A-010NPFrame: 100 | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1001A-010KAFrame: 100 | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1001A-010NAFrame: 100 | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1001A-014KSFrame: 100 | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1001A-014NSFrame: 100 | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1001A-014KPFrame: 100 | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1001A-014NPFrame: 100 | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1001A-014KAFrame: 100 | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1001A-014NAFrame: 100 | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1001A-020KSFrame: 100 | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1001A-020NSFrame: 100 | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1001A-020KPFrame: 100 | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1001A-020NPFrame: 100 | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1001A-020KAFrame: 100 | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1001A-020NAFrame: 100 | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1401A-003KSFrame: 140 | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1401A-003NSFrame: 140 | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1401A-003KPFrame: 140 | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1401A-003NPFrame: 140 | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1401A-003KAFrame: 140 | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1401A-003NAFrame: 140 | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1401A-004KSFrame: 140 | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1401A-004NSFrame: 140 | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1401A-004KPFrame: 140 | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1401A-004NPFrame: 140 | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1401A-004KAFrame: 140 | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1401A-004NAFrame: 140 | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1401A-005KSFrame: 140 | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1401A-005NSFrame: 140 | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1401A-005KPFrame: 140 | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1401A-005NPFrame: 140 | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1401A-005KAFrame: 140 | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1401A-005NAFrame: 140 | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1401A-006KSFrame: 140 | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1401A-006NSFrame: 140 | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1401A-006KPFrame: 140 | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1401A-006NPFrame: 140 | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1401A-006KAFrame: 140 | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1401A-006NAFrame: 140 | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1401A-007KSFrame: 140 | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1401A-007NSFrame: 140 | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1401A-007KPFrame: 140 | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1401A-007NPFrame: 140 | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1401A-007KAFrame: 140 | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1401A-007NAFrame: 140 | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1401A-008KSFrame: 140 | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1401A-008NSFrame: 140 | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1401A-008KPFrame: 140 | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1401A-008NPFrame: 140 | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1401A-008KAFrame: 140 | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1401A-008NAFrame: 140 | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1401A-009KSFrame: 140 | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1401A-009NSFrame: 140 | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1401A-009KPFrame: 140 | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1401A-009NPFrame: 140 | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1401A-009KAFrame: 140 | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1401A-009NAFrame: 140 | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1401A-010KSFrame: 140 | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1401A-010NSFrame: 140 | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1401A-010KPFrame: 140 | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1401A-010NPFrame: 140 | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1401A-010KAFrame: 140 | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1401A-010NAFrame: 140 | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1401A-014KSFrame: 140 | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1401A-014NSFrame: 140 | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1401A-014KPFrame: 140 | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1401A-014NPFrame: 140 | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1401A-014KAFrame: 140 | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1401A-014NAFrame: 140 | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1401A-020KSFrame: 140 | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1401A-020NSFrame: 140 | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1401A-020KPFrame: 140 | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1401A-020NPFrame: 140 | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1401A-020KAFrame: 140 | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1401A-020NAFrame: 140 | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1801A-003KSFrame: 180 | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1801A-003NSFrame: 180 | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1801A-003KPFrame: 180 | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1801A-003NPFrame: 180 | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1801A-003KAFrame: 180 | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1801A-003NAFrame: 180 | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1801A-004KSFrame: 180 | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1801A-004NSFrame: 180 | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1801A-004KPFrame: 180 | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1801A-004NPFrame: 180 | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1801A-004KAFrame: 180 | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1801A-004NAFrame: 180 | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1801A-005KSFrame: 180 | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1801A-005NSFrame: 180 | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1801A-005KPFrame: 180 | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1801A-005NPFrame: 180 | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1801A-005KAFrame: 180 | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1801A-005NAFrame: 180 | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1801A-006KSFrame: 180 | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1801A-006NSFrame: 180 | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1801A-006KPFrame: 180 | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1801A-006NPFrame: 180 | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1801A-006KAFrame: 180 | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1801A-006NAFrame: 180 | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1801A-007KSFrame: 180 | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1801A-007NSFrame: 180 | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1801A-007KPFrame: 180 | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1801A-007NPFrame: 180 | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1801A-007KAFrame: 180 | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1801A-007NAFrame: 180 | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1801A-008KSFrame: 180 | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1801A-008NSFrame: 180 | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1801A-008KPFrame: 180 | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1801A-008NPFrame: 180 | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1801A-008KAFrame: 180 | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1801A-008NAFrame: 180 | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1801A-009KSFrame: 180 | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1801A-009NSFrame: 180 | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1801A-009KPFrame: 180 | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1801A-009NPFrame: 180 | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1801A-009KAFrame: 180 | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1801A-009NAFrame: 180 | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1801A-010KSFrame: 180 | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1801A-010NSFrame: 180 | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1801A-010KPFrame: 180 | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1801A-010NPFrame: 180 | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1801A-010KAFrame: 180 | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1801A-010NAFrame: 180 | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1801A-014KSFrame: 180 | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1801A-014NSFrame: 180 | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1801A-014KPFrame: 180 | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1801A-014NPFrame: 180 | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1801A-014KAFrame: 180 | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1801A-014NAFrame: 180 | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW1801A-020KSFrame: 180 | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW1801A-020NSFrame: 180 | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW1801A-020KPFrame: 180 | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW1801A-020NPFrame: 180 | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW1801A-020KAFrame: 180 | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW1801A-020NAFrame: 180 | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW2201A-003KSFrame: 220 | Input bore: 55 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW2201A-003NSFrame: 220 | Input bore: 55 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW2201A-003KPFrame: 220 | Input bore: 55 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW2201A-003NPFrame: 220 | Input bore: 55 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW2201A-003KAFrame: 220 | Input bore: 55 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW2201A-003NAFrame: 220 | Input bore: 55 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW2201A-004KSFrame: 220 | Input bore: 55 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW2201A-004NSFrame: 220 | Input bore: 55 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW2201A-004KPFrame: 220 | Input bore: 55 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW2201A-004NPFrame: 220 | Input bore: 55 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW2201A-004KAFrame: 220 | Input bore: 55 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW2201A-004NAFrame: 220 | Input bore: 55 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW2201A-005KSFrame: 220 | Input bore: 55 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW2201A-005NSFrame: 220 | Input bore: 55 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW2201A-005KPFrame: 220 | Input bore: 55 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW2201A-005NPFrame: 220 | Input bore: 55 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW2201A-005KAFrame: 220 | Input bore: 55 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW2201A-005NAFrame: 220 | Input bore: 55 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW2201A-006KSFrame: 220 | Input bore: 55 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW2201A-006NSFrame: 220 | Input bore: 55 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW2201A-006KPFrame: 220 | Input bore: 55 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW2201A-006NPFrame: 220 | Input bore: 55 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW2201A-006KAFrame: 220 | Input bore: 55 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW2201A-006NAFrame: 220 | Input bore: 55 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW2201A-007KSFrame: 220 | Input bore: 55 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW2201A-007NSFrame: 220 | Input bore: 55 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW2201A-007KPFrame: 220 | Input bore: 55 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW2201A-007NPFrame: 220 | Input bore: 55 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW2201A-007KAFrame: 220 | Input bore: 55 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW2201A-007NAFrame: 220 | Input bore: 55 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW2201A-008KSFrame: 220 | Input bore: 55 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW2201A-008NSFrame: 220 | Input bore: 55 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW2201A-008KPFrame: 220 | Input bore: 55 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW2201A-008NPFrame: 220 | Input bore: 55 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW2201A-008KAFrame: 220 | Input bore: 55 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW2201A-008NAFrame: 220 | Input bore: 55 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW2201A-009KSFrame: 220 | Input bore: 55 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW2201A-009NSFrame: 220 | Input bore: 55 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW2201A-009KPFrame: 220 | Input bore: 55 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW2201A-009NPFrame: 220 | Input bore: 55 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW2201A-009KAFrame: 220 | Input bore: 55 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW2201A-009NAFrame: 220 | Input bore: 55 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW2201A-010KSFrame: 220 | Input bore: 55 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW2201A-010NSFrame: 220 | Input bore: 55 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW2201A-010KPFrame: 220 | Input bore: 55 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW2201A-010NPFrame: 220 | Input bore: 55 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW2201A-010KAFrame: 220 | Input bore: 55 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW2201A-010NAFrame: 220 | Input bore: 55 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW2201A-014KSFrame: 220 | Input bore: 55 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW2201A-014NSFrame: 220 | Input bore: 55 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW2201A-014KPFrame: 220 | Input bore: 55 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW2201A-014NPFrame: 220 | Input bore: 55 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW2201A-014KAFrame: 220 | Input bore: 55 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW2201A-014NAFrame: 220 | Input bore: 55 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW2201A-020KSFrame: 220 | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAW2201A-020NSFrame: 220 | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAW2201A-020KPFrame: 220 | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAW2201A-020NPFrame: 220 | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAW2201A-020KAFrame: 220 | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAW2201A-020NAFrame: 220 | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAW0601AFrame: 060 | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAW0751AFrame: 075 | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAW1001AFrame: 100 | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAW1401AFrame: 140 | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAW1801AFrame: 180 | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAW2201AFrame: 220 | Input bore: 55 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
