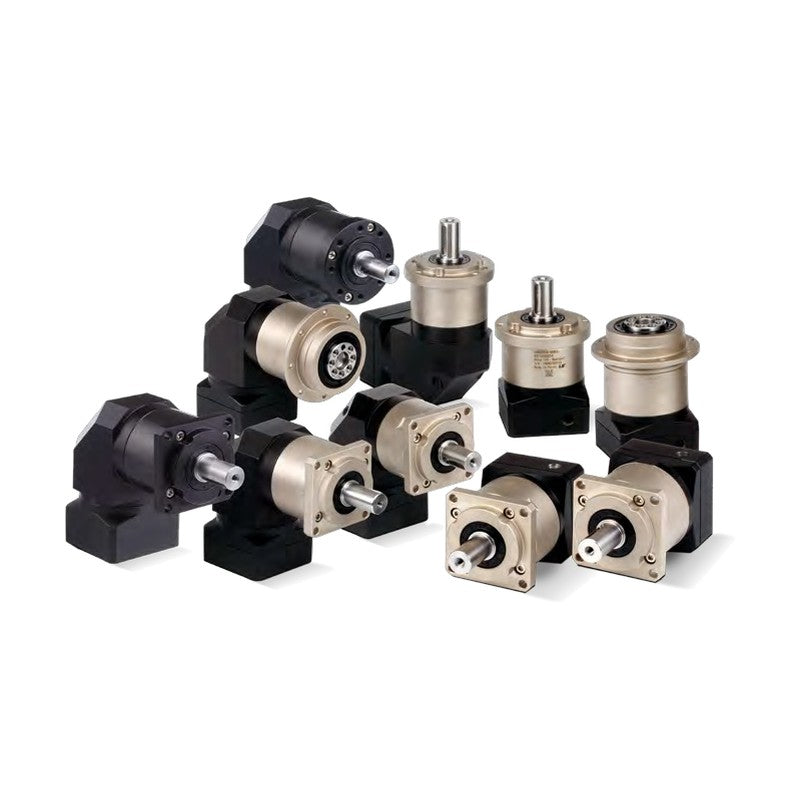

LS Electric HAW Right-Angle Planetary Gearbox (2-stage, 140-220)

LS Electric HAW Right-Angle Planetary Gearbox (2-stage, 140-220)

LS Electric HAW precision planetary gearbox (premium line, helical gear, right-angle, high-load square flange, keyed or smooth output shaft) in frames 140-220; full order code HAW<frame><stage>-<ratio><key><backlash>, motor adapter ordered separately.

Key features

  • Premium line helical-gear planetary reducer, right-angle housing
  • Spiral bevel gear right-angle stage saves installation space
  • Backlash classes: S standard / P precision / A high precision
  • Clamp-type input with motor adapter for LS, HIGEN, Mitsubishi, Panasonic and Yaskawa servo motors
  • Lifetime grease lubrication (maintenance free), IP65
  • Tapered roller output bearings for high radial and axial loads

Specifications

Series HAW (Premium line)
Gear type Helical planetary
Housing Right-Angle
Output High-Load Square Flange
Frame sizes 140, 180, 220
Ratios 25:1 to 200:1
Efficiency (1-stage / 2-stage) >= 97% / >= 94%
Rated input speed 5,000 to 2,000 rpm
Service life 20,000 h (10,000 h continuous)
Lubrication Grease (VIGO Grease RE #0)
Protection IP65
Operating temperature -10 to +90 C
Noise <= 60 to 74 dB
Source LS Electric Precision Planetary Gearbox catalog (2025.02), p. 6-7, 67, 72-75
HAW1402B-025KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-025NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-025KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-025NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-025KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-025NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-030KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-030NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-030KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-030NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-030KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-030NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-035KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-035NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-035KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-035NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-035KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-035NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-040KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-040NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-040KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-040NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-040KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-040NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-045KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-045NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-045KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-045NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-045KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-045NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-050KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-050NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-050KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-050NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-050KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-050NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-060KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-060NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-060KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-060NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-060KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-060NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-070KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-070NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-070KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-070NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-070KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-070NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-080KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-080NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-080KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-080NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-080KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-080NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-090KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-090NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-090KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-090NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-090KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-090NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-100KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-100NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-100KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-100NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-100KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-100NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-120KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-120NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-120KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-120NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-120KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-120NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-140KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-140NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-140KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-140NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-140KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-140NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-180KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-180NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-180KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-180NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-180KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-180NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-200KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-200NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-200KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-200NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-200KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-200NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-025KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-025NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-025KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-025NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-025KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-025NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-030KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-030NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-030KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-030NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-030KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-030NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-035KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-035NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-035KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-035NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-035KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-035NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-040KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-040NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-040KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-040NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-040KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-040NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-045KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-045NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-045KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-045NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-045KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-045NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-050KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-050NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-050KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-050NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-050KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-050NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-060KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-060NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-060KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-060NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-060KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-060NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-070KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-070NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-070KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-070NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-070KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-070NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-080KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-080NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-080KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-080NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-080KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-080NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-090KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-090NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-090KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-090NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-090KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-090NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-100KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-100NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-100KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-100NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-100KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-100NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-120KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-120NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-120KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-120NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-120KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-120NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-140KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-140NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-140KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-140NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-140KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-140NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-180KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-180NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-180KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-180NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-180KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-180NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-200KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-200NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-200KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-200NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-200KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-200NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-025KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-025NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-025KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-025NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-025KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-025NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-030KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-030NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-030KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-030NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-030KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-030NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-035KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-035NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-035KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-035NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-035KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-035NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-040KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-040NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-040KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-040NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-040KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-040NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-045KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-045NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-045KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-045NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-045KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-045NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-050KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-050NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-050KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-050NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-050KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-050NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-060KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-060NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-060KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-060NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-060KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-060NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-070KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-070NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-070KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-070NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-070KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-070NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-080KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-080NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-080KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-080NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-080KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-080NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-090KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-090NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-090KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-090NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-090KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-090NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-100KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-100NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-100KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-100NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-100KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-100NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-120KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-120NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-120KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-120NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-120KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-120NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-140KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-140NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-140KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-140NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-140KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-140NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-180KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-180NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-180KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-180NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-180KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-180NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-200KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-200NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-200KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-200NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-200KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-200NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-025KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-025NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-025KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-025NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-025KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-025NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-030KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-030NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-030KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-030NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-030KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-030NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-035KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-035NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-035KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-035NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-035KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-035NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-040KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-040NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-040KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-040NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-040KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-040NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-045KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-045NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-045KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-045NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-045KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-045NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-050KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-050NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-050KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-050NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-050KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-050NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-060KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-060NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-060KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-060NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-060KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-060NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-070KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-070NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-070KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-070NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-070KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-070NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-080KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-080NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-080KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-080NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-080KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-080NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-090KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-090NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-090KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-090NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-090KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-090NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-100KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-100NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-100KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-100NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-100KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-100NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-120KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-120NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-120KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-120NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-120KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-120NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-140KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-140NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-140KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-140NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-140KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-140NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-180KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-180NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-180KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-180NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-180KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-180NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-200KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-200NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-200KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-200NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-200KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-200NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-025KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-025NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-025KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-025NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-025KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-025NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-030KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-030NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-030KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-030NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-030KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-030NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-035KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-035NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-035KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-035NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-035KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-035NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-040KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-040NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-040KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-040NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-040KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-040NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-045KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-045NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-045KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-045NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-045KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-045NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-050KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-050NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-050KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-050NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-050KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-050NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-060KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-060NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-060KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-060NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-060KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-060NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-070KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-070NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-070KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-070NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-070KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-070NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-080KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-080NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-080KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-080NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-080KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-080NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-090KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-090NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-090KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-090NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-090KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-090NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-100KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-100NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-100KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-100NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-100KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-100NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-120KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-120NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-120KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-120NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-120KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-120NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-140KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-140NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-140KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-140NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-140KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-140NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-180KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-180NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-180KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-180NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-180KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-180NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-200KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-200NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-200KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-200NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-200KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-200NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-025KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-025NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-025KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-025NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-025KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-025NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-030KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-030NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-030KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-030NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-030KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-030NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-035KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-035NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-035KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-035NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-035KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-035NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-040KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-040NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-040KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-040NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-040KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-040NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-045KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-045NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-045KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-045NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-045KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-045NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-050KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-050NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-050KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-050NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-050KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-050NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-060KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-060NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-060KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-060NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-060KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-060NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-070KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-070NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-070KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-070NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-070KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-070NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-080KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-080NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-080KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-080NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-080KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-080NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-090KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-090NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-090KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-090NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-090KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-090NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-100KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-100NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-100KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-100NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-100KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-100NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-120KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-120NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-120KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-120NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-120KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-120NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-140KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-140NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-140KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-140NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-140KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-140NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-180KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-180NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-180KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-180NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-180KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-180NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-200KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-200NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-200KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-200NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-200KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-200NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAW1802B Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAW2202B Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAW1402A Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAW1802A Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAW2202A Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
Planetary GearboxesLS Electric
546 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric HAW Right-Angle Planetary Gearbox (2-stage, 140-220)

Brand LS Electric·Planetary Gearboxes

Available part numbers (546)

HAW1402B-025KS, HAW1402B-025NS, HAW1402B-025KP, HAW1402B-025NP, HAW1402B-025KA, HAW1402B-025NA, HAW1402B-030KS, HAW1402B-030NS, HAW1402B-030KP, HAW1402B-030NP + 536 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HAW1402B-025KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-025NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-025KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-025NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-025KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-025NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-030KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-030NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-030KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-030NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-030KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-030NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-035KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-035NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-035KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-035NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-035KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-035NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-040KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-040NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-040KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-040NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-040KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-040NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-045KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-045NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-045KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-045NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-045KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-045NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-050KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-050NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-050KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-050NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-050KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-050NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-060KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-060NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-060KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-060NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-060KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-060NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-070KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-070NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-070KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-070NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-070KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-070NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-080KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-080NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-080KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-080NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-080KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-080NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-090KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-090NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-090KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-090NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-090KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-090NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-100KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-100NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-100KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-100NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-100KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-100NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-120KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-120NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-120KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-120NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-120KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-120NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-140KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-140NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-140KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-140NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-140KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-140NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-180KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-180NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-180KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-180NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-180KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-180NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402B-200KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402B-200NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402B-200KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402B-200NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402B-200KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402B-200NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-025KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-025NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-025KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-025NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-025KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-025NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-030KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-030NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-030KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-030NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-030KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-030NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-035KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-035NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-035KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-035NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-035KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-035NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-040KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-040NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-040KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-040NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-040KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-040NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-045KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-045NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-045KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-045NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-045KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-045NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-050KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-050NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-050KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-050NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-050KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-050NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-060KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-060NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-060KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-060NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-060KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-060NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-070KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-070NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-070KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-070NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-070KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-070NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-080KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-080NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-080KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-080NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-080KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-080NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-090KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-090NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-090KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-090NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-090KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-090NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-100KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-100NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-100KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-100NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-100KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-100NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-120KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-120NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-120KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-120NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-120KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-120NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-140KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-140NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-140KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-140NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-140KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-140NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-180KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-180NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-180KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-180NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-180KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-180NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402A-200KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1402A-200NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1402A-200KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1402A-200NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1402A-200KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1402A-200NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-025KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-025NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-025KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-025NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-025KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-025NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-030KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-030NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-030KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-030NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-030KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-030NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-035KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-035NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-035KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-035NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-035KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-035NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-040KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-040NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-040KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-040NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-040KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-040NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-045KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-045NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-045KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-045NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-045KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-045NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-050KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-050NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-050KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-050NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-050KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-050NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-060KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-060NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-060KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-060NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-060KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-060NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-070KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-070NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-070KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-070NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-070KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-070NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-080KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-080NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-080KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-080NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-080KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-080NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-090KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-090NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-090KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-090NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-090KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-090NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-100KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-100NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-100KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-100NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-100KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-100NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-120KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-120NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-120KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-120NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-120KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-120NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-140KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-140NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-140KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-140NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-140KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-140NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-180KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-180NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-180KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-180NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-180KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-180NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802B-200KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802B-200NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802B-200KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802B-200NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802B-200KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802B-200NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-025KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-025NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-025KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-025NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-025KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-025NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-030KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-030NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-030KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-030NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-030KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-030NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-035KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-035NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-035KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-035NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-035KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-035NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-040KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-040NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-040KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-040NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-040KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-040NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-045KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-045NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-045KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-045NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-045KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-045NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-050KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-050NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-050KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-050NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-050KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-050NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-060KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-060NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-060KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-060NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-060KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-060NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-070KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-070NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-070KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-070NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-070KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-070NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-080KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-080NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-080KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-080NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-080KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-080NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-090KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-090NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-090KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-090NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-090KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-090NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-100KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-100NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-100KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-100NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-100KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-100NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-120KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-120NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-120KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-120NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-120KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-120NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-140KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-140NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-140KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-140NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-140KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-140NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-180KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-180NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-180KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-180NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-180KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-180NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1802A-200KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW1802A-200NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW1802A-200KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW1802A-200NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW1802A-200KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW1802A-200NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-025KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-025NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-025KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-025NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-025KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-025NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-030KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-030NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-030KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-030NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-030KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-030NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-035KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-035NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-035KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-035NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-035KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-035NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-040KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-040NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-040KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-040NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-040KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-040NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-045KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-045NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-045KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-045NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-045KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-045NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-050KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-050NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-050KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-050NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-050KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-050NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-060KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-060NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-060KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-060NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-060KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-060NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-070KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-070NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-070KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-070NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-070KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-070NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-080KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-080NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-080KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-080NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-080KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-080NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-090KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-090NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-090KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-090NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-090KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-090NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-100KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-100NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-100KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-100NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-100KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-100NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-120KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-120NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-120KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-120NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-120KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-120NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-140KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-140NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-140KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-140NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-140KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-140NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-180KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-180NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-180KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-180NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-180KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-180NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202B-200KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202B-200NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202B-200KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202B-200NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202B-200KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202B-200NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-025KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-025NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-025KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-025NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-025KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-025NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-030KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-030NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-030KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-030NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-030KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-030NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-035KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-035NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-035KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-035NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-035KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-035NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-040KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-040NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-040KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-040NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-040KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-040NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-045KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-045NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-045KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-045NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-045KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-045NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-050KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-050NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-050KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-050NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-050KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-050NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-060KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-060NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-060KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-060NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-060KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-060NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-070KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-070NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-070KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-070NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-070KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-070NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-080KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-080NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-080KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-080NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-080KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-080NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-090KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-090NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-090KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-090NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-090KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-090NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-100KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-100NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-100KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-100NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-100KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-100NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-120KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-120NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-120KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-120NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-120KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-120NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-140KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-140NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-140KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-140NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-140KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-140NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-180KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-180NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-180KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-180NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-180KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-180NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW2202A-200KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAW2202A-200NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAW2202A-200KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAW2202A-200NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAW2202A-200KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAW2202A-200NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAW1402BFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAW1802BFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAW2202BFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAW1402AFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAW1802AFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAW2202AFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
