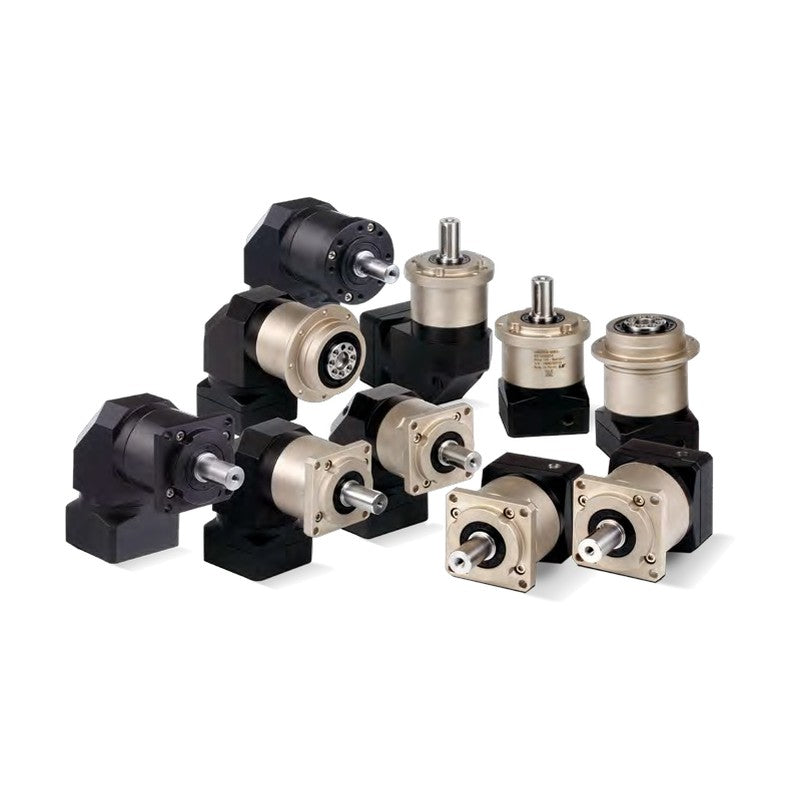

LS Electric HSW Inline Planetary Gearbox (2-stage, 060-100)

LS Electric HSW Inline Planetary Gearbox (2-stage, 060-100)

LS Electric HSW precision planetary gearbox (premium line, helical gear, inline, high-load square flange, keyed or smooth output shaft) in frames 060-100; full order code HSW<frame><stage>-<ratio><key><backlash>, motor adapter ordered separately.

Key features

  • Premium line helical-gear planetary reducer, inline housing
  • Coaxial input/output for compact inline mounting
  • Backlash classes: S standard / P precision / A high precision
  • Clamp-type input with motor adapter for LS, HIGEN, Mitsubishi, Panasonic and Yaskawa servo motors
  • Lifetime grease lubrication (maintenance free), IP65
  • Tapered roller output bearings for high radial and axial loads

Specifications

Series HSW (Premium line)
Gear type Helical planetary
Housing Inline
Output High-Load Square Flange
Frame sizes 060, 075, 100
Ratios 15:1 to 100:1
Efficiency (1-stage / 2-stage) >= 97% / >= 94%
Rated input speed 5,000 to 2,000 rpm
Service life 20,000 h (10,000 h continuous)
Lubrication Grease (VIGO Grease RE #0)
Protection IP65
Operating temperature -10 to +90 C
Noise <= 54 to 66 dB
Source LS Electric Precision Planetary Gearbox catalog (2025.02), p. 6-7, 67, 68-71
HSW0602B-015KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-015NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-015KP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-015NP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-015KA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-015NA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-015KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-015NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-015KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-015NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-015KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-015NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602B-020KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-020NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-020KP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-020NP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-020KA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-020NA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-020KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-020NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-020KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-020NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-020KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-020NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602B-025KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-025NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-025KP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-025NP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-025KA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-025NA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-025KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-025NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-025KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-025NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-025KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-025NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602B-030KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-030NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-030KP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-030NP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-030KA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-030NA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-030KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-030NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-030KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-030NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-030KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-030NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602B-035KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-035NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-035KP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-035NP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-035KA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-035NA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-035KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-035NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-035KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-035NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-035KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-035NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602B-040KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-040NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-040KP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-040NP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-040KA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-040NA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-040KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-040NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-040KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-040NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-040KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-040NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602B-045KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-045NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-045KP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-045NP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-045KA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-045NA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-045KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-045NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-045KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-045NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-045KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-045NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602B-050KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-050NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-050KP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-050NP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-050KA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-050NA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-050KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-050NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-050KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-050NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-050KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-050NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602B-060KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-060NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-060KP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-060NP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-060KA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-060NA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-060KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-060NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-060KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-060NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-060KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-060NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602B-070KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-070NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-070KP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-070NP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-070KA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-070NA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-070KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-070NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-070KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-070NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-070KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-070NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602B-080KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-080NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-080KP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-080NP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-080KA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-080NA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-080KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-080NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-080KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-080NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-080KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-080NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602B-090KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-090NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-090KP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-090NP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-090KA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-090NA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-090KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-090NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-090KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-090NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-090KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-090NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602B-100KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-100NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-100KP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-100NP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-100KA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-100NA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-100KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-100NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-100KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-100NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-100KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-100NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-015KS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-015NS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-015KP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-015NP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-015KA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-015NA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-015KS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-015NS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-015KP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-015NP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-015KA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-015NA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-020KS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-020NS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-020KP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-020NP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-020KA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-020NA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-020KS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-020NS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-020KP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-020NP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-020KA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-020NA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-025KS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-025NS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-025KP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-025NP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-025KA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-025NA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-025KS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-025NS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-025KP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-025NP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-025KA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-025NA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-030KS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-030NS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-030KP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-030NP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-030KA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-030NA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-030KS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-030NS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-030KP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-030NP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-030KA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-030NA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-035KS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-035NS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-035KP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-035NP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-035KA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-035NA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-035KS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-035NS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-035KP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-035NP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-035KA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-035NA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-040KS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-040NS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-040KP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-040NP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-040KA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-040NA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-040KS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-040NS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-040KP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-040NP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-040KA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-040NA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-045KS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-045NS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-045KP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-045NP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-045KA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-045NA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-045KS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-045NS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-045KP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-045NP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-045KA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-045NA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-050KS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-050NS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-050KP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-050NP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-050KA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-050NA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-050KS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-050NS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-050KP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-050NP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-050KA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-050NA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-060KS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-060NS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-060KP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-060NP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-060KA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-060NA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-060KS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-060NS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-060KP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-060NP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-060KA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-060NA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-070KS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-070NS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-070KP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-070NP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-070KA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-070NA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-070KS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-070NS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-070KP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-070NP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-070KA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-070NA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-080KS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-080NS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-080KP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-080NP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-080KA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-080NA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-080KS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-080NS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-080KP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-080NP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-080KA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-080NA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-090KS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-090NS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-090KP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-090NP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-090KA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-090NA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-090KS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-090NS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-090KP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-090NP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-090KA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-090NA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-100KS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-100NS Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-100KP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-100NP Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-100KA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-100NA Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-100KS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-100NS Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-100KP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-100NP Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-100KA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-100NA Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-015KS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-015NS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-015KP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-015NP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-015KA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-015NA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-015KS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-015NS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-015KP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-015NP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-015KA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-015NA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-020KS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-020NS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-020KP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-020NP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-020KA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-020NA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-020KS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-020NS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-020KP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-020NP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-020KA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-020NA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-025KS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-025NS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-025KP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-025NP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-025KA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-025NA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-025KS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-025NS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-025KP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-025NP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-025KA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-025NA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-030KS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-030NS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-030KP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-030NP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-030KA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-030NA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-030KS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-030NS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-030KP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-030NP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-030KA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-030NA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-035KS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-035NS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-035KP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-035NP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-035KA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-035NA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-035KS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-035NS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-035KP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-035NP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-035KA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-035NA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-040KS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-040NS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-040KP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-040NP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-040KA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-040NA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-040KS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-040NS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-040KP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-040NP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-040KA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-040NA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-045KS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-045NS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-045KP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-045NP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-045KA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-045NA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-045KS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-045NS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-045KP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-045NP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-045KA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-045NA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-050KS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-050NS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-050KP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-050NP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-050KA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-050NA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-050KS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-050NS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-050KP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-050NP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-050KA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-050NA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-060KS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-060NS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-060KP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-060NP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-060KA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-060NA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-060KS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-060NS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-060KP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-060NP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-060KA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-060NA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-070KS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-070NS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-070KP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-070NP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-070KA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-070NA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-070KS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-070NS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-070KP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-070NP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-070KA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-070NA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-080KS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-080NS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-080KP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-080NP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-080KA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-080NA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-080KS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-080NS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-080KP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-080NP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-080KA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-080NA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-090KS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-090NS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-090KP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-090NP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-090KA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-090NA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-090KS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-090NS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-090KP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-090NP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-090KA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-090NA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-100KS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-100NS Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-100KP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-100NP Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-100KA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-100NA Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-100KS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-100NS Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-100KP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-100NP Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-100KA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-100NA Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602B Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSW0752B Frame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSW1002B Frame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSW0602A Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSW0752A Frame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSW1002A Frame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
Planetary GearboxesLS Electric
474 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric HSW Inline Planetary Gearbox (2-stage, 060-100)

Brand LS Electric·Planetary Gearboxes

Available part numbers (474)

HSW0602B-015KS, HSW0602B-015NS, HSW0602B-015KP, HSW0602B-015NP, HSW0602B-015KA, HSW0602B-015NA, HSW0602A-015KS, HSW0602A-015NS, HSW0602A-015KP, HSW0602A-015NP + 464 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HSW0602B-015KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-015NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-015KPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-015NPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-015KAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-015NAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-015KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-015NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-015KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-015NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-015KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-015NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602B-020KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-020NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-020KPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-020NPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-020KAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-020NAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-020KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-020NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-020KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-020NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-020KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-020NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602B-025KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-025NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-025KPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-025NPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-025KAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-025NAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-025KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-025NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-025KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-025NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-025KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-025NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602B-030KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-030NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-030KPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-030NPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-030KAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-030NAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-030KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-030NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-030KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-030NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-030KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-030NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602B-035KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-035NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-035KPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-035NPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-035KAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-035NAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-035KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-035NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-035KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-035NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-035KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-035NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602B-040KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-040NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-040KPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-040NPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-040KAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-040NAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-040KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-040NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-040KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-040NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-040KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-040NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602B-045KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-045NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-045KPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-045NPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-045KAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-045NAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-045KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-045NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-045KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-045NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-045KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-045NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602B-050KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-050NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-050KPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-050NPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-050KAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-050NAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-050KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-050NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-050KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-050NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-050KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-050NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602B-060KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-060NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-060KPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-060NPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-060KAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-060NAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-060KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-060NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-060KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-060NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-060KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-060NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602B-070KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-070NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-070KPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-070NPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-070KAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-070NAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-070KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-070NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-070KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-070NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-070KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-070NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602B-080KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-080NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-080KPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-080NPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-080KAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-080NAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-080KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-080NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-080KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-080NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-080KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-080NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602B-090KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-090NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-090KPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-090NPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-090KAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-090NAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-090KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-090NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-090KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-090NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-090KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-090NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602B-100KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602B-100NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602B-100KPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602B-100NPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602B-100KAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602B-100NAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602A-100KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0602A-100NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0602A-100KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0602A-100NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0602A-100KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0602A-100NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-015KSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-015NSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-015KPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-015NPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-015KAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-015NAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-015KSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-015NSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-015KPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-015NPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-015KAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-015NAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-020KSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-020NSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-020KPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-020NPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-020KAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-020NAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-020KSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-020NSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-020KPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-020NPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-020KAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-020NAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-025KSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-025NSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-025KPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-025NPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-025KAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-025NAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-025KSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-025NSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-025KPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-025NPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-025KAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-025NAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-030KSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-030NSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-030KPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-030NPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-030KAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-030NAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-030KSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-030NSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-030KPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-030NPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-030KAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-030NAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-035KSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-035NSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-035KPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-035NPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-035KAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-035NAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-035KSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-035NSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-035KPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-035NPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-035KAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-035NAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-040KSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-040NSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-040KPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-040NPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-040KAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-040NAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-040KSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-040NSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-040KPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-040NPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-040KAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-040NAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-045KSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-045NSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-045KPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-045NPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-045KAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-045NAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-045KSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-045NSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-045KPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-045NPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-045KAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-045NAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-050KSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-050NSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-050KPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-050NPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-050KAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-050NAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-050KSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-050NSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-050KPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-050NPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-050KAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-050NAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-060KSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-060NSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-060KPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-060NPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-060KAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-060NAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-060KSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-060NSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-060KPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-060NPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-060KAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-060NAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-070KSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-070NSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-070KPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-070NPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-070KAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-070NAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-070KSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-070NSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-070KPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-070NPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-070KAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-070NAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-080KSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-080NSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-080KPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-080NPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-080KAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-080NAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-080KSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-080NSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-080KPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-080NPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-080KAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-080NAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-090KSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-090NSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-090KPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-090NPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-090KAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-090NAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-090KSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-090NSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-090KPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-090NPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-090KAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-090NAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752B-100KSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752B-100NSFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752B-100KPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752B-100NPFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752B-100KAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752B-100NAFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0752A-100KSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW0752A-100NSFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW0752A-100KPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW0752A-100NPFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW0752A-100KAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW0752A-100NAFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-015KSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-015NSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-015KPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-015NPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-015KAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-015NAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-015KSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-015NSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-015KPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-015NPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-015KAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-015NAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-020KSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-020NSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-020KPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-020NPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-020KAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-020NAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-020KSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-020NSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-020KPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-020NPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-020KAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-020NAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-025KSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-025NSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-025KPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-025NPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-025KAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-025NAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-025KSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-025NSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-025KPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-025NPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-025KAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-025NAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-030KSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-030NSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-030KPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-030NPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-030KAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-030NAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-030KSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-030NSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-030KPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-030NPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-030KAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-030NAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-035KSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-035NSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-035KPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-035NPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-035KAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-035NAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-035KSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-035NSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-035KPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-035NPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-035KAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-035NAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-040KSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-040NSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-040KPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-040NPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-040KAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-040NAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-040KSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-040NSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-040KPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-040NPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-040KAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-040NAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-045KSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-045NSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-045KPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-045NPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-045KAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-045NAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-045KSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-045NSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-045KPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-045NPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-045KAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-045NAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-050KSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-050NSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-050KPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-050NPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-050KAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-050NAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-050KSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-050NSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-050KPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-050NPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-050KAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-050NAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-060KSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-060NSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-060KPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-060NPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-060KAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-060NAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-060KSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-060NSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-060KPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-060NPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-060KAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-060NAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-070KSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-070NSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-070KPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-070NPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-070KAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-070NAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-070KSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-070NSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-070KPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-070NPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-070KAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-070NAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-080KSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-080NSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-080KPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-080NPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-080KAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-080NAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-080KSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-080NSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-080KPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-080NPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-080KAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-080NAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-090KSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-090NSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-090KPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-090NPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-090KAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-090NAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-090KSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-090NSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-090KPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-090NPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-090KAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-090NAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002B-100KSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002B-100NSFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002B-100KPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002B-100NPFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002B-100KAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002B-100NAFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1002A-100KSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1002A-100NSFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1002A-100KPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1002A-100NPFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1002A-100KAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1002A-100NAFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW0602BFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSW0752BFrame: 075 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSW1002BFrame: 100 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSW0602AFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSW0752AFrame: 075 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSW1002AFrame: 100 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
