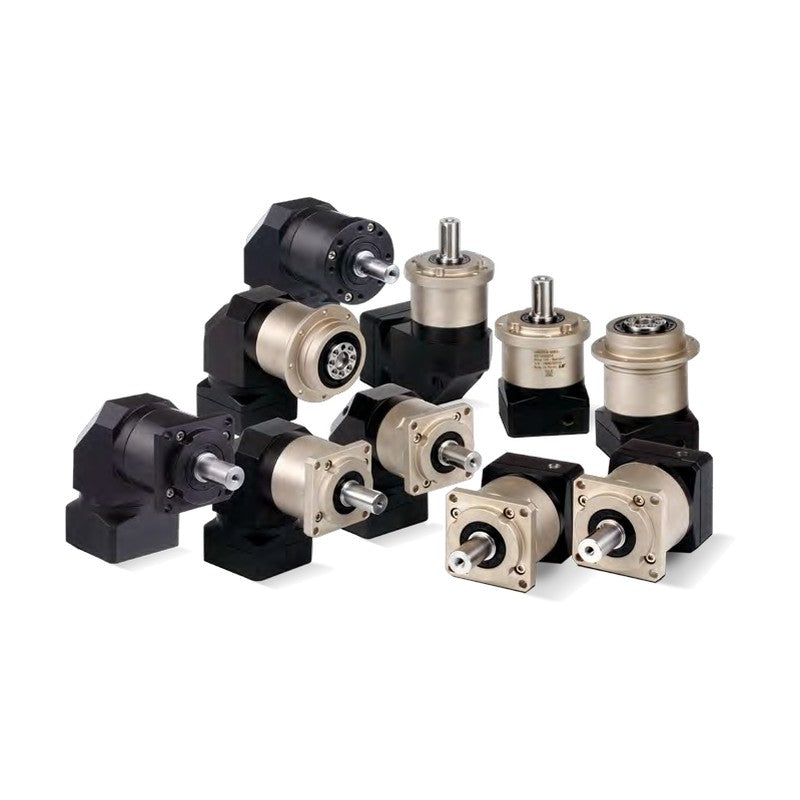

LS Electric HSW Inline Planetary Gearbox (2-stage, 140-220)

LS Electric HSW Inline Planetary Gearbox (2-stage, 140-220)

LS Electric HSW precision planetary gearbox (premium line, helical gear, inline, high-load square flange, keyed or smooth output shaft) in frames 140-220; full order code HSW<frame><stage>-<ratio><key><backlash>, motor adapter ordered separately.

Key features

  • Premium line helical-gear planetary reducer, inline housing
  • Coaxial input/output for compact inline mounting
  • Backlash classes: S standard / P precision / A high precision
  • Clamp-type input with motor adapter for LS, HIGEN, Mitsubishi, Panasonic and Yaskawa servo motors
  • Lifetime grease lubrication (maintenance free), IP65
  • Tapered roller output bearings for high radial and axial loads

Specifications

Series HSW (Premium line)
Gear type Helical planetary
Housing Inline
Output High-Load Square Flange
Frame sizes 140, 180, 220
Ratios 15:1 to 100:1
Efficiency (1-stage / 2-stage) >= 97% / >= 94%
Rated input speed 5,000 to 2,000 rpm
Service life 20,000 h (10,000 h continuous)
Lubrication Grease (VIGO Grease RE #0)
Protection IP65
Operating temperature -10 to +90 C
Noise <= 54 to 66 dB
Source LS Electric Precision Planetary Gearbox catalog (2025.02), p. 6-7, 67, 68-71
HSW1402B-015KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-015NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-015KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-015NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-015KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-015NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-015KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-015NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-015KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-015NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-015KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-015NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402B-020KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-020NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-020KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-020NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-020KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-020NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-020KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-020NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-020KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-020NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-020KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-020NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402B-025KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-025NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-025KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-025NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-025KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-025NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-025KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-025NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-025KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-025NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-025KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-025NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402B-030KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-030NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-030KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-030NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-030KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-030NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-030KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-030NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-030KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-030NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-030KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-030NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402B-035KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-035NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-035KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-035NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-035KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-035NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-035KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-035NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-035KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-035NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-035KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-035NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402B-040KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-040NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-040KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-040NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-040KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-040NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-040KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-040NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-040KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-040NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-040KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-040NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402B-045KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-045NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-045KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-045NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-045KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-045NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-045KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-045NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-045KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-045NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-045KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-045NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402B-050KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-050NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-050KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-050NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-050KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-050NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-050KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-050NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-050KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-050NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-050KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-050NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402B-060KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-060NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-060KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-060NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-060KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-060NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-060KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-060NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-060KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-060NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-060KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-060NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402B-070KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-070NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-070KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-070NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-070KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-070NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-070KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-070NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-070KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-070NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-070KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-070NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402B-080KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-080NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-080KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-080NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-080KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-080NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-080KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-080NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-080KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-080NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-080KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-080NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402B-090KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-090NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-090KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-090NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-090KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-090NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-090KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-090NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-090KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-090NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-090KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-090NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402B-100KS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-100NS Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-100KP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-100NP Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-100KA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-100NA Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-100KS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-100NS Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-100KP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-100NP Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-100KA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-100NA Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-015KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-015NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-015KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-015NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-015KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-015NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-015KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-015NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-015KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-015NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-015KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-015NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-020KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-020NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-020KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-020NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-020KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-020NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-020KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-020NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-020KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-020NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-020KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-020NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-025KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-025NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-025KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-025NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-025KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-025NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-025KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-025NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-025KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-025NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-025KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-025NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-030KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-030NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-030KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-030NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-030KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-030NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-030KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-030NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-030KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-030NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-030KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-030NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-035KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-035NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-035KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-035NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-035KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-035NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-035KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-035NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-035KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-035NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-035KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-035NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-040KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-040NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-040KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-040NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-040KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-040NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-040KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-040NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-040KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-040NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-040KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-040NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-045KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-045NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-045KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-045NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-045KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-045NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-045KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-045NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-045KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-045NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-045KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-045NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-050KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-050NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-050KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-050NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-050KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-050NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-050KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-050NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-050KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-050NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-050KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-050NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-060KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-060NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-060KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-060NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-060KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-060NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-060KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-060NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-060KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-060NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-060KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-060NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-070KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-070NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-070KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-070NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-070KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-070NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-070KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-070NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-070KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-070NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-070KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-070NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-080KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-080NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-080KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-080NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-080KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-080NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-080KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-080NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-080KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-080NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-080KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-080NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-090KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-090NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-090KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-090NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-090KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-090NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-090KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-090NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-090KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-090NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-090KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-090NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-100KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-100NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-100KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-100NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-100KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-100NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-100KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-100NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-100KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-100NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-100KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-100NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-015KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-015NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-015KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-015NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-015KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-015NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-015KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-015NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-015KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-015NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-015KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-015NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-020KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-020NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-020KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-020NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-020KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-020NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-020KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-020NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-020KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-020NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-020KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-020NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-025KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-025NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-025KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-025NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-025KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-025NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-025KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-025NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-025KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-025NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-025KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-025NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-030KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-030NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-030KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-030NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-030KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-030NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-030KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-030NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-030KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-030NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-030KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-030NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-035KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-035NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-035KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-035NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-035KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-035NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-035KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-035NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-035KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-035NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-035KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-035NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-040KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-040NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-040KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-040NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-040KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-040NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-040KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-040NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-040KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-040NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-040KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-040NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-045KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-045NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-045KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-045NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-045KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-045NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-045KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-045NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-045KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-045NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-045KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-045NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-050KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-050NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-050KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-050NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-050KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-050NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-050KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-050NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-050KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-050NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-050KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-050NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-060KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-060NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-060KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-060NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-060KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-060NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-060KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-060NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-060KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-060NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-060KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-060NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-070KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-070NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-070KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-070NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-070KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-070NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-070KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-070NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-070KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-070NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-070KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-070NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-080KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-080NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-080KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-080NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-080KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-080NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-080KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-080NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-080KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-080NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-080KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-080NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-090KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-090NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-090KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-090NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-090KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-090NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-090KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-090NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-090KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-090NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-090KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-090NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-100KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-100NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-100KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-100NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-100KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-100NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-100KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-100NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-100KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-100NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-100KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-100NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402B Frame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSW1802B Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSW2202B Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSW1402A Frame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSW1802A Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSW2202A Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
Planetary GearboxesLS Electric
474 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric HSW Inline Planetary Gearbox (2-stage, 140-220)

Brand LS Electric·Planetary Gearboxes

Available part numbers (474)

HSW1402B-015KS, HSW1402B-015NS, HSW1402B-015KP, HSW1402B-015NP, HSW1402B-015KA, HSW1402B-015NA, HSW1402A-015KS, HSW1402A-015NS, HSW1402A-015KP, HSW1402A-015NP + 464 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HSW1402B-015KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-015NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-015KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-015NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-015KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-015NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-015KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-015NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-015KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-015NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-015KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-015NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402B-020KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-020NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-020KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-020NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-020KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-020NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-020KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-020NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-020KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-020NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-020KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-020NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402B-025KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-025NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-025KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-025NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-025KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-025NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-025KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-025NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-025KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-025NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-025KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-025NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402B-030KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-030NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-030KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-030NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-030KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-030NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-030KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-030NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-030KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-030NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-030KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-030NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402B-035KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-035NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-035KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-035NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-035KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-035NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-035KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-035NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-035KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-035NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-035KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-035NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402B-040KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-040NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-040KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-040NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-040KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-040NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-040KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-040NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-040KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-040NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-040KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-040NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402B-045KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-045NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-045KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-045NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-045KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-045NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-045KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-045NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-045KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-045NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-045KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-045NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402B-050KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-050NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-050KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-050NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-050KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-050NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-050KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-050NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-050KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-050NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-050KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-050NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402B-060KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-060NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-060KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-060NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-060KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-060NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-060KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-060NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-060KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-060NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-060KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-060NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402B-070KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-070NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-070KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-070NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-070KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-070NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-070KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-070NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-070KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-070NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-070KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-070NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402B-080KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-080NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-080KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-080NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-080KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-080NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-080KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-080NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-080KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-080NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-080KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-080NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402B-090KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-090NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-090KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-090NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-090KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-090NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-090KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-090NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-090KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-090NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-090KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-090NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402B-100KSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402B-100NSFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402B-100KPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402B-100NPFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402B-100KAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402B-100NAFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402A-100KSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1402A-100NSFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1402A-100KPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1402A-100NPFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1402A-100KAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1402A-100NAFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-015KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-015NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-015KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-015NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-015KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-015NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-015KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-015NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-015KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-015NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-015KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-015NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-020KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-020NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-020KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-020NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-020KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-020NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-020KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-020NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-020KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-020NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-020KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-020NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-025KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-025NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-025KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-025NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-025KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-025NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-025KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-025NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-025KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-025NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-025KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-025NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-030KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-030NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-030KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-030NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-030KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-030NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-030KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-030NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-030KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-030NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-030KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-030NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-035KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-035NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-035KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-035NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-035KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-035NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-035KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-035NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-035KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-035NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-035KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-035NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-040KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-040NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-040KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-040NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-040KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-040NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-040KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-040NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-040KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-040NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-040KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-040NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-045KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-045NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-045KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-045NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-045KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-045NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-045KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-045NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-045KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-045NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-045KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-045NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-050KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-050NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-050KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-050NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-050KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-050NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-050KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-050NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-050KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-050NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-050KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-050NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-060KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-060NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-060KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-060NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-060KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-060NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-060KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-060NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-060KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-060NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-060KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-060NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-070KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-070NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-070KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-070NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-070KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-070NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-070KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-070NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-070KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-070NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-070KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-070NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-080KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-080NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-080KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-080NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-080KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-080NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-080KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-080NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-080KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-080NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-080KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-080NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-090KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-090NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-090KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-090NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-090KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-090NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-090KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-090NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-090KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-090NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-090KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-090NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802B-100KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802B-100NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802B-100KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802B-100NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802B-100KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802B-100NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1802A-100KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW1802A-100NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW1802A-100KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW1802A-100NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW1802A-100KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW1802A-100NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-015KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-015NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-015KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-015NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-015KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-015NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-015KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-015NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-015KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-015NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-015KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-015NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-020KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-020NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-020KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-020NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-020KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-020NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-020KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-020NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-020KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-020NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-020KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-020NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-025KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-025NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-025KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-025NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-025KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-025NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-025KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-025NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-025KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-025NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-025KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-025NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-030KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-030NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-030KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-030NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-030KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-030NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-030KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-030NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-030KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-030NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-030KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-030NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-035KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-035NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-035KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-035NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-035KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-035NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-035KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-035NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-035KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-035NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-035KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-035NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-040KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-040NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-040KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-040NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-040KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-040NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-040KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-040NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-040KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-040NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-040KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-040NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-045KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-045NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-045KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-045NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-045KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-045NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-045KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-045NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-045KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-045NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-045KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-045NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-050KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-050NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-050KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-050NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-050KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-050NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-050KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-050NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-050KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-050NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-050KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-050NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-060KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-060NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-060KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-060NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-060KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-060NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-060KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-060NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-060KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-060NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-060KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-060NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-070KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-070NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-070KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-070NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-070KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-070NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-070KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-070NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-070KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-070NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-070KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-070NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-080KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-080NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-080KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-080NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-080KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-080NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-080KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-080NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-080KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-080NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-080KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-080NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-090KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-090NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-090KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-090NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-090KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-090NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-090KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-090NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-090KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-090NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-090KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-090NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202B-100KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202B-100NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202B-100KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202B-100NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202B-100KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202B-100NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW2202A-100KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
HSW2202A-100NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
HSW2202A-100KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 7 arcmin)
HSW2202A-100NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 7 arcmin)
HSW2202A-100KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 5 arcmin)
HSW2202A-100NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 5 arcmin)
HSW1402BFrame: 140 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSW1802BFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSW2202BFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSW1402AFrame: 140 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSW1802AFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HSW2202AFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
