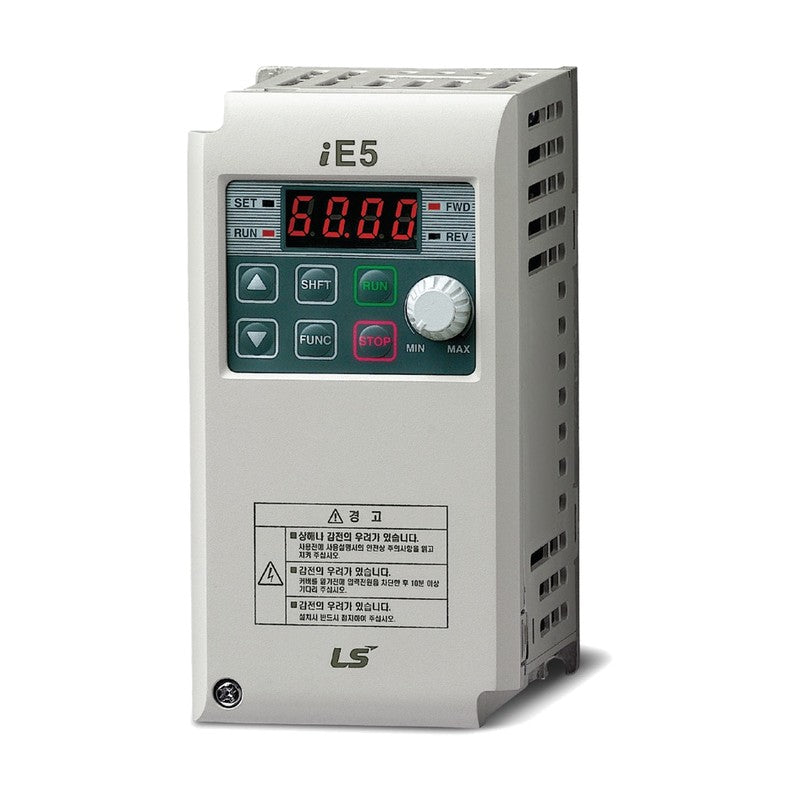

LS Electric iE5 Micro AC Drive 0.1-0.4 kW (Discontinued)

LS Electric iE5 Micro AC Drive 0.1-0.4 kW (Discontinued)

The LS Electric Starvert iE5 micro V/F AC drive (0.1-0.4 kW, 1-ph and 3-ph 200 V) for small machines is discontinued; these codes are offered as replacement spares.

Key features

  • Ultra-compact 68 x 128 mm footprint, natural cooling
  • V/F control with PI control, 0-200 Hz output
  • Built-in keypad with volume for frequency setting
  • 5 multi-function inputs selectable NPN/PNP; relay and analog outputs
  • "C" models include the RS-485 Modbus RTU communication option

Specifications

Series Starvert iE5
Status Discontinued (spares)
Control V/F
Overload capacity 150% for 1 min
Output frequency 0-200 Hz
Output voltage 3-ph 200-230 V
Multi-function inputs 5 (P1-P5), NPN/PNP
Cooling Natural
Enclosure IP20
Ambient temperature -10 to 40 C
Source LS Electric iE5 catalog (2019-06), p. 6-7
SV001iE5-1 Input: 1-ph 200-230 V | Motor: 0.1 kW (1/8 HP) | Rated current: 0.8 A | Comm option: None
SV001iE5-1C Input: 1-ph 200-230 V | Motor: 0.1 kW (1/8 HP) | Rated current: 0.8 A | Comm option: RS-485 (Modbus RTU)
SV001iE5-2 Input: 3-ph 200-230 V | Motor: 0.1 kW (1/8 HP) | Rated current: 0.8 A | Comm option: None
SV001iE5-2C Input: 3-ph 200-230 V | Motor: 0.1 kW (1/8 HP) | Rated current: 0.8 A | Comm option: RS-485 (Modbus RTU)
SV002iE5-1 Input: 1-ph 200-230 V | Motor: 0.2 kW (1/4 HP) | Rated current: 1.4 A | Comm option: None
SV002iE5-1C Input: 1-ph 200-230 V | Motor: 0.2 kW (1/4 HP) | Rated current: 1.4 A | Comm option: RS-485 (Modbus RTU)
SV002iE5-2 Input: 3-ph 200-230 V | Motor: 0.2 kW (1/4 HP) | Rated current: 1.6 A | Comm option: None
SV002iE5-2C Input: 3-ph 200-230 V | Motor: 0.2 kW (1/4 HP) | Rated current: 1.6 A | Comm option: RS-485 (Modbus RTU)
SV004iE5-1 Input: 1-ph 200-230 V | Motor: 0.4 kW (1/2 HP) | Rated current: 2.5 A | Comm option: None
SV004iE5-1C Input: 1-ph 200-230 V | Motor: 0.4 kW (1/2 HP) | Rated current: 2.5 A | Comm option: RS-485 (Modbus RTU)
SV004iE5-2 Input: 3-ph 200-230 V | Motor: 0.4 kW (1/2 HP) | Rated current: 3.0 A | Comm option: None
SV004iE5-2C Input: 3-ph 200-230 V | Motor: 0.4 kW (1/2 HP) | Rated current: 3.0 A | Comm option: RS-485 (Modbus RTU)
AC DrivesLS Electric
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric iE5 Micro AC Drive 0.1-0.4 kW (Discontinued)

Brand LS Electric·AC Drives

Available part numbers (12)

SV001iE5-1, SV001iE5-1C, SV001iE5-2, SV001iE5-2C, SV002iE5-1, SV002iE5-1C, SV002iE5-2, SV002iE5-2C, SV004iE5-1, SV004iE5-1C + 2 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
