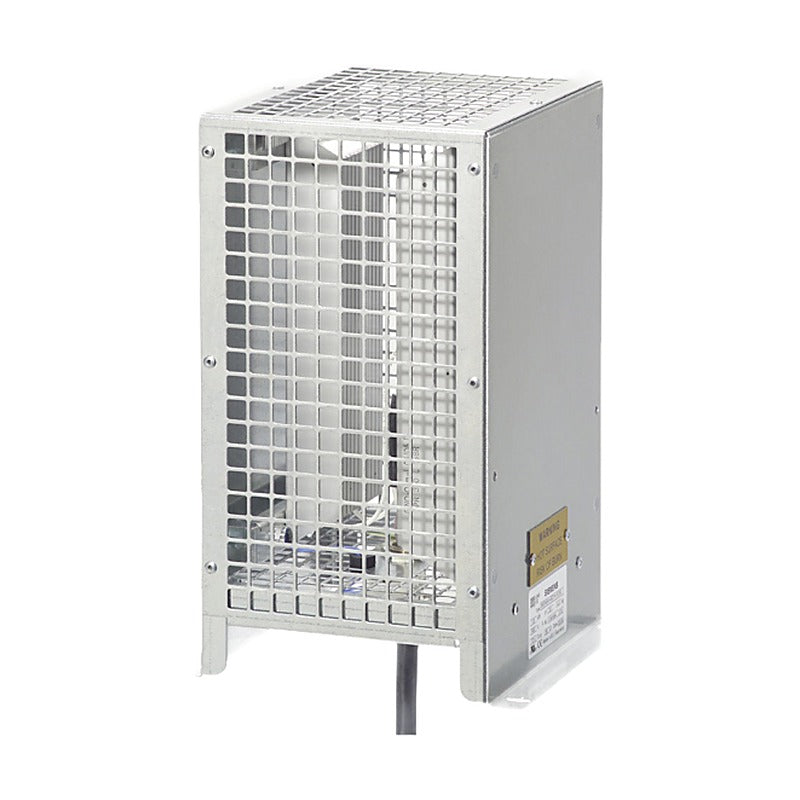

Siemens SINAMICS G120 Braking Resistors (PM240-2)

Siemens SINAMICS G120 Braking Resistors (PM240-2)

Braking resistors for PM240-2 Power Modules that dissipate excess DC link energy via the integrated braking chopper.

Key features

  • For PM240-2 Power Modules in all voltage ranges, FSA to FSG
  • Used with the braking chopper integrated in the Power Module
  • Every braking resistor has a UL-listed temperature switch
  • Partly supplied by Heine Resistor GmbH; "JJY:" prefix is part of the Siemens order code
  • For FSD-FSG the matching shield connection kit is recommended for EMC-compliant connection

Specifications

Brand Siemens
Product line SINAMICS G120 standard converters
Component Braking resistor
Module PM240-2
Catalog section DC link components
Thermostatic switch Integrated
Peak power duty cycle ta = 12 s, period t = 240 s
Source Siemens Catalog D 31.1 · 2024/10-2025, p. 231-232
JJY:023146720008 Line voltage: 200-240 V 1/3 AC | Rated power (kW): 0.55-0.75 | Frame size: FSA
JJY:023433720001 Line voltage: 200-240 V 3 AC | Rated power (kW): 5.5-7.5 | Frame size: FSC
JJY:023422620002 Line voltage: 200-240 V 3 AC | Rated power (kW): 11-18.5 | Frame size: FSD
JJY:023423320001 Line voltage: 200-240 V 3 AC | Rated power (kW): 22-30 | Frame size: FSE
JJY:023434020003 Line voltage: 200-240 V 3 AC | Rated power (kW): 37-55 | Frame size: FSF
6SL3000-1BE32-5AA0 Line voltage: 380-480 V 3 AC | Rated power (kW): 160-250 | Frame size: FSG
JJY:023424020002 Line voltage: 500-690 V 3 AC | Rated power (kW): 11-37 | Frame size: FSD
JJY:023434020002 Line voltage: 500-690 V 3 AC | Rated power (kW): 45-55 | Frame size: FSE
JJY:023464020002 Line voltage: 500-690 V 3 AC | Rated power (kW): 75-132 | Frame size: FSF
6SL3000-1BH32-5AA0 Line voltage: 500-690 V 3 AC | Rated power (kW): 160-250 | Frame size: FSG
Inverter Options & AccessoriesSiemens
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SINAMICS G120 Braking Resistors (PM240-2)

Brand Siemens·Inverter Options & Accessories

Available part numbers (10)

JJY:023146720008, JJY:023433720001, JJY:023422620002, JJY:023423320001, JJY:023434020003, 6SL3000-1BE32-5AA0, JJY:023424020002, JJY:023434020002, JJY:023464020002, 6SL3000-1BH32-5AA0
