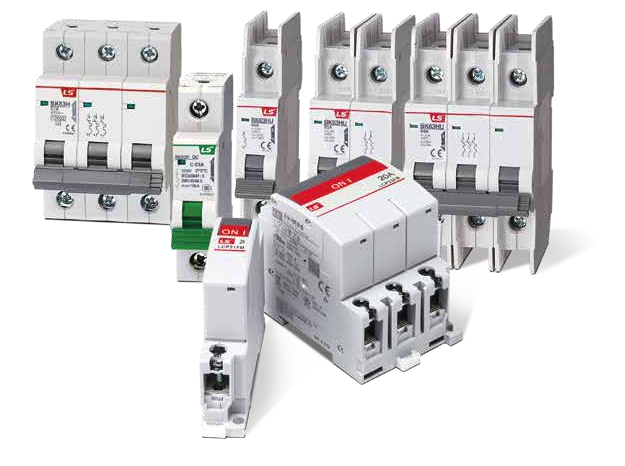

• LS Electric LCP-33FI Circuit Protector (3P, Instantaneous)
1 1

LS Electric LCP-33FI Circuit Protector (3P, Instantaneous)

LS Electric LCP-33FI Circuit Protector (3P, Instantaneous)

LS ELECTRIC LCP LCP-33FI family. | Application: Equipment circuit protection (SCR/semiconductors, telecom, elevators, medical, control panels). | Frame: 30AF | Type: Equipment Circuit Protector (CBE) | Standard: IEC60934, IEC60947-2 | Pole: 3P | Rated current: 2A~30A (8 steps) | Operating: Instantaneous | Voltage: AC 250V | Breaking: 1500A (IEC60947-2) / 2500A (IEC60934, CE/KC/CCC/UL) | Trip method: ODP (HM) | Endurance: 10,000 ops | Mounting: Surface (M4 screw) / 35mm DIN rail | Approval: CE, CB (IEC60947-2), UL (UL1077), CCC (GB17701), KC (IEC60934) | All codes end with -R (product class) — see RFQ table for specific MPN.

Specifications

Frame 30AF
Pole 3P
Operating characteristic Instantaneous
Voltage AC 250V
Breaking capacity 1500A (IEC60947-2) / 2500A (IEC60934, UL/CE/CCC/KC)
Trip method ODP (HM)
Mounting Surface or 35mm DIN rail
Endurance 10,000 ops
Approval CE, CB, UL1077, CCC GB17701, KC IEC60934
LCP33FI-2A-R LCP-33FI 2A 3P (base) | Frame: 30AF | Pole: 3P | Rated current (In): 2A | Operating characteristic: Instantaneous | Voltage: AC 250V | Breaking capacity: 1500A (IEC60947-2) / 2500A (IEC60934, UL/CE/CCC/KC) | Trip method: ODP (HM) | Accessory: No accessory (base) | Mounting: Surface or 35mm DIN rail | Endurance: 10,000 ops | Approval: CE, CB, UL1077, CCC GB17701, KC IEC60934
LCP33FI-2A-WA-R LCP-33FI 2A 3P (WA) | Frame: 30AF | Pole: 3P | Rated current (In): 2A | Operating characteristic: Instantaneous | Voltage: AC 250V | Breaking capacity: 1500A (IEC60947-2) / 2500A (IEC60934, UL/CE/CCC/KC) | Trip method: ODP (HM) | Accessory: Aux contact (a, 1EA) | Mounting: Surface or 35mm DIN rail | Endurance: 10,000 ops | Approval: CE, CB, UL1077, CCC GB17701, KC IEC60934
LCP33FI-2A-KA-R LCP-33FI 2A 3P (KA) | Frame: 30AF | Pole: 3P | Rated current (In): 2A | Operating characteristic: Instantaneous | Voltage: AC 250V | Breaking capacity: 1500A (IEC60947-2) / 2500A (IEC60934, UL/CE/CCC/KC) | Trip method: ODP (HM) | Accessory: Alarm contact (a, 1EA) | Mounting: Surface or 35mm DIN rail | Endurance: 10,000 ops | Approval: CE, CB, UL1077, CCC GB17701, KC IEC60934
LCP33FI-3A-R LCP-33FI 3A 3P (base) | Frame: 30AF | Pole: 3P | Rated current (In): 3A | Operating characteristic: Instantaneous | Voltage: AC 250V | Breaking capacity: 1500A (IEC60947-2) / 2500A (IEC60934, UL/CE/CCC/KC) | Trip method: ODP (HM) | Accessory: No accessory (base) | Mounting: Surface or 35mm DIN rail | Endurance: 10,000 ops | Approval: CE, CB, UL1077, CCC GB17701, KC IEC60934
LCP33FI-3A-WA-R LCP-33FI 3A 3P (WA) | Frame: 30AF | Pole: 3P | Rated current (In): 3A | Operating characteristic: Instantaneous | Voltage: AC 250V | Breaking capacity: 1500A (IEC60947-2) / 2500A (IEC60934, UL/CE/CCC/KC) | Trip method: ODP (HM) | Accessory: Aux contact (a, 1EA) | Mounting: Surface or 35mm DIN rail | Endurance: 10,000 ops | Approval: CE, CB, UL1077, CCC GB17701, KC IEC60934
LCP33FI-3A-KA-R LCP-33FI 3A 3P (KA) | Frame: 30AF | Pole: 3P | Rated current (In): 3A | Operating characteristic: Instantaneous | Voltage: AC 250V | Breaking capacity: 1500A (IEC60947-2) / 2500A (IEC60934, UL/CE/CCC/KC) | Trip method: ODP (HM) | Accessory: Alarm contact (a, 1EA) | Mounting: Surface or 35mm DIN rail | Endurance: 10,000 ops | Approval: CE, CB, UL1077, CCC GB17701, KC IEC60934
LCP33FI-5A-R LCP-33FI 5A 3P (base) | Frame: 30AF | Pole: 3P | Rated current (In): 5A | Operating characteristic: Instantaneous | Voltage: AC 250V | Breaking capacity: 1500A (IEC60947-2) / 2500A (IEC60934, UL/CE/CCC/KC) | Trip method: ODP (HM) | Accessory: No accessory (base) | Mounting: Surface or 35mm DIN rail | Endurance: 10,000 ops | Approval: CE, CB, UL1077, CCC GB17701, KC IEC60934
LCP33FI-5A-WA-R LCP-33FI 5A 3P (WA) | Frame: 30AF | Pole: 3P | Rated current (In): 5A | Operating characteristic: Instantaneous | Voltage: AC 250V | Breaking capacity: 1500A (IEC60947-2) / 2500A (IEC60934, UL/CE/CCC/KC) | Trip method: ODP (HM) | Accessory: Aux contact (a, 1EA) | Mounting: Surface or 35mm DIN rail | Endurance: 10,000 ops | Approval: CE, CB, UL1077, CCC GB17701, KC IEC60934
LCP33FI-5A-KA-R LCP-33FI 5A 3P (KA) | Frame: 30AF | Pole: 3P | Rated current (In): 5A | Operating characteristic: Instantaneous | Voltage: AC 250V | Breaking capacity: 1500A (IEC60947-2) / 2500A (IEC60934, UL/CE/CCC/KC) | Trip method: ODP (HM) | Accessory: Alarm contact (a, 1EA) | Mounting: Surface or 35mm DIN rail | Endurance: 10,000 ops | Approval: CE, CB, UL1077, CCC GB17701, KC IEC60934
LCP33FI-7A-R LCP-33FI 7A 3P (base) | Frame: 30AF | Pole: 3P | Rated current (In): 7A | Operating characteristic: Instantaneous | Voltage: AC 250V | Breaking capacity: 1500A (IEC60947-2) / 2500A (IEC60934, UL/CE/CCC/KC) | Trip method: ODP (HM) | Accessory: No accessory (base) | Mounting: Surface or 35mm DIN rail | Endurance: 10,000 ops | Approval: CE, CB, UL1077, CCC GB17701, KC IEC60934
LCP33FI-7A-WA-R LCP-33FI 7A 3P (WA) | Frame: 30AF | Pole: 3P | Rated current (In): 7A | Operating characteristic: Instantaneous | Voltage: AC 250V | Breaking capacity: 1500A (IEC60947-2) / 2500A (IEC60934, UL/CE/CCC/KC) | Trip method: ODP (HM) | Accessory: Aux contact (a, 1EA) | Mounting: Surface or 35mm DIN rail | Endurance: 10,000 ops | Approval: CE, CB, UL1077, CCC GB17701, KC IEC60934
LCP33FI-7A-KA-R LCP-33FI 7A 3P (KA) | Frame: 30AF | Pole: 3P | Rated current (In): 7A | Operating characteristic: Instantaneous | Voltage: AC 250V | Breaking capacity: 1500A (IEC60947-2) / 2500A (IEC60934, UL/CE/CCC/KC) | Trip method: ODP (HM) | Accessory: Alarm contact (a, 1EA) | Mounting: Surface or 35mm DIN rail | Endurance: 10,000 ops | Approval: CE, CB, UL1077, CCC GB17701, KC IEC60934
LCP33FI-10A-R LCP-33FI 10A 3P (base) | Frame: 30AF | Pole: 3P | Rated current (In): 10A | Operating characteristic: Instantaneous | Voltage: AC 250V | Breaking capacity: 1500A (IEC60947-2) / 2500A (IEC60934, UL/CE/CCC/KC) | Trip method: ODP (HM) | Accessory: No accessory (base) | Mounting: Surface or 35mm DIN rail | Endurance: 10,000 ops | Approval: CE, CB, UL1077, CCC GB17701, KC IEC60934
LCP33FI-10A-WA-R LCP-33FI 10A 3P (WA) | Frame: 30AF | Pole: 3P | Rated current (In): 10A | Operating characteristic: Instantaneous | Voltage: AC 250V | Breaking capacity: 1500A (IEC60947-2) / 2500A (IEC60934, UL/CE/CCC/KC) | Trip method: ODP (HM) | Accessory: Aux contact (a, 1EA) | Mounting: Surface or 35mm DIN rail | Endurance: 10,000 ops | Approval: CE, CB, UL1077, CCC GB17701, KC IEC60934
LCP33FI-10A-KA-R LCP-33FI 10A 3P (KA) | Frame: 30AF | Pole: 3P | Rated current (In): 10A | Operating characteristic: Instantaneous | Voltage: AC 250V | Breaking capacity: 1500A (IEC60947-2) / 2500A (IEC60934, UL/CE/CCC/KC) | Trip method: ODP (HM) | Accessory: Alarm contact (a, 1EA) | Mounting: Surface or 35mm DIN rail | Endurance: 10,000 ops | Approval: CE, CB, UL1077, CCC GB17701, KC IEC60934
LCP33FI-15A-R LCP-33FI 15A 3P (base) | Frame: 30AF | Pole: 3P | Rated current (In): 15A | Operating characteristic: Instantaneous | Voltage: AC 250V | Breaking capacity: 1500A (IEC60947-2) / 2500A (IEC60934, UL/CE/CCC/KC) | Trip method: ODP (HM) | Accessory: No accessory (base) | Mounting: Surface or 35mm DIN rail | Endurance: 10,000 ops | Approval: CE, CB, UL1077, CCC GB17701, KC IEC60934
LCP33FI-15A-WA-R LCP-33FI 15A 3P (WA) | Frame: 30AF | Pole: 3P | Rated current (In): 15A | Operating characteristic: Instantaneous | Voltage: AC 250V | Breaking capacity: 1500A (IEC60947-2) / 2500A (IEC60934, UL/CE/CCC/KC) | Trip method: ODP (HM) | Accessory: Aux contact (a, 1EA) | Mounting: Surface or 35mm DIN rail | Endurance: 10,000 ops | Approval: CE, CB, UL1077, CCC GB17701, KC IEC60934
LCP33FI-15A-KA-R LCP-33FI 15A 3P (KA) | Frame: 30AF | Pole: 3P | Rated current (In): 15A | Operating characteristic: Instantaneous | Voltage: AC 250V | Breaking capacity: 1500A (IEC60947-2) / 2500A (IEC60934, UL/CE/CCC/KC) | Trip method: ODP (HM) | Accessory: Alarm contact (a, 1EA) | Mounting: Surface or 35mm DIN rail | Endurance: 10,000 ops | Approval: CE, CB, UL1077, CCC GB17701, KC IEC60934
LCP33FI-20A-R LCP-33FI 20A 3P (base) | Frame: 30AF | Pole: 3P | Rated current (In): 20A | Operating characteristic: Instantaneous | Voltage: AC 250V | Breaking capacity: 1500A (IEC60947-2) / 2500A (IEC60934, UL/CE/CCC/KC) | Trip method: ODP (HM) | Accessory: No accessory (base) | Mounting: Surface or 35mm DIN rail | Endurance: 10,000 ops | Approval: CE, CB, UL1077, CCC GB17701, KC IEC60934
LCP33FI-20A-WA-R LCP-33FI 20A 3P (WA) | Frame: 30AF | Pole: 3P | Rated current (In): 20A | Operating characteristic: Instantaneous | Voltage: AC 250V | Breaking capacity: 1500A (IEC60947-2) / 2500A (IEC60934, UL/CE/CCC/KC) | Trip method: ODP (HM) | Accessory: Aux contact (a, 1EA) | Mounting: Surface or 35mm DIN rail | Endurance: 10,000 ops | Approval: CE, CB, UL1077, CCC GB17701, KC IEC60934
LCP33FI-20A-KA-R LCP-33FI 20A 3P (KA) | Frame: 30AF | Pole: 3P | Rated current (In): 20A | Operating characteristic: Instantaneous | Voltage: AC 250V | Breaking capacity: 1500A (IEC60947-2) / 2500A (IEC60934, UL/CE/CCC/KC) | Trip method: ODP (HM) | Accessory: Alarm contact (a, 1EA) | Mounting: Surface or 35mm DIN rail | Endurance: 10,000 ops | Approval: CE, CB, UL1077, CCC GB17701, KC IEC60934
LCP33FI-30A-R LCP-33FI 30A 3P (base) | Frame: 30AF | Pole: 3P | Rated current (In): 30A | Operating characteristic: Instantaneous | Voltage: AC 250V | Breaking capacity: 1500A (IEC60947-2) / 2500A (IEC60934, UL/CE/CCC/KC) | Trip method: ODP (HM) | Accessory: No accessory (base) | Mounting: Surface or 35mm DIN rail | Endurance: 10,000 ops | Approval: CE, CB, UL1077, CCC GB17701, KC IEC60934
LCP33FI-30A-WA-R LCP-33FI 30A 3P (WA) | Frame: 30AF | Pole: 3P | Rated current (In): 30A | Operating characteristic: Instantaneous | Voltage: AC 250V | Breaking capacity: 1500A (IEC60947-2) / 2500A (IEC60934, UL/CE/CCC/KC) | Trip method: ODP (HM) | Accessory: Aux contact (a, 1EA) | Mounting: Surface or 35mm DIN rail | Endurance: 10,000 ops | Approval: CE, CB, UL1077, CCC GB17701, KC IEC60934
LCP33FI-30A-KA-R LCP-33FI 30A 3P (KA) | Frame: 30AF | Pole: 3P | Rated current (In): 30A | Operating characteristic: Instantaneous | Voltage: AC 250V | Breaking capacity: 1500A (IEC60947-2) / 2500A (IEC60934, UL/CE/CCC/KC) | Trip method: ODP (HM) | Accessory: Alarm contact (a, 1EA) | Mounting: Surface or 35mm DIN rail | Endurance: 10,000 ops | Approval: CE, CB, UL1077, CCC GB17701, KC IEC60934
Circuit ProtectorsLS Electric
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric LCP-33FI Circuit Protector (3P, Instantaneous)

Brand LS Electric·Circuit Protectors

Available part numbers (24)

LCP33FI-2A-R, LCP33FI-2A-WA-R, LCP33FI-2A-KA-R, LCP33FI-3A-R, LCP33FI-3A-WA-R, LCP33FI-3A-KA-R, LCP33FI-5A-R, LCP33FI-5A-WA-R, LCP33FI-5A-KA-R, LCP33FI-7A-R + 14 more — see full table ↓
