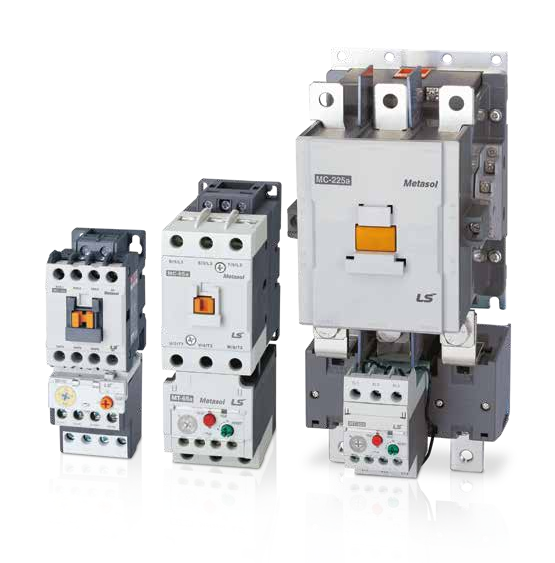

LS Electric Metasol MC 18AF Magnetic Contactor (MC-6a~MC-18a)

LS Electric Metasol MC 18AF Magnetic Contactor (MC-6a~MC-18a)

LS ELECTRIC Metasol MC 18AF Magnetic Contactor family. | Application: Motor switching, line contactor, control panel. | Frame: 18AF | Pole: 3P | Type: AC Magnetic Contactor (IEC60947-4-1) | Models: MC-6a, MC-9a, MC-12a, MC-18a | AC-3 current range (440V): 7~18A | AC-1 current up to: 32A | Coil voltage options: AC 24V/110V/220V/380V/440V (60Hz, std options shown) | Frequency: 50/60Hz (60Hz nominal here) | Rated insulation: 690V (18/22AF) / 1000V (40AF+) | Switching frequency: up to 1800 ops/hour (AC-3) | Mechanical life: depends on frame (250~1500 ×10,000 operations) | Mounting: 35mm DIN rail + screw (~150AF) / screw-only (>150AF) | Approval: IEC, UL, RoHS — see RFQ table for specific MPN.

Specifications

Frame 18AF
Pole 3P
Standard aux contact 1a or 1b
Terminal Screw
Frequency 60Hz (50Hz also available)
Rated insulation (Ui) 690V
Standard IEC60947-4-1
Approval IEC, UL, RoHS
MC-6a/AC24V/60Hz Metasol MC-6a 3P contactor, AC 24V 60Hz coil | Frame: 18AF | Model: MC-6a | Pole: 3P | Coil: AC 24V 60Hz | AC-1 current: 25A | AC-3 (440V): 7A / 3kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-6a/AC110V/60Hz Metasol MC-6a 3P contactor, AC 110V 60Hz coil | Frame: 18AF | Model: MC-6a | Pole: 3P | Coil: AC 110V 60Hz | AC-1 current: 25A | AC-3 (440V): 7A / 3kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-6a/AC220V/60Hz Metasol MC-6a 3P contactor, AC 220V 60Hz coil | Frame: 18AF | Model: MC-6a | Pole: 3P | Coil: AC 220V 60Hz | AC-1 current: 25A | AC-3 (440V): 7A / 3kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-6a/AC380V/60Hz Metasol MC-6a 3P contactor, AC 380V 60Hz coil | Frame: 18AF | Model: MC-6a | Pole: 3P | Coil: AC 380V 60Hz | AC-1 current: 25A | AC-3 (440V): 7A / 3kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-6a/AC440V/60Hz Metasol MC-6a 3P contactor, AC 440V 60Hz coil | Frame: 18AF | Model: MC-6a | Pole: 3P | Coil: AC 440V 60Hz | AC-1 current: 25A | AC-3 (440V): 7A / 3kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-9a/AC24V/60Hz Metasol MC-9a 3P contactor, AC 24V 60Hz coil | Frame: 18AF | Model: MC-9a | Pole: 3P | Coil: AC 24V 60Hz | AC-1 current: 25A | AC-3 (440V): 9A / 4kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-9a/AC110V/60Hz Metasol MC-9a 3P contactor, AC 110V 60Hz coil | Frame: 18AF | Model: MC-9a | Pole: 3P | Coil: AC 110V 60Hz | AC-1 current: 25A | AC-3 (440V): 9A / 4kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-9a/AC220V/60Hz Metasol MC-9a 3P contactor, AC 220V 60Hz coil | Frame: 18AF | Model: MC-9a | Pole: 3P | Coil: AC 220V 60Hz | AC-1 current: 25A | AC-3 (440V): 9A / 4kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-9a/AC380V/60Hz Metasol MC-9a 3P contactor, AC 380V 60Hz coil | Frame: 18AF | Model: MC-9a | Pole: 3P | Coil: AC 380V 60Hz | AC-1 current: 25A | AC-3 (440V): 9A / 4kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-9a/AC440V/60Hz Metasol MC-9a 3P contactor, AC 440V 60Hz coil | Frame: 18AF | Model: MC-9a | Pole: 3P | Coil: AC 440V 60Hz | AC-1 current: 25A | AC-3 (440V): 9A / 4kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-12a/AC24V/60Hz Metasol MC-12a 3P contactor, AC 24V 60Hz coil | Frame: 18AF | Model: MC-12a | Pole: 3P | Coil: AC 24V 60Hz | AC-1 current: 25A | AC-3 (440V): 12A / 5.5kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-12a/AC110V/60Hz Metasol MC-12a 3P contactor, AC 110V 60Hz coil | Frame: 18AF | Model: MC-12a | Pole: 3P | Coil: AC 110V 60Hz | AC-1 current: 25A | AC-3 (440V): 12A / 5.5kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-12a/AC220V/60Hz Metasol MC-12a 3P contactor, AC 220V 60Hz coil | Frame: 18AF | Model: MC-12a | Pole: 3P | Coil: AC 220V 60Hz | AC-1 current: 25A | AC-3 (440V): 12A / 5.5kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-12a/AC380V/60Hz Metasol MC-12a 3P contactor, AC 380V 60Hz coil | Frame: 18AF | Model: MC-12a | Pole: 3P | Coil: AC 380V 60Hz | AC-1 current: 25A | AC-3 (440V): 12A / 5.5kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-12a/AC440V/60Hz Metasol MC-12a 3P contactor, AC 440V 60Hz coil | Frame: 18AF | Model: MC-12a | Pole: 3P | Coil: AC 440V 60Hz | AC-1 current: 25A | AC-3 (440V): 12A / 5.5kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-18a/AC24V/60Hz Metasol MC-18a 3P contactor, AC 24V 60Hz coil | Frame: 18AF | Model: MC-18a | Pole: 3P | Coil: AC 24V 60Hz | AC-1 current: 32A | AC-3 (440V): 18A / 7.5kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-18a/AC110V/60Hz Metasol MC-18a 3P contactor, AC 110V 60Hz coil | Frame: 18AF | Model: MC-18a | Pole: 3P | Coil: AC 110V 60Hz | AC-1 current: 32A | AC-3 (440V): 18A / 7.5kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-18a/AC220V/60Hz Metasol MC-18a 3P contactor, AC 220V 60Hz coil | Frame: 18AF | Model: MC-18a | Pole: 3P | Coil: AC 220V 60Hz | AC-1 current: 32A | AC-3 (440V): 18A / 7.5kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-18a/AC380V/60Hz Metasol MC-18a 3P contactor, AC 380V 60Hz coil | Frame: 18AF | Model: MC-18a | Pole: 3P | Coil: AC 380V 60Hz | AC-1 current: 32A | AC-3 (440V): 18A / 7.5kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-18a/AC440V/60Hz Metasol MC-18a 3P contactor, AC 440V 60Hz coil | Frame: 18AF | Model: MC-18a | Pole: 3P | Coil: AC 440V 60Hz | AC-1 current: 32A | AC-3 (440V): 18A / 7.5kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
Magnetic ContactorsLS Electric
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Metasol MC 18AF Magnetic Contactor (MC-6a~MC-18a)

Brand LS Electric·Magnetic Contactors

Available part numbers (20)

MC-6a/AC24V/60Hz, MC-6a/AC110V/60Hz, MC-6a/AC220V/60Hz, MC-6a/AC380V/60Hz, MC-6a/AC440V/60Hz, MC-9a/AC24V/60Hz, MC-9a/AC110V/60Hz, MC-9a/AC220V/60Hz, MC-9a/AC380V/60Hz, MC-9a/AC440V/60Hz + 10 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MC-6a/AC24V/60HzMetasol MC-6a 3P contactor, AC 24V 60Hz coil | Frame: 18AF | Model: MC-6a | Pole: 3P | Coil: AC 24V 60Hz | AC-1 current: 25A | AC-3 (440V): 7A / 3kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-6a/AC110V/60HzMetasol MC-6a 3P contactor, AC 110V 60Hz coil | Frame: 18AF | Model: MC-6a | Pole: 3P | Coil: AC 110V 60Hz | AC-1 current: 25A | AC-3 (440V): 7A / 3kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-6a/AC220V/60HzMetasol MC-6a 3P contactor, AC 220V 60Hz coil | Frame: 18AF | Model: MC-6a | Pole: 3P | Coil: AC 220V 60Hz | AC-1 current: 25A | AC-3 (440V): 7A / 3kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-6a/AC380V/60HzMetasol MC-6a 3P contactor, AC 380V 60Hz coil | Frame: 18AF | Model: MC-6a | Pole: 3P | Coil: AC 380V 60Hz | AC-1 current: 25A | AC-3 (440V): 7A / 3kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-6a/AC440V/60HzMetasol MC-6a 3P contactor, AC 440V 60Hz coil | Frame: 18AF | Model: MC-6a | Pole: 3P | Coil: AC 440V 60Hz | AC-1 current: 25A | AC-3 (440V): 7A / 3kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-9a/AC24V/60HzMetasol MC-9a 3P contactor, AC 24V 60Hz coil | Frame: 18AF | Model: MC-9a | Pole: 3P | Coil: AC 24V 60Hz | AC-1 current: 25A | AC-3 (440V): 9A / 4kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-9a/AC110V/60HzMetasol MC-9a 3P contactor, AC 110V 60Hz coil | Frame: 18AF | Model: MC-9a | Pole: 3P | Coil: AC 110V 60Hz | AC-1 current: 25A | AC-3 (440V): 9A / 4kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-9a/AC220V/60HzMetasol MC-9a 3P contactor, AC 220V 60Hz coil | Frame: 18AF | Model: MC-9a | Pole: 3P | Coil: AC 220V 60Hz | AC-1 current: 25A | AC-3 (440V): 9A / 4kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-9a/AC380V/60HzMetasol MC-9a 3P contactor, AC 380V 60Hz coil | Frame: 18AF | Model: MC-9a | Pole: 3P | Coil: AC 380V 60Hz | AC-1 current: 25A | AC-3 (440V): 9A / 4kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-9a/AC440V/60HzMetasol MC-9a 3P contactor, AC 440V 60Hz coil | Frame: 18AF | Model: MC-9a | Pole: 3P | Coil: AC 440V 60Hz | AC-1 current: 25A | AC-3 (440V): 9A / 4kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-12a/AC24V/60HzMetasol MC-12a 3P contactor, AC 24V 60Hz coil | Frame: 18AF | Model: MC-12a | Pole: 3P | Coil: AC 24V 60Hz | AC-1 current: 25A | AC-3 (440V): 12A / 5.5kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-12a/AC110V/60HzMetasol MC-12a 3P contactor, AC 110V 60Hz coil | Frame: 18AF | Model: MC-12a | Pole: 3P | Coil: AC 110V 60Hz | AC-1 current: 25A | AC-3 (440V): 12A / 5.5kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-12a/AC220V/60HzMetasol MC-12a 3P contactor, AC 220V 60Hz coil | Frame: 18AF | Model: MC-12a | Pole: 3P | Coil: AC 220V 60Hz | AC-1 current: 25A | AC-3 (440V): 12A / 5.5kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-12a/AC380V/60HzMetasol MC-12a 3P contactor, AC 380V 60Hz coil | Frame: 18AF | Model: MC-12a | Pole: 3P | Coil: AC 380V 60Hz | AC-1 current: 25A | AC-3 (440V): 12A / 5.5kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-12a/AC440V/60HzMetasol MC-12a 3P contactor, AC 440V 60Hz coil | Frame: 18AF | Model: MC-12a | Pole: 3P | Coil: AC 440V 60Hz | AC-1 current: 25A | AC-3 (440V): 12A / 5.5kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-18a/AC24V/60HzMetasol MC-18a 3P contactor, AC 24V 60Hz coil | Frame: 18AF | Model: MC-18a | Pole: 3P | Coil: AC 24V 60Hz | AC-1 current: 32A | AC-3 (440V): 18A / 7.5kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-18a/AC110V/60HzMetasol MC-18a 3P contactor, AC 110V 60Hz coil | Frame: 18AF | Model: MC-18a | Pole: 3P | Coil: AC 110V 60Hz | AC-1 current: 32A | AC-3 (440V): 18A / 7.5kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-18a/AC220V/60HzMetasol MC-18a 3P contactor, AC 220V 60Hz coil | Frame: 18AF | Model: MC-18a | Pole: 3P | Coil: AC 220V 60Hz | AC-1 current: 32A | AC-3 (440V): 18A / 7.5kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-18a/AC380V/60HzMetasol MC-18a 3P contactor, AC 380V 60Hz coil | Frame: 18AF | Model: MC-18a | Pole: 3P | Coil: AC 380V 60Hz | AC-1 current: 32A | AC-3 (440V): 18A / 7.5kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-18a/AC440V/60HzMetasol MC-18a 3P contactor, AC 440V 60Hz coil | Frame: 18AF | Model: MC-18a | Pole: 3P | Coil: AC 440V 60Hz | AC-1 current: 32A | AC-3 (440V): 18A / 7.5kW | Standard aux contact: 1a or 1b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 690V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
