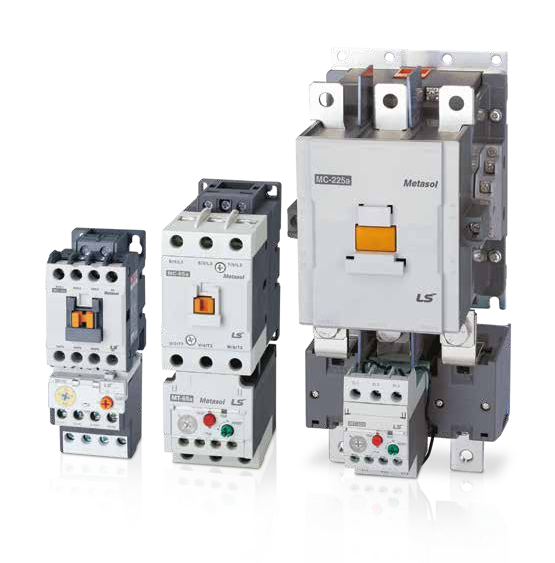

• LS Electric Metasol MC 400AF Magnetic Contactor (MC-265a~MC-400a)
1 1

LS Electric Metasol MC 400AF Magnetic Contactor (MC-265a~MC-400a)

LS Electric Metasol MC 400AF Magnetic Contactor (MC-265a~MC-400a)

LS ELECTRIC Metasol MC 400AF Magnetic Contactor family. | Application: Motor switching, line contactor, control panel. | Frame: 400AF | Pole: 3P | Type: AC Magnetic Contactor (IEC60947-4-1) | Models: MC-265a, MC-330a, MC-400a | AC-3 current range (440V): 265~400A | AC-1 current up to: 520A | Coil voltage options: AC 24V/110V/220V/380V/440V (60Hz, std options shown) | Frequency: 50/60Hz (60Hz nominal here) | Rated insulation: 690V (18/22AF) / 1000V (40AF+) | Switching frequency: up to 1800 ops/hour (AC-3) | Mechanical life: depends on frame (250~1500 ×10,000 operations) | Mounting: 35mm DIN rail + screw (~150AF) / screw-only (>150AF) | Approval: IEC, UL, RoHS — see RFQ table for specific MPN.

Specifications

Frame 400AF
Pole 3P
Standard aux contact 2a2b
Terminal Screw
Frequency 60Hz (50Hz also available)
Rated insulation (Ui) 1000V
Standard IEC60947-4-1
Approval IEC, UL, RoHS
MC-265a/AC24V/60Hz Metasol MC-265a 3P contactor, AC 24V 60Hz coil | Frame: 400AF | Model: MC-265a | Pole: 3P | Coil: AC 24V 60Hz | AC-1 current: 400A | AC-3 (440V): 265A / 147kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-265a/AC110V/60Hz Metasol MC-265a 3P contactor, AC 110V 60Hz coil | Frame: 400AF | Model: MC-265a | Pole: 3P | Coil: AC 110V 60Hz | AC-1 current: 400A | AC-3 (440V): 265A / 147kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-265a/AC220V/60Hz Metasol MC-265a 3P contactor, AC 220V 60Hz coil | Frame: 400AF | Model: MC-265a | Pole: 3P | Coil: AC 220V 60Hz | AC-1 current: 400A | AC-3 (440V): 265A / 147kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-265a/AC380V/60Hz Metasol MC-265a 3P contactor, AC 380V 60Hz coil | Frame: 400AF | Model: MC-265a | Pole: 3P | Coil: AC 380V 60Hz | AC-1 current: 400A | AC-3 (440V): 265A / 147kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-265a/AC440V/60Hz Metasol MC-265a 3P contactor, AC 440V 60Hz coil | Frame: 400AF | Model: MC-265a | Pole: 3P | Coil: AC 440V 60Hz | AC-1 current: 400A | AC-3 (440V): 265A / 147kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-330a/AC24V/60Hz Metasol MC-330a 3P contactor, AC 24V 60Hz coil | Frame: 400AF | Model: MC-330a | Pole: 3P | Coil: AC 24V 60Hz | AC-1 current: 500A | AC-3 (440V): 330A / 160kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-330a/AC110V/60Hz Metasol MC-330a 3P contactor, AC 110V 60Hz coil | Frame: 400AF | Model: MC-330a | Pole: 3P | Coil: AC 110V 60Hz | AC-1 current: 500A | AC-3 (440V): 330A / 160kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-330a/AC220V/60Hz Metasol MC-330a 3P contactor, AC 220V 60Hz coil | Frame: 400AF | Model: MC-330a | Pole: 3P | Coil: AC 220V 60Hz | AC-1 current: 500A | AC-3 (440V): 330A / 160kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-330a/AC380V/60Hz Metasol MC-330a 3P contactor, AC 380V 60Hz coil | Frame: 400AF | Model: MC-330a | Pole: 3P | Coil: AC 380V 60Hz | AC-1 current: 500A | AC-3 (440V): 330A / 160kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-330a/AC440V/60Hz Metasol MC-330a 3P contactor, AC 440V 60Hz coil | Frame: 400AF | Model: MC-330a | Pole: 3P | Coil: AC 440V 60Hz | AC-1 current: 500A | AC-3 (440V): 330A / 160kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-400a/AC24V/60Hz Metasol MC-400a 3P contactor, AC 24V 60Hz coil | Frame: 400AF | Model: MC-400a | Pole: 3P | Coil: AC 24V 60Hz | AC-1 current: 520A | AC-3 (440V): 400A / 200kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-400a/AC110V/60Hz Metasol MC-400a 3P contactor, AC 110V 60Hz coil | Frame: 400AF | Model: MC-400a | Pole: 3P | Coil: AC 110V 60Hz | AC-1 current: 520A | AC-3 (440V): 400A / 200kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-400a/AC220V/60Hz Metasol MC-400a 3P contactor, AC 220V 60Hz coil | Frame: 400AF | Model: MC-400a | Pole: 3P | Coil: AC 220V 60Hz | AC-1 current: 520A | AC-3 (440V): 400A / 200kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-400a/AC380V/60Hz Metasol MC-400a 3P contactor, AC 380V 60Hz coil | Frame: 400AF | Model: MC-400a | Pole: 3P | Coil: AC 380V 60Hz | AC-1 current: 520A | AC-3 (440V): 400A / 200kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-400a/AC440V/60Hz Metasol MC-400a 3P contactor, AC 440V 60Hz coil | Frame: 400AF | Model: MC-400a | Pole: 3P | Coil: AC 440V 60Hz | AC-1 current: 520A | AC-3 (440V): 400A / 200kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
Magnetic ContactorsLS Electric
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Metasol MC 400AF Magnetic Contactor (MC-265a~MC-400a)

Brand LS Electric·Magnetic Contactors

Available part numbers (15)

MC-265a/AC24V/60Hz, MC-265a/AC110V/60Hz, MC-265a/AC220V/60Hz, MC-265a/AC380V/60Hz, MC-265a/AC440V/60Hz, MC-330a/AC24V/60Hz, MC-330a/AC110V/60Hz, MC-330a/AC220V/60Hz, MC-330a/AC380V/60Hz, MC-330a/AC440V/60Hz + 5 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MC-265a/AC24V/60HzMetasol MC-265a 3P contactor, AC 24V 60Hz coil | Frame: 400AF | Model: MC-265a | Pole: 3P | Coil: AC 24V 60Hz | AC-1 current: 400A | AC-3 (440V): 265A / 147kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-265a/AC110V/60HzMetasol MC-265a 3P contactor, AC 110V 60Hz coil | Frame: 400AF | Model: MC-265a | Pole: 3P | Coil: AC 110V 60Hz | AC-1 current: 400A | AC-3 (440V): 265A / 147kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-265a/AC220V/60HzMetasol MC-265a 3P contactor, AC 220V 60Hz coil | Frame: 400AF | Model: MC-265a | Pole: 3P | Coil: AC 220V 60Hz | AC-1 current: 400A | AC-3 (440V): 265A / 147kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-265a/AC380V/60HzMetasol MC-265a 3P contactor, AC 380V 60Hz coil | Frame: 400AF | Model: MC-265a | Pole: 3P | Coil: AC 380V 60Hz | AC-1 current: 400A | AC-3 (440V): 265A / 147kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-265a/AC440V/60HzMetasol MC-265a 3P contactor, AC 440V 60Hz coil | Frame: 400AF | Model: MC-265a | Pole: 3P | Coil: AC 440V 60Hz | AC-1 current: 400A | AC-3 (440V): 265A / 147kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-330a/AC24V/60HzMetasol MC-330a 3P contactor, AC 24V 60Hz coil | Frame: 400AF | Model: MC-330a | Pole: 3P | Coil: AC 24V 60Hz | AC-1 current: 500A | AC-3 (440V): 330A / 160kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-330a/AC110V/60HzMetasol MC-330a 3P contactor, AC 110V 60Hz coil | Frame: 400AF | Model: MC-330a | Pole: 3P | Coil: AC 110V 60Hz | AC-1 current: 500A | AC-3 (440V): 330A / 160kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-330a/AC220V/60HzMetasol MC-330a 3P contactor, AC 220V 60Hz coil | Frame: 400AF | Model: MC-330a | Pole: 3P | Coil: AC 220V 60Hz | AC-1 current: 500A | AC-3 (440V): 330A / 160kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-330a/AC380V/60HzMetasol MC-330a 3P contactor, AC 380V 60Hz coil | Frame: 400AF | Model: MC-330a | Pole: 3P | Coil: AC 380V 60Hz | AC-1 current: 500A | AC-3 (440V): 330A / 160kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-330a/AC440V/60HzMetasol MC-330a 3P contactor, AC 440V 60Hz coil | Frame: 400AF | Model: MC-330a | Pole: 3P | Coil: AC 440V 60Hz | AC-1 current: 500A | AC-3 (440V): 330A / 160kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-400a/AC24V/60HzMetasol MC-400a 3P contactor, AC 24V 60Hz coil | Frame: 400AF | Model: MC-400a | Pole: 3P | Coil: AC 24V 60Hz | AC-1 current: 520A | AC-3 (440V): 400A / 200kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-400a/AC110V/60HzMetasol MC-400a 3P contactor, AC 110V 60Hz coil | Frame: 400AF | Model: MC-400a | Pole: 3P | Coil: AC 110V 60Hz | AC-1 current: 520A | AC-3 (440V): 400A / 200kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-400a/AC220V/60HzMetasol MC-400a 3P contactor, AC 220V 60Hz coil | Frame: 400AF | Model: MC-400a | Pole: 3P | Coil: AC 220V 60Hz | AC-1 current: 520A | AC-3 (440V): 400A / 200kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-400a/AC380V/60HzMetasol MC-400a 3P contactor, AC 380V 60Hz coil | Frame: 400AF | Model: MC-400a | Pole: 3P | Coil: AC 380V 60Hz | AC-1 current: 520A | AC-3 (440V): 400A / 200kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS
MC-400a/AC440V/60HzMetasol MC-400a 3P contactor, AC 440V 60Hz coil | Frame: 400AF | Model: MC-400a | Pole: 3P | Coil: AC 440V 60Hz | AC-1 current: 520A | AC-3 (440V): 400A / 200kW | Standard aux contact: 2a2b | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS

Need a different model, or a part not listed here? Send us your parts list →
