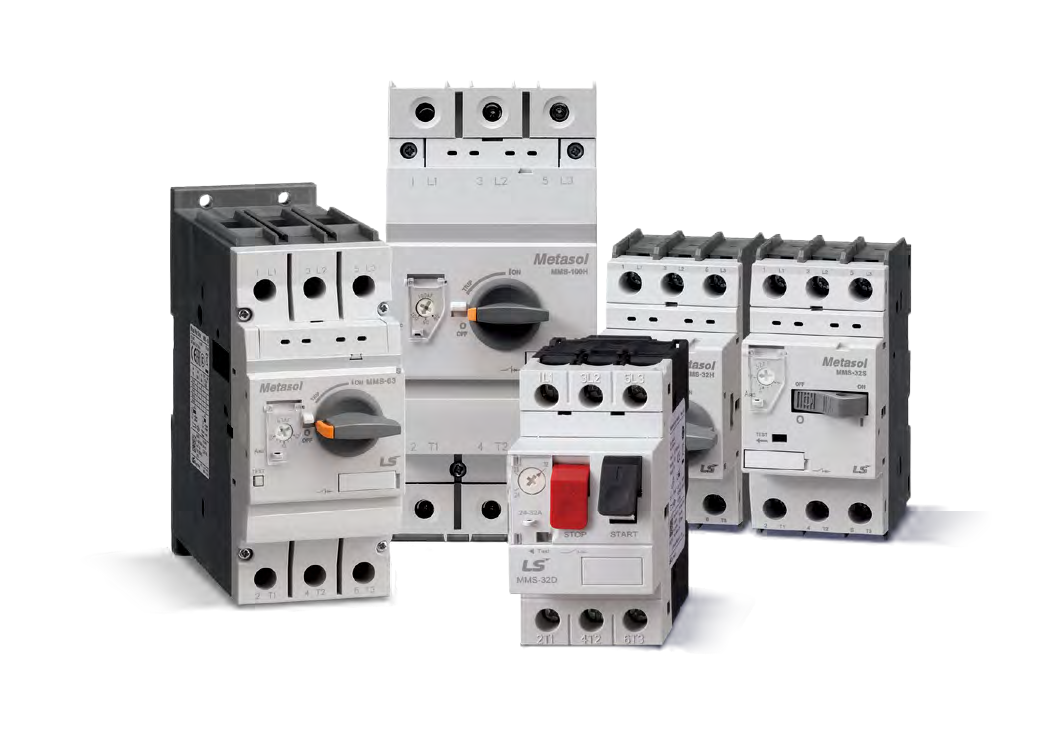

LS Electric Metasol MMS-100H High Breaking Manual Motor Starter (100AF, High Range 50~100A, 3-Pole, Rotary Handle)

LS Electric Metasol MMS-100H High Breaking Manual Motor Starter (100AF, High Range 50~100A, 3-Pole, Rotary Handle)

Metasol MMS-100H Manual Motor Starter — High Range (50~100A) variant. 3-pole MCCB-type motor protector combining circuit breaker and thermal overload functions in one compact device.

Key features

  • High breaking capacity (100AF) with full motor protection: adjustable thermal overload (Class 10), instantaneous magnetic short-circuit, and phase-loss detection
  • Trip-cause indicator on front
  • High range for motors 11~45kW (30kW @ 220V / 45kW @ 440V)
  • Frame: 100AF, width 70mm
  • Rated insulation voltage Ui = 1000V, impulse Uimp = 8kV
  • Up to 690V Ue, 50/60Hz

Specifications

Frame 100AF
Capacity Band High Range (50~100A)
Type High Breaking (H)
Pole 3-Pole
Rated Voltage Ue Up to 690V AC, 50/60Hz
Rated Insulation Ui 1000V
Impulse Uimp 8kV
Overload Protection Class 10 (thermal, adjustable)
Phase-Loss Protection Yes
Handle Rotary
Trip Test Button Yes
Trip Cause Indicator Yes (Trip Indicator)
MMS-100H/50A Metasol MMS-100H 50A, Standard terminal, High Breaking (High Range) | Frame: 100AF | Capacity Band: High Range (50~100A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 50A | Adjustment Range: 34~50A (±20% via dial) | Instantaneous Trip: 650A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/11kW | 400V/22kW | 690V/45kW | 230V/15HP | 460V/40HP | 575V/50HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100H/50A O-RING TERMINAL Metasol MMS-100H 50A, O-Ring Terminal terminal, High Breaking (High Range) | Frame: 100AF | Capacity Band: High Range (50~100A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 50A | Adjustment Range: 34~50A (±20% via dial) | Instantaneous Trip: 650A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/11kW | 400V/22kW | 690V/45kW | 230V/15HP | 460V/40HP | 575V/50HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100H/63A Metasol MMS-100H 63A, Standard terminal, High Breaking (High Range) | Frame: 100AF | Capacity Band: High Range (50~100A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 63A | Adjustment Range: 45~63A (±20% via dial) | Instantaneous Trip: 819A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/15kW | 400V/30kW | 690V/55kW | 230V/20HP | 460V/50HP | 575V/60HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100H/63A O-RING TERMINAL Metasol MMS-100H 63A, O-Ring Terminal terminal, High Breaking (High Range) | Frame: 100AF | Capacity Band: High Range (50~100A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 63A | Adjustment Range: 45~63A (±20% via dial) | Instantaneous Trip: 819A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/15kW | 400V/30kW | 690V/55kW | 230V/20HP | 460V/50HP | 575V/60HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100H/75A Metasol MMS-100H 75A, Standard terminal, High Breaking (High Range) | Frame: 100AF | Capacity Band: High Range (50~100A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 75A | Adjustment Range: 55~75A (±20% via dial) | Instantaneous Trip: 975A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/22kW | 400V/37kW | 690V/63kW | 230V/25HP | 460V/60HP | 575V/75HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100H/75A O-RING TERMINAL Metasol MMS-100H 75A, O-Ring Terminal terminal, High Breaking (High Range) | Frame: 100AF | Capacity Band: High Range (50~100A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 75A | Adjustment Range: 55~75A (±20% via dial) | Instantaneous Trip: 975A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/22kW | 400V/37kW | 690V/63kW | 230V/25HP | 460V/60HP | 575V/75HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100H/90A Metasol MMS-100H 90A, Standard terminal, High Breaking (High Range) | Frame: 100AF | Capacity Band: High Range (50~100A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 90A | Adjustment Range: 70~90A (±20% via dial) | Instantaneous Trip: 1170A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/30kW | 400V/45kW | 690V/75kW | 230V/30HP | 460V/75HP | 575V/100HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100H/90A O-RING TERMINAL Metasol MMS-100H 90A, O-Ring Terminal terminal, High Breaking (High Range) | Frame: 100AF | Capacity Band: High Range (50~100A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 90A | Adjustment Range: 70~90A (±20% via dial) | Instantaneous Trip: 1170A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/30kW | 400V/45kW | 690V/75kW | 230V/30HP | 460V/75HP | 575V/100HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100H/100A Metasol MMS-100H 100A, Standard terminal, High Breaking (High Range) | Frame: 100AF | Capacity Band: High Range (50~100A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 100A | Adjustment Range: 80~100A (±20% via dial) | Instantaneous Trip: 1300A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/30kW | 400V/45kW | 690V/90kW | 230V/40HP | 460V/75HP | 575V/100HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100H/100A O-RING TERMINAL Metasol MMS-100H 100A, O-Ring Terminal terminal, High Breaking (High Range) | Frame: 100AF | Capacity Band: High Range (50~100A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 100A | Adjustment Range: 80~100A (±20% via dial) | Instantaneous Trip: 1300A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/30kW | 400V/45kW | 690V/90kW | 230V/40HP | 460V/75HP | 575V/100HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
Manual Motor StartersLS Electric
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Metasol MMS-100H High Breaking Manual Motor Starter (100AF, High Range 50~100A, 3-Pole, Rotary Handle)

Brand LS Electric·Manual Motor Starters

Available part numbers (10)

MMS-100H/50A, MMS-100H/50A O-RING TERMINAL, MMS-100H/63A, MMS-100H/63A O-RING TERMINAL, MMS-100H/75A, MMS-100H/75A O-RING TERMINAL, MMS-100H/90A, MMS-100H/90A O-RING TERMINAL, MMS-100H/100A, MMS-100H/100A O-RING TERMINAL

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MMS-100H/50AMetasol MMS-100H 50A, Standard terminal, High Breaking (High Range) | Frame: 100AF | Capacity Band: High Range (50~100A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 50A | Adjustment Range: 34~50A (±20% via dial) | Instantaneous Trip: 650A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/11kW | 400V/22kW | 690V/45kW | 230V/15HP | 460V/40HP | 575V/50HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100H/50A O-RING TERMINALMetasol MMS-100H 50A, O-Ring Terminal terminal, High Breaking (High Range) | Frame: 100AF | Capacity Band: High Range (50~100A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 50A | Adjustment Range: 34~50A (±20% via dial) | Instantaneous Trip: 650A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/11kW | 400V/22kW | 690V/45kW | 230V/15HP | 460V/40HP | 575V/50HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100H/63AMetasol MMS-100H 63A, Standard terminal, High Breaking (High Range) | Frame: 100AF | Capacity Band: High Range (50~100A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 63A | Adjustment Range: 45~63A (±20% via dial) | Instantaneous Trip: 819A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/15kW | 400V/30kW | 690V/55kW | 230V/20HP | 460V/50HP | 575V/60HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100H/63A O-RING TERMINALMetasol MMS-100H 63A, O-Ring Terminal terminal, High Breaking (High Range) | Frame: 100AF | Capacity Band: High Range (50~100A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 63A | Adjustment Range: 45~63A (±20% via dial) | Instantaneous Trip: 819A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/15kW | 400V/30kW | 690V/55kW | 230V/20HP | 460V/50HP | 575V/60HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100H/75AMetasol MMS-100H 75A, Standard terminal, High Breaking (High Range) | Frame: 100AF | Capacity Band: High Range (50~100A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 75A | Adjustment Range: 55~75A (±20% via dial) | Instantaneous Trip: 975A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/22kW | 400V/37kW | 690V/63kW | 230V/25HP | 460V/60HP | 575V/75HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100H/75A O-RING TERMINALMetasol MMS-100H 75A, O-Ring Terminal terminal, High Breaking (High Range) | Frame: 100AF | Capacity Band: High Range (50~100A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 75A | Adjustment Range: 55~75A (±20% via dial) | Instantaneous Trip: 975A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/22kW | 400V/37kW | 690V/63kW | 230V/25HP | 460V/60HP | 575V/75HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100H/90AMetasol MMS-100H 90A, Standard terminal, High Breaking (High Range) | Frame: 100AF | Capacity Band: High Range (50~100A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 90A | Adjustment Range: 70~90A (±20% via dial) | Instantaneous Trip: 1170A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/30kW | 400V/45kW | 690V/75kW | 230V/30HP | 460V/75HP | 575V/100HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100H/90A O-RING TERMINALMetasol MMS-100H 90A, O-Ring Terminal terminal, High Breaking (High Range) | Frame: 100AF | Capacity Band: High Range (50~100A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 90A | Adjustment Range: 70~90A (±20% via dial) | Instantaneous Trip: 1170A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/30kW | 400V/45kW | 690V/75kW | 230V/30HP | 460V/75HP | 575V/100HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100H/100AMetasol MMS-100H 100A, Standard terminal, High Breaking (High Range) | Frame: 100AF | Capacity Band: High Range (50~100A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 100A | Adjustment Range: 80~100A (±20% via dial) | Instantaneous Trip: 1300A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/30kW | 400V/45kW | 690V/90kW | 230V/40HP | 460V/75HP | 575V/100HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100H/100A O-RING TERMINALMetasol MMS-100H 100A, O-Ring Terminal terminal, High Breaking (High Range) | Frame: 100AF | Capacity Band: High Range (50~100A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 100A | Adjustment Range: 80~100A (±20% via dial) | Instantaneous Trip: 1300A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/30kW | 400V/45kW | 690V/90kW | 230V/40HP | 460V/75HP | 575V/100HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
