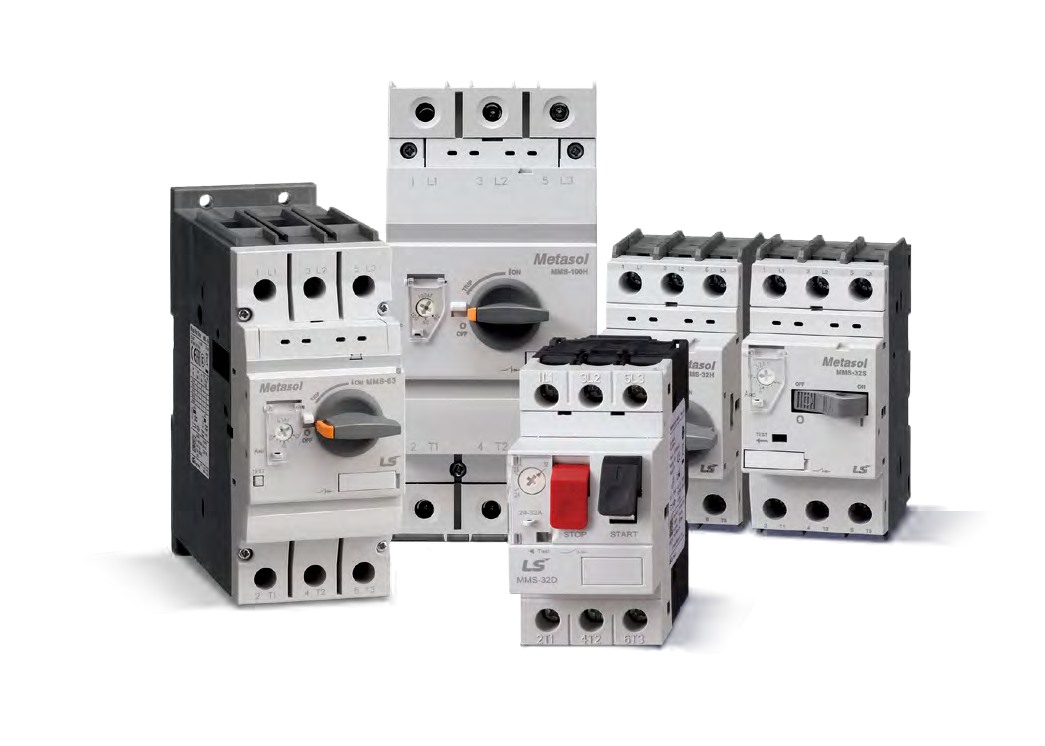

LS Electric Metasol MMS-100S Standard Manual Motor Starter (100AF, Mid Range 17~40A, 3-Pole, Rotary Handle)

LS Electric Metasol MMS-100S Standard Manual Motor Starter (100AF, Mid Range 17~40A, 3-Pole, Rotary Handle)

Metasol MMS-100S Manual Motor Starter — Mid Range (17~40A) variant. 3-pole MCCB-type motor protector combining circuit breaker and thermal overload functions in one compact device.

Key features

  • Standard breaking capacity (100AF) with full motor protection: adjustable thermal overload (Class 10), instantaneous magnetic short-circuit, and phase-loss detection
  • Mid range for motors 4~18.5kW (7.5kW @ 220V / 18.5kW @ 440V)
  • Frame: 100AF, width 70mm
  • Rated insulation voltage Ui = 1000V, impulse Uimp = 8kV
  • Up to 690V Ue, 50/60Hz
  • Mechanical life 50,000 ops, electrical life 25,000 ops

Specifications

Frame 100AF
Capacity Band Mid Range (17~40A)
Type Standard (S)
Pole 3-Pole
Rated Voltage Ue Up to 690V AC, 50/60Hz
Rated Insulation Ui 1000V
Impulse Uimp 8kV
Overload Protection Class 10 (thermal, adjustable)
Phase-Loss Protection Yes
Handle Rotary
Trip Test Button Yes
Trip Cause Indicator Yes (Trip Indicator)
MMS-100S/17A Metasol MMS-100S 17A, Standard terminal, Standard (Mid Range) | Frame: 100AF | Capacity Band: Mid Range (17~40A) | Type: Standard (S) | Pole: 3-Pole | Rated Current Ie: 17A | Adjustment Range: 11~17A (±20% via dial) | Instantaneous Trip: 221A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/4kW | 400V/7.5kW | 690V/11kW | 230V/5HP | 460V/10HP | 575V/15HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100S/17A O-RING TERMINAL Metasol MMS-100S 17A, O-Ring Terminal terminal, Standard (Mid Range) | Frame: 100AF | Capacity Band: Mid Range (17~40A) | Type: Standard (S) | Pole: 3-Pole | Rated Current Ie: 17A | Adjustment Range: 11~17A (±20% via dial) | Instantaneous Trip: 221A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/4kW | 400V/7.5kW | 690V/11kW | 230V/5HP | 460V/10HP | 575V/15HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100S/22A Metasol MMS-100S 22A, Standard terminal, Standard (Mid Range) | Frame: 100AF | Capacity Band: Mid Range (17~40A) | Type: Standard (S) | Pole: 3-Pole | Rated Current Ie: 22A | Adjustment Range: 14~22A (±20% via dial) | Instantaneous Trip: 286A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/4kW | 400V/7.5kW | 690V/15kW | 230V/7-1/2HP | 460V/15HP | 575V/20HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100S/22A O-RING TERMINAL Metasol MMS-100S 22A, O-Ring Terminal terminal, Standard (Mid Range) | Frame: 100AF | Capacity Band: Mid Range (17~40A) | Type: Standard (S) | Pole: 3-Pole | Rated Current Ie: 22A | Adjustment Range: 14~22A (±20% via dial) | Instantaneous Trip: 286A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/4kW | 400V/7.5kW | 690V/15kW | 230V/7-1/2HP | 460V/15HP | 575V/20HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100S/26A Metasol MMS-100S 26A, Standard terminal, Standard (Mid Range) | Frame: 100AF | Capacity Band: Mid Range (17~40A) | Type: Standard (S) | Pole: 3-Pole | Rated Current Ie: 26A | Adjustment Range: 18~26A (±20% via dial) | Instantaneous Trip: 338A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/5.5kW | 400V/11kW | 690V/18.5kW | 230V/10HP | 460V/20HP | 575V/25HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100S/26A O-RING TERMINAL Metasol MMS-100S 26A, O-Ring Terminal terminal, Standard (Mid Range) | Frame: 100AF | Capacity Band: Mid Range (17~40A) | Type: Standard (S) | Pole: 3-Pole | Rated Current Ie: 26A | Adjustment Range: 18~26A (±20% via dial) | Instantaneous Trip: 338A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/5.5kW | 400V/11kW | 690V/18.5kW | 230V/10HP | 460V/20HP | 575V/25HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100S/32A Metasol MMS-100S 32A, Standard terminal, Standard (Mid Range) | Frame: 100AF | Capacity Band: Mid Range (17~40A) | Type: Standard (S) | Pole: 3-Pole | Rated Current Ie: 32A | Adjustment Range: 22~32A (±20% via dial) | Instantaneous Trip: 416A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/7.5kW | 400V/15kW | 690V/22kW | 230V/10HP | 460V/25HP | 575V/30HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100S/32A O-RING TERMINAL Metasol MMS-100S 32A, O-Ring Terminal terminal, Standard (Mid Range) | Frame: 100AF | Capacity Band: Mid Range (17~40A) | Type: Standard (S) | Pole: 3-Pole | Rated Current Ie: 32A | Adjustment Range: 22~32A (±20% via dial) | Instantaneous Trip: 416A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/7.5kW | 400V/15kW | 690V/22kW | 230V/10HP | 460V/25HP | 575V/30HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100S/40A Metasol MMS-100S 40A, Standard terminal, Standard (Mid Range) | Frame: 100AF | Capacity Band: Mid Range (17~40A) | Type: Standard (S) | Pole: 3-Pole | Rated Current Ie: 40A | Adjustment Range: 28~40A (±20% via dial) | Instantaneous Trip: 520A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/7.5kW | 400V/18.5kW | 690V/30kW | 230V/15HP | 460V/30HP | 575V/40HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100S/40A O-RING TERMINAL Metasol MMS-100S 40A, O-Ring Terminal terminal, Standard (Mid Range) | Frame: 100AF | Capacity Band: Mid Range (17~40A) | Type: Standard (S) | Pole: 3-Pole | Rated Current Ie: 40A | Adjustment Range: 28~40A (±20% via dial) | Instantaneous Trip: 520A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/7.5kW | 400V/18.5kW | 690V/30kW | 230V/15HP | 460V/30HP | 575V/40HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
Manual Motor StartersLS Electric
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Metasol MMS-100S Standard Manual Motor Starter (100AF, Mid Range 17~40A, 3-Pole, Rotary Handle)

Brand LS Electric·Manual Motor Starters

Available part numbers (10)

MMS-100S/17A, MMS-100S/17A O-RING TERMINAL, MMS-100S/22A, MMS-100S/22A O-RING TERMINAL, MMS-100S/26A, MMS-100S/26A O-RING TERMINAL, MMS-100S/32A, MMS-100S/32A O-RING TERMINAL, MMS-100S/40A, MMS-100S/40A O-RING TERMINAL

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MMS-100S/17AMetasol MMS-100S 17A, Standard terminal, Standard (Mid Range) | Frame: 100AF | Capacity Band: Mid Range (17~40A) | Type: Standard (S) | Pole: 3-Pole | Rated Current Ie: 17A | Adjustment Range: 11~17A (±20% via dial) | Instantaneous Trip: 221A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/4kW | 400V/7.5kW | 690V/11kW | 230V/5HP | 460V/10HP | 575V/15HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100S/17A O-RING TERMINALMetasol MMS-100S 17A, O-Ring Terminal terminal, Standard (Mid Range) | Frame: 100AF | Capacity Band: Mid Range (17~40A) | Type: Standard (S) | Pole: 3-Pole | Rated Current Ie: 17A | Adjustment Range: 11~17A (±20% via dial) | Instantaneous Trip: 221A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/4kW | 400V/7.5kW | 690V/11kW | 230V/5HP | 460V/10HP | 575V/15HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100S/22AMetasol MMS-100S 22A, Standard terminal, Standard (Mid Range) | Frame: 100AF | Capacity Band: Mid Range (17~40A) | Type: Standard (S) | Pole: 3-Pole | Rated Current Ie: 22A | Adjustment Range: 14~22A (±20% via dial) | Instantaneous Trip: 286A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/4kW | 400V/7.5kW | 690V/15kW | 230V/7-1/2HP | 460V/15HP | 575V/20HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100S/22A O-RING TERMINALMetasol MMS-100S 22A, O-Ring Terminal terminal, Standard (Mid Range) | Frame: 100AF | Capacity Band: Mid Range (17~40A) | Type: Standard (S) | Pole: 3-Pole | Rated Current Ie: 22A | Adjustment Range: 14~22A (±20% via dial) | Instantaneous Trip: 286A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/4kW | 400V/7.5kW | 690V/15kW | 230V/7-1/2HP | 460V/15HP | 575V/20HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100S/26AMetasol MMS-100S 26A, Standard terminal, Standard (Mid Range) | Frame: 100AF | Capacity Band: Mid Range (17~40A) | Type: Standard (S) | Pole: 3-Pole | Rated Current Ie: 26A | Adjustment Range: 18~26A (±20% via dial) | Instantaneous Trip: 338A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/5.5kW | 400V/11kW | 690V/18.5kW | 230V/10HP | 460V/20HP | 575V/25HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100S/26A O-RING TERMINALMetasol MMS-100S 26A, O-Ring Terminal terminal, Standard (Mid Range) | Frame: 100AF | Capacity Band: Mid Range (17~40A) | Type: Standard (S) | Pole: 3-Pole | Rated Current Ie: 26A | Adjustment Range: 18~26A (±20% via dial) | Instantaneous Trip: 338A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/5.5kW | 400V/11kW | 690V/18.5kW | 230V/10HP | 460V/20HP | 575V/25HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100S/32AMetasol MMS-100S 32A, Standard terminal, Standard (Mid Range) | Frame: 100AF | Capacity Band: Mid Range (17~40A) | Type: Standard (S) | Pole: 3-Pole | Rated Current Ie: 32A | Adjustment Range: 22~32A (±20% via dial) | Instantaneous Trip: 416A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/7.5kW | 400V/15kW | 690V/22kW | 230V/10HP | 460V/25HP | 575V/30HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100S/32A O-RING TERMINALMetasol MMS-100S 32A, O-Ring Terminal terminal, Standard (Mid Range) | Frame: 100AF | Capacity Band: Mid Range (17~40A) | Type: Standard (S) | Pole: 3-Pole | Rated Current Ie: 32A | Adjustment Range: 22~32A (±20% via dial) | Instantaneous Trip: 416A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/7.5kW | 400V/15kW | 690V/22kW | 230V/10HP | 460V/25HP | 575V/30HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100S/40AMetasol MMS-100S 40A, Standard terminal, Standard (Mid Range) | Frame: 100AF | Capacity Band: Mid Range (17~40A) | Type: Standard (S) | Pole: 3-Pole | Rated Current Ie: 40A | Adjustment Range: 28~40A (±20% via dial) | Instantaneous Trip: 520A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/7.5kW | 400V/18.5kW | 690V/30kW | 230V/15HP | 460V/30HP | 575V/40HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-100S/40A O-RING TERMINALMetasol MMS-100S 40A, O-Ring Terminal terminal, Standard (Mid Range) | Frame: 100AF | Capacity Band: Mid Range (17~40A) | Type: Standard (S) | Pole: 3-Pole | Rated Current Ie: 40A | Adjustment Range: 28~40A (±20% via dial) | Instantaneous Trip: 520A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 70mm | Weight: ~2200g | Mounting: 35mm DIN rail / panel screw / 75mm DIN rail | 3-Phase Motor Rating: 230V/7.5kW | 400V/18.5kW | 690V/30kW | 230V/15HP | 460V/30HP | 575V/40HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
