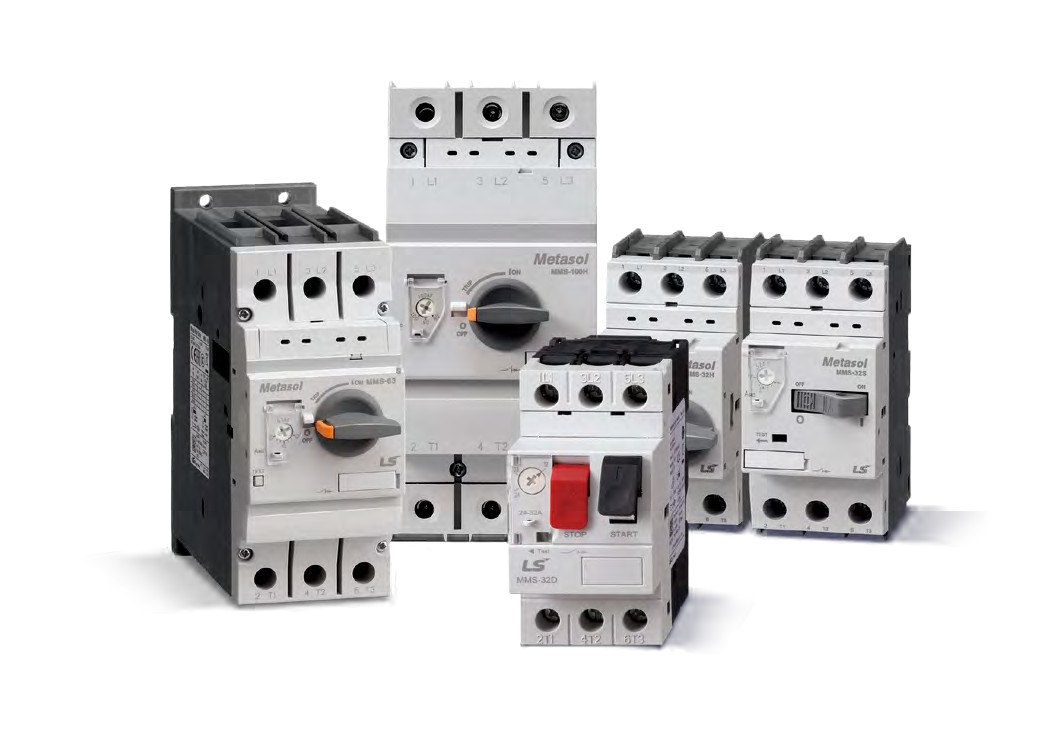

LS Electric Metasol MMS-32HI Instantaneous (MCP) Manual Motor Starter (32AF, Standard 13~40A, 3-Pole, Rotary Handle)

LS Electric Metasol MMS-32HI Instantaneous (MCP) Manual Motor Starter (32AF, Standard 13~40A, 3-Pole, Rotary Handle)

Metasol MMS-32HI Manual Motor Starter — Standard (13~40A) variant. 3-pole MCCB-type motor protector combining circuit breaker and thermal overload functions in one compact device.

Key features

  • Motor Circuit Protector — instantaneous magnetic trip only (no overload, no phase-loss)
  • Pair with separate overload relay (e.g., MT-series TOR)
  • Standard range for general-purpose motors 3~18.5kW (7.5kW @ 220V / 18.5kW @ 440V)
  • Frame: 32AF, width 45mm
  • Rated insulation voltage Ui = 690V, impulse Uimp = 6kV
  • Up to 690V Ue, 50/60Hz

Specifications

Frame 32AF
Capacity Band Standard (13~40A)
Type Instantaneous (MCP) (HI)
Pole 3-Pole
Adjustment Range Fixed (instantaneous only, no thermal adjustment)
Rated Voltage Ue Up to 690V AC, 50/60Hz
Rated Insulation Ui 690V
Impulse Uimp 6kV
Overload Protection None — pair with external TOR
Phase-Loss Protection No
Handle Rotary
Trip Test Button Yes
MMS-32HI/13A Metasol MMS-32HI 13A, Standard terminal, Instantaneous (MCP) (Standard) | Frame: 32AF | Capacity Band: Standard (13~40A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 13A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 169A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/3kW | 400V/5.5kW | 690V/11kW | 230V/3HP | 460V/7-1/2HP | 575V/10HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/13A O-RING TERMINAL Metasol MMS-32HI 13A, O-Ring Terminal terminal, Instantaneous (MCP) (Standard) | Frame: 32AF | Capacity Band: Standard (13~40A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 13A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 169A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/3kW | 400V/5.5kW | 690V/11kW | 230V/3HP | 460V/7-1/2HP | 575V/10HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/17A Metasol MMS-32HI 17A, Standard terminal, Instantaneous (MCP) (Standard) | Frame: 32AF | Capacity Band: Standard (13~40A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 17A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 221A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/4kW | 400V/7.5kW | 690V/11kW | 230V/5HP | 460V/10HP | 575V/15HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/17A O-RING TERMINAL Metasol MMS-32HI 17A, O-Ring Terminal terminal, Instantaneous (MCP) (Standard) | Frame: 32AF | Capacity Band: Standard (13~40A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 17A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 221A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/4kW | 400V/7.5kW | 690V/11kW | 230V/5HP | 460V/10HP | 575V/15HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/22A Metasol MMS-32HI 22A, Standard terminal, Instantaneous (MCP) (Standard) | Frame: 32AF | Capacity Band: Standard (13~40A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 22A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 286A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/4kW | 400V/7.5kW | 690V/15kW | 230V/7-1/2HP | 460V/15HP | 575V/20HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/22A O-RING TERMINAL Metasol MMS-32HI 22A, O-Ring Terminal terminal, Instantaneous (MCP) (Standard) | Frame: 32AF | Capacity Band: Standard (13~40A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 22A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 286A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/4kW | 400V/7.5kW | 690V/15kW | 230V/7-1/2HP | 460V/15HP | 575V/20HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/26A Metasol MMS-32HI 26A, Standard terminal, Instantaneous (MCP) (Standard) | Frame: 32AF | Capacity Band: Standard (13~40A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 26A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 338A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/5.5kW | 400V/11kW | 690V/18.5kW | 230V/7-1/2HP | 460V/15HP | 575V/20HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/26A O-RING TERMINAL Metasol MMS-32HI 26A, O-Ring Terminal terminal, Instantaneous (MCP) (Standard) | Frame: 32AF | Capacity Band: Standard (13~40A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 26A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 338A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/5.5kW | 400V/11kW | 690V/18.5kW | 230V/7-1/2HP | 460V/15HP | 575V/20HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/32A Metasol MMS-32HI 32A, Standard terminal, Instantaneous (MCP) (Standard) | Frame: 32AF | Capacity Band: Standard (13~40A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 32A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 416A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/7.5kW | 400V/15kW | 690V/22kW | 230V/10HP | 460V/20HP | 575V/30HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/32A O-RING TERMINAL Metasol MMS-32HI 32A, O-Ring Terminal terminal, Instantaneous (MCP) (Standard) | Frame: 32AF | Capacity Band: Standard (13~40A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 32A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 416A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/7.5kW | 400V/15kW | 690V/22kW | 230V/10HP | 460V/20HP | 575V/30HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/40A Metasol MMS-32HI 40A, Standard terminal, Instantaneous (MCP) (Standard) | Frame: 32AF | Capacity Band: Standard (13~40A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 40A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 520A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/7.5kW | 400V/18.5kW | 690V/30kW | 230V/15HP | 460V/30HP | 575V/40HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/40A O-RING TERMINAL Metasol MMS-32HI 40A, O-Ring Terminal terminal, Instantaneous (MCP) (Standard) | Frame: 32AF | Capacity Band: Standard (13~40A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 40A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 520A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/7.5kW | 400V/18.5kW | 690V/30kW | 230V/15HP | 460V/30HP | 575V/40HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
Manual Motor StartersLS Electric
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Metasol MMS-32HI Instantaneous (MCP) Manual Motor Starter (32AF, Standard 13~40A, 3-Pole, Rotary Handle)

Brand LS Electric·Manual Motor Starters

Available part numbers (12)

MMS-32HI/13A, MMS-32HI/13A O-RING TERMINAL, MMS-32HI/17A, MMS-32HI/17A O-RING TERMINAL, MMS-32HI/22A, MMS-32HI/22A O-RING TERMINAL, MMS-32HI/26A, MMS-32HI/26A O-RING TERMINAL, MMS-32HI/32A, MMS-32HI/32A O-RING TERMINAL + 2 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MMS-32HI/13AMetasol MMS-32HI 13A, Standard terminal, Instantaneous (MCP) (Standard) | Frame: 32AF | Capacity Band: Standard (13~40A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 13A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 169A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/3kW | 400V/5.5kW | 690V/11kW | 230V/3HP | 460V/7-1/2HP | 575V/10HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/13A O-RING TERMINALMetasol MMS-32HI 13A, O-Ring Terminal terminal, Instantaneous (MCP) (Standard) | Frame: 32AF | Capacity Band: Standard (13~40A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 13A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 169A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/3kW | 400V/5.5kW | 690V/11kW | 230V/3HP | 460V/7-1/2HP | 575V/10HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/17AMetasol MMS-32HI 17A, Standard terminal, Instantaneous (MCP) (Standard) | Frame: 32AF | Capacity Band: Standard (13~40A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 17A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 221A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/4kW | 400V/7.5kW | 690V/11kW | 230V/5HP | 460V/10HP | 575V/15HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/17A O-RING TERMINALMetasol MMS-32HI 17A, O-Ring Terminal terminal, Instantaneous (MCP) (Standard) | Frame: 32AF | Capacity Band: Standard (13~40A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 17A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 221A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/4kW | 400V/7.5kW | 690V/11kW | 230V/5HP | 460V/10HP | 575V/15HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/22AMetasol MMS-32HI 22A, Standard terminal, Instantaneous (MCP) (Standard) | Frame: 32AF | Capacity Band: Standard (13~40A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 22A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 286A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/4kW | 400V/7.5kW | 690V/15kW | 230V/7-1/2HP | 460V/15HP | 575V/20HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/22A O-RING TERMINALMetasol MMS-32HI 22A, O-Ring Terminal terminal, Instantaneous (MCP) (Standard) | Frame: 32AF | Capacity Band: Standard (13~40A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 22A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 286A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/4kW | 400V/7.5kW | 690V/15kW | 230V/7-1/2HP | 460V/15HP | 575V/20HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/26AMetasol MMS-32HI 26A, Standard terminal, Instantaneous (MCP) (Standard) | Frame: 32AF | Capacity Band: Standard (13~40A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 26A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 338A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/5.5kW | 400V/11kW | 690V/18.5kW | 230V/7-1/2HP | 460V/15HP | 575V/20HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/26A O-RING TERMINALMetasol MMS-32HI 26A, O-Ring Terminal terminal, Instantaneous (MCP) (Standard) | Frame: 32AF | Capacity Band: Standard (13~40A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 26A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 338A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/5.5kW | 400V/11kW | 690V/18.5kW | 230V/7-1/2HP | 460V/15HP | 575V/20HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/32AMetasol MMS-32HI 32A, Standard terminal, Instantaneous (MCP) (Standard) | Frame: 32AF | Capacity Band: Standard (13~40A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 32A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 416A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/7.5kW | 400V/15kW | 690V/22kW | 230V/10HP | 460V/20HP | 575V/30HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/32A O-RING TERMINALMetasol MMS-32HI 32A, O-Ring Terminal terminal, Instantaneous (MCP) (Standard) | Frame: 32AF | Capacity Band: Standard (13~40A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 32A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 416A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/7.5kW | 400V/15kW | 690V/22kW | 230V/10HP | 460V/20HP | 575V/30HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/40AMetasol MMS-32HI 40A, Standard terminal, Instantaneous (MCP) (Standard) | Frame: 32AF | Capacity Band: Standard (13~40A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 40A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 520A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/7.5kW | 400V/18.5kW | 690V/30kW | 230V/15HP | 460V/30HP | 575V/40HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/40A O-RING TERMINALMetasol MMS-32HI 40A, O-Ring Terminal terminal, Instantaneous (MCP) (Standard) | Frame: 32AF | Capacity Band: Standard (13~40A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 40A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 520A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/7.5kW | 400V/18.5kW | 690V/30kW | 230V/15HP | 460V/30HP | 575V/40HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
