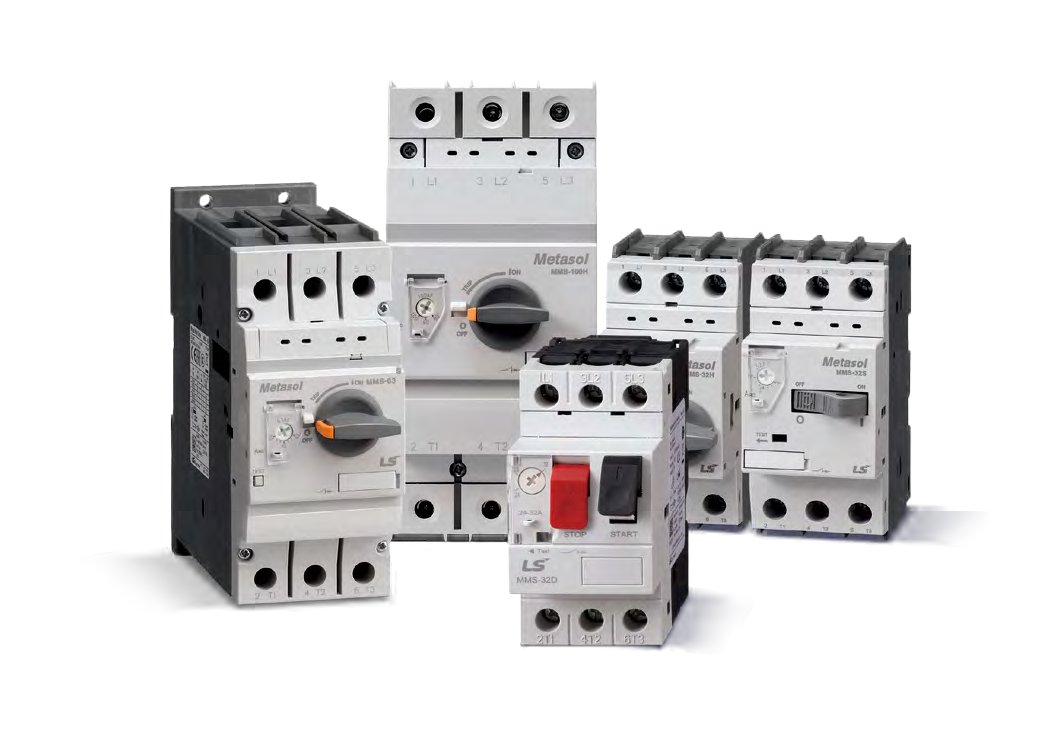

• LS Electric Metasol MMS-32HI Instantaneous (MCP) Manual Motor Starter (32AF, Sub-Amp 0.16~1A, 3-Pole, Rotary Handle)
1 1

LS Electric Metasol MMS-32HI Instantaneous (MCP) Manual Motor Starter (32AF, Sub-Amp 0.16~1A, 3-Pole, Rotary Handle)

LS Electric Metasol MMS-32HI Instantaneous (MCP) Manual Motor Starter (32AF, Sub-Amp 0.16~1A, 3-Pole, Rotary Handle)

Metasol MMS-32HI Manual Motor Starter — Sub-Amp (0.16~1A) variant. 3-pole MCCB-type motor protector combining circuit breaker and thermal overload functions in one compact device.

Key features

  • Motor Circuit Protector — instantaneous magnetic trip only (no overload, no phase-loss)
  • Pair with separate overload relay (e.g., MT-series TOR)
  • Sub-amp range for control circuits, micro motors, instrumentation, and small valve actuators
  • Frame: 32AF, width 45mm
  • Rated insulation voltage Ui = 690V, impulse Uimp = 6kV
  • Up to 690V Ue, 50/60Hz

Specifications

Frame 32AF
Capacity Band Sub-Amp (0.16~1A)
Type Instantaneous (MCP) (HI)
Pole 3-Pole
Adjustment Range Fixed (instantaneous only, no thermal adjustment)
Rated Voltage Ue Up to 690V AC, 50/60Hz
Rated Insulation Ui 690V
Impulse Uimp 6kV
Overload Protection None — pair with external TOR
Phase-Loss Protection No
Handle Rotary
Trip Test Button Yes
MMS-32HI/0.16A Metasol MMS-32HI 0.16A, Standard terminal, Instantaneous (MCP) (Sub-Amp) | Frame: 32AF | Capacity Band: Sub-Amp (0.16~1A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 0.16A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 2.1A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 400V/0.02kW | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/0.16A O-RING TERMINAL Metasol MMS-32HI 0.16A, O-Ring Terminal terminal, Instantaneous (MCP) (Sub-Amp) | Frame: 32AF | Capacity Band: Sub-Amp (0.16~1A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 0.16A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 2.1A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 400V/0.02kW | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/0.25A Metasol MMS-32HI 0.25A, Standard terminal, Instantaneous (MCP) (Sub-Amp) | Frame: 32AF | Capacity Band: Sub-Amp (0.16~1A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 0.25A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 3.3A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/0.03kW | 400V/0.06kW | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/0.25A O-RING TERMINAL Metasol MMS-32HI 0.25A, O-Ring Terminal terminal, Instantaneous (MCP) (Sub-Amp) | Frame: 32AF | Capacity Band: Sub-Amp (0.16~1A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 0.25A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 3.3A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/0.03kW | 400V/0.06kW | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/0.4A Metasol MMS-32HI 0.4A, Standard terminal, Instantaneous (MCP) (Sub-Amp) | Frame: 32AF | Capacity Band: Sub-Amp (0.16~1A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 0.4A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 5.2A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/0.06kW | 400V/0.09kW | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/0.4A O-RING TERMINAL Metasol MMS-32HI 0.4A, O-Ring Terminal terminal, Instantaneous (MCP) (Sub-Amp) | Frame: 32AF | Capacity Band: Sub-Amp (0.16~1A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 0.4A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 5.2A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/0.06kW | 400V/0.09kW | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/0.63A Metasol MMS-32HI 0.63A, Standard terminal, Instantaneous (MCP) (Sub-Amp) | Frame: 32AF | Capacity Band: Sub-Amp (0.16~1A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 0.63A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 8.2A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/0.09kW | 400V/0.12kW | 690V/0.25kW | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/0.63A O-RING TERMINAL Metasol MMS-32HI 0.63A, O-Ring Terminal terminal, Instantaneous (MCP) (Sub-Amp) | Frame: 32AF | Capacity Band: Sub-Amp (0.16~1A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 0.63A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 8.2A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/0.09kW | 400V/0.12kW | 690V/0.25kW | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/1A Metasol MMS-32HI 1A, Standard terminal, Instantaneous (MCP) (Sub-Amp) | Frame: 32AF | Capacity Band: Sub-Amp (0.16~1A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 1A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 13A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/0.12kW | 400V/0.25kW | 690V/0.55kW | 460V/1/2HP | 575V/1/2HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/1A O-RING TERMINAL Metasol MMS-32HI 1A, O-Ring Terminal terminal, Instantaneous (MCP) (Sub-Amp) | Frame: 32AF | Capacity Band: Sub-Amp (0.16~1A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 1A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 13A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/0.12kW | 400V/0.25kW | 690V/0.55kW | 460V/1/2HP | 575V/1/2HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
Manual Motor StartersLS Electric
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Metasol MMS-32HI Instantaneous (MCP) Manual Motor Starter (32AF, Sub-Amp 0.16~1A, 3-Pole, Rotary Handle)

Brand LS Electric·Manual Motor Starters

Available part numbers (10)

MMS-32HI/0.16A, MMS-32HI/0.16A O-RING TERMINAL, MMS-32HI/0.25A, MMS-32HI/0.25A O-RING TERMINAL, MMS-32HI/0.4A, MMS-32HI/0.4A O-RING TERMINAL, MMS-32HI/0.63A, MMS-32HI/0.63A O-RING TERMINAL, MMS-32HI/1A, MMS-32HI/1A O-RING TERMINAL

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MMS-32HI/0.16AMetasol MMS-32HI 0.16A, Standard terminal, Instantaneous (MCP) (Sub-Amp) | Frame: 32AF | Capacity Band: Sub-Amp (0.16~1A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 0.16A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 2.1A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 400V/0.02kW | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/0.16A O-RING TERMINALMetasol MMS-32HI 0.16A, O-Ring Terminal terminal, Instantaneous (MCP) (Sub-Amp) | Frame: 32AF | Capacity Band: Sub-Amp (0.16~1A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 0.16A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 2.1A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 400V/0.02kW | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/0.25AMetasol MMS-32HI 0.25A, Standard terminal, Instantaneous (MCP) (Sub-Amp) | Frame: 32AF | Capacity Band: Sub-Amp (0.16~1A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 0.25A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 3.3A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/0.03kW | 400V/0.06kW | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/0.25A O-RING TERMINALMetasol MMS-32HI 0.25A, O-Ring Terminal terminal, Instantaneous (MCP) (Sub-Amp) | Frame: 32AF | Capacity Band: Sub-Amp (0.16~1A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 0.25A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 3.3A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/0.03kW | 400V/0.06kW | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/0.4AMetasol MMS-32HI 0.4A, Standard terminal, Instantaneous (MCP) (Sub-Amp) | Frame: 32AF | Capacity Band: Sub-Amp (0.16~1A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 0.4A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 5.2A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/0.06kW | 400V/0.09kW | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/0.4A O-RING TERMINALMetasol MMS-32HI 0.4A, O-Ring Terminal terminal, Instantaneous (MCP) (Sub-Amp) | Frame: 32AF | Capacity Band: Sub-Amp (0.16~1A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 0.4A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 5.2A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/0.06kW | 400V/0.09kW | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/0.63AMetasol MMS-32HI 0.63A, Standard terminal, Instantaneous (MCP) (Sub-Amp) | Frame: 32AF | Capacity Band: Sub-Amp (0.16~1A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 0.63A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 8.2A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/0.09kW | 400V/0.12kW | 690V/0.25kW | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/0.63A O-RING TERMINALMetasol MMS-32HI 0.63A, O-Ring Terminal terminal, Instantaneous (MCP) (Sub-Amp) | Frame: 32AF | Capacity Band: Sub-Amp (0.16~1A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 0.63A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 8.2A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/0.09kW | 400V/0.12kW | 690V/0.25kW | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/1AMetasol MMS-32HI 1A, Standard terminal, Instantaneous (MCP) (Sub-Amp) | Frame: 32AF | Capacity Band: Sub-Amp (0.16~1A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 1A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 13A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/0.12kW | 400V/0.25kW | 690V/0.55kW | 460V/1/2HP | 575V/1/2HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-32HI/1A O-RING TERMINALMetasol MMS-32HI 1A, O-Ring Terminal terminal, Instantaneous (MCP) (Sub-Amp) | Frame: 32AF | Capacity Band: Sub-Amp (0.16~1A) | Type: Instantaneous (MCP) (HI) | Pole: 3-Pole | Rated Current Ie: 1A | Adjustment Range: Fixed (instantaneous only, no thermal adjustment) | Instantaneous Trip: 13A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 690V | Impulse Uimp: 6kV | Overload Protection: None — pair with external TOR | Phase-Loss Protection: No | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 100,000 operations | Electrical Life: 100,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 45mm | Weight: ~360g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/0.12kW | 400V/0.25kW | 690V/0.55kW | 460V/1/2HP | 575V/1/2HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
