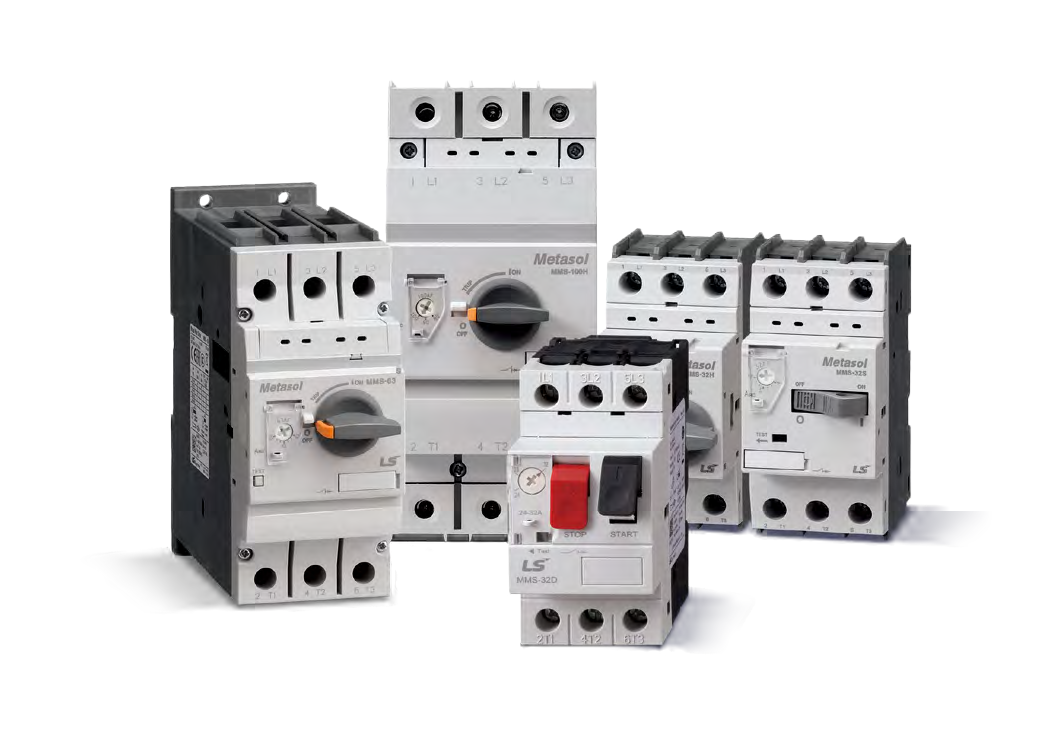

LS Electric Metasol MMS-63H High Breaking Manual Motor Starter (63AF, High Range 32~65A, 3-Pole, Rotary Handle)

LS Electric Metasol MMS-63H High Breaking Manual Motor Starter (63AF, High Range 32~65A, 3-Pole, Rotary Handle)

Metasol MMS-63H Manual Motor Starter — High Range (32~65A) variant. 3-pole MCCB-type motor protector combining circuit breaker and thermal overload functions in one compact device.

Key features

  • High breaking capacity (63AF) with full motor protection: adjustable thermal overload (Class 10), instantaneous magnetic short-circuit, and phase-loss detection
  • Trip-cause indicator on front
  • High range for motors 7.5~30kW (15kW @ 220V / 30kW @ 440V)
  • Frame: 63AF, width 55mm
  • Rated insulation voltage Ui = 1000V, impulse Uimp = 8kV
  • Up to 690V Ue, 50/60Hz

Specifications

Frame 63AF
Capacity Band High Range (32~65A)
Type High Breaking (H)
Pole 3-Pole
Rated Voltage Ue Up to 690V AC, 50/60Hz
Rated Insulation Ui 1000V
Impulse Uimp 8kV
Overload Protection Class 10 (thermal, adjustable)
Phase-Loss Protection Yes
Handle Rotary
Trip Test Button Yes
Trip Cause Indicator Yes (Trip Indicator)
MMS-63H/32A Metasol MMS-63H 32A, Standard terminal, High Breaking (High Range) | Frame: 63AF | Capacity Band: High Range (32~65A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 32A | Adjustment Range: 22~32A (±20% via dial) | Instantaneous Trip: 416A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 55mm | Weight: ~1000g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/7.5kW | 400V/15kW | 690V/22kW | 230V/10HP | 460V/25HP | 575V/30HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-63H/32A O-RING TERMINAL Metasol MMS-63H 32A, O-Ring Terminal terminal, High Breaking (High Range) | Frame: 63AF | Capacity Band: High Range (32~65A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 32A | Adjustment Range: 22~32A (±20% via dial) | Instantaneous Trip: 416A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 55mm | Weight: ~1000g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/7.5kW | 400V/15kW | 690V/22kW | 230V/10HP | 460V/25HP | 575V/30HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-63H/40A Metasol MMS-63H 40A, Standard terminal, High Breaking (High Range) | Frame: 63AF | Capacity Band: High Range (32~65A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 40A | Adjustment Range: 28~40A (±20% via dial) | Instantaneous Trip: 520A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 55mm | Weight: ~1000g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/7.5kW | 400V/18.5kW | 690V/30kW | 230V/15HP | 460V/30HP | 575V/40HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-63H/40A O-RING TERMINAL Metasol MMS-63H 40A, O-Ring Terminal terminal, High Breaking (High Range) | Frame: 63AF | Capacity Band: High Range (32~65A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 40A | Adjustment Range: 28~40A (±20% via dial) | Instantaneous Trip: 520A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 55mm | Weight: ~1000g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/7.5kW | 400V/18.5kW | 690V/30kW | 230V/15HP | 460V/30HP | 575V/40HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-63H/50A Metasol MMS-63H 50A, Standard terminal, High Breaking (High Range) | Frame: 63AF | Capacity Band: High Range (32~65A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 50A | Adjustment Range: 34~50A (±20% via dial) | Instantaneous Trip: 650A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 55mm | Weight: ~1000g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/11kW | 400V/22kW | 690V/45kW | 230V/15HP | 460V/40HP | 575V/50HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-63H/50A O-RING TERMINAL Metasol MMS-63H 50A, O-Ring Terminal terminal, High Breaking (High Range) | Frame: 63AF | Capacity Band: High Range (32~65A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 50A | Adjustment Range: 34~50A (±20% via dial) | Instantaneous Trip: 650A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 55mm | Weight: ~1000g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/11kW | 400V/22kW | 690V/45kW | 230V/15HP | 460V/40HP | 575V/50HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-63H/63A Metasol MMS-63H 63A, Standard terminal, High Breaking (High Range) | Frame: 63AF | Capacity Band: High Range (32~65A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 63A | Adjustment Range: 45~63A (±20% via dial) | Instantaneous Trip: 819A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 55mm | Weight: ~1000g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/15kW | 400V/30kW | 690V/55kW | 230V/20HP | 460V/50HP | 575V/60HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-63H/63A O-RING TERMINAL Metasol MMS-63H 63A, O-Ring Terminal terminal, High Breaking (High Range) | Frame: 63AF | Capacity Band: High Range (32~65A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 63A | Adjustment Range: 45~63A (±20% via dial) | Instantaneous Trip: 819A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 55mm | Weight: ~1000g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/15kW | 400V/30kW | 690V/55kW | 230V/20HP | 460V/50HP | 575V/60HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-63H/65A Metasol MMS-63H 65A, Standard terminal, High Breaking (High Range) | Frame: 63AF | Capacity Band: High Range (32~65A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 65A | Adjustment Range: 47~65A (±20% via dial) | Instantaneous Trip: 845A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 55mm | Weight: ~1000g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/15kW | 400V/30kW | 690V/55kW | 230V/20HP | 460V/50HP | 575V/60HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-63H/65A O-RING TERMINAL Metasol MMS-63H 65A, O-Ring Terminal terminal, High Breaking (High Range) | Frame: 63AF | Capacity Band: High Range (32~65A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 65A | Adjustment Range: 47~65A (±20% via dial) | Instantaneous Trip: 845A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 55mm | Weight: ~1000g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/15kW | 400V/30kW | 690V/55kW | 230V/20HP | 460V/50HP | 575V/60HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
Manual Motor StartersLS Electric
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Metasol MMS-63H High Breaking Manual Motor Starter (63AF, High Range 32~65A, 3-Pole, Rotary Handle)

Brand LS Electric·Manual Motor Starters

Available part numbers (10)

MMS-63H/32A, MMS-63H/32A O-RING TERMINAL, MMS-63H/40A, MMS-63H/40A O-RING TERMINAL, MMS-63H/50A, MMS-63H/50A O-RING TERMINAL, MMS-63H/63A, MMS-63H/63A O-RING TERMINAL, MMS-63H/65A, MMS-63H/65A O-RING TERMINAL

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MMS-63H/32AMetasol MMS-63H 32A, Standard terminal, High Breaking (High Range) | Frame: 63AF | Capacity Band: High Range (32~65A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 32A | Adjustment Range: 22~32A (±20% via dial) | Instantaneous Trip: 416A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 55mm | Weight: ~1000g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/7.5kW | 400V/15kW | 690V/22kW | 230V/10HP | 460V/25HP | 575V/30HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-63H/32A O-RING TERMINALMetasol MMS-63H 32A, O-Ring Terminal terminal, High Breaking (High Range) | Frame: 63AF | Capacity Band: High Range (32~65A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 32A | Adjustment Range: 22~32A (±20% via dial) | Instantaneous Trip: 416A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 55mm | Weight: ~1000g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/7.5kW | 400V/15kW | 690V/22kW | 230V/10HP | 460V/25HP | 575V/30HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-63H/40AMetasol MMS-63H 40A, Standard terminal, High Breaking (High Range) | Frame: 63AF | Capacity Band: High Range (32~65A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 40A | Adjustment Range: 28~40A (±20% via dial) | Instantaneous Trip: 520A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 55mm | Weight: ~1000g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/7.5kW | 400V/18.5kW | 690V/30kW | 230V/15HP | 460V/30HP | 575V/40HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-63H/40A O-RING TERMINALMetasol MMS-63H 40A, O-Ring Terminal terminal, High Breaking (High Range) | Frame: 63AF | Capacity Band: High Range (32~65A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 40A | Adjustment Range: 28~40A (±20% via dial) | Instantaneous Trip: 520A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 55mm | Weight: ~1000g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/7.5kW | 400V/18.5kW | 690V/30kW | 230V/15HP | 460V/30HP | 575V/40HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-63H/50AMetasol MMS-63H 50A, Standard terminal, High Breaking (High Range) | Frame: 63AF | Capacity Band: High Range (32~65A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 50A | Adjustment Range: 34~50A (±20% via dial) | Instantaneous Trip: 650A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 55mm | Weight: ~1000g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/11kW | 400V/22kW | 690V/45kW | 230V/15HP | 460V/40HP | 575V/50HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-63H/50A O-RING TERMINALMetasol MMS-63H 50A, O-Ring Terminal terminal, High Breaking (High Range) | Frame: 63AF | Capacity Band: High Range (32~65A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 50A | Adjustment Range: 34~50A (±20% via dial) | Instantaneous Trip: 650A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 55mm | Weight: ~1000g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/11kW | 400V/22kW | 690V/45kW | 230V/15HP | 460V/40HP | 575V/50HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-63H/63AMetasol MMS-63H 63A, Standard terminal, High Breaking (High Range) | Frame: 63AF | Capacity Band: High Range (32~65A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 63A | Adjustment Range: 45~63A (±20% via dial) | Instantaneous Trip: 819A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 55mm | Weight: ~1000g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/15kW | 400V/30kW | 690V/55kW | 230V/20HP | 460V/50HP | 575V/60HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-63H/63A O-RING TERMINALMetasol MMS-63H 63A, O-Ring Terminal terminal, High Breaking (High Range) | Frame: 63AF | Capacity Band: High Range (32~65A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 63A | Adjustment Range: 45~63A (±20% via dial) | Instantaneous Trip: 819A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 55mm | Weight: ~1000g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/15kW | 400V/30kW | 690V/55kW | 230V/20HP | 460V/50HP | 575V/60HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-63H/65AMetasol MMS-63H 65A, Standard terminal, High Breaking (High Range) | Frame: 63AF | Capacity Band: High Range (32~65A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 65A | Adjustment Range: 47~65A (±20% via dial) | Instantaneous Trip: 845A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: Standard | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 55mm | Weight: ~1000g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/15kW | 400V/30kW | 690V/55kW | 230V/20HP | 460V/50HP | 575V/60HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
MMS-63H/65A O-RING TERMINALMetasol MMS-63H 65A, O-Ring Terminal terminal, High Breaking (High Range) | Frame: 63AF | Capacity Band: High Range (32~65A) | Type: High Breaking (H) | Pole: 3-Pole | Rated Current Ie: 65A | Adjustment Range: 47~65A (±20% via dial) | Instantaneous Trip: 845A (13 × Ie max) | Rated Voltage Ue: Up to 690V AC, 50/60Hz | Rated Insulation Ui: 1000V | Impulse Uimp: 8kV | Overload Protection: Class 10 (thermal, adjustable) | Phase-Loss Protection: Yes | Handle: Rotary | Terminal: O-Ring Terminal | Trip Test Button: Yes | Trip Cause Indicator: Yes (Trip Indicator) | Mechanical Life: 50,000 operations | Electrical Life: 25,000 operations | Operating Temp: -20°C to +60°C (auto compensation) | Width: 55mm | Weight: ~1000g | Mounting: 35mm DIN rail / panel screw | 3-Phase Motor Rating: 230V/15kW | 400V/30kW | 690V/55kW | 230V/20HP | 460V/50HP | 575V/60HP | Standards: IEC 60947-1/-2/-4, UL 508 (Type E), K 60947, GB 14048 | Certifications: CE, KEMA, cULus, EAC, Marine, KC, CCC
