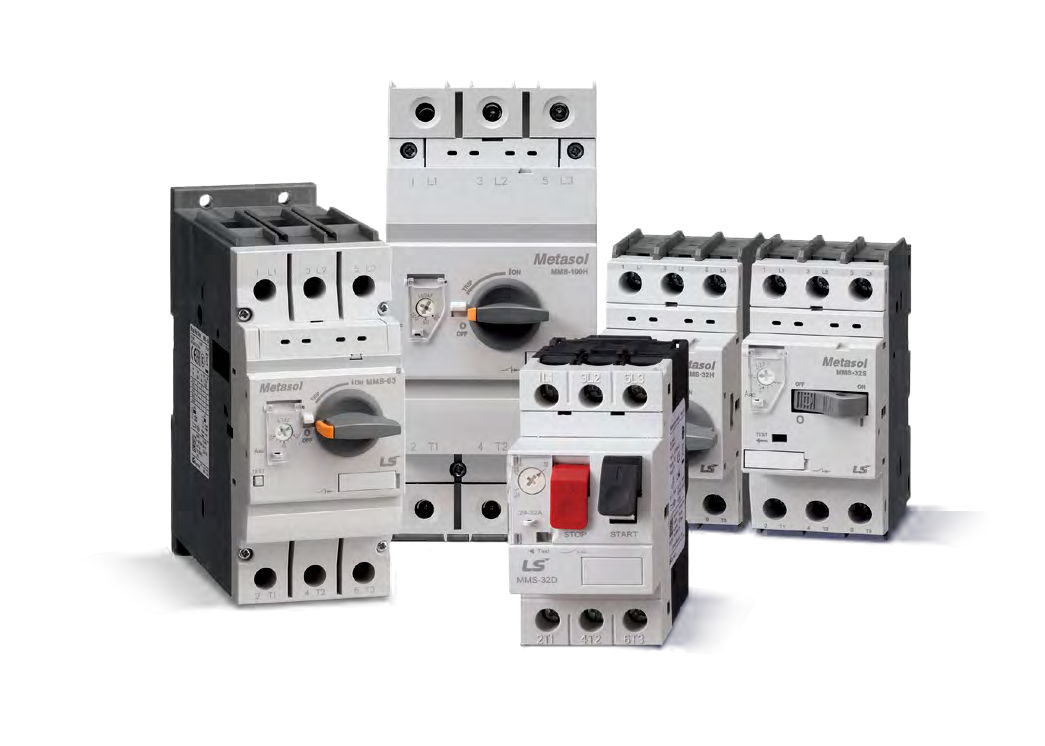

LS Electric Metasol MMS RS Shunt Release Trip (Remote Trip, 6 Voltages)

LS Electric Metasol MMS RS Shunt Release Trip (Remote Trip, 6 Voltages)

RS Shunt Release for remote tripping of Metasol MMS.

Key features

  • Right side-mount, single unit per MMS
  • Operating voltage range 0.7~1.1×Us
  • Available in 6 voltages: 24V, 110V, 220-230V, 240V, 380-400V, 415-440V (50/60Hz)
  • Inrush 8.5VA/6W, holding 3VA/1.2W
  • CRITICAL: do not apply trip signal continuously for more than 10 seconds
  • Mutually exclusive with RU and RUX (only one right-side device permitted)

Specifications

Type Shunt Release (RS)
Function Trips MMS on signal (remote trip)
Mount Right side-mount (single unit only)
Compatible MMS All Metasol MMS frames (32/63/100AF, S/H/HI)
Operating Range 0.7~1.1 × Us (pickup)
Inrush Power 8.5VA / 6W
Holding Power 3VA / 1.2W
Weight 110g
Important Do not apply trip signal for more than 10 seconds continuously
Mutual Exclusion Cannot be installed simultaneously with RU or RUX
RS-AC24 RS Shunt Release Trip, 24V 50Hz / 28V 60Hz | Type: Shunt Release (RS) | Function: Trips MMS on signal (remote trip) | Mount: Right side-mount (single unit only) | Operating Voltage: 24V 50Hz / 28V 60Hz | Compatible MMS: All Metasol MMS frames (32/63/100AF, S/H/HI) | Operating Range: 0.7~1.1 × Us (pickup) | Inrush Power: 8.5VA / 6W | Holding Power: 3VA / 1.2W | Weight: 110g | Important: Do not apply trip signal for more than 10 seconds continuously | Mutual Exclusion: Cannot be installed simultaneously with RU or RUX
RS-AC110 RS Shunt Release Trip, 110V 50Hz / 120V 60Hz | Type: Shunt Release (RS) | Function: Trips MMS on signal (remote trip) | Mount: Right side-mount (single unit only) | Operating Voltage: 110V 50Hz / 120V 60Hz | Compatible MMS: All Metasol MMS frames (32/63/100AF, S/H/HI) | Operating Range: 0.7~1.1 × Us (pickup) | Inrush Power: 8.5VA / 6W | Holding Power: 3VA / 1.2W | Weight: 110g | Important: Do not apply trip signal for more than 10 seconds continuously | Mutual Exclusion: Cannot be installed simultaneously with RU or RUX
RS-AC220 RS Shunt Release Trip, 220-230V 50Hz / 240-260V 60Hz | Type: Shunt Release (RS) | Function: Trips MMS on signal (remote trip) | Mount: Right side-mount (single unit only) | Operating Voltage: 220-230V 50Hz / 240-260V 60Hz | Compatible MMS: All Metasol MMS frames (32/63/100AF, S/H/HI) | Operating Range: 0.7~1.1 × Us (pickup) | Inrush Power: 8.5VA / 6W | Holding Power: 3VA / 1.2W | Weight: 110g | Important: Do not apply trip signal for more than 10 seconds continuously | Mutual Exclusion: Cannot be installed simultaneously with RU or RUX
RS-AC240 RS Shunt Release Trip, 240V 50Hz / 277V 60Hz | Type: Shunt Release (RS) | Function: Trips MMS on signal (remote trip) | Mount: Right side-mount (single unit only) | Operating Voltage: 240V 50Hz / 277V 60Hz | Compatible MMS: All Metasol MMS frames (32/63/100AF, S/H/HI) | Operating Range: 0.7~1.1 × Us (pickup) | Inrush Power: 8.5VA / 6W | Holding Power: 3VA / 1.2W | Weight: 110g | Important: Do not apply trip signal for more than 10 seconds continuously | Mutual Exclusion: Cannot be installed simultaneously with RU or RUX
RS-AC380 RS Shunt Release Trip, 380-400V 50Hz / 440-460V 60Hz | Type: Shunt Release (RS) | Function: Trips MMS on signal (remote trip) | Mount: Right side-mount (single unit only) | Operating Voltage: 380-400V 50Hz / 440-460V 60Hz | Compatible MMS: All Metasol MMS frames (32/63/100AF, S/H/HI) | Operating Range: 0.7~1.1 × Us (pickup) | Inrush Power: 8.5VA / 6W | Holding Power: 3VA / 1.2W | Weight: 110g | Important: Do not apply trip signal for more than 10 seconds continuously | Mutual Exclusion: Cannot be installed simultaneously with RU or RUX
RS-AC415 RS Shunt Release Trip, 415-440V 50Hz / 460-480V 60Hz | Type: Shunt Release (RS) | Function: Trips MMS on signal (remote trip) | Mount: Right side-mount (single unit only) | Operating Voltage: 415-440V 50Hz / 460-480V 60Hz | Compatible MMS: All Metasol MMS frames (32/63/100AF, S/H/HI) | Operating Range: 0.7~1.1 × Us (pickup) | Inrush Power: 8.5VA / 6W | Holding Power: 3VA / 1.2W | Weight: 110g | Important: Do not apply trip signal for more than 10 seconds continuously | Mutual Exclusion: Cannot be installed simultaneously with RU or RUX
AccessoriesLS Electric
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Metasol MMS RS Shunt Release Trip (Remote Trip, 6 Voltages)

Brand LS Electric·Accessories

Available part numbers (6)

RS-AC24, RS-AC110, RS-AC220, RS-AC240, RS-AC380, RS-AC415

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RS-AC24RS Shunt Release Trip, 24V 50Hz / 28V 60Hz | Type: Shunt Release (RS) | Function: Trips MMS on signal (remote trip) | Mount: Right side-mount (single unit only) | Operating Voltage: 24V 50Hz / 28V 60Hz | Compatible MMS: All Metasol MMS frames (32/63/100AF, S/H/HI) | Operating Range: 0.7~1.1 × Us (pickup) | Inrush Power: 8.5VA / 6W | Holding Power: 3VA / 1.2W | Weight: 110g | Important: Do not apply trip signal for more than 10 seconds continuously | Mutual Exclusion: Cannot be installed simultaneously with RU or RUX
RS-AC110RS Shunt Release Trip, 110V 50Hz / 120V 60Hz | Type: Shunt Release (RS) | Function: Trips MMS on signal (remote trip) | Mount: Right side-mount (single unit only) | Operating Voltage: 110V 50Hz / 120V 60Hz | Compatible MMS: All Metasol MMS frames (32/63/100AF, S/H/HI) | Operating Range: 0.7~1.1 × Us (pickup) | Inrush Power: 8.5VA / 6W | Holding Power: 3VA / 1.2W | Weight: 110g | Important: Do not apply trip signal for more than 10 seconds continuously | Mutual Exclusion: Cannot be installed simultaneously with RU or RUX
RS-AC220RS Shunt Release Trip, 220-230V 50Hz / 240-260V 60Hz | Type: Shunt Release (RS) | Function: Trips MMS on signal (remote trip) | Mount: Right side-mount (single unit only) | Operating Voltage: 220-230V 50Hz / 240-260V 60Hz | Compatible MMS: All Metasol MMS frames (32/63/100AF, S/H/HI) | Operating Range: 0.7~1.1 × Us (pickup) | Inrush Power: 8.5VA / 6W | Holding Power: 3VA / 1.2W | Weight: 110g | Important: Do not apply trip signal for more than 10 seconds continuously | Mutual Exclusion: Cannot be installed simultaneously with RU or RUX
RS-AC240RS Shunt Release Trip, 240V 50Hz / 277V 60Hz | Type: Shunt Release (RS) | Function: Trips MMS on signal (remote trip) | Mount: Right side-mount (single unit only) | Operating Voltage: 240V 50Hz / 277V 60Hz | Compatible MMS: All Metasol MMS frames (32/63/100AF, S/H/HI) | Operating Range: 0.7~1.1 × Us (pickup) | Inrush Power: 8.5VA / 6W | Holding Power: 3VA / 1.2W | Weight: 110g | Important: Do not apply trip signal for more than 10 seconds continuously | Mutual Exclusion: Cannot be installed simultaneously with RU or RUX
RS-AC380RS Shunt Release Trip, 380-400V 50Hz / 440-460V 60Hz | Type: Shunt Release (RS) | Function: Trips MMS on signal (remote trip) | Mount: Right side-mount (single unit only) | Operating Voltage: 380-400V 50Hz / 440-460V 60Hz | Compatible MMS: All Metasol MMS frames (32/63/100AF, S/H/HI) | Operating Range: 0.7~1.1 × Us (pickup) | Inrush Power: 8.5VA / 6W | Holding Power: 3VA / 1.2W | Weight: 110g | Important: Do not apply trip signal for more than 10 seconds continuously | Mutual Exclusion: Cannot be installed simultaneously with RU or RUX
RS-AC415RS Shunt Release Trip, 415-440V 50Hz / 460-480V 60Hz | Type: Shunt Release (RS) | Function: Trips MMS on signal (remote trip) | Mount: Right side-mount (single unit only) | Operating Voltage: 415-440V 50Hz / 460-480V 60Hz | Compatible MMS: All Metasol MMS frames (32/63/100AF, S/H/HI) | Operating Range: 0.7~1.1 × Us (pickup) | Inrush Power: 8.5VA / 6W | Holding Power: 3VA / 1.2W | Weight: 110g | Important: Do not apply trip signal for more than 10 seconds continuously | Mutual Exclusion: Cannot be installed simultaneously with RU or RUX
