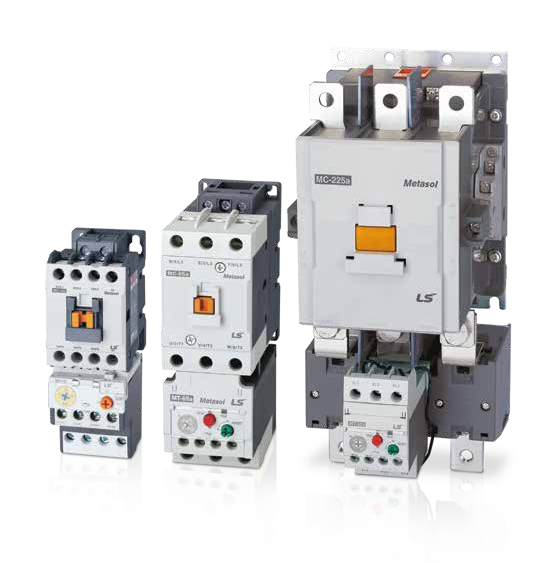

LS Electric Metasol MT-225 Thermal Overload Relay (Class 10A/20)

LS Electric Metasol MT-225 Thermal Overload Relay (Class 10A/20)

LS ELECTRIC Metasol MT-225 Thermal Overload Relay family. | Application: Motor overload protection (combined with MC contactor). | Frame: 225AF | Current setting range: 65~240A | Trip class: 10A (standard) and 20 (delayed) | Variants: 2H (3-pole 2-element), 3H (3-pole 3-element standard), 3K (phase-loss protection), 3D (Class 20 delayed) | Terminal: Screw(S), Lug(L) | Rated insulation Ui: 690V | Uimp: 6kV | Combined contactor: MC-185a, MC-225a | Standard: IEC60947-4-1 | Approval: IEC, UL — see RFQ table for specific MPN.

Specifications

Frame 225AF
Combined contactor MC-185a, MC-225a
Rated insulation 690V
Uimp 6kV
Standard IEC60947-4-1
Approval IEC, UL
MT-225/2H80S Metasol MT-225 2H 80A (65~100A range, Screw) | Frame: 225AF | Current range: 65~100A | Setting value: 80A | Trip class: 10A | Variant: Standard (3-pole 2-element) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/2H80L Metasol MT-225 2H 80A (65~100A range, Lug) | Frame: 225AF | Current range: 65~100A | Setting value: 80A | Trip class: 10A | Variant: Standard (3-pole 2-element) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3H80S Metasol MT-225 3H 80A (65~100A range, Screw) | Frame: 225AF | Current range: 65~100A | Setting value: 80A | Trip class: 10A | Variant: Standard (3-pole 3-element) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3H80L Metasol MT-225 3H 80A (65~100A range, Lug) | Frame: 225AF | Current range: 65~100A | Setting value: 80A | Trip class: 10A | Variant: Standard (3-pole 3-element) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3K80S Metasol MT-225 3K 80A (65~100A range, Screw) | Frame: 225AF | Current range: 65~100A | Setting value: 80A | Trip class: 10A | Variant: Phase-loss protection | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3K80L Metasol MT-225 3K 80A (65~100A range, Lug) | Frame: 225AF | Current range: 65~100A | Setting value: 80A | Trip class: 10A | Variant: Phase-loss protection | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/2H107S Metasol MT-225 2H 107A (85~125A range, Screw) | Frame: 225AF | Current range: 85~125A | Setting value: 107A | Trip class: 10A | Variant: Standard (3-pole 2-element) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/2H107L Metasol MT-225 2H 107A (85~125A range, Lug) | Frame: 225AF | Current range: 85~125A | Setting value: 107A | Trip class: 10A | Variant: Standard (3-pole 2-element) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3H107S Metasol MT-225 3H 107A (85~125A range, Screw) | Frame: 225AF | Current range: 85~125A | Setting value: 107A | Trip class: 10A | Variant: Standard (3-pole 3-element) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3H107L Metasol MT-225 3H 107A (85~125A range, Lug) | Frame: 225AF | Current range: 85~125A | Setting value: 107A | Trip class: 10A | Variant: Standard (3-pole 3-element) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3K107S Metasol MT-225 3K 107A (85~125A range, Screw) | Frame: 225AF | Current range: 85~125A | Setting value: 107A | Trip class: 10A | Variant: Phase-loss protection | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3K107L Metasol MT-225 3K 107A (85~125A range, Lug) | Frame: 225AF | Current range: 85~125A | Setting value: 107A | Trip class: 10A | Variant: Phase-loss protection | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/2H130S Metasol MT-225 2H 130A (100~160A range, Screw) | Frame: 225AF | Current range: 100~160A | Setting value: 130A | Trip class: 10A | Variant: Standard (3-pole 2-element) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/2H130L Metasol MT-225 2H 130A (100~160A range, Lug) | Frame: 225AF | Current range: 100~160A | Setting value: 130A | Trip class: 10A | Variant: Standard (3-pole 2-element) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3H130S Metasol MT-225 3H 130A (100~160A range, Screw) | Frame: 225AF | Current range: 100~160A | Setting value: 130A | Trip class: 10A | Variant: Standard (3-pole 3-element) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3H130L Metasol MT-225 3H 130A (100~160A range, Lug) | Frame: 225AF | Current range: 100~160A | Setting value: 130A | Trip class: 10A | Variant: Standard (3-pole 3-element) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3K130S Metasol MT-225 3K 130A (100~160A range, Screw) | Frame: 225AF | Current range: 100~160A | Setting value: 130A | Trip class: 10A | Variant: Phase-loss protection | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3K130L Metasol MT-225 3K 130A (100~160A range, Lug) | Frame: 225AF | Current range: 100~160A | Setting value: 130A | Trip class: 10A | Variant: Phase-loss protection | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/2H153S Metasol MT-225 2H 153A (120~185A range, Screw) | Frame: 225AF | Current range: 120~185A | Setting value: 153A | Trip class: 10A | Variant: Standard (3-pole 2-element) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/2H153L Metasol MT-225 2H 153A (120~185A range, Lug) | Frame: 225AF | Current range: 120~185A | Setting value: 153A | Trip class: 10A | Variant: Standard (3-pole 2-element) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3H153S Metasol MT-225 3H 153A (120~185A range, Screw) | Frame: 225AF | Current range: 120~185A | Setting value: 153A | Trip class: 10A | Variant: Standard (3-pole 3-element) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3H153L Metasol MT-225 3H 153A (120~185A range, Lug) | Frame: 225AF | Current range: 120~185A | Setting value: 153A | Trip class: 10A | Variant: Standard (3-pole 3-element) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3K153S Metasol MT-225 3K 153A (120~185A range, Screw) | Frame: 225AF | Current range: 120~185A | Setting value: 153A | Trip class: 10A | Variant: Phase-loss protection | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3K153L Metasol MT-225 3K 153A (120~185A range, Lug) | Frame: 225AF | Current range: 120~185A | Setting value: 153A | Trip class: 10A | Variant: Phase-loss protection | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/2H200S Metasol MT-225 2H 200A (160~240A range, Screw) | Frame: 225AF | Current range: 160~240A | Setting value: 200A | Trip class: 10A | Variant: Standard (3-pole 2-element) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/2H200L Metasol MT-225 2H 200A (160~240A range, Lug) | Frame: 225AF | Current range: 160~240A | Setting value: 200A | Trip class: 10A | Variant: Standard (3-pole 2-element) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3H200S Metasol MT-225 3H 200A (160~240A range, Screw) | Frame: 225AF | Current range: 160~240A | Setting value: 200A | Trip class: 10A | Variant: Standard (3-pole 3-element) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3H200L Metasol MT-225 3H 200A (160~240A range, Lug) | Frame: 225AF | Current range: 160~240A | Setting value: 200A | Trip class: 10A | Variant: Standard (3-pole 3-element) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3K200S Metasol MT-225 3K 200A (160~240A range, Screw) | Frame: 225AF | Current range: 160~240A | Setting value: 200A | Trip class: 10A | Variant: Phase-loss protection | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3K200L Metasol MT-225 3K 200A (160~240A range, Lug) | Frame: 225AF | Current range: 160~240A | Setting value: 200A | Trip class: 10A | Variant: Phase-loss protection | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3D80S Metasol MT-225 3D (Class 20) 80A (65~100A range, Screw) | Frame: 225AF | Current range: 65~100A | Setting value: 80A | Trip class: 20 (delayed) | Variant: Phase-loss protection (delayed) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3D80L Metasol MT-225 3D (Class 20) 80A (65~100A range, Lug) | Frame: 225AF | Current range: 65~100A | Setting value: 80A | Trip class: 20 (delayed) | Variant: Phase-loss protection (delayed) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3D107S Metasol MT-225 3D (Class 20) 107A (85~125A range, Screw) | Frame: 225AF | Current range: 85~125A | Setting value: 107A | Trip class: 20 (delayed) | Variant: Phase-loss protection (delayed) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3D107L Metasol MT-225 3D (Class 20) 107A (85~125A range, Lug) | Frame: 225AF | Current range: 85~125A | Setting value: 107A | Trip class: 20 (delayed) | Variant: Phase-loss protection (delayed) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3D130S Metasol MT-225 3D (Class 20) 130A (100~160A range, Screw) | Frame: 225AF | Current range: 100~160A | Setting value: 130A | Trip class: 20 (delayed) | Variant: Phase-loss protection (delayed) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3D130L Metasol MT-225 3D (Class 20) 130A (100~160A range, Lug) | Frame: 225AF | Current range: 100~160A | Setting value: 130A | Trip class: 20 (delayed) | Variant: Phase-loss protection (delayed) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3D153S Metasol MT-225 3D (Class 20) 153A (120~185A range, Screw) | Frame: 225AF | Current range: 120~185A | Setting value: 153A | Trip class: 20 (delayed) | Variant: Phase-loss protection (delayed) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3D153L Metasol MT-225 3D (Class 20) 153A (120~185A range, Lug) | Frame: 225AF | Current range: 120~185A | Setting value: 153A | Trip class: 20 (delayed) | Variant: Phase-loss protection (delayed) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3D200S Metasol MT-225 3D (Class 20) 200A (160~240A range, Screw) | Frame: 225AF | Current range: 160~240A | Setting value: 200A | Trip class: 20 (delayed) | Variant: Phase-loss protection (delayed) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3D200L Metasol MT-225 3D (Class 20) 200A (160~240A range, Lug) | Frame: 225AF | Current range: 160~240A | Setting value: 200A | Trip class: 20 (delayed) | Variant: Phase-loss protection (delayed) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
Overload RelaysLS Electric
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Metasol MT-225 Thermal Overload Relay (Class 10A/20)

Brand LS Electric·Overload Relays

Available part numbers (40)

MT-225/2H80S, MT-225/2H80L, MT-225/3H80S, MT-225/3H80L, MT-225/3K80S, MT-225/3K80L, MT-225/2H107S, MT-225/2H107L, MT-225/3H107S, MT-225/3H107L + 30 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MT-225/2H80SMetasol MT-225 2H 80A (65~100A range, Screw) | Frame: 225AF | Current range: 65~100A | Setting value: 80A | Trip class: 10A | Variant: Standard (3-pole 2-element) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/2H80LMetasol MT-225 2H 80A (65~100A range, Lug) | Frame: 225AF | Current range: 65~100A | Setting value: 80A | Trip class: 10A | Variant: Standard (3-pole 2-element) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3H80SMetasol MT-225 3H 80A (65~100A range, Screw) | Frame: 225AF | Current range: 65~100A | Setting value: 80A | Trip class: 10A | Variant: Standard (3-pole 3-element) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3H80LMetasol MT-225 3H 80A (65~100A range, Lug) | Frame: 225AF | Current range: 65~100A | Setting value: 80A | Trip class: 10A | Variant: Standard (3-pole 3-element) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3K80SMetasol MT-225 3K 80A (65~100A range, Screw) | Frame: 225AF | Current range: 65~100A | Setting value: 80A | Trip class: 10A | Variant: Phase-loss protection | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3K80LMetasol MT-225 3K 80A (65~100A range, Lug) | Frame: 225AF | Current range: 65~100A | Setting value: 80A | Trip class: 10A | Variant: Phase-loss protection | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/2H107SMetasol MT-225 2H 107A (85~125A range, Screw) | Frame: 225AF | Current range: 85~125A | Setting value: 107A | Trip class: 10A | Variant: Standard (3-pole 2-element) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/2H107LMetasol MT-225 2H 107A (85~125A range, Lug) | Frame: 225AF | Current range: 85~125A | Setting value: 107A | Trip class: 10A | Variant: Standard (3-pole 2-element) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3H107SMetasol MT-225 3H 107A (85~125A range, Screw) | Frame: 225AF | Current range: 85~125A | Setting value: 107A | Trip class: 10A | Variant: Standard (3-pole 3-element) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3H107LMetasol MT-225 3H 107A (85~125A range, Lug) | Frame: 225AF | Current range: 85~125A | Setting value: 107A | Trip class: 10A | Variant: Standard (3-pole 3-element) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3K107SMetasol MT-225 3K 107A (85~125A range, Screw) | Frame: 225AF | Current range: 85~125A | Setting value: 107A | Trip class: 10A | Variant: Phase-loss protection | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3K107LMetasol MT-225 3K 107A (85~125A range, Lug) | Frame: 225AF | Current range: 85~125A | Setting value: 107A | Trip class: 10A | Variant: Phase-loss protection | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/2H130SMetasol MT-225 2H 130A (100~160A range, Screw) | Frame: 225AF | Current range: 100~160A | Setting value: 130A | Trip class: 10A | Variant: Standard (3-pole 2-element) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/2H130LMetasol MT-225 2H 130A (100~160A range, Lug) | Frame: 225AF | Current range: 100~160A | Setting value: 130A | Trip class: 10A | Variant: Standard (3-pole 2-element) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3H130SMetasol MT-225 3H 130A (100~160A range, Screw) | Frame: 225AF | Current range: 100~160A | Setting value: 130A | Trip class: 10A | Variant: Standard (3-pole 3-element) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3H130LMetasol MT-225 3H 130A (100~160A range, Lug) | Frame: 225AF | Current range: 100~160A | Setting value: 130A | Trip class: 10A | Variant: Standard (3-pole 3-element) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3K130SMetasol MT-225 3K 130A (100~160A range, Screw) | Frame: 225AF | Current range: 100~160A | Setting value: 130A | Trip class: 10A | Variant: Phase-loss protection | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3K130LMetasol MT-225 3K 130A (100~160A range, Lug) | Frame: 225AF | Current range: 100~160A | Setting value: 130A | Trip class: 10A | Variant: Phase-loss protection | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/2H153SMetasol MT-225 2H 153A (120~185A range, Screw) | Frame: 225AF | Current range: 120~185A | Setting value: 153A | Trip class: 10A | Variant: Standard (3-pole 2-element) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/2H153LMetasol MT-225 2H 153A (120~185A range, Lug) | Frame: 225AF | Current range: 120~185A | Setting value: 153A | Trip class: 10A | Variant: Standard (3-pole 2-element) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3H153SMetasol MT-225 3H 153A (120~185A range, Screw) | Frame: 225AF | Current range: 120~185A | Setting value: 153A | Trip class: 10A | Variant: Standard (3-pole 3-element) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3H153LMetasol MT-225 3H 153A (120~185A range, Lug) | Frame: 225AF | Current range: 120~185A | Setting value: 153A | Trip class: 10A | Variant: Standard (3-pole 3-element) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3K153SMetasol MT-225 3K 153A (120~185A range, Screw) | Frame: 225AF | Current range: 120~185A | Setting value: 153A | Trip class: 10A | Variant: Phase-loss protection | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3K153LMetasol MT-225 3K 153A (120~185A range, Lug) | Frame: 225AF | Current range: 120~185A | Setting value: 153A | Trip class: 10A | Variant: Phase-loss protection | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/2H200SMetasol MT-225 2H 200A (160~240A range, Screw) | Frame: 225AF | Current range: 160~240A | Setting value: 200A | Trip class: 10A | Variant: Standard (3-pole 2-element) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/2H200LMetasol MT-225 2H 200A (160~240A range, Lug) | Frame: 225AF | Current range: 160~240A | Setting value: 200A | Trip class: 10A | Variant: Standard (3-pole 2-element) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3H200SMetasol MT-225 3H 200A (160~240A range, Screw) | Frame: 225AF | Current range: 160~240A | Setting value: 200A | Trip class: 10A | Variant: Standard (3-pole 3-element) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3H200LMetasol MT-225 3H 200A (160~240A range, Lug) | Frame: 225AF | Current range: 160~240A | Setting value: 200A | Trip class: 10A | Variant: Standard (3-pole 3-element) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3K200SMetasol MT-225 3K 200A (160~240A range, Screw) | Frame: 225AF | Current range: 160~240A | Setting value: 200A | Trip class: 10A | Variant: Phase-loss protection | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3K200LMetasol MT-225 3K 200A (160~240A range, Lug) | Frame: 225AF | Current range: 160~240A | Setting value: 200A | Trip class: 10A | Variant: Phase-loss protection | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3D80SMetasol MT-225 3D (Class 20) 80A (65~100A range, Screw) | Frame: 225AF | Current range: 65~100A | Setting value: 80A | Trip class: 20 (delayed) | Variant: Phase-loss protection (delayed) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3D80LMetasol MT-225 3D (Class 20) 80A (65~100A range, Lug) | Frame: 225AF | Current range: 65~100A | Setting value: 80A | Trip class: 20 (delayed) | Variant: Phase-loss protection (delayed) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3D107SMetasol MT-225 3D (Class 20) 107A (85~125A range, Screw) | Frame: 225AF | Current range: 85~125A | Setting value: 107A | Trip class: 20 (delayed) | Variant: Phase-loss protection (delayed) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3D107LMetasol MT-225 3D (Class 20) 107A (85~125A range, Lug) | Frame: 225AF | Current range: 85~125A | Setting value: 107A | Trip class: 20 (delayed) | Variant: Phase-loss protection (delayed) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3D130SMetasol MT-225 3D (Class 20) 130A (100~160A range, Screw) | Frame: 225AF | Current range: 100~160A | Setting value: 130A | Trip class: 20 (delayed) | Variant: Phase-loss protection (delayed) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3D130LMetasol MT-225 3D (Class 20) 130A (100~160A range, Lug) | Frame: 225AF | Current range: 100~160A | Setting value: 130A | Trip class: 20 (delayed) | Variant: Phase-loss protection (delayed) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3D153SMetasol MT-225 3D (Class 20) 153A (120~185A range, Screw) | Frame: 225AF | Current range: 120~185A | Setting value: 153A | Trip class: 20 (delayed) | Variant: Phase-loss protection (delayed) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3D153LMetasol MT-225 3D (Class 20) 153A (120~185A range, Lug) | Frame: 225AF | Current range: 120~185A | Setting value: 153A | Trip class: 20 (delayed) | Variant: Phase-loss protection (delayed) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3D200SMetasol MT-225 3D (Class 20) 200A (160~240A range, Screw) | Frame: 225AF | Current range: 160~240A | Setting value: 200A | Trip class: 20 (delayed) | Variant: Phase-loss protection (delayed) | Terminal: Screw | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL
MT-225/3D200LMetasol MT-225 3D (Class 20) 200A (160~240A range, Lug) | Frame: 225AF | Current range: 160~240A | Setting value: 200A | Trip class: 20 (delayed) | Variant: Phase-loss protection (delayed) | Terminal: Lug | Combined contactor: MC-185a, MC-225a | Rated insulation: 690V | Uimp: 6kV | Standard: IEC60947-4-1 | Approval: IEC, UL

Need a different model, or a part not listed here? Send us your parts list →
