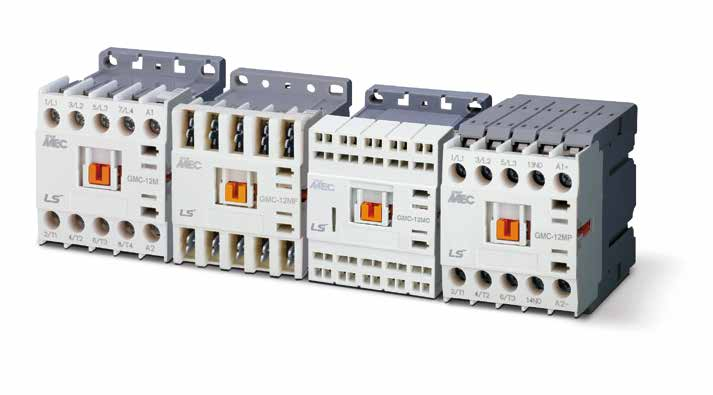

LS Electric Mini MC-12M Reversing Magnetic Contactor (12A AC-3, Cage Clamp, DC Wide-range 2W)

LS Electric Mini MC-12M Reversing Magnetic Contactor (12A AC-3, Cage Clamp, DC Wide-range 2W)

Meta-MEC Mini Magnetic Contactor MC-12M, Cage Clamp terminals, DC Wide-range 2W coil (2W consumption). 3kW @ 220-240V / 5.5kW @ 380-440V. 3-pole and 4-pole variants.

Key features

  • Compliant with IEC 60947-4, K 60947, UL 508
  • KEMA Type Tested
  • Certifications: UL, CE, CCC, KS
  • Mechanical interlock built-in for forward/reverse motor control

Specifications

Rated Current AC-3 12A
Coil Power 2W
Frequency DC
Terminal Cage Clamp
GMD-12MCR/DC12-2/01 Mini Reversing MC-12M, Cage Clamp, DC12V | Pole: 3-Pole | Frame: MC-12M | Rated Current AC-3: 12A | Coil: DC12V | Coil Power: 2W | Frequency: DC | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 3kW@220V / 5.5kW@440V
GMD-12MC/4R/DC12-2 Mini Reversing MC-12M/4 (4NO), Cage Clamp, DC12V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC12V | Coil Power: 2W | Frequency: DC | Terminal: Cage Clamp | Type: Reversing
GMD-12MC/4R/DC12-2/2A2B Mini Reversing MC-12M/4 (2NO+2NC), Cage Clamp, DC12V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC12V | Coil Power: 2W | Frequency: DC | Terminal: Cage Clamp | Type: Reversing
GMD-12MCR/DC20-2/01 Mini Reversing MC-12M, Cage Clamp, DC20V | Pole: 3-Pole | Frame: MC-12M | Rated Current AC-3: 12A | Coil: DC20V | Coil Power: 2W | Frequency: DC | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 3kW@220V / 5.5kW@440V
GMD-12MC/4R/DC20-2 Mini Reversing MC-12M/4 (4NO), Cage Clamp, DC20V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC20V | Coil Power: 2W | Frequency: DC | Terminal: Cage Clamp | Type: Reversing
GMD-12MC/4R/DC20-2/2A2B Mini Reversing MC-12M/4 (2NO+2NC), Cage Clamp, DC20V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC20V | Coil Power: 2W | Frequency: DC | Terminal: Cage Clamp | Type: Reversing
GMD-12MCR/DC24-2/01 Mini Reversing MC-12M, Cage Clamp, DC24V | Pole: 3-Pole | Frame: MC-12M | Rated Current AC-3: 12A | Coil: DC24V | Coil Power: 2W | Frequency: DC | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 3kW@220V / 5.5kW@440V
GMD-12MC/4R/DC24-2 Mini Reversing MC-12M/4 (4NO), Cage Clamp, DC24V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC24V | Coil Power: 2W | Frequency: DC | Terminal: Cage Clamp | Type: Reversing
GMD-12MC/4R/DC24-2/2A2B Mini Reversing MC-12M/4 (2NO+2NC), Cage Clamp, DC24V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC24V | Coil Power: 2W | Frequency: DC | Terminal: Cage Clamp | Type: Reversing
GMD-12MCR/DC48-2/01 Mini Reversing MC-12M, Cage Clamp, DC48V | Pole: 3-Pole | Frame: MC-12M | Rated Current AC-3: 12A | Coil: DC48V | Coil Power: 2W | Frequency: DC | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 3kW@220V / 5.5kW@440V
GMD-12MC/4R/DC48-2 Mini Reversing MC-12M/4 (4NO), Cage Clamp, DC48V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC48V | Coil Power: 2W | Frequency: DC | Terminal: Cage Clamp | Type: Reversing
GMD-12MC/4R/DC48-2/2A2B Mini Reversing MC-12M/4 (2NO+2NC), Cage Clamp, DC48V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC48V | Coil Power: 2W | Frequency: DC | Terminal: Cage Clamp | Type: Reversing
GMD-12MCR/DC72-2/01 Mini Reversing MC-12M, Cage Clamp, DC72V | Pole: 3-Pole | Frame: MC-12M | Rated Current AC-3: 12A | Coil: DC72V | Coil Power: 2W | Frequency: DC | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 3kW@220V / 5.5kW@440V
GMD-12MC/4R/DC72-2 Mini Reversing MC-12M/4 (4NO), Cage Clamp, DC72V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC72V | Coil Power: 2W | Frequency: DC | Terminal: Cage Clamp | Type: Reversing
GMD-12MC/4R/DC72-2/2A2B Mini Reversing MC-12M/4 (2NO+2NC), Cage Clamp, DC72V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC72V | Coil Power: 2W | Frequency: DC | Terminal: Cage Clamp | Type: Reversing
GMD-12MCR/DC110-2/01 Mini Reversing MC-12M, Cage Clamp, DC110V | Pole: 3-Pole | Frame: MC-12M | Rated Current AC-3: 12A | Coil: DC110V | Coil Power: 2W | Frequency: DC | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 3kW@220V / 5.5kW@440V
GMD-12MC/4R/DC110-2 Mini Reversing MC-12M/4 (4NO), Cage Clamp, DC110V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC110V | Coil Power: 2W | Frequency: DC | Terminal: Cage Clamp | Type: Reversing
GMD-12MC/4R/DC110-2/2A2B Mini Reversing MC-12M/4 (2NO+2NC), Cage Clamp, DC110V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC110V | Coil Power: 2W | Frequency: DC | Terminal: Cage Clamp | Type: Reversing
GMD-12MCR/DC120-2/01 Mini Reversing MC-12M, Cage Clamp, DC120V | Pole: 3-Pole | Frame: MC-12M | Rated Current AC-3: 12A | Coil: DC120V | Coil Power: 2W | Frequency: DC | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 3kW@220V / 5.5kW@440V
GMD-12MC/4R/DC120-2 Mini Reversing MC-12M/4 (4NO), Cage Clamp, DC120V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC120V | Coil Power: 2W | Frequency: DC | Terminal: Cage Clamp | Type: Reversing
GMD-12MC/4R/DC120-2/2A2B Mini Reversing MC-12M/4 (2NO+2NC), Cage Clamp, DC120V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC120V | Coil Power: 2W | Frequency: DC | Terminal: Cage Clamp | Type: Reversing
Magnetic ContactorsLS Electric
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Mini MC-12M Reversing Magnetic Contactor (12A AC-3, Cage Clamp, DC Wide-range 2W)

Brand LS Electric·Magnetic Contactors

Available part numbers (21)

GMD-12MCR/DC12-2/01, GMD-12MC/4R/DC12-2, GMD-12MC/4R/DC12-2/2A2B, GMD-12MCR/DC20-2/01, GMD-12MC/4R/DC20-2, GMD-12MC/4R/DC20-2/2A2B, GMD-12MCR/DC24-2/01, GMD-12MC/4R/DC24-2, GMD-12MC/4R/DC24-2/2A2B, GMD-12MCR/DC48-2/01 + 11 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
