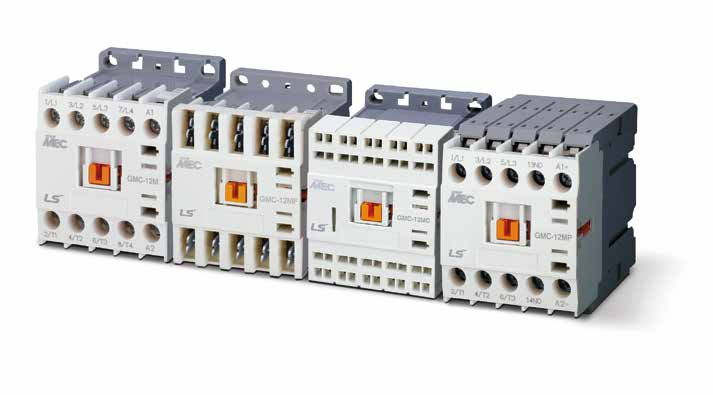

LS Electric Mini MC-12M Reversing Magnetic Contactor (12A AC-3, Screw, DC Standard 3W)

LS Electric Mini MC-12M Reversing Magnetic Contactor (12A AC-3, Screw, DC Standard 3W)

Meta-MEC Mini Magnetic Contactor MC-12M, Screw terminals, DC Standard 3W coil (3W consumption). 3kW @ 220-240V / 5.5kW @ 380-440V. 3-pole and 4-pole variants.

Key features

  • Compliant with IEC 60947-4, K 60947, UL 508
  • KEMA Type Tested
  • Certifications: UL, CE, CCC, KS
  • Mechanical interlock built-in for forward/reverse motor control

Specifications

Rated Current AC-3 12A
Coil Power 3W
Frequency DC
Terminal Screw
GMD-12MR/DC12-3/01 Mini Reversing MC-12M, Screw, DC12V | Pole: 3-Pole | Frame: MC-12M | Rated Current AC-3: 12A | Coil: DC12V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 3kW@220V / 5.5kW@440V
GMD-12M/4R/DC12-3 Mini Reversing MC-12M/4 (4NO), Screw, DC12V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC12V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12M/4R/DC12-3/2A2B Mini Reversing MC-12M/4 (2NO+2NC), Screw, DC12V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC12V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12MR/DC24-3/01 Mini Reversing MC-12M, Screw, DC24V | Pole: 3-Pole | Frame: MC-12M | Rated Current AC-3: 12A | Coil: DC24V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 3kW@220V / 5.5kW@440V
GMD-12M/4R/DC24-3 Mini Reversing MC-12M/4 (4NO), Screw, DC24V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC24V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12M/4R/DC24-3/2A2B Mini Reversing MC-12M/4 (2NO+2NC), Screw, DC24V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC24V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12MR/DC36-3/01 Mini Reversing MC-12M, Screw, DC36V | Pole: 3-Pole | Frame: MC-12M | Rated Current AC-3: 12A | Coil: DC36V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 3kW@220V / 5.5kW@440V
GMD-12M/4R/DC36-3 Mini Reversing MC-12M/4 (4NO), Screw, DC36V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC36V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12M/4R/DC36-3/2A2B Mini Reversing MC-12M/4 (2NO+2NC), Screw, DC36V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC36V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12MR/DC48-3/01 Mini Reversing MC-12M, Screw, DC48V | Pole: 3-Pole | Frame: MC-12M | Rated Current AC-3: 12A | Coil: DC48V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 3kW@220V / 5.5kW@440V
GMD-12M/4R/DC48-3 Mini Reversing MC-12M/4 (4NO), Screw, DC48V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC48V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12M/4R/DC48-3/2A2B Mini Reversing MC-12M/4 (2NO+2NC), Screw, DC48V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC48V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12MR/DC110-3/01 Mini Reversing MC-12M, Screw, DC110V | Pole: 3-Pole | Frame: MC-12M | Rated Current AC-3: 12A | Coil: DC110V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 3kW@220V / 5.5kW@440V
GMD-12M/4R/DC110-3 Mini Reversing MC-12M/4 (4NO), Screw, DC110V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC110V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12M/4R/DC110-3/2A2B Mini Reversing MC-12M/4 (2NO+2NC), Screw, DC110V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC110V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12MR/DC120-3/01 Mini Reversing MC-12M, Screw, DC120V | Pole: 3-Pole | Frame: MC-12M | Rated Current AC-3: 12A | Coil: DC120V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 3kW@220V / 5.5kW@440V
GMD-12M/4R/DC120-3 Mini Reversing MC-12M/4 (4NO), Screw, DC120V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC120V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12M/4R/DC120-3/2A2B Mini Reversing MC-12M/4 (2NO+2NC), Screw, DC120V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC120V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12MR/DC220-3/01 Mini Reversing MC-12M, Screw, DC220V | Pole: 3-Pole | Frame: MC-12M | Rated Current AC-3: 12A | Coil: DC220V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 3kW@220V / 5.5kW@440V
GMD-12M/4R/DC220-3 Mini Reversing MC-12M/4 (4NO), Screw, DC220V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC220V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12M/4R/DC220-3/2A2B Mini Reversing MC-12M/4 (2NO+2NC), Screw, DC220V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC220V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12MR/DC240-3/01 Mini Reversing MC-12M, Screw, DC240V | Pole: 3-Pole | Frame: MC-12M | Rated Current AC-3: 12A | Coil: DC240V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 3kW@220V / 5.5kW@440V
GMD-12M/4R/DC240-3 Mini Reversing MC-12M/4 (4NO), Screw, DC240V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC240V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12M/4R/DC240-3/2A2B Mini Reversing MC-12M/4 (2NO+2NC), Screw, DC240V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC240V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12MR/DC250-3/01 Mini Reversing MC-12M, Screw, DC250V | Pole: 3-Pole | Frame: MC-12M | Rated Current AC-3: 12A | Coil: DC250V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 3kW@220V / 5.5kW@440V
GMD-12M/4R/DC250-3 Mini Reversing MC-12M/4 (4NO), Screw, DC250V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC250V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12M/4R/DC250-3/2A2B Mini Reversing MC-12M/4 (2NO+2NC), Screw, DC250V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC250V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
Magnetic ContactorsLS Electric
27 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Mini MC-12M Reversing Magnetic Contactor (12A AC-3, Screw, DC Standard 3W)

Brand LS Electric·Magnetic Contactors

Available part numbers (27)

GMD-12MR/DC12-3/01, GMD-12M/4R/DC12-3, GMD-12M/4R/DC12-3/2A2B, GMD-12MR/DC24-3/01, GMD-12M/4R/DC24-3, GMD-12M/4R/DC24-3/2A2B, GMD-12MR/DC36-3/01, GMD-12M/4R/DC36-3, GMD-12M/4R/DC36-3/2A2B, GMD-12MR/DC48-3/01 + 17 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GMD-12MR/DC12-3/01Mini Reversing MC-12M, Screw, DC12V | Pole: 3-Pole | Frame: MC-12M | Rated Current AC-3: 12A | Coil: DC12V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 3kW@220V / 5.5kW@440V
GMD-12M/4R/DC12-3Mini Reversing MC-12M/4 (4NO), Screw, DC12V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC12V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12M/4R/DC12-3/2A2BMini Reversing MC-12M/4 (2NO+2NC), Screw, DC12V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC12V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12MR/DC24-3/01Mini Reversing MC-12M, Screw, DC24V | Pole: 3-Pole | Frame: MC-12M | Rated Current AC-3: 12A | Coil: DC24V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 3kW@220V / 5.5kW@440V
GMD-12M/4R/DC24-3Mini Reversing MC-12M/4 (4NO), Screw, DC24V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC24V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12M/4R/DC24-3/2A2BMini Reversing MC-12M/4 (2NO+2NC), Screw, DC24V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC24V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12MR/DC36-3/01Mini Reversing MC-12M, Screw, DC36V | Pole: 3-Pole | Frame: MC-12M | Rated Current AC-3: 12A | Coil: DC36V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 3kW@220V / 5.5kW@440V
GMD-12M/4R/DC36-3Mini Reversing MC-12M/4 (4NO), Screw, DC36V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC36V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12M/4R/DC36-3/2A2BMini Reversing MC-12M/4 (2NO+2NC), Screw, DC36V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC36V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12MR/DC48-3/01Mini Reversing MC-12M, Screw, DC48V | Pole: 3-Pole | Frame: MC-12M | Rated Current AC-3: 12A | Coil: DC48V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 3kW@220V / 5.5kW@440V
GMD-12M/4R/DC48-3Mini Reversing MC-12M/4 (4NO), Screw, DC48V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC48V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12M/4R/DC48-3/2A2BMini Reversing MC-12M/4 (2NO+2NC), Screw, DC48V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC48V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12MR/DC110-3/01Mini Reversing MC-12M, Screw, DC110V | Pole: 3-Pole | Frame: MC-12M | Rated Current AC-3: 12A | Coil: DC110V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 3kW@220V / 5.5kW@440V
GMD-12M/4R/DC110-3Mini Reversing MC-12M/4 (4NO), Screw, DC110V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC110V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12M/4R/DC110-3/2A2BMini Reversing MC-12M/4 (2NO+2NC), Screw, DC110V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC110V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12MR/DC120-3/01Mini Reversing MC-12M, Screw, DC120V | Pole: 3-Pole | Frame: MC-12M | Rated Current AC-3: 12A | Coil: DC120V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 3kW@220V / 5.5kW@440V
GMD-12M/4R/DC120-3Mini Reversing MC-12M/4 (4NO), Screw, DC120V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC120V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12M/4R/DC120-3/2A2BMini Reversing MC-12M/4 (2NO+2NC), Screw, DC120V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC120V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12MR/DC220-3/01Mini Reversing MC-12M, Screw, DC220V | Pole: 3-Pole | Frame: MC-12M | Rated Current AC-3: 12A | Coil: DC220V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 3kW@220V / 5.5kW@440V
GMD-12M/4R/DC220-3Mini Reversing MC-12M/4 (4NO), Screw, DC220V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC220V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12M/4R/DC220-3/2A2BMini Reversing MC-12M/4 (2NO+2NC), Screw, DC220V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC220V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12MR/DC240-3/01Mini Reversing MC-12M, Screw, DC240V | Pole: 3-Pole | Frame: MC-12M | Rated Current AC-3: 12A | Coil: DC240V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 3kW@220V / 5.5kW@440V
GMD-12M/4R/DC240-3Mini Reversing MC-12M/4 (4NO), Screw, DC240V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC240V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12M/4R/DC240-3/2A2BMini Reversing MC-12M/4 (2NO+2NC), Screw, DC240V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC240V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12MR/DC250-3/01Mini Reversing MC-12M, Screw, DC250V | Pole: 3-Pole | Frame: MC-12M | Rated Current AC-3: 12A | Coil: DC250V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 3kW@220V / 5.5kW@440V
GMD-12M/4R/DC250-3Mini Reversing MC-12M/4 (4NO), Screw, DC250V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC250V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
GMD-12M/4R/DC250-3/2A2BMini Reversing MC-12M/4 (2NO+2NC), Screw, DC250V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-12M/4 | Rated Current AC-3: 12A | Coil: DC250V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Type: Reversing
