• LS Electric Mini MC-16M Reversing Magnetic Contactor (16A AC-3, Cage Clamp, AC 50/60Hz)
1 1

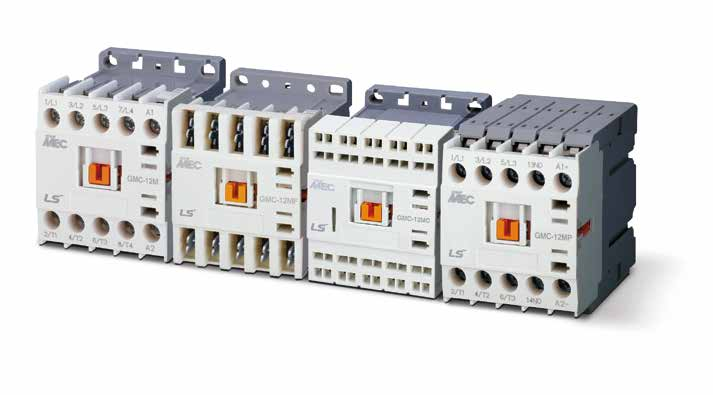

LS Electric Mini MC-16M Reversing Magnetic Contactor (16A AC-3, Cage Clamp, AC 50/60Hz)

LS Electric Mini MC-16M Reversing Magnetic Contactor (16A AC-3, Cage Clamp, AC 50/60Hz)

Meta-MEC Mini Magnetic Contactor MC-16M, Cage Clamp terminals, AC 50/60Hz coil (2W consumption). 4kW @ 220-240V / 7.5kW @ 380-440V. 3-pole and 4-pole variants.

Key features

  • Compliant with IEC 60947-4, K 60947, UL 508
  • KEMA Type Tested
  • Certifications: UL, CE, CCC, KS
  • Mechanical interlock built-in for forward/reverse motor control

Specifications

Rated Current AC-3 16A
Coil Power 2W
Frequency 50/60Hz
Terminal Cage Clamp
GMC-16MCR/AC24/01 Mini Reversing MC-16M, Cage Clamp, AC24V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC24V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC24 Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC24V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC24V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC24/2A2B Mini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC24V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC24V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MCR/AC36/01 Mini Reversing MC-16M, Cage Clamp, AC36V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC36V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC36 Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC36V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC36V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC36/2A2B Mini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC36V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC36V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MCR/AC48/01 Mini Reversing MC-16M, Cage Clamp, AC48V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC48V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC48 Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC48V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC48V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC48/2A2B Mini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC48V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC48V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MCR/AC110/01 Mini Reversing MC-16M, Cage Clamp, AC110V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC110V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC110 Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC110V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC110V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC110/2A2B Mini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC110V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC110V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MCR/AC120/01 Mini Reversing MC-16M, Cage Clamp, AC120V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC120V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC120 Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC120V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC120V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC120/2A2B Mini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC120V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC120V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MCR/AC220/01 Mini Reversing MC-16M, Cage Clamp, AC220V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC220V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC220 Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC220V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC220V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC220/2A2B Mini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC220V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC220V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MCR/AC277/01 Mini Reversing MC-16M, Cage Clamp, AC277V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC277V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC277 Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC277V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC277V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC277/2A2B Mini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC277V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC277V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MCR/AC380/01 Mini Reversing MC-16M, Cage Clamp, AC380V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC380V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC380 Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC380V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC380V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC380/2A2B Mini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC380V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC380V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MCR/AC400/01 Mini Reversing MC-16M, Cage Clamp, AC400V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC400V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC400 Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC400V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC400V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC400/2A2B Mini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC400V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC400V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MCR/AC440/01 Mini Reversing MC-16M, Cage Clamp, AC440V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC440V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC440 Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC440V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC440V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC440/2A2B Mini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC440V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC440V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MCR/AC480/01 Mini Reversing MC-16M, Cage Clamp, AC480V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC480V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC480 Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC480V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC480V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC480/2A2B Mini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC480V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC480V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MCR/AC500/01 Mini Reversing MC-16M, Cage Clamp, AC500V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC500V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC500 Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC500V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC500V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC500/2A2B Mini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC500V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC500V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MCR/AC550/01 Mini Reversing MC-16M, Cage Clamp, AC550V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC550V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC550 Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC550V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC550V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC550/2A2B Mini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC550V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC550V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
Magnetic ContactorsLS Electric
39 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Mini MC-16M Reversing Magnetic Contactor (16A AC-3, Cage Clamp, AC 50/60Hz)

Brand LS Electric·Magnetic Contactors

Available part numbers (39)

GMC-16MCR/AC24/01, GMC-16MC/4R/AC24, GMC-16MC/4R/AC24/2A2B, GMC-16MCR/AC36/01, GMC-16MC/4R/AC36, GMC-16MC/4R/AC36/2A2B, GMC-16MCR/AC48/01, GMC-16MC/4R/AC48, GMC-16MC/4R/AC48/2A2B, GMC-16MCR/AC110/01 + 29 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GMC-16MCR/AC24/01Mini Reversing MC-16M, Cage Clamp, AC24V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC24V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC24Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC24V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC24V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC24/2A2BMini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC24V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC24V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MCR/AC36/01Mini Reversing MC-16M, Cage Clamp, AC36V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC36V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC36Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC36V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC36V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC36/2A2BMini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC36V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC36V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MCR/AC48/01Mini Reversing MC-16M, Cage Clamp, AC48V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC48V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC48Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC48V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC48V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC48/2A2BMini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC48V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC48V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MCR/AC110/01Mini Reversing MC-16M, Cage Clamp, AC110V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC110V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC110Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC110V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC110V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC110/2A2BMini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC110V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC110V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MCR/AC120/01Mini Reversing MC-16M, Cage Clamp, AC120V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC120V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC120Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC120V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC120V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC120/2A2BMini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC120V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC120V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MCR/AC220/01Mini Reversing MC-16M, Cage Clamp, AC220V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC220V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC220Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC220V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC220V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC220/2A2BMini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC220V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC220V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MCR/AC277/01Mini Reversing MC-16M, Cage Clamp, AC277V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC277V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC277Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC277V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC277V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC277/2A2BMini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC277V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC277V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MCR/AC380/01Mini Reversing MC-16M, Cage Clamp, AC380V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC380V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC380Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC380V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC380V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC380/2A2BMini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC380V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC380V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MCR/AC400/01Mini Reversing MC-16M, Cage Clamp, AC400V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC400V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC400Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC400V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC400V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC400/2A2BMini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC400V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC400V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MCR/AC440/01Mini Reversing MC-16M, Cage Clamp, AC440V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC440V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC440Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC440V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC440V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC440/2A2BMini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC440V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC440V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MCR/AC480/01Mini Reversing MC-16M, Cage Clamp, AC480V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC480V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC480Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC480V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC480V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC480/2A2BMini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC480V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC480V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MCR/AC500/01Mini Reversing MC-16M, Cage Clamp, AC500V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC500V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC500Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC500V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC500V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC500/2A2BMini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC500V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC500V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MCR/AC550/01Mini Reversing MC-16M, Cage Clamp, AC550V | Pole: 3-Pole | Frame: MC-16M | Rated Current AC-3: 16A | Coil: AC550V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Aux Contact: 1b×2 (NC, fixed) | Type: Reversing (mechanical interlock built-in) | Capacity: 4kW@220V / 7.5kW@440V
GMC-16MC/4R/AC550Mini Reversing MC-16M/4 (4NO), Cage Clamp, AC550V | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC550V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
GMC-16MC/4R/AC550/2A2BMini Reversing MC-16M/4 (2NO+2NC), Cage Clamp, AC550V | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-16M/4 | Rated Current AC-3: 16A | Coil: AC550V | Coil Power: 2W | Frequency: 50/60Hz | Terminal: Cage Clamp | Type: Reversing
