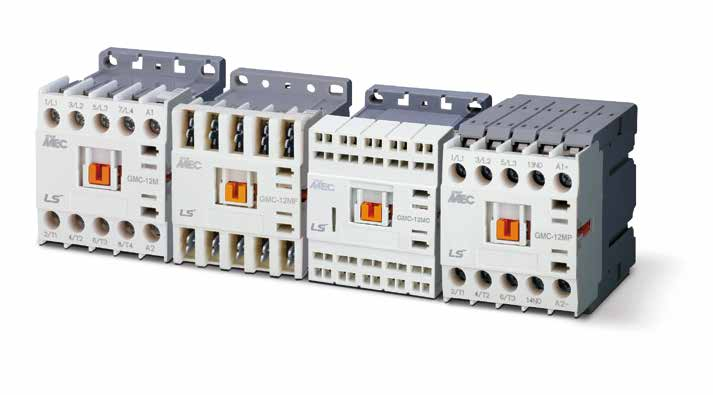

LS Electric Mini MC-6M Reversing Magnetic Contactor (6A AC-3, Screw, DC Wide-range 2W)

Meta-MEC Mini Magnetic Contactor MC-6M, Screw terminals, DC Wide-range 2W coil (2W consumption). 1.5kW @ 220-240V / 2.2kW @ 380-440V. 3-pole and 4-pole variants.

Key features

Compliant with IEC 60947-4, K 60947, UL 508
KEMA Type Tested
Certifications: UL, CE, CCC, KS
Mechanical interlock built-in for forward/reverse motor control

Specifications

Rated Current AC-3	6A
Coil Power	2W
Frequency	DC
Terminal	Screw

GMD-6MR/DC12-2/01		Mini Reversing MC-6M, Screw, DC12V \| Pole: 3-Pole \| Frame: MC-6M \| Rated Current AC-3: 6A \| Coil: DC12V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Aux Contact: 1b×2 (NC, fixed) \| Type: Reversing (mechanical interlock built-in) \| Capacity: 1.5kW@220V / 2.2kW@440V
GMD-6M/4R/DC12-2		Mini Reversing MC-6M/4 (4NO), Screw, DC12V \| Pole: 4-Pole \| Main Contact: 4 NO \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC12V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
GMD-6M/4R/DC12-2/2A2B		Mini Reversing MC-6M/4 (2NO+2NC), Screw, DC12V \| Pole: 4-Pole \| Main Contact: 2 NO + 2 NC \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC12V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
GMD-6MR/DC20-2/01		Mini Reversing MC-6M, Screw, DC20V \| Pole: 3-Pole \| Frame: MC-6M \| Rated Current AC-3: 6A \| Coil: DC20V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Aux Contact: 1b×2 (NC, fixed) \| Type: Reversing (mechanical interlock built-in) \| Capacity: 1.5kW@220V / 2.2kW@440V
GMD-6M/4R/DC20-2		Mini Reversing MC-6M/4 (4NO), Screw, DC20V \| Pole: 4-Pole \| Main Contact: 4 NO \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC20V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
GMD-6M/4R/DC20-2/2A2B		Mini Reversing MC-6M/4 (2NO+2NC), Screw, DC20V \| Pole: 4-Pole \| Main Contact: 2 NO + 2 NC \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC20V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
GMD-6MR/DC24-2/01		Mini Reversing MC-6M, Screw, DC24V \| Pole: 3-Pole \| Frame: MC-6M \| Rated Current AC-3: 6A \| Coil: DC24V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Aux Contact: 1b×2 (NC, fixed) \| Type: Reversing (mechanical interlock built-in) \| Capacity: 1.5kW@220V / 2.2kW@440V
GMD-6M/4R/DC24-2		Mini Reversing MC-6M/4 (4NO), Screw, DC24V \| Pole: 4-Pole \| Main Contact: 4 NO \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC24V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
GMD-6M/4R/DC24-2/2A2B		Mini Reversing MC-6M/4 (2NO+2NC), Screw, DC24V \| Pole: 4-Pole \| Main Contact: 2 NO + 2 NC \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC24V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
GMD-6MR/DC48-2/01		Mini Reversing MC-6M, Screw, DC48V \| Pole: 3-Pole \| Frame: MC-6M \| Rated Current AC-3: 6A \| Coil: DC48V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Aux Contact: 1b×2 (NC, fixed) \| Type: Reversing (mechanical interlock built-in) \| Capacity: 1.5kW@220V / 2.2kW@440V
GMD-6M/4R/DC48-2		Mini Reversing MC-6M/4 (4NO), Screw, DC48V \| Pole: 4-Pole \| Main Contact: 4 NO \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC48V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
GMD-6M/4R/DC48-2/2A2B		Mini Reversing MC-6M/4 (2NO+2NC), Screw, DC48V \| Pole: 4-Pole \| Main Contact: 2 NO + 2 NC \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC48V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
GMD-6MR/DC72-2/01		Mini Reversing MC-6M, Screw, DC72V \| Pole: 3-Pole \| Frame: MC-6M \| Rated Current AC-3: 6A \| Coil: DC72V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Aux Contact: 1b×2 (NC, fixed) \| Type: Reversing (mechanical interlock built-in) \| Capacity: 1.5kW@220V / 2.2kW@440V
GMD-6M/4R/DC72-2		Mini Reversing MC-6M/4 (4NO), Screw, DC72V \| Pole: 4-Pole \| Main Contact: 4 NO \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC72V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
GMD-6M/4R/DC72-2/2A2B		Mini Reversing MC-6M/4 (2NO+2NC), Screw, DC72V \| Pole: 4-Pole \| Main Contact: 2 NO + 2 NC \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC72V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
GMD-6MR/DC110-2/01		Mini Reversing MC-6M, Screw, DC110V \| Pole: 3-Pole \| Frame: MC-6M \| Rated Current AC-3: 6A \| Coil: DC110V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Aux Contact: 1b×2 (NC, fixed) \| Type: Reversing (mechanical interlock built-in) \| Capacity: 1.5kW@220V / 2.2kW@440V
GMD-6M/4R/DC110-2		Mini Reversing MC-6M/4 (4NO), Screw, DC110V \| Pole: 4-Pole \| Main Contact: 4 NO \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC110V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
GMD-6M/4R/DC110-2/2A2B		Mini Reversing MC-6M/4 (2NO+2NC), Screw, DC110V \| Pole: 4-Pole \| Main Contact: 2 NO + 2 NC \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC110V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
GMD-6MR/DC120-2/01		Mini Reversing MC-6M, Screw, DC120V \| Pole: 3-Pole \| Frame: MC-6M \| Rated Current AC-3: 6A \| Coil: DC120V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Aux Contact: 1b×2 (NC, fixed) \| Type: Reversing (mechanical interlock built-in) \| Capacity: 1.5kW@220V / 2.2kW@440V
GMD-6M/4R/DC120-2		Mini Reversing MC-6M/4 (4NO), Screw, DC120V \| Pole: 4-Pole \| Main Contact: 4 NO \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC120V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
GMD-6M/4R/DC120-2/2A2B		Mini Reversing MC-6M/4 (2NO+2NC), Screw, DC120V \| Pole: 4-Pole \| Main Contact: 2 NO + 2 NC \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC120V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing

Magnetic ContactorsLS Electric

21 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Mini MC-6M Reversing Magnetic Contactor (6A AC-3, Screw, DC Wide-range 2W)

Brand LS Electric·Magnetic Contactors

Available part numbers (21)

GMD-6MR/DC12-2/01, GMD-6M/4R/DC12-2, GMD-6M/4R/DC12-2/2A2B, GMD-6MR/DC20-2/01, GMD-6M/4R/DC20-2, GMD-6M/4R/DC20-2/2A2B, GMD-6MR/DC24-2/01, GMD-6M/4R/DC24-2, GMD-6M/4R/DC24-2/2A2B, GMD-6MR/DC48-2/01 + 11 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	GMD-6MR/DC12-2/01	Mini Reversing MC-6M, Screw, DC12V \| Pole: 3-Pole \| Frame: MC-6M \| Rated Current AC-3: 6A \| Coil: DC12V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Aux Contact: 1b×2 (NC, fixed) \| Type: Reversing (mechanical interlock built-in) \| Capacity: 1.5kW@220V / 2.2kW@440V
	GMD-6M/4R/DC12-2	Mini Reversing MC-6M/4 (4NO), Screw, DC12V \| Pole: 4-Pole \| Main Contact: 4 NO \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC12V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
	GMD-6M/4R/DC12-2/2A2B	Mini Reversing MC-6M/4 (2NO+2NC), Screw, DC12V \| Pole: 4-Pole \| Main Contact: 2 NO + 2 NC \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC12V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
	GMD-6MR/DC20-2/01	Mini Reversing MC-6M, Screw, DC20V \| Pole: 3-Pole \| Frame: MC-6M \| Rated Current AC-3: 6A \| Coil: DC20V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Aux Contact: 1b×2 (NC, fixed) \| Type: Reversing (mechanical interlock built-in) \| Capacity: 1.5kW@220V / 2.2kW@440V
	GMD-6M/4R/DC20-2	Mini Reversing MC-6M/4 (4NO), Screw, DC20V \| Pole: 4-Pole \| Main Contact: 4 NO \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC20V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
	GMD-6M/4R/DC20-2/2A2B	Mini Reversing MC-6M/4 (2NO+2NC), Screw, DC20V \| Pole: 4-Pole \| Main Contact: 2 NO + 2 NC \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC20V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
	GMD-6MR/DC24-2/01	Mini Reversing MC-6M, Screw, DC24V \| Pole: 3-Pole \| Frame: MC-6M \| Rated Current AC-3: 6A \| Coil: DC24V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Aux Contact: 1b×2 (NC, fixed) \| Type: Reversing (mechanical interlock built-in) \| Capacity: 1.5kW@220V / 2.2kW@440V
	GMD-6M/4R/DC24-2	Mini Reversing MC-6M/4 (4NO), Screw, DC24V \| Pole: 4-Pole \| Main Contact: 4 NO \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC24V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
	GMD-6M/4R/DC24-2/2A2B	Mini Reversing MC-6M/4 (2NO+2NC), Screw, DC24V \| Pole: 4-Pole \| Main Contact: 2 NO + 2 NC \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC24V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
	GMD-6MR/DC48-2/01	Mini Reversing MC-6M, Screw, DC48V \| Pole: 3-Pole \| Frame: MC-6M \| Rated Current AC-3: 6A \| Coil: DC48V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Aux Contact: 1b×2 (NC, fixed) \| Type: Reversing (mechanical interlock built-in) \| Capacity: 1.5kW@220V / 2.2kW@440V
	GMD-6M/4R/DC48-2	Mini Reversing MC-6M/4 (4NO), Screw, DC48V \| Pole: 4-Pole \| Main Contact: 4 NO \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC48V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
	GMD-6M/4R/DC48-2/2A2B	Mini Reversing MC-6M/4 (2NO+2NC), Screw, DC48V \| Pole: 4-Pole \| Main Contact: 2 NO + 2 NC \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC48V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
	GMD-6MR/DC72-2/01	Mini Reversing MC-6M, Screw, DC72V \| Pole: 3-Pole \| Frame: MC-6M \| Rated Current AC-3: 6A \| Coil: DC72V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Aux Contact: 1b×2 (NC, fixed) \| Type: Reversing (mechanical interlock built-in) \| Capacity: 1.5kW@220V / 2.2kW@440V
	GMD-6M/4R/DC72-2	Mini Reversing MC-6M/4 (4NO), Screw, DC72V \| Pole: 4-Pole \| Main Contact: 4 NO \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC72V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
	GMD-6M/4R/DC72-2/2A2B	Mini Reversing MC-6M/4 (2NO+2NC), Screw, DC72V \| Pole: 4-Pole \| Main Contact: 2 NO + 2 NC \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC72V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
	GMD-6MR/DC110-2/01	Mini Reversing MC-6M, Screw, DC110V \| Pole: 3-Pole \| Frame: MC-6M \| Rated Current AC-3: 6A \| Coil: DC110V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Aux Contact: 1b×2 (NC, fixed) \| Type: Reversing (mechanical interlock built-in) \| Capacity: 1.5kW@220V / 2.2kW@440V
	GMD-6M/4R/DC110-2	Mini Reversing MC-6M/4 (4NO), Screw, DC110V \| Pole: 4-Pole \| Main Contact: 4 NO \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC110V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
	GMD-6M/4R/DC110-2/2A2B	Mini Reversing MC-6M/4 (2NO+2NC), Screw, DC110V \| Pole: 4-Pole \| Main Contact: 2 NO + 2 NC \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC110V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
	GMD-6MR/DC120-2/01	Mini Reversing MC-6M, Screw, DC120V \| Pole: 3-Pole \| Frame: MC-6M \| Rated Current AC-3: 6A \| Coil: DC120V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Aux Contact: 1b×2 (NC, fixed) \| Type: Reversing (mechanical interlock built-in) \| Capacity: 1.5kW@220V / 2.2kW@440V
	GMD-6M/4R/DC120-2	Mini Reversing MC-6M/4 (4NO), Screw, DC120V \| Pole: 4-Pole \| Main Contact: 4 NO \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC120V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
	GMD-6M/4R/DC120-2/2A2B	Mini Reversing MC-6M/4 (2NO+2NC), Screw, DC120V \| Pole: 4-Pole \| Main Contact: 2 NO + 2 NC \| Frame: MC-6M/4 \| Rated Current AC-3: 6A \| Coil: DC120V \| Coil Power: 2W \| Frequency: DC \| Terminal: Screw \| Type: Reversing
