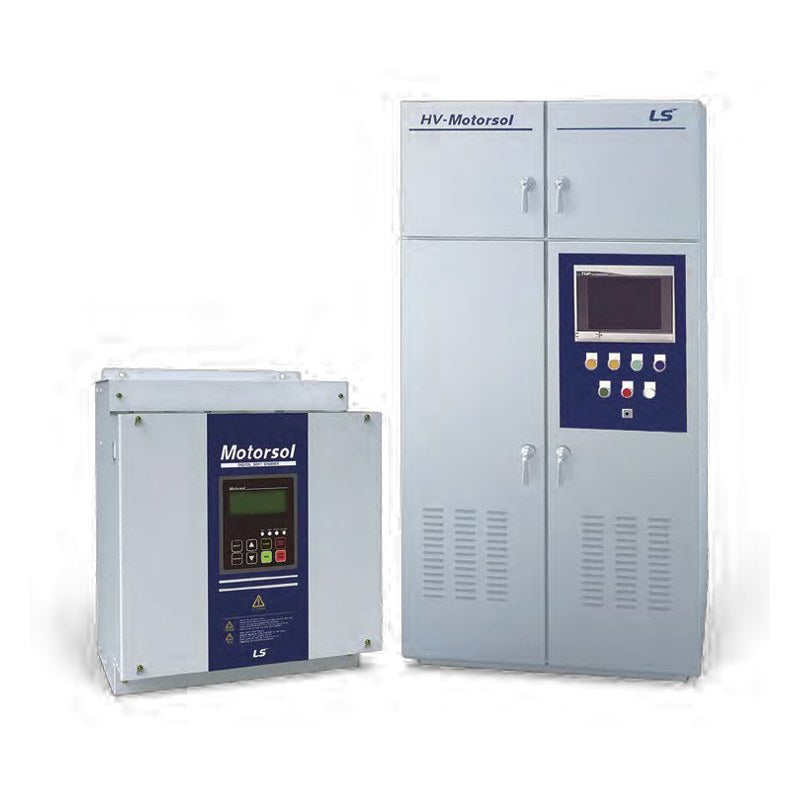

LS Electric Motorsol LHVS Medium Voltage Soft Starter (350-3800 kW)

LS Electric Motorsol LHVS Medium Voltage Soft Starter (350-3800 kW)

LS Electric Motorsol LHVS medium voltage soft starter panels for 3300 V and 6600 V motors from 350 kW to 3800 kW, with VCS bypass and optional incoming VCB.

Key features

  • 3300 V (350, 750, 1500 kW) and 6600 V (350 to 3800 kW) ratings
  • By-pass vacuum contactor switch (VCS) built in; incoming VCB 12.5/25/40 kA selectable
  • Touch monitor setup with EMPR and soft starter fault lamps; GIMAC-V meter option
  • Soft, kick and current-limit start; soft stop
  • Self-standing cubicle with heat sink natural cooling

Specifications

Supply voltage 3300 / 6600 V, 3-phase
Starting current 4 x rated current
Ambient temperature -10 to 50 C
Humidity 90% RH max., non-condensing
Cooling Heat sink natural cooling
Insulation resistance 1000 V, 500 Mohm min.
Ordering options VCB rating, VCS, meter (D/N); consult LS Electric
Source LS Electric Motorsol Soft Starter catalog C01581-07 (2018-03), p. 7, 12-13, 18
LHVS3035050Hz Supply voltage: 3300 V | Motor rating: 350 kW | Rated current: 80 A | Frequency: 50 Hz | Size W x D x H: 1300x1500x2350 mm
LHVS3035060Hz Supply voltage: 3300 V | Motor rating: 350 kW | Rated current: 80 A | Frequency: 60 Hz | Size W x D x H: 1300x1500x2350 mm
LHVS6035050Hz Supply voltage: 6600 V | Motor rating: 350 kW | Rated current: 40 A | Frequency: 50 Hz | Size W x D x H: 1300x1500x2350 mm
LHVS6035060Hz Supply voltage: 6600 V | Motor rating: 350 kW | Rated current: 40 A | Frequency: 60 Hz | Size W x D x H: 1300x1500x2350 mm
LHVS3075050Hz Supply voltage: 3300 V | Motor rating: 750 kW | Rated current: 160 A | Frequency: 50 Hz | Size W x D x H: 1300x1500x2350 mm
LHVS3075060Hz Supply voltage: 3300 V | Motor rating: 750 kW | Rated current: 160 A | Frequency: 60 Hz | Size W x D x H: 1300x1500x2350 mm
LHVS6075050Hz Supply voltage: 6600 V | Motor rating: 750 kW | Rated current: 80 A | Frequency: 50 Hz | Size W x D x H: 1300x1500x2350 mm
LHVS6075060Hz Supply voltage: 6600 V | Motor rating: 750 kW | Rated current: 80 A | Frequency: 60 Hz | Size W x D x H: 1300x1500x2350 mm
LHVS6120050Hz Supply voltage: 6600 V | Motor rating: 1200 kW | Rated current: 130 A | Frequency: 50 Hz | Size W x D x H: 1300x1500x2350 mm
LHVS6120060Hz Supply voltage: 6600 V | Motor rating: 1200 kW | Rated current: 130 A | Frequency: 60 Hz | Size W x D x H: 1300x1500x2350 mm
LHVS3150050Hz Supply voltage: 3300 V | Motor rating: 1500 kW | Rated current: 330 A | Frequency: 50 Hz | Size W x D x H: 1600x1800x2350 mm
LHVS3150060Hz Supply voltage: 3300 V | Motor rating: 1500 kW | Rated current: 330 A | Frequency: 60 Hz | Size W x D x H: 1600x1800x2350 mm
LHVS6150050Hz Supply voltage: 6600 V | Motor rating: 1500 kW | Rated current: 160 A | Frequency: 50 Hz | Size W x D x H: 1300x1500x2350 mm
LHVS6150060Hz Supply voltage: 6600 V | Motor rating: 1500 kW | Rated current: 160 A | Frequency: 60 Hz | Size W x D x H: 1300x1500x2350 mm
LHVS6180050Hz Supply voltage: 6600 V | Motor rating: 1800 kW | Rated current: 200 A | Frequency: 50 Hz | Size W x D x H: 1600x1800x2350 mm
LHVS6180060Hz Supply voltage: 6600 V | Motor rating: 1800 kW | Rated current: 200 A | Frequency: 60 Hz | Size W x D x H: 1600x1800x2350 mm
LHVS6250050Hz Supply voltage: 6600 V | Motor rating: 2500 kW | Rated current: 270 A | Frequency: 50 Hz | Size W x D x H: 2000x2200x2350 mm
LHVS6250060Hz Supply voltage: 6600 V | Motor rating: 2500 kW | Rated current: 270 A | Frequency: 60 Hz | Size W x D x H: 2000x2200x2350 mm
LHVS6380050Hz Supply voltage: 6600 V | Motor rating: 3800 kW | Rated current: 410 A | Frequency: 50 Hz | Size W x D x H: 2000x2200x2350 mm
LHVS6380060Hz Supply voltage: 6600 V | Motor rating: 3800 kW | Rated current: 410 A | Frequency: 60 Hz | Size W x D x H: 2000x2200x2350 mm
Soft StartersLS Electric
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Motorsol LHVS Medium Voltage Soft Starter (350-3800 kW)

Brand LS Electric·Soft Starters

Available part numbers (20)

LHVS3035050Hz, LHVS3035060Hz, LHVS6035050Hz, LHVS6035060Hz, LHVS3075050Hz, LHVS3075060Hz, LHVS6075050Hz, LHVS6075060Hz, LHVS6120050Hz, LHVS6120060Hz + 10 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LHVS3035050HzSupply voltage: 3300 V | Motor rating: 350 kW | Rated current: 80 A | Frequency: 50 Hz | Size W x D x H: 1300x1500x2350 mm
LHVS3035060HzSupply voltage: 3300 V | Motor rating: 350 kW | Rated current: 80 A | Frequency: 60 Hz | Size W x D x H: 1300x1500x2350 mm
LHVS6035050HzSupply voltage: 6600 V | Motor rating: 350 kW | Rated current: 40 A | Frequency: 50 Hz | Size W x D x H: 1300x1500x2350 mm
LHVS6035060HzSupply voltage: 6600 V | Motor rating: 350 kW | Rated current: 40 A | Frequency: 60 Hz | Size W x D x H: 1300x1500x2350 mm
LHVS3075050HzSupply voltage: 3300 V | Motor rating: 750 kW | Rated current: 160 A | Frequency: 50 Hz | Size W x D x H: 1300x1500x2350 mm
LHVS3075060HzSupply voltage: 3300 V | Motor rating: 750 kW | Rated current: 160 A | Frequency: 60 Hz | Size W x D x H: 1300x1500x2350 mm
LHVS6075050HzSupply voltage: 6600 V | Motor rating: 750 kW | Rated current: 80 A | Frequency: 50 Hz | Size W x D x H: 1300x1500x2350 mm
LHVS6075060HzSupply voltage: 6600 V | Motor rating: 750 kW | Rated current: 80 A | Frequency: 60 Hz | Size W x D x H: 1300x1500x2350 mm
LHVS6120050HzSupply voltage: 6600 V | Motor rating: 1200 kW | Rated current: 130 A | Frequency: 50 Hz | Size W x D x H: 1300x1500x2350 mm
LHVS6120060HzSupply voltage: 6600 V | Motor rating: 1200 kW | Rated current: 130 A | Frequency: 60 Hz | Size W x D x H: 1300x1500x2350 mm
LHVS3150050HzSupply voltage: 3300 V | Motor rating: 1500 kW | Rated current: 330 A | Frequency: 50 Hz | Size W x D x H: 1600x1800x2350 mm
LHVS3150060HzSupply voltage: 3300 V | Motor rating: 1500 kW | Rated current: 330 A | Frequency: 60 Hz | Size W x D x H: 1600x1800x2350 mm
LHVS6150050HzSupply voltage: 6600 V | Motor rating: 1500 kW | Rated current: 160 A | Frequency: 50 Hz | Size W x D x H: 1300x1500x2350 mm
LHVS6150060HzSupply voltage: 6600 V | Motor rating: 1500 kW | Rated current: 160 A | Frequency: 60 Hz | Size W x D x H: 1300x1500x2350 mm
LHVS6180050HzSupply voltage: 6600 V | Motor rating: 1800 kW | Rated current: 200 A | Frequency: 50 Hz | Size W x D x H: 1600x1800x2350 mm
LHVS6180060HzSupply voltage: 6600 V | Motor rating: 1800 kW | Rated current: 200 A | Frequency: 60 Hz | Size W x D x H: 1600x1800x2350 mm
LHVS6250050HzSupply voltage: 6600 V | Motor rating: 2500 kW | Rated current: 270 A | Frequency: 50 Hz | Size W x D x H: 2000x2200x2350 mm
LHVS6250060HzSupply voltage: 6600 V | Motor rating: 2500 kW | Rated current: 270 A | Frequency: 60 Hz | Size W x D x H: 2000x2200x2350 mm
LHVS6380050HzSupply voltage: 6600 V | Motor rating: 3800 kW | Rated current: 410 A | Frequency: 50 Hz | Size W x D x H: 2000x2200x2350 mm
LHVS6380060HzSupply voltage: 6600 V | Motor rating: 3800 kW | Rated current: 410 A | Frequency: 60 Hz | Size W x D x H: 2000x2200x2350 mm
