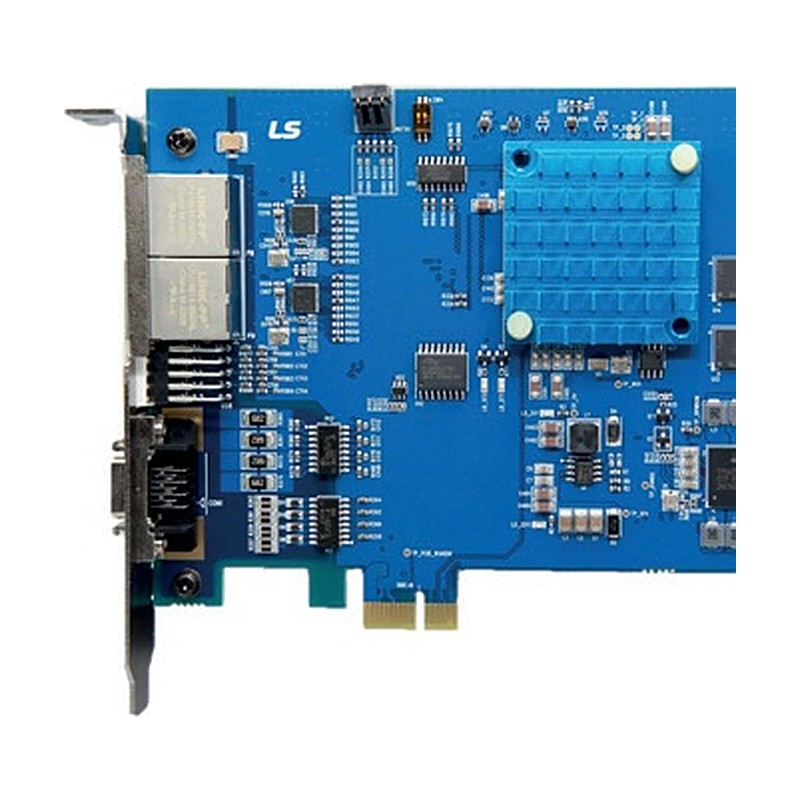

LS Electric MXP-PCIe EtherCAT Motion Controller Boards (8-64 axes)

LS Mecapion (LS Electric group) MXP-PCIe hardware-based EtherCAT master motion controller boards for PCs, controlling 8 to 64 servo axes with a 125 us minimum cycle.

Key features

Hardware-based EtherCAT master, up to 64 axes and 128 nodes
Position, velocity and torque control; jog, PTP, linear and circular interpolation
Synchronous motion: gearing, external sync, electronic cam and electronic gear
2-port EtherCAT with cable redundancy, cycle time down to 125 us
Up to 4 boards per PC with board ID switch; 4 in / 4 out isolated I/O
API for Visual C++, C#, VB, Delphi, Python and LabVIEW on Windows 7/10/11

Specifications

Bus interface	PCI Express Gen2 x1 (5 Gbps)
Network	2-port EtherCAT, 100 Mbps full duplex
Nodes	Up to 128
Cycle time	Up to 125 us
Motion profiles	Trapezoidal, jerk, buffer blending
I/O	4 in / 4 out, opto-isolated, MDR 15-pin
Processor	1.5 GHz CPU
Power	12 V, 1.5 A max
Operating temperature	0 to +50 C
Certification	CE, KC
Source	LS Mecapion MXP-PCIe EtherCAT Motion Controller leaflet, p. 2-3

MXP-PCIe-08		Axes: 8
MXP-PCIe-16		Axes: 16
MXP-PCIe-32		Axes: 32
MXP-PCIe-64		Axes: 64

Motion ControllersLS Electric

4 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric MXP-PCIe EtherCAT Motion Controller Boards (8-64 axes)

Brand LS Electric·Motion Controllers

Available part numbers (4)

MXP-PCIe-08, MXP-PCIe-16, MXP-PCIe-32, MXP-PCIe-64

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
