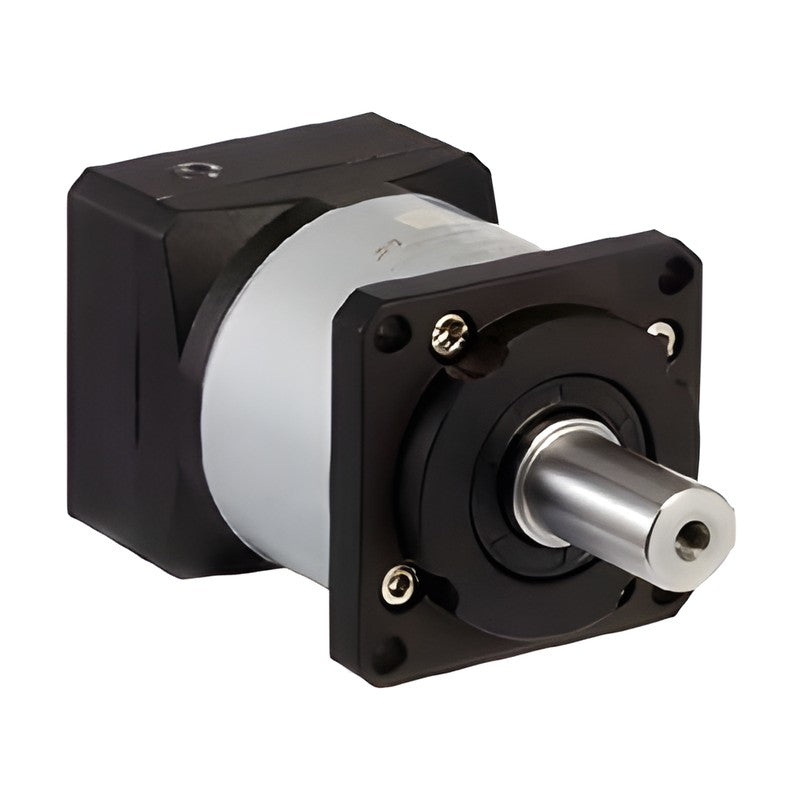

LS Electric Planetary Gearbox Motor Adapters (Frames 1-7)

LS Electric Planetary Gearbox Motor Adapters (Frames 1-7)

LS Electric motor adapter kits (new-code standard) that mount LS, HIGEN, Mitsubishi, Panasonic and Yaskawa servo motors to LS precision planetary gearboxes, frames 1-7.

Key features

  • Adapter flange plate and input bushing matched to the servo motor flange and shaft
  • Frame letter A-G of the code matches gearbox frame 1-7 (actual size per series, catalog p.6)
  • Covers LS APM(C), HIGEN FMA, Mitsubishi HF/HG/HC/HA, Panasonic MINAS and Yaskawa SGM motors
  • Clamp coupling input for zero-backlash motor shaft connection
  • Detailed adapter selection via LS Electric gearbox Size Manager

Specifications

Function Servo motor to gearbox adapter
Compatible gearboxes LS MS*/MA*/HS*/HA* planetary series
Gearbox frames 1 to 7 (code letter A to G)
Motor shaft range 5 to 55 mm
Motor makes LS, HIGEN, Mitsubishi, Panasonic, Yaskawa
Coding New-code standard
Selection tool LS Electric Size Manager
Source LS Electric Precision Planetary Gearbox catalog (2025.02), p. 88-94
A2110102C05 Gearbox frame: Frame 1 | Motor shaft: 5 mm | Motor makes: Yaskawa
A2110103C05 Gearbox frame: Frame 1 | Motor shaft: 5 mm | Motor makes: Mitsubishi
A3110103C08 Gearbox frame: Frame 1 | Motor shaft: 8 mm | Motor makes: LS/HIGEN/Mitsubishi/Panasonic/Yaskawa
A3120203C08 Gearbox frame: Frame 1 | Motor shaft: 8 mm | Motor makes: Panasonic
A3210102C08 Gearbox frame: Frame 1 | Motor shaft: 8 mm | Motor makes: Panasonic
A3310102C08 Gearbox frame: Frame 1 | Motor shaft: 8 mm | Motor makes: Panasonic
A4110102C08 Gearbox frame: Frame 1 | Motor shaft: 8 mm | Motor makes: Panasonic
A4110103C08 Gearbox frame: Frame 1 | Motor shaft: 8 mm | Motor makes: Yaskawa
A4110202C08 Gearbox frame: Frame 1 | Motor shaft: 8 mm | Motor makes: Panasonic
B2110103C08 Gearbox frame: Frame 2 | Motor shaft: 8 mm | Motor makes: LS/HIGEN/Mitsubishi/Panasonic/Yaskawa
B2120203C08 Gearbox frame: Frame 2 | Motor shaft: 8 mm | Motor makes: Panasonic
B2210102C08 Gearbox frame: Frame 2 | Motor shaft: 8 mm | Motor makes: Panasonic
B2310102C08 Gearbox frame: Frame 2 | Motor shaft: 8 mm | Motor makes: Panasonic
B2311102C11 Gearbox frame: Frame 2 | Motor shaft: 11 mm | Motor makes: Panasonic
B3110102C08 Gearbox frame: Frame 2 | Motor shaft: 8 mm | Motor makes: Panasonic
B3110102C11 Gearbox frame: Frame 2 | Motor shaft: 11 mm | Motor makes: Panasonic
B3110102C14 Gearbox frame: Frame 2 | Motor shaft: 14 mm | Motor makes: Panasonic
B3110103C08 Gearbox frame: Frame 2 | Motor shaft: 8 mm | Motor makes: Yaskawa
B3110103C14 Gearbox frame: Frame 2 | Motor shaft: 14 mm | Motor makes: LS/HIGEN/Mitsubishi/Yaskawa
B3120202C08 Gearbox frame: Frame 2 | Motor shaft: 8 mm | Motor makes: Panasonic
B3120202C11 Gearbox frame: Frame 2 | Motor shaft: 11 mm | Motor makes: Panasonic
B3120202C14 Gearbox frame: Frame 2 | Motor shaft: 14 mm | Motor makes: Panasonic
B4110102C11 Gearbox frame: Frame 2 | Motor shaft: 11 mm | Motor makes: Panasonic
B4110102C14 Gearbox frame: Frame 2 | Motor shaft: 14 mm | Motor makes: Panasonic
B4110103C14 Gearbox frame: Frame 2 | Motor shaft: 14 mm | Motor makes: LS/HIGEN/Yaskawa
B4110202C11 Gearbox frame: Frame 2 | Motor shaft: 11 mm | Motor makes: Panasonic
B4110202C14 Gearbox frame: Frame 2 | Motor shaft: 14 mm | Motor makes: Panasonic
B4211103C14 Gearbox frame: Frame 2 | Motor shaft: 14 mm | Motor makes: Yaskawa
C2110102C11 Gearbox frame: Frame 3 | Motor shaft: 11 mm | Motor makes: Panasonic
C2110102C14 Gearbox frame: Frame 3 | Motor shaft: 14 mm | Motor makes: Panasonic
C2110103C14 Gearbox frame: Frame 3 | Motor shaft: 14 mm | Motor makes: LS/HIGEN/Mitsubishi/Yaskawa
C2120202C11 Gearbox frame: Frame 3 | Motor shaft: 11 mm | Motor makes: Panasonic
C2120202C14 Gearbox frame: Frame 3 | Motor shaft: 14 mm | Motor makes: Panasonic
C3110102C11 Gearbox frame: Frame 3 | Motor shaft: 11 mm | Motor makes: Panasonic
C3110102C14 Gearbox frame: Frame 3 | Motor shaft: 14 mm | Motor makes: Panasonic
C3110102C19 Gearbox frame: Frame 3 | Motor shaft: 19 mm | Motor makes: Panasonic
C3110103C14 Gearbox frame: Frame 3 | Motor shaft: 14 mm | Motor makes: LS/HIGEN/Yaskawa
C3110103C16 Gearbox frame: Frame 3 | Motor shaft: 16 mm | Motor makes: LS/HIGEN
C3110103C19 Gearbox frame: Frame 3 | Motor shaft: 19 mm | Motor makes: LS/Mitsubishi/Yaskawa
C3120202C11 Gearbox frame: Frame 3 | Motor shaft: 11 mm | Motor makes: Panasonic
C3120202C14 Gearbox frame: Frame 3 | Motor shaft: 14 mm | Motor makes: Panasonic
C3120202C19 Gearbox frame: Frame 3 | Motor shaft: 19 mm | Motor makes: Panasonic
C3210103C16 Gearbox frame: Frame 3 | Motor shaft: 16 mm | Motor makes: Mitsubishi
C3221103C14 Gearbox frame: Frame 3 | Motor shaft: 14 mm | Motor makes: Yaskawa
C3221103C16 Gearbox frame: Frame 3 | Motor shaft: 16 mm | Motor makes: Mitsubishi/Yaskawa
C4110103C16 Gearbox frame: Frame 3 | Motor shaft: 16 mm | Motor makes: Yaskawa
C4110103C19 Gearbox frame: Frame 3 | Motor shaft: 19 mm | Motor makes: Yaskawa
C4120103C19 Gearbox frame: Frame 3 | Motor shaft: 19 mm | Motor makes: LS/HIGEN/Yaskawa
C4221103C19 Gearbox frame: Frame 3 | Motor shaft: 19 mm | Motor makes: Panasonic
D2110102C14 Gearbox frame: Frame 4 | Motor shaft: 14 mm | Motor makes: Panasonic
D2110102C19 Gearbox frame: Frame 4 | Motor shaft: 19 mm | Motor makes: Panasonic
D2110103C14 Gearbox frame: Frame 4 | Motor shaft: 14 mm | Motor makes: LS/HIGEN/Yaskawa
D2110103C16 Gearbox frame: Frame 4 | Motor shaft: 16 mm | Motor makes: LS/HIGEN
D2110103C19 Gearbox frame: Frame 4 | Motor shaft: 19 mm | Motor makes: LS/Mitsubishi/Yaskawa
D2120202C14 Gearbox frame: Frame 4 | Motor shaft: 14 mm | Motor makes: Panasonic
D2120202C19 Gearbox frame: Frame 4 | Motor shaft: 19 mm | Motor makes: Panasonic
D2210103C16 Gearbox frame: Frame 4 | Motor shaft: 16 mm | Motor makes: Mitsubishi/Yaskawa
D2211103C16 Gearbox frame: Frame 4 | Motor shaft: 16 mm | Motor makes: Mitsubishi/Yaskawa
D2221103C14 Gearbox frame: Frame 4 | Motor shaft: 14 mm | Motor makes: Yaskawa
D3110103C16 Gearbox frame: Frame 4 | Motor shaft: 16 mm | Motor makes: Yaskawa
D3110103C19 Gearbox frame: Frame 4 | Motor shaft: 19 mm | Motor makes: LS/HIGEN/Yaskawa
D3110103C22 Gearbox frame: Frame 4 | Motor shaft: 22 mm | Motor makes: LS/HIGEN/Panasonic/Yaskawa
D3110103C24 Gearbox frame: Frame 4 | Motor shaft: 24 mm | Motor makes: LS/Mitsubishi/Yaskawa
D3120103C22 Gearbox frame: Frame 4 | Motor shaft: 22 mm | Motor makes: Panasonic
D3120103C24 Gearbox frame: Frame 4 | Motor shaft: 24 mm | Motor makes: Panasonic
D3210103C19 Gearbox frame: Frame 4 | Motor shaft: 19 mm | Motor makes: Panasonic
D3210103C24 Gearbox frame: Frame 4 | Motor shaft: 24 mm | Motor makes: Mitsubishi
D3211102C24 Gearbox frame: Frame 4 | Motor shaft: 24 mm | Motor makes: Yaskawa
D3211103C19 Gearbox frame: Frame 4 | Motor shaft: 19 mm | Motor makes: Panasonic
D3211103C24 Gearbox frame: Frame 4 | Motor shaft: 24 mm | Motor makes: Mitsubishi
D4110103C22 Gearbox frame: Frame 4 | Motor shaft: 22 mm | Motor makes: Mitsubishi
E2110103C16 Gearbox frame: Frame 5 | Motor shaft: 16 mm | Motor makes: Yaskawa
E2110103C19 Gearbox frame: Frame 5 | Motor shaft: 19 mm | Motor makes: LS/HIGEN/Yaskawa
E2110103C22 Gearbox frame: Frame 5 | Motor shaft: 22 mm | Motor makes: LS/HIGEN/Panasonic/Yaskawa
E2110103C24 Gearbox frame: Frame 5 | Motor shaft: 24 mm | Motor makes: LS/Mitsubishi/Panasonic/Yaskawa
E2110103C28 Gearbox frame: Frame 5 | Motor shaft: 28 mm | Motor makes: Mitsubishi/Yaskawa
E2210103C19 Gearbox frame: Frame 5 | Motor shaft: 19 mm | Motor makes: Panasonic
E2210103C24 Gearbox frame: Frame 5 | Motor shaft: 24 mm | Motor makes: Mitsubishi
E2211102C24 Gearbox frame: Frame 5 | Motor shaft: 24 mm | Motor makes: Yaskawa
E2211103C19 Gearbox frame: Frame 5 | Motor shaft: 19 mm | Motor makes: Panasonic
E2211103C24 Gearbox frame: Frame 5 | Motor shaft: 24 mm | Motor makes: Mitsubishi
E3110103C22 Gearbox frame: Frame 5 | Motor shaft: 22 mm | Motor makes: Mitsubishi
E3110103C28 Gearbox frame: Frame 5 | Motor shaft: 28 mm | Motor makes: Mitsubishi
E3110103C35 Gearbox frame: Frame 5 | Motor shaft: 35 mm | Motor makes: LS/HIGEN/Mitsubishi/Panasonic/Yaskawa
E4110103C35 Gearbox frame: Frame 5 | Motor shaft: 35 mm | Motor makes: LS/Mitsubishi/Panasonic
F2110103C22 Gearbox frame: Frame 6 | Motor shaft: 22 mm | Motor makes: LS/HIGEN/Panasonic/Yaskawa
F2110103C24 Gearbox frame: Frame 6 | Motor shaft: 24 mm | Motor makes: LS/Mitsubishi/Panasonic/Yaskawa
F2110103C28 Gearbox frame: Frame 6 | Motor shaft: 28 mm | Motor makes: Mitsubishi/Yaskawa
F2211102C24 Gearbox frame: Frame 6 | Motor shaft: 24 mm | Motor makes: Yaskawa
F2211103C24 Gearbox frame: Frame 6 | Motor shaft: 24 mm | Motor makes: Mitsubishi
F3110103C22 Gearbox frame: Frame 6 | Motor shaft: 22 mm | Motor makes: Mitsubishi
F3110103C28 Gearbox frame: Frame 6 | Motor shaft: 28 mm | Motor makes: Mitsubishi
F3110103C35 Gearbox frame: Frame 6 | Motor shaft: 35 mm | Motor makes: LS/HIGEN/Mitsubishi/Panasonic/Yaskawa
F3110103C42 Gearbox frame: Frame 6 | Motor shaft: 42 mm | Motor makes: LS
F3120103C42 Gearbox frame: Frame 6 | Motor shaft: 42 mm | Motor makes: LS/Panasonic/Yaskawa
F4110103C35 Gearbox frame: Frame 6 | Motor shaft: 35 mm | Motor makes: LS/Mitsubishi/Panasonic
F4110103C42 Gearbox frame: Frame 6 | Motor shaft: 42 mm | Motor makes: LS
F4120103C42 Gearbox frame: Frame 6 | Motor shaft: 42 mm | Motor makes: LS/Mitsubishi/Yaskawa
F4210103C42 Gearbox frame: Frame 6 | Motor shaft: 42 mm | Motor makes: HIGEN
F4211103C42 Gearbox frame: Frame 6 | Motor shaft: 42 mm | Motor makes: Mitsubishi
G2110103C28 Gearbox frame: Frame 7 | Motor shaft: 28 mm | Motor makes: Mitsubishi
G2110103C35 Gearbox frame: Frame 7 | Motor shaft: 35 mm | Motor makes: LS/HIGEN/Mitsubishi/Panasonic/Yaskawa
G2110103C42 Gearbox frame: Frame 7 | Motor shaft: 42 mm | Motor makes: LS
G2120103C42 Gearbox frame: Frame 7 | Motor shaft: 42 mm | Motor makes: LS/Panasonic/Yaskawa
G3110103C35 Gearbox frame: Frame 7 | Motor shaft: 35 mm | Motor makes: LS/Mitsubishi/Panasonic
G3110103C42 Gearbox frame: Frame 7 | Motor shaft: 42 mm | Motor makes: LS
G3110103C45 Gearbox frame: Frame 7 | Motor shaft: 45 mm | Motor makes: LS/Mitsubishi
G3120103C42 Gearbox frame: Frame 7 | Motor shaft: 42 mm | Motor makes: LS/HIGEN/Mitsubishi/Yaskawa
G3120103C48 Gearbox frame: Frame 7 | Motor shaft: 48 mm | Motor makes: HIGEN
G3120103C55 Gearbox frame: Frame 7 | Motor shaft: 55 mm | Motor makes: LS/HIGEN/Mitsubishi/Panasonic/Yaskawa
G3211103C42 Gearbox frame: Frame 7 | Motor shaft: 42 mm | Motor makes: Mitsubishi
G4110103C55 Gearbox frame: Frame 7 | Motor shaft: 55 mm | Motor makes: Mitsubishi
Planetary Gearbox AccessoriesLS Electric
112 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Planetary Gearbox Motor Adapters (Frames 1-7)

Brand LS Electric·Planetary Gearbox Accessories

Available part numbers (112)

A2110102C05, A2110103C05, A3110103C08, A3120203C08, A3210102C08, A3310102C08, A4110102C08, A4110103C08, A4110202C08, B2110103C08 + 102 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
A2110102C05Gearbox frame: Frame 1 | Motor shaft: 5 mm | Motor makes: Yaskawa
A2110103C05Gearbox frame: Frame 1 | Motor shaft: 5 mm | Motor makes: Mitsubishi
A3110103C08Gearbox frame: Frame 1 | Motor shaft: 8 mm | Motor makes: LS/HIGEN/Mitsubishi/Panasonic/Yaskawa
A3120203C08Gearbox frame: Frame 1 | Motor shaft: 8 mm | Motor makes: Panasonic
A3210102C08Gearbox frame: Frame 1 | Motor shaft: 8 mm | Motor makes: Panasonic
A3310102C08Gearbox frame: Frame 1 | Motor shaft: 8 mm | Motor makes: Panasonic
A4110102C08Gearbox frame: Frame 1 | Motor shaft: 8 mm | Motor makes: Panasonic
A4110103C08Gearbox frame: Frame 1 | Motor shaft: 8 mm | Motor makes: Yaskawa
A4110202C08Gearbox frame: Frame 1 | Motor shaft: 8 mm | Motor makes: Panasonic
B2110103C08Gearbox frame: Frame 2 | Motor shaft: 8 mm | Motor makes: LS/HIGEN/Mitsubishi/Panasonic/Yaskawa
B2120203C08Gearbox frame: Frame 2 | Motor shaft: 8 mm | Motor makes: Panasonic
B2210102C08Gearbox frame: Frame 2 | Motor shaft: 8 mm | Motor makes: Panasonic
B2310102C08Gearbox frame: Frame 2 | Motor shaft: 8 mm | Motor makes: Panasonic
B2311102C11Gearbox frame: Frame 2 | Motor shaft: 11 mm | Motor makes: Panasonic
B3110102C08Gearbox frame: Frame 2 | Motor shaft: 8 mm | Motor makes: Panasonic
B3110102C11Gearbox frame: Frame 2 | Motor shaft: 11 mm | Motor makes: Panasonic
B3110102C14Gearbox frame: Frame 2 | Motor shaft: 14 mm | Motor makes: Panasonic
B3110103C08Gearbox frame: Frame 2 | Motor shaft: 8 mm | Motor makes: Yaskawa
B3110103C14Gearbox frame: Frame 2 | Motor shaft: 14 mm | Motor makes: LS/HIGEN/Mitsubishi/Yaskawa
B3120202C08Gearbox frame: Frame 2 | Motor shaft: 8 mm | Motor makes: Panasonic
B3120202C11Gearbox frame: Frame 2 | Motor shaft: 11 mm | Motor makes: Panasonic
B3120202C14Gearbox frame: Frame 2 | Motor shaft: 14 mm | Motor makes: Panasonic
B4110102C11Gearbox frame: Frame 2 | Motor shaft: 11 mm | Motor makes: Panasonic
B4110102C14Gearbox frame: Frame 2 | Motor shaft: 14 mm | Motor makes: Panasonic
B4110103C14Gearbox frame: Frame 2 | Motor shaft: 14 mm | Motor makes: LS/HIGEN/Yaskawa
B4110202C11Gearbox frame: Frame 2 | Motor shaft: 11 mm | Motor makes: Panasonic
B4110202C14Gearbox frame: Frame 2 | Motor shaft: 14 mm | Motor makes: Panasonic
B4211103C14Gearbox frame: Frame 2 | Motor shaft: 14 mm | Motor makes: Yaskawa
C2110102C11Gearbox frame: Frame 3 | Motor shaft: 11 mm | Motor makes: Panasonic
C2110102C14Gearbox frame: Frame 3 | Motor shaft: 14 mm | Motor makes: Panasonic
C2110103C14Gearbox frame: Frame 3 | Motor shaft: 14 mm | Motor makes: LS/HIGEN/Mitsubishi/Yaskawa
C2120202C11Gearbox frame: Frame 3 | Motor shaft: 11 mm | Motor makes: Panasonic
C2120202C14Gearbox frame: Frame 3 | Motor shaft: 14 mm | Motor makes: Panasonic
C3110102C11Gearbox frame: Frame 3 | Motor shaft: 11 mm | Motor makes: Panasonic
C3110102C14Gearbox frame: Frame 3 | Motor shaft: 14 mm | Motor makes: Panasonic
C3110102C19Gearbox frame: Frame 3 | Motor shaft: 19 mm | Motor makes: Panasonic
C3110103C14Gearbox frame: Frame 3 | Motor shaft: 14 mm | Motor makes: LS/HIGEN/Yaskawa
C3110103C16Gearbox frame: Frame 3 | Motor shaft: 16 mm | Motor makes: LS/HIGEN
C3110103C19Gearbox frame: Frame 3 | Motor shaft: 19 mm | Motor makes: LS/Mitsubishi/Yaskawa
C3120202C11Gearbox frame: Frame 3 | Motor shaft: 11 mm | Motor makes: Panasonic
C3120202C14Gearbox frame: Frame 3 | Motor shaft: 14 mm | Motor makes: Panasonic
C3120202C19Gearbox frame: Frame 3 | Motor shaft: 19 mm | Motor makes: Panasonic
C3210103C16Gearbox frame: Frame 3 | Motor shaft: 16 mm | Motor makes: Mitsubishi
C3221103C14Gearbox frame: Frame 3 | Motor shaft: 14 mm | Motor makes: Yaskawa
C3221103C16Gearbox frame: Frame 3 | Motor shaft: 16 mm | Motor makes: Mitsubishi/Yaskawa
C4110103C16Gearbox frame: Frame 3 | Motor shaft: 16 mm | Motor makes: Yaskawa
C4110103C19Gearbox frame: Frame 3 | Motor shaft: 19 mm | Motor makes: Yaskawa
C4120103C19Gearbox frame: Frame 3 | Motor shaft: 19 mm | Motor makes: LS/HIGEN/Yaskawa
C4221103C19Gearbox frame: Frame 3 | Motor shaft: 19 mm | Motor makes: Panasonic
D2110102C14Gearbox frame: Frame 4 | Motor shaft: 14 mm | Motor makes: Panasonic
D2110102C19Gearbox frame: Frame 4 | Motor shaft: 19 mm | Motor makes: Panasonic
D2110103C14Gearbox frame: Frame 4 | Motor shaft: 14 mm | Motor makes: LS/HIGEN/Yaskawa
D2110103C16Gearbox frame: Frame 4 | Motor shaft: 16 mm | Motor makes: LS/HIGEN
D2110103C19Gearbox frame: Frame 4 | Motor shaft: 19 mm | Motor makes: LS/Mitsubishi/Yaskawa
D2120202C14Gearbox frame: Frame 4 | Motor shaft: 14 mm | Motor makes: Panasonic
D2120202C19Gearbox frame: Frame 4 | Motor shaft: 19 mm | Motor makes: Panasonic
D2210103C16Gearbox frame: Frame 4 | Motor shaft: 16 mm | Motor makes: Mitsubishi/Yaskawa
D2211103C16Gearbox frame: Frame 4 | Motor shaft: 16 mm | Motor makes: Mitsubishi/Yaskawa
D2221103C14Gearbox frame: Frame 4 | Motor shaft: 14 mm | Motor makes: Yaskawa
D3110103C16Gearbox frame: Frame 4 | Motor shaft: 16 mm | Motor makes: Yaskawa
D3110103C19Gearbox frame: Frame 4 | Motor shaft: 19 mm | Motor makes: LS/HIGEN/Yaskawa
D3110103C22Gearbox frame: Frame 4 | Motor shaft: 22 mm | Motor makes: LS/HIGEN/Panasonic/Yaskawa
D3110103C24Gearbox frame: Frame 4 | Motor shaft: 24 mm | Motor makes: LS/Mitsubishi/Yaskawa
D3120103C22Gearbox frame: Frame 4 | Motor shaft: 22 mm | Motor makes: Panasonic
D3120103C24Gearbox frame: Frame 4 | Motor shaft: 24 mm | Motor makes: Panasonic
D3210103C19Gearbox frame: Frame 4 | Motor shaft: 19 mm | Motor makes: Panasonic
D3210103C24Gearbox frame: Frame 4 | Motor shaft: 24 mm | Motor makes: Mitsubishi
D3211102C24Gearbox frame: Frame 4 | Motor shaft: 24 mm | Motor makes: Yaskawa
D3211103C19Gearbox frame: Frame 4 | Motor shaft: 19 mm | Motor makes: Panasonic
D3211103C24Gearbox frame: Frame 4 | Motor shaft: 24 mm | Motor makes: Mitsubishi
D4110103C22Gearbox frame: Frame 4 | Motor shaft: 22 mm | Motor makes: Mitsubishi
E2110103C16Gearbox frame: Frame 5 | Motor shaft: 16 mm | Motor makes: Yaskawa
E2110103C19Gearbox frame: Frame 5 | Motor shaft: 19 mm | Motor makes: LS/HIGEN/Yaskawa
E2110103C22Gearbox frame: Frame 5 | Motor shaft: 22 mm | Motor makes: LS/HIGEN/Panasonic/Yaskawa
E2110103C24Gearbox frame: Frame 5 | Motor shaft: 24 mm | Motor makes: LS/Mitsubishi/Panasonic/Yaskawa
E2110103C28Gearbox frame: Frame 5 | Motor shaft: 28 mm | Motor makes: Mitsubishi/Yaskawa
E2210103C19Gearbox frame: Frame 5 | Motor shaft: 19 mm | Motor makes: Panasonic
E2210103C24Gearbox frame: Frame 5 | Motor shaft: 24 mm | Motor makes: Mitsubishi
E2211102C24Gearbox frame: Frame 5 | Motor shaft: 24 mm | Motor makes: Yaskawa
E2211103C19Gearbox frame: Frame 5 | Motor shaft: 19 mm | Motor makes: Panasonic
E2211103C24Gearbox frame: Frame 5 | Motor shaft: 24 mm | Motor makes: Mitsubishi
E3110103C22Gearbox frame: Frame 5 | Motor shaft: 22 mm | Motor makes: Mitsubishi
E3110103C28Gearbox frame: Frame 5 | Motor shaft: 28 mm | Motor makes: Mitsubishi
E3110103C35Gearbox frame: Frame 5 | Motor shaft: 35 mm | Motor makes: LS/HIGEN/Mitsubishi/Panasonic/Yaskawa
E4110103C35Gearbox frame: Frame 5 | Motor shaft: 35 mm | Motor makes: LS/Mitsubishi/Panasonic
F2110103C22Gearbox frame: Frame 6 | Motor shaft: 22 mm | Motor makes: LS/HIGEN/Panasonic/Yaskawa
F2110103C24Gearbox frame: Frame 6 | Motor shaft: 24 mm | Motor makes: LS/Mitsubishi/Panasonic/Yaskawa
F2110103C28Gearbox frame: Frame 6 | Motor shaft: 28 mm | Motor makes: Mitsubishi/Yaskawa
F2211102C24Gearbox frame: Frame 6 | Motor shaft: 24 mm | Motor makes: Yaskawa
F2211103C24Gearbox frame: Frame 6 | Motor shaft: 24 mm | Motor makes: Mitsubishi
F3110103C22Gearbox frame: Frame 6 | Motor shaft: 22 mm | Motor makes: Mitsubishi
F3110103C28Gearbox frame: Frame 6 | Motor shaft: 28 mm | Motor makes: Mitsubishi
F3110103C35Gearbox frame: Frame 6 | Motor shaft: 35 mm | Motor makes: LS/HIGEN/Mitsubishi/Panasonic/Yaskawa
F3110103C42Gearbox frame: Frame 6 | Motor shaft: 42 mm | Motor makes: LS
F3120103C42Gearbox frame: Frame 6 | Motor shaft: 42 mm | Motor makes: LS/Panasonic/Yaskawa
F4110103C35Gearbox frame: Frame 6 | Motor shaft: 35 mm | Motor makes: LS/Mitsubishi/Panasonic
F4110103C42Gearbox frame: Frame 6 | Motor shaft: 42 mm | Motor makes: LS
F4120103C42Gearbox frame: Frame 6 | Motor shaft: 42 mm | Motor makes: LS/Mitsubishi/Yaskawa
F4210103C42Gearbox frame: Frame 6 | Motor shaft: 42 mm | Motor makes: HIGEN
F4211103C42Gearbox frame: Frame 6 | Motor shaft: 42 mm | Motor makes: Mitsubishi
G2110103C28Gearbox frame: Frame 7 | Motor shaft: 28 mm | Motor makes: Mitsubishi
G2110103C35Gearbox frame: Frame 7 | Motor shaft: 35 mm | Motor makes: LS/HIGEN/Mitsubishi/Panasonic/Yaskawa
G2110103C42Gearbox frame: Frame 7 | Motor shaft: 42 mm | Motor makes: LS
G2120103C42Gearbox frame: Frame 7 | Motor shaft: 42 mm | Motor makes: LS/Panasonic/Yaskawa
G3110103C35Gearbox frame: Frame 7 | Motor shaft: 35 mm | Motor makes: LS/Mitsubishi/Panasonic
G3110103C42Gearbox frame: Frame 7 | Motor shaft: 42 mm | Motor makes: LS
G3110103C45Gearbox frame: Frame 7 | Motor shaft: 45 mm | Motor makes: LS/Mitsubishi
G3120103C42Gearbox frame: Frame 7 | Motor shaft: 42 mm | Motor makes: LS/HIGEN/Mitsubishi/Yaskawa
G3120103C48Gearbox frame: Frame 7 | Motor shaft: 48 mm | Motor makes: HIGEN
G3120103C55Gearbox frame: Frame 7 | Motor shaft: 55 mm | Motor makes: LS/HIGEN/Mitsubishi/Panasonic/Yaskawa
G3211103C42Gearbox frame: Frame 7 | Motor shaft: 42 mm | Motor makes: Mitsubishi
G4110103C55Gearbox frame: Frame 7 | Motor shaft: 55 mm | Motor makes: Mitsubishi

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
